IslandPath Analysis: Xanthobacter autotrophicus Py2

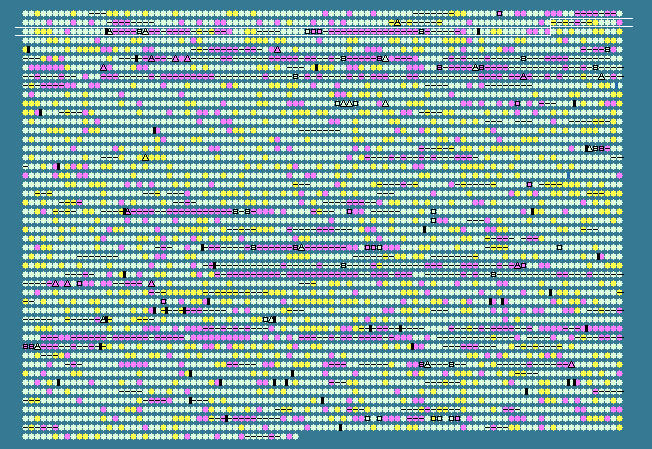

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.51 STD DEV: 3.97
Xanthobacter autotrophicus Py2, complete genome - 1..5308934
4746 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
189	 72.13	+1	189946..191556	-	536	154244147	-	Xaut_0189	-	gamma-glutamyltransferase
190	 66.28	0	191770..192027	+	85	154244148	-	Xaut_0190	-	hypothetical protein
191	 72.32	+1	192034..192687	-	217	154244149	-	Xaut_0191	-	nitroreductase
192	 69.56	0	193225..193950	+	241	154244150	-	Xaut_0192	-	cold-shock DNA-binding domain-containing protein
193	 60.15	-1	193987..194247	+	86	154244151	-	Xaut_0193	-	hypothetical protein
194	 67.12	0	194546..195418	+	290	154244152	-	Xaut_0194	-	exodeoxyribonuclease III Xth
195	 72.65	+1	195405..196139	-	244	154244153	-	Xaut_0195	-	hypothetical protein
196	 72.02	+1	196556..198088	+	510	154244154	-	Xaut_0196	-	histidine kinase
197	 65.32	0	198212..199252	+	346	154244155	-	Xaut_0197	-	phosphate ABC transporter, periplasmic phosphate-binding protein
198	 65.64	0	199429..200406	+	325	154244156	-	Xaut_0198	-	phosphate ABC transporter, inner membrane subunit PstC
199	 69.18	0	200424..201257	+	277	154244157	-	Xaut_0199	-	phosphate ABC transporter, inner membrane subunit PstA
200	 63.88	0	201320..202144	+	274	154244158	-	Xaut_0200	-	phosphate ABC transporter, ATPase subunit
201	 64.61	0	202266..202994	+	242	154244159	-	Xaut_0201	-	phosphate uptake regulator, PhoU
202	 68.95	0	203078..203779	+	233	154244160	-	Xaut_0202	-	two component transcriptional regulator
203	 73.24	+1	204084..205436	-	450	154244161	-	Xaut_0203	-	amine oxidase
204	 71.48	0	205521..206912	-	463	154244162	-	Xaut_0204	-	amine oxidase
205	 74.33	+1	206967..207893	-	308	154244163	-	Xaut_0205	-	polyprenyl synthetase
206	 69.35	0	208071..208742	+	223	154244164	-	Xaut_0206	-	monofunctional biosynthetic peptidoglycan transglycosylase
207	 64.46	0	208872..209459	+	195	154244165	-	Xaut_0207	-	intracellular septation protein A
208	 63.98	0	209554..210000	+	148	154244166	-	Xaut_0208	-	BadM/Rrf2 family transcriptional regulator
209	 67.51	0	210021..211202	-	393	154244167	-	Xaut_0209	-	ABC-2 type transporter
210	 68.45	0	211204..213954	-	916	154244168	-	Xaut_0210	-	ABC transporter related
211	 70.48	0	213966..214961	-	331	154244169	-	Xaut_0211	-	secretion protein HlyD family protein
212	 69.30	0	215116..215913	-	265	154244170	-	Xaut_0212	-	hypothetical protein
213	 66.67	0	215965..216426	-	153	154244171	-	Xaut_0213	-	AsnC family transcriptional regulator
214	 70.77	0	216589..219048	+	819	154244172	-	Xaut_0214	-	pyruvate dehydrogenase (acetyl-transferring)
215	 64.13	0	219645..221297	+	550	154244173	-	Xaut_0215	-	integrase family protein
216	 59.26	-2	221574..222410	-	278	154244174	-	Xaut_0216	-	hypothetical protein
217	 62.71	-1	222998..224008	+	336	154244175	-	Xaut_0217	-	hypothetical protein
218	 62.22	-1	224108..224332	+	74	154244176	-	Xaut_0218	-	putative addiction module antidote
219	 63.93	0	224329..224766	+	145	154244177	-	Xaut_0219	-	death-on-curing family protein
220	 64.04	0	225848..226114	+	88	154244178	-	Xaut_0220	-	transposase IS3/IS911 family protein
221	 66.32	0	226165..227037	+	290	154244179	-	Xaut_0221	-	integrase catalytic region
222	 59.47	-2	227174..228715	+	513	154244180	-	Xaut_0222	-	hypothetical protein
223	 59.99	-1	228702..230738	+	678	154244181	-	Xaut_0223	-	hypothetical protein
224	 64.46	0	231267..232217	-	316	154244182	-	Xaut_0225	-	hypothetical protein
225	 63.06	-1	232293..232874	-	193	154244183	-	Xaut_0226	-	hypothetical protein
226	 62.31	-1	232874..233470	-	198	154244184	-	Xaut_0227	-	hypothetical protein
227	 49.10	-2	233677..235788	-	703	154244185	-	Xaut_0228	-	hypothetical protein
228	 50.18	-2	235785..236888	-	367	154244186	-	Xaut_0229	-	hypothetical protein
229	 66.57	0	237404..238471	-	355	154244187	-	Xaut_0230	-	peptidase C14 caspase catalytic subunit p20
230	 71.11	0	238501..240975	-	824	154244188	-	Xaut_0231	-	hypothetical protein
231	 69.68	0	240993..241823	-	276	154244189	-	Xaut_0232	-	hypothetical protein
232	 71.51	+1	242283..243686	-	467	154244190	-	Xaut_0233	-	LigA
233	 60.83	-1	244478..245248	-	256	154244191	-	Xaut_0234	-	protein of unknown function DUF900 hydrolase family protein
234	 62.56	-1	245252..245884	+	210	154244192	-	Xaut_0235	-	hypothetical protein
235	 63.51	-1	246238..247347	-	369	154244193	-	Xaut_0236	-	hypothetical protein
236	 65.58	0	247364..248287	-	307	154244194	-	Xaut_0237	-	hypothetical protein
237	 66.42	0	248364..249158	+	264	154244195	-	Xaut_0238	-	hypothetical protein
238	 71.47	0	249162..250451	+	429	154244196	-	Xaut_0239	-	hypothetical protein
239	 71.78	+1	250477..251004	+	175	154244197	-	Xaut_0240	-	hypothetical protein
240	 68.78	0	251009..251386	+	125	154244198	-	Xaut_0241	-	hypothetical protein
241	 68.87	0	251386..251703	+	105	154244199	-	Xaut_0242	-	hypothetical protein
242	 66.81	0	251703..253106	+	467	154244200	-	Xaut_0243	-	Type IV secretory pathway VirD4 protein-like protein
243	 67.41	0	253103..253372	+	89	154244201	-	Xaut_0244	-	hypothetical protein
244	 68.53	0	253694..254176	+	160	154244202	-	Xaut_0245	-	hypothetical protein
245	 65.47	0	254290..254955	+	221	154244203	-	Xaut_0246	-	hypothetical protein
246	 64.35	0	254969..255313	+	114	154244204	-	Xaut_0247	-	hypothetical protein
247	 64.38	0	255310..256884	+	524	154244205	-	Xaut_0248	-	resolvase domain-containing protein
248	 65.41	0	256999..257397	+	132	154244206	-	Xaut_0249	-	ISBm1, transposase orfA
249	 61.54	-1	257373..257801	+	142	154244207	-	Xaut_0250	-	transposase IS4 family protein
250	 63.61	0	258268..258954	-	228	154244208	-	Xaut_0251	-	putative transposase
251	 64.44	0	258983..259162	+	59	154244209	-	Xaut_0252	-	hypothetical protein
252	 56.65	-2	259356..259874	+	172	154244210	-	Xaut_0253	-	ECF subfamily RNA polymerase sigma-24 factor
253	 63.10	-1	259864..260676	+	270	154244211	-	Xaut_0254	-	putative transmembrane anti-sigma factor
254	 62.32	-1	260763..261980	+	405	154244212	-	Xaut_0255	-	oxidoreductase molybdopterin binding
255	 53.57	-2	261970..262305	+	111	154244213	-	Xaut_0256	-	putative sulfite:cytochrome c oxidoreductase subunit B
256	 57.27	-2	262308..262754	+	148	154244214	-	Xaut_0257	-	cytochrome c class I
257	 61.79	-1	262851..263834	-	327	154244215	-	Xaut_0258	-	malate dehydrogenase
258	 61.54	-1	263867..264334	-	155	154244216	-	Xaut_0259	-	hypothetical protein
259	 61.17	-1	264470..265906	-	478	154244217	-	Xaut_0260	-	YVTN beta-propeller repeat-containing protein
260	 59.38	-2	265951..266334	-	127	154244218	-	Xaut_0261	-	hypothetical protein
261	 63.62	0	266509..266934	+	141	154244219	-	Xaut_0262	-	hypothetical protein
262	 60.95	-1	267010..267516	+	168	154244220	-	Xaut_0263	-	ECF subfamily RNA polymerase sigma-24 factor
263	 63.80	0	267513..268313	+	266	154244221	-	Xaut_0264	-	putative transmembrane anti-sigma factor
264	 61.59	-1	268415..269497	+	360	154244222	-	Xaut_0265	-	hypothetical protein
265	 62.53	-1	269508..270449	+	313	154244223	-	Xaut_0266	-	LysR family transcriptional regulator
266	 54.17	-2	270433..270744	+	103	154244224	-	Xaut_0267	-	cytochrome bd-type quinol oxidase subunit 1-like protein
267	 65.05	0	270977..272029	-	350	154244225	-	Xaut_0268	-	transposase IS116/IS110/IS902 family protein
268	 63.43	-1	272157..272465	+	102	154244226	-	Xaut_0269	-	hypothetical protein
269	 64.42	0	272961..273227	-	88	154244227	-	Xaut_0270	-	conjugal transfer TraD family protein
270	 68.14	0	273229..273567	-	112	154244228	-	Xaut_0271	-	putative conjugal transfert protein, TraC
271	 66.97	0	273727..276657	+	976	154244229	-	Xaut_0272	-	Ti-type conjugative transfer relaxase TraA
272	 64.35	0	276787..277002	+	71	154244230	-	Xaut_0273	-	phage transcriptional regulator, AlpA
273	 63.41	-1	276995..277240	+	81	154244231	-	Xaut_0274	-	hypothetical protein
274	 59.60	-1	277302..277598	+	98	154244232	-	Xaut_0275	-	plasmid maintenance system killer
275	 65.05	0	277612..277920	+	102	154244233	-	Xaut_0276	-	XRE family plasmid maintenance system antidote protein
276	 65.22	0	277976..279631	+	551	154244234	-	Xaut_0277	-	resolvase domain-containing protein
277	 69.24	0	280130..280828	-	232	154244235	-	Xaut_0278	-	alanine racemase domain-containing protein
278	 69.31	0	281048..282712	+	554	154244236	-	Xaut_0279	-	diguanylate cyclase
279	 73.57	+1	282730..283569	-	279	154244237	-	Xaut_0280	-	NLP/P60 protein
280	 73.32	+1	283682..285049	-	455	154244238	-	Xaut_0281	-	leucyl aminopeptidase
281	 69.60	0	285228..285704	-	158	154244239	-	Xaut_0282	-	peptidase A24A prepilin type IV
282	 65.45	0	285724..285888	-	54	154244240	-	Xaut_0283	-	Flp/Fap pilin component
283	 68.32	0	286187..289096	+	969	154244241	-	Xaut_0284	-	PII uridylyl-transferase
284	 70.16	0	289140..290198	+	352	154244242	-	Xaut_0285	-	aminoglycoside phosphotransferase
285	 59.81	-1	290226..290750	-	174	154244243	-	Xaut_0286	-	rubrerythrin
286	 60.66	-1	290785..291150	-	121	154244244	-	Xaut_0287	-	ferredoxin
287	 67.17	0	291508..293700	-	730	154244245	-	Xaut_0288	-	polynucleotide phosphorylase/polyadenylase
288	 61.11	-1	293982..294251	-	89	154244246	-	Xaut_0289	-	ribosomal protein S15
67.51	MEAN

3.97	STD DEV
