IslandPath Analysis: Xanthobacter autotrophicus Py2

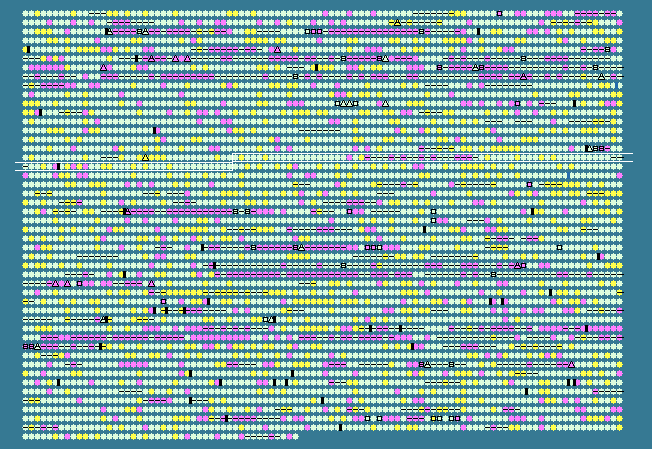

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.51 STD DEV: 3.97
Xanthobacter autotrophicus Py2, complete genome - 1..5308934
4746 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1636	 70.23	0	1869349..1869825	+	158	154245594	-	Xaut_1650	-	NifU-like protein
1637	 73.40	+1	1869830..1870438	-	202	154245595	-	Xaut_1651	-	metal dependent phosphohydrolase
1638	 70.70	0	1870576..1870947	+	123	154245596	-	Xaut_1652	-	hypothetical protein
1639	 68.36	0	1871168..1873474	-	768	154245597	-	Xaut_1653	-	1A family penicillin-binding protein
1640	 69.30	0	1873613..1874029	-	138	154245598	-	Xaut_1654	-	hypothetical protein
1641	 71.90	+1	1874217..1875440	+	407	154245599	-	Xaut_1655	-	tetratricopeptide TPR_4
1642	 70.42	0	1875437..1875916	+	159	154245600	-	Xaut_1656	-	CcmE/CycJ protein
1643	 70.49	0	1875920..1877905	+	661	154245601	-	Xaut_1657	-	cytochrome c-type biogenesis protein CcmF
1644	 70.14	0	1877902..1878390	+	162	154245602	-	Xaut_1658	-	cytochrome C biogenesis protein
1645	 70.77	0	1878404..1879354	-	316	154245603	-	Xaut_1659	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1646	 69.78	0	1879353..1880252	+	299	154245604	-	Xaut_1660	-	phosphoserine phosphatase SerB
1647	 67.87	0	1880330..1881826	-	498	154245605	-	Xaut_1661	-	protease Do
1648	 69.84	0	1882176..1882364	-	62	154245606	-	Xaut_1662	-	hypothetical protein
1649	 68.11	0	1882384..1883286	-	300	154245607	-	Xaut_1663	-	HflC protein
1650	 67.44	0	1883283..1884440	-	385	154245608	-	Xaut_1664	-	HflK protein
1651	 65.59	0	1884685..1884963	-	92	154245609	-	Xaut_1665	-	hypothetical protein
1652	 67.84	0	1884986..1885240	+	84	154245610	-	Xaut_1666	-	hypothetical protein
1653	 66.67	0	1885406..1886794	+	462	154245611	-	Xaut_1667	-	fumarate hydratase
1654	 64.41	0	1886968..1887588	+	206	154245612	-	Xaut_1668	-	hypothetical protein
1655	 63.96	0	1887812..1888438	+	208	154245613	-	Xaut_1669	-	LemA family protein
1656	 69.63	0	1888455..1889264	+	269	154245614	-	Xaut_1670	-	hypothetical protein
1657	 71.36	0	1889365..1890024	+	219	154245615	-	Xaut_1671	-	hypothetical protein
1658	 61.42	-1	1890296..1890676	+	126	154245616	-	Xaut_1672	-	hypothetical protein
1659	 66.97	0	1890951..1891934	+	327	154245617	-	Xaut_1673	-	malate dehydrogenase
1660	 65.05	0	1892558..1892929	+	123	154245618	-	Xaut_1674	-	30S ribosomal protein S12
1661	 64.12	0	1892955..1893425	+	156	154245619	-	Xaut_1675	-	30S ribosomal protein S7
1662	 63.68	0	1893444..1895519	+	691	154245620	-	Xaut_1676	-	elongation factor G
1663	 65.74	0	1895588..1896778	+	396	154245621	-	Xaut_1677	-	elongation factor Tu
1664	 61.49	-1	1896846..1897154	+	102	154245622	-	Xaut_1678	-	ribosomal protein S10
1665	 65.84	0	1897177..1897902	+	241	154245623	-	Xaut_1679	-	50S ribosomal protein L3
1666	 65.86	0	1897902..1898522	+	206	154245624	-	Xaut_1680	-	ribosomal protein L4/L1e
1667	 59.87	-1	1898519..1898827	+	102	154245625	-	Xaut_1681	-	50S ribosomal protein L23
1668	 66.43	0	1898853..1899686	+	277	154245626	-	Xaut_1682	-	50S ribosomal protein L2
1669	 61.29	-1	1899698..1899976	+	92	154245627	-	Xaut_1683	-	ribosomal protein S19
1670	 66.93	0	1899983..1900363	+	126	154245628	-	Xaut_1684	-	ribosomal protein L22
1671	 66.40	0	1900363..1901121	+	252	154245629	-	Xaut_1685	-	ribosomal protein S3
1672	 67.87	0	1901152..1901565	+	137	154245630	-	Xaut_1686	-	50S ribosomal protein L16
1673	 62.91	-1	1901576..1901788	+	70	154245631	-	Xaut_1687	-	ribosomal protein L29
1674	 62.65	-1	1901796..1902044	+	82	154245632	-	Xaut_1688	-	ribosomal protein S17
1675	 57.70	-2	1902232..1902666	+	144	154245633	-	Xaut_1689	-	ribosomal protein L14
1676	 67.78	0	1903156..1903425	-	89	154245634	-	Xaut_1690	-	ribosomal protein S20
1677	 70.92	0	1903740..1904726	+	328	154245635	-	Xaut_1691	-	NADH dehydrogenase (ubiquinone)
1678	 72.08	+1	1904784..1905596	+	270	154245636	-	Xaut_1692	-	phosphoribosylanthranilate isomerase
1679	 67.73	0	1905593..1906810	+	405	154245637	-	Xaut_1693	-	tryptophan synthase subunit beta
1680	 67.23	0	1906813..1907169	+	118	154245638	-	Xaut_1694	-	hypothetical protein
1681	 70.57	0	1907274..1908119	+	281	154245639	-	Xaut_1695	-	tryptophan synthase, alpha subunit
1682	 67.23	0	1908282..1909175	+	297	154245640	-	Xaut_1696	-	acetyl-CoA carboxylase, carboxyl transferase, beta subunit
1683	 72.32	+1	1909226..1910569	+	447	154245641	-	Xaut_1697	-	FolC bifunctional protein
1684	 70.44	0	1910580..1912433	-	617	154245642	-	Xaut_1698	-	phosphogluconate dehydratase
1685	 70.30	0	1913082..1914623	+	513	154245643	-	Xaut_1699	-	GntR domain-containing protein
1686	 66.29	0	1914650..1915456	-	268	154245644	-	Xaut_1700	-	enoyl-CoA hydratase/isomerase
1687	 71.92	+1	1915499..1916563	-	354	154245645	-	Xaut_1701	-	acyl-CoA dehydrogenase domain-containing protein
1688	 67.84	0	1916570..1917760	-	396	154245646	-	Xaut_1702	-	acyl-CoA dehydrogenase domain-containing protein
1689	 71.90	+1	1917770..1918762	-	330	154245647	-	Xaut_1703	-	alcohol dehydrogenase
1690	 70.93	0	1918970..1920565	+	531	154245648	-	Xaut_1704	-	AMP-dependent synthetase and ligase
1691	 68.94	0	1920602..1921567	-	321	154245649	-	Xaut_1705	-	alpha/beta hydrolase fold
1692	 66.97	0	1922011..1923315	+	434	154245650	-	Xaut_1706	-	extracellular ligand-binding receptor
1693	 66.78	0	1923403..1924287	+	294	154245651	-	Xaut_1707	-	inner-membrane translocator
1694	 65.33	0	1924284..1925330	+	348	154245652	-	Xaut_1708	-	inner-membrane translocator
1695	 68.29	0	1925327..1926064	+	245	154245653	-	Xaut_1709	-	ABC transporter related
1696	 67.92	0	1926045..1926761	+	238	154245654	-	Xaut_1710	-	ABC transporter related
1697	 68.92	0	1926775..1927530	+	251	154245655	-	Xaut_1711	-	short-chain dehydrogenase/reductase SDR
1698	 66.31	0	1927552..1928388	+	278	154245656	-	Xaut_1712	-	transketolase domain-containing protein
1699	 68.07	0	1928381..1929379	+	332	154245657	-	Xaut_1713	-	transketolase central region
1700	 70.89	0	1929384..1930472	+	362	154245658	-	Xaut_1714	-	iron-containing alcohol dehydrogenase
1701	 67.89	0	1930483..1930974	-	163	154245659	-	Xaut_1715	-	hypothetical protein
1702	 67.94	0	1932252..1933034	-	260	154245660	-	Xaut_1716	-	hypothetical protein
1703	 70.53	0	1933205..1933774	+	189	154245661	-	Xaut_1717	-	ECF subfamily RNA polymerase sigma-24 factor
1704	 74.62	+1	1933771..1934499	+	242	154245662	-	Xaut_1718	-	hypothetical protein
1705	 66.08	0	1934646..1935326	-	226	154245663	-	Xaut_1719	-	hypothetical protein
1706	 49.82	-2	1935551..1935823	-	90	154245664	-	Xaut_1720	-	hypothetical protein
1707	 67.68	0	1936217..1937695	-	492	154245665	-	Xaut_1721	-	alpha,alpha-trehalose-phosphate synthase (UDP-forming)
1708	 71.98	+1	1937701..1938528	-	275	154245666	-	Xaut_1722	-	HAD family hydrolase
1709	 63.55	0	1938592..1939137	+	181	154245667	-	Xaut_1723	-	hypothetical protein
1710	 76.67	+2	1939187..1939456	+	89	154245668	-	Xaut_1724	-	hypothetical protein
1711	 62.64	-1	1939669..1939842	-	57	154245669	-	Xaut_1725	-	hypothetical protein
1712	 67.79	0	1940094..1940360	+	88	154245670	-	Xaut_1726	-	hypothetical protein
1713	 66.67	0	1940565..1940816	+	83	154245671	-	Xaut_1727	-	hypothetical protein
1714	 72.06	+1	1941185..1942390	+	401	154245672	-	Xaut_1728	-	extensin family protein
1715	 71.78	+1	1942392..1943153	+	253	154245673	-	Xaut_1729	-	hypothetical protein
1716	 66.08	0	1943242..1944768	+	508	154245674	-	Xaut_1730	-	Acetyl-CoA hydrolase
1717	 64.55	0	1945004..1945522	-	172	154245675	-	Xaut_1731	-	Ricin B lectin
1718	 70.25	0	1945839..1947428	+	529	154245676	-	Xaut_1732	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
1719	 73.24	+1	1947570..1948436	-	288	154245677	-	Xaut_1733	-	hypothetical protein
1720	 67.41	0	1948492..1950633	-	713	154245678	-	Xaut_1734	-	bacteriophage N4 adsorption protein B
1721	 73.29	+1	1950653..1952947	-	764	154245679	-	Xaut_1735	-	hypothetical protein
1722	 70.57	0	1952949..1954178	-	409	154245680	-	Xaut_1736	-	UDP-N-acetylglucosamine 2-epimerase
1723	 70.14	0	1954428..1955060	-	210	154245681	-	Xaut_1737	-	redoxin domain-containing protein
1724	 68.32	0	1955242..1956630	+	462	154245682	-	Xaut_1738	-	argininosuccinate lyase
1725	 72.08	+1	1956627..1957088	+	153	154245683	-	Xaut_1739	-	hypothetical protein
1726	 70.13	0	1957181..1958449	+	422	154245684	-	Xaut_1740	-	diaminopimelate decarboxylase
1727	 65.92	0	1958527..1959858	-	443	154245685	-	Xaut_1741	-	diguanylate cyclase/phosphodiesterase
1728	 70.35	0	1960183..1962894	-	903	154245686	-	Xaut_1742	-	GCN5-related N-acetyltransferase
1729	 65.38	0	1963130..1963519	-	129	154245687	-	Xaut_1743	-	response regulator receiver protein
1730	 66.04	0	1963681..1964322	-	213	154245688	-	Xaut_1744	-	response regulator receiver protein
1731	 69.26	0	1964315..1965820	-	501	154245689	-	Xaut_1745	-	multi-sensor signal transduction histidine kinase
1732	 68.78	0	1965990..1966700	+	236	154245690	-	Xaut_1746	-	CRP/FNR family transcriptional regulator
1733	 70.66	0	1966829..1968232	-	467	154245691	-	Xaut_1747	-	oxygen-independent coproporphyrinogen III oxidase
1734	 70.38	0	1968495..1971968	-	1157	154245692	-	Xaut_1748	-	TPR repeat-containing protein
1735	 70.35	0	1972149..1973153	-	334	154245693	-	Xaut_1749	-	hypothetical protein
67.51	MEAN

3.97	STD DEV
