IslandPath Analysis: Xanthobacter autotrophicus Py2

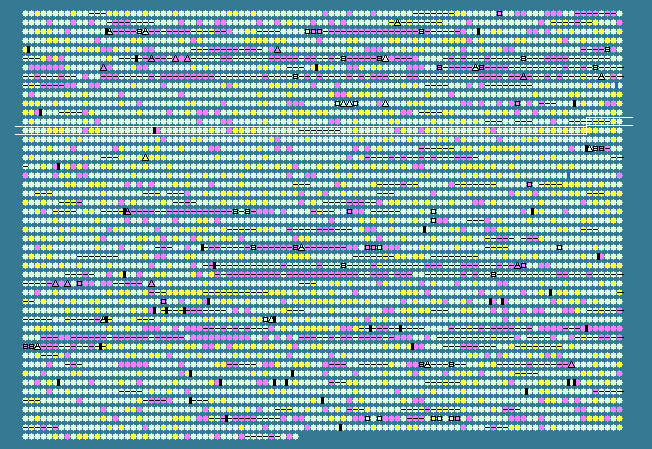

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.51 STD DEV: 3.97
Xanthobacter autotrophicus Py2, complete genome - 1..5308934
4746 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1295	 67.10	0	1501173..1501403	+	76	154245253	-	Xaut_1305	-	hypothetical protein
1296	 72.30	+1	1501416..1503350	-	644	154245254	-	Xaut_1306	-	fusaric acid resistance protein region
1297	 72.08	+1	1503347..1503826	-	159	154245255	-	Xaut_1307	-	MarR family transcriptional regulator
1298	 66.30	0	1504249..1504524	+	91	154245256	-	Xaut_1308	-	hypothetical protein
1299	 74.52	+1	1504827..1505450	-	207	154245257	-	Xaut_1309	-	phosphonate metabolism protein/1,5-bisphosphokinase (PRPP-forming) PhnN
1300	 70.00	0	1505447..1506586	-	379	154245258	-	Xaut_1310	-	phosphonate metabolism protein PhnM
1301	 70.51	0	1506602..1507330	-	242	154245259	-	Xaut_1311	-	phosphonate C-P lyase system protein PhnL
1302	 69.17	0	1507507..1508304	-	265	154245260	-	Xaut_1312	-	phosphonates transport ATP-binding protein
1303	 65.22	0	1508301..1509200	-	299	154245261	-	Xaut_1313	-	phosphonate metabolism PhnJ
1304	 69.48	0	1509768..1511048	-	426	154245262	-	Xaut_1314	-	phosphonate metabolism
1305	 72.80	+1	1511053..1511688	-	211	154245263	-	Xaut_1315	-	phosphonate metabolism
1306	 71.66	+1	1511688..1512188	-	166	154245264	-	Xaut_1316	-	phosphonate metabolism PhnG
1307	 71.57	+1	1512320..1513135	+	271	154245265	-	Xaut_1317	-	GntR family transcriptional regulator
1308	 67.45	0	1513196..1513834	+	212	154245266	-	Xaut_1318	-	pyridoxamine 5'-phosphate oxidase-related FMN-binding
1309	 68.06	0	1513842..1514705	-	287	154245267	-	Xaut_1319	-	phosphonate ABC transporter, inner membrane subunit
1310	 66.33	0	1514702..1515586	-	294	154245268	-	Xaut_1320	-	phosphonate ABC transporter, inner membrane subunit
1311	 62.05	-1	1515688..1516596	-	302	154245269	-	Xaut_1321	-	phosphonate ABC transporter, periplasmic phosphonate-binding protein
1312	 71.36	0	1516695..1517504	-	269	154245270	-	Xaut_1322	-	phosphonate ABC transporter, ATPase subunit
1313	 74.09	+1	1518073..1519338	-	421	154245271	-	Xaut_1323	-	amidase
1314	 69.71	0	1519415..1520497	-	360	154245272	-	Xaut_1324	-	polysaccharide deacetylase
1315	 68.67	0	1520617..1521465	+	282	154245273	-	Xaut_1325	-	pyridoxamine kinase
1316	 69.75	0	1521563..1522471	+	302	154245274	-	Xaut_1326	-	PhzF family phenazine biosynthesis protein
1317	 69.04	0	1522610..1523704	+	364	154245275	-	Xaut_1327	-	NADH:flavin oxidoreductase/NADH oxidase
1318	 69.62	0	1523701..1524444	+	247	154245276	-	Xaut_1328	-	NUDIX hydrolase
1319	 67.55	0	1524798..1526381	+	527	154245277	-	Xaut_1329	-	2-isopropylmalate synthase
1320	 66.26	0	1526778..1527764	+	328	154245278	-	Xaut_1330	-	hypothetical protein
1321	 68.61	0	1527966..1528427	+	153	154245279	-	Xaut_1331	-	hypothetical protein
1322	 66.40	0	1528439..1529938	+	499	154245280	-	Xaut_1332	-	hypothetical protein
1323	 63.05	-1	1530175..1530423	+	82	154245281	-	Xaut_1333	-	hypothetical protein
1324	 64.54	0	1530433..1531467	-	344	154245282	-	Xaut_1334	-	alcohol dehydrogenase
1325	 67.97	0	1531556..1532938	+	460	154245283	-	Xaut_1335	-	acetyl-CoA acetyltransferase
1326	 70.18	0	1532972..1534195	-	407	154245284	-	Xaut_1336	-	cobalamin synthesis protein P47K
1327	 70.83	0	1534666..1536705	+	679	154245285	-	Xaut_1337	-	Fis family GAF modulated sigma54 specific transcriptional regulator
1328	 67.70	0	1537131..1539062	+	643	154245286	-	Xaut_1338	-	hydantoinase/oxoprolinase
1329	 64.66	0	1539068..1539466	+	132	154245287	-	Xaut_1339	-	acetone carboxylase gamma subunit
1330	 67.78	0	1540375..1541727	+	450	154245288	-	Xaut_1341	-	hydantoinase/oxoprolinase
1331	 64.29	0	1541769..1544087	+	772	154245289	-	Xaut_1342	-	hydantoinase B/oxoprolinase
1332	 71.89	+1	1544084..1544926	+	280	154245290	-	Xaut_1343	-	hypothetical protein
1333	 64.75	0	1545068..1545952	+	294	154245291	-	Xaut_1344	-	putative signal peptide
1334	 70.99	0	1546066..1546920	-	284	154245292	-	Xaut_1345	-	hypothetical protein
1335	 63.23	-1	1546937..1548100	-	387	154245293	-	Xaut_1346	-	acyl-CoA dehydrogenase domain-containing protein
1336	 72.48	+1	1548118..1549494	-	458	154245294	-	Xaut_1347	-	MmgE/PrpD family protein
1337	 73.04	+1	1549506..1550336	-	276	154245295	-	Xaut_1348	-	HpcH/HpaI aldolase
1338	 67.63	0	1550664..1551806	+	380	154245296	-	Xaut_1349	-	L-carnitine dehydratase/bile acid-inducible protein F
1339	 72.24	+1	1551818..1552552	+	244	154245297	-	Xaut_1350	-	methyltransferase type 11
1340	 70.65	0	1552616..1553593	+	325	154245298	-	Xaut_1351	-	LysR family transcriptional regulator
1341	 65.13	0	1553724..1555022	+	432	154245299	-	Xaut_1352	-	extracellular ligand-binding receptor
1342	 67.22	0	1555099..1556004	+	301	154245300	-	Xaut_1353	-	inner-membrane translocator
1343	 67.59	0	1556007..1556981	+	324	154245301	-	Xaut_1354	-	inner-membrane translocator
1344	 68.53	0	1556978..1557727	+	249	154245302	-	Xaut_1355	-	ABC transporter related
1345	 68.88	0	1557730..1558407	+	225	154245303	-	Xaut_1356	-	ABC transporter related
1346	 69.95	0	1558404..1559867	+	487	154245304	-	Xaut_1357	-	aldehyde dehydrogenase
1347	 67.45	0	1559882..1560649	+	255	154245305	-	Xaut_1358	-	3-ketoacyl-(acyl-carrier-protein) reductase
1348	 65.35	0	1560872..1561861	+	329	154245306	-	Xaut_1359	-	beta-lactamase domain-containing protein
1349	 69.73	0	1561987..1563555	+	522	154245307	-	Xaut_1360	-	tartrate/fumarate subfamily Fe-S type hydro-lyase alpha subunit
1350	 69.94	0	1563684..1564019	+	111	154245308	-	Xaut_1361	-	hypothetical protein
1351	 70.78	0	1564090..1565598	-	502	154245309	-	Xaut_1362	-	glycosyl transferase family protein
1352	 70.35	0	1565706..1566845	-	379	154245310	-	Xaut_1363	-	glycosyl transferase family protein
1353	 64.73	0	1567590..1567847	+	85	154245311	-	Xaut_1364	-	hypothetical protein
1354	 65.80	0	1567943..1568518	-	191	154245312	-	Xaut_1365	-	formaldehyde-activating protein
1355	 70.87	0	1568600..1569835	-	411	154245313	-	Xaut_1366	-	hypothetical protein
1356	 71.52	+1	1570039..1570944	+	301	154245314	-	Xaut_1367	-	metallophosphoesterase
1357	 70.76	0	1571115..1571627	+	170	154245315	-	Xaut_1368	-	hypothetical protein
1358	 68.98	0	1571844..1573097	+	417	154245316	-	Xaut_1369	-	major facilitator transporter
1359	 66.88	0	1573326..1573799	+	157	154245317	-	Xaut_1370	-	hypothetical protein
1360	 70.01	0	1573810..1574736	-	308	154245318	-	Xaut_1371	-	LysR family transcriptional regulator
1361	 67.76	0	1574872..1575330	+	152	154245319	-	Xaut_1372	-	DoxX family protein
1362	 68.35	0	1575483..1576490	-	335	154245320	-	Xaut_1373	-	polyprenyl synthetase
1363	 63.60	0	1576617..1576844	+	75	154245321	-	Xaut_1374	-	hypothetical protein
1364	 73.28	+1	1576834..1577604	+	256	154245322	-	Xaut_1375	-	methyltransferase small
1365	 69.93	0	1577717..1578604	+	295	154245323	-	Xaut_1376	-	peptidase S49
1366	 68.19	0	1578727..1580436	+	569	154245324	-	Xaut_1377	-	NAD synthetase
1367	 61.40	-1	1580411..1580695	-	94	154245325	-	Xaut_1378	-	hypothetical protein
1368	 72.96	+1	1580864..1583626	+	920	154245326	-	Xaut_1379	-	hypothetical protein
1369	 70.72	0	1583629..1583949	-	106	154245327	-	Xaut_1380	-	hypothetical protein
1370	 73.81	+1	1583993..1584874	-	293	154245328	-	Xaut_1381	-	4-(cytidine 5'-diphospho)-2-C-methyl-D-erythritol kinase
1371	 66.49	0	1585122..1586861	+	579	154245329	-	Xaut_1382	-	TPR repeat-containing protein
1372	 69.38	0	1586961..1588658	+	565	154245330	-	Xaut_1383	-	formate--tetrahydrofolate ligase
1373	 66.58	0	1588725..1589912	+	395	154245331	-	Xaut_1384	-	acetyl-CoA acetyltransferase
1374	 70.37	0	1590006..1590734	-	242	154245332	-	Xaut_1385	-	hypothetical protein
1375	 67.20	0	1590847..1591221	-	124	154245333	-	Xaut_1386	-	hypothetical protein
1376	 66.76	0	1591439..1592494	+	351	154245334	-	Xaut_1387	-	molybdenum cofactor biosynthesis protein A
1377	 70.61	0	1592847..1593860	+	337	154245335	-	Xaut_1388	-	hypothetical protein
1378	 71.96	+1	1593908..1594096	-	62	154245336	-	Xaut_1389	-	hypothetical protein
1379	 59.21	-2	1594205..1595197	-	330	154245337	-	Xaut_1390	-	patatin
1380	 70.18	0	1595303..1596355	-	350	154245338	-	Xaut_1391	-	sulfate ABC transporter, ATPase subunit
1381	 66.45	0	1596352..1597275	-	307	154245339	-	Xaut_1392	-	sulfate ABC transporter, inner membrane subunit CysW
1382	 67.84	0	1597272..1598126	-	284	154245340	-	Xaut_1393	-	sulfate ABC transporter, inner membrane subunit CysT
1383	 66.37	0	1598224..1599240	-	338	154245341	-	Xaut_1394	-	sulfate ABC transporter, periplasmic sulfate-binding protein
1384	 69.28	0	1599356..1600120	-	254	154245342	-	Xaut_1395	-	phosphoadenosine phosphosulfate reductase
1385	 69.84	0	1600125..1600628	-	167	154245343	-	Xaut_1396	-	hypothetical protein
1386	 66.43	0	1600615..1602270	-	551	154245344	-	Xaut_1397	-	nitrite/sulfite reductase hemoprotein beta subunit
1387	 72.06	+1	1602311..1602625	-	104	154245345	-	Xaut_1398	-	hypothetical protein
1388	 65.91	0	1602947..1603741	+	264	154245346	-	Xaut_1399	-	sulfate adenylyltransferase subunit 2
1389	 71.00	0	1603784..1605721	+	645	154245347	-	Xaut_1400	-	sulfate adenylyltransferase, large subunit
1390	 69.99	0	1605836..1606648	+	270	154245348	-	Xaut_1401	-	enoyl-CoA hydratase/isomerase
1391	 71.44	0	1607085..1608110	+	341	154245349	-	Xaut_1402	-	GntR family transcriptional regulator
1392	 66.85	0	1608722..1609261	+	179	154245350	-	Xaut_1403	-	hypothetical protein
1393	 65.25	0	1609369..1609791	-	140	154245351	-	Xaut_1404	-	Fe-S metabolism associated SufE
1394	 74.56	+1	1609927..1610382	-	151	154245352	-	Xaut_1405	-	hypothetical protein
67.51	MEAN

3.97	STD DEV
