IslandPath Analysis: Xanthobacter autotrophicus Py2

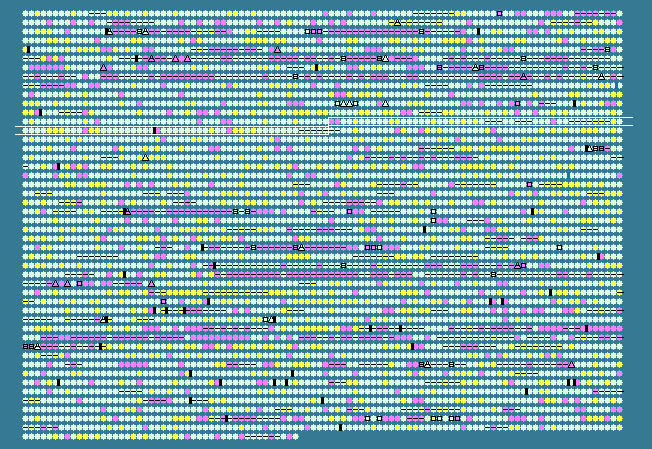

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.51 STD DEV: 3.97
Xanthobacter autotrophicus Py2, complete genome - 1..5308934
4746 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1252	 62.87	-1	1452082..1452555	-	157	154245210	-	Xaut_1262	-	Beta-hydroxyacyl-(acyl-carrier-protein) dehydratase FabA/FabZ
1253	 60.99	-1	1452565..1452846	-	93	154245211	-	Xaut_1263	-	acyl carrier protein
1254	 70.82	0	1453194..1454831	-	545	154245212	-	Xaut_1264	-	acyl-CoA dehydrogenase domain-containing protein
1255	 68.11	0	1455090..1455992	-	300	154245213	-	Xaut_1265	-	protein of unknown function zinc metallopeptidase putative
1256	 72.67	+1	1456200..1456949	+	249	154245214	-	Xaut_1266	-	ribonuclease H
1257	 66.47	0	1457004..1458008	-	334	154245215	-	Xaut_1267	-	cytochrome d ubiquinol oxidase, subunit II
1258	 65.81	0	1458049..1459443	-	464	154245216	-	Xaut_1268	-	cytochrome bd ubiquinol oxidase subunit I
1259	 68.78	0	1460303..1462051	+	582	154245217	-	Xaut_1269	-	binding-protein-dependent transport systems inner membrane component
1260	 67.41	0	1462063..1463406	+	447	154245218	-	Xaut_1270	-	ABC transporter related
1261	 70.13	0	1463583..1464794	-	403	154245219	-	Xaut_1271	-	major facilitator transporter
1262	 73.01	+1	1464957..1466612	-	551	154245220	-	Xaut_1272	-	protein of unknown function DUF894 DitE
1263	 71.20	0	1466609..1467160	-	183	154245221	-	Xaut_1273	-	DoxX family protein
1264	 68.39	0	1467365..1469341	-	658	154245222	-	Xaut_1274	-	amidohydrolase 3
1265	 69.93	0	1469355..1469660	-	101	154245223	-	Xaut_1275	-	hypothetical protein
1266	 67.98	0	1469712..1470704	-	330	154245224	-	Xaut_1276	-	alpha/beta hydrolase fold
1267	 65.29	0	1470707..1471360	-	217	154245225	-	Xaut_1277	-	isochorismatase hydrolase
1268	 66.08	0	1471466..1471807	+	113	154245226	-	Xaut_1278	-	HxlR family transcriptional regulator
1269	 71.23	0	1472259..1473179	-	306	154245227	-	Xaut_1279	-	helix-turn-helix domain-containing protein
1270	 68.88	0	1473484..1474161	+	225	154245228	-	Xaut_1280	-	two component transcriptional regulator
1271	 69.33	0	1474158..1475507	+	449	154245229	-	Xaut_1281	-	integral membrane sensor signal transduction histidine kinase
1272	 72.85	+1	1475517..1476179	-	220	154245230	-	Xaut_1282	-	methyltransferase type 11
1273	 66.81	0	1476200..1476892	-	230	154245231	-	Xaut_1283	-	TPR repeat-containing protein
1274	 73.83	+1	1476956..1477765	-	269	154245232	-	Xaut_1284	-	short-chain dehydrogenase/reductase SDR
1275	 67.11	0	1477755..1478435	-	226	154245233	-	Xaut_1285	-	heme oxygenase family
1276	 73.23	+1	1478432..1479955	-	507	154245234	-	Xaut_1286	-	AMP-dependent synthetase and ligase
1277	 69.40	0	1479939..1480523	-	194	154245235	-	Xaut_1287	-	hypothetical protein
1278	 70.64	0	1481002..1481832	+	276	154245236	-	Xaut_1288	-	molybdopterin dehydrogenase FAD-binding
1279	 70.43	0	1481829..1484564	+	911	154245237	-	Xaut_1289	-	aldehyde oxidase and xanthine dehydrogenase molybdopterin binding
1280	 69.22	0	1484561..1485499	+	312	154245238	-	Xaut_1290	-	antibiotic biosynthesis monooxygenase
1281	 70.82	0	1485521..1487593	-	690	154245239	-	Xaut_1291	-	integral membrane sensor signal transduction histidine kinase
1282	 70.66	0	1487586..1488986	-	466	154245240	-	Xaut_1292	-	two component, sigma54 specific, Fis family transcriptional regulator
1283	 69.02	0	1489251..1490951	-	566	154245241	-	Xaut_1293	-	major facilitator transporter
1284	 70.41	0	1491318..1492118	+	266	154245242	-	Xaut_1294	-	short-chain dehydrogenase/reductase SDR
1285	 69.50	0	1492180..1493133	+	317	154245243	-	Xaut_1295	-	AraC family transcriptional regulator
1286	 70.72	0	1493150..1494457	-	435	154245244	-	Xaut_1296	-	major facilitator transporter
1287	 67.42	0	1494503..1494901	-	132	154245245	-	Xaut_1297	-	MarR family transcriptional regulator
1288	 69.44	0	1495069..1496328	-	419	154245246	-	Xaut_1298	-	putative ABC branched-chain amino transporter, periplasmic binding protein
1289	 60.67	-1	1496471..1496620	-	49	154245247	-	Xaut_1299	-	beta-lactamase-like protein
1290	 70.19	0	1496650..1497444	-	264	154245248	-	Xaut_1300	-	beta-lactamase domain-containing protein
1291	 65.98	0	1497686..1498120	+	144	154245249	-	Xaut_1301	-	MarR family transcriptional regulator
1292	 68.60	0	1498142..1498606	-	154	154245250	-	Xaut_1302	-	MarR family transcriptional regulator
1293	 65.56	0	1498815..1499354	+	179	154245251	-	Xaut_1303	-	glyoxalase/bleomycin resistance protein/dioxygenase
1294	 66.67	0	1499449..1501056	+	535	154245252	-	Xaut_1304	-	hypothetical protein
1295	 67.10	0	1501173..1501403	+	76	154245253	-	Xaut_1305	-	hypothetical protein
1296	 72.30	+1	1501416..1503350	-	644	154245254	-	Xaut_1306	-	fusaric acid resistance protein region
1297	 72.08	+1	1503347..1503826	-	159	154245255	-	Xaut_1307	-	MarR family transcriptional regulator
1298	 66.30	0	1504249..1504524	+	91	154245256	-	Xaut_1308	-	hypothetical protein
1299	 74.52	+1	1504827..1505450	-	207	154245257	-	Xaut_1309	-	phosphonate metabolism protein/1,5-bisphosphokinase (PRPP-forming) PhnN
1300	 70.00	0	1505447..1506586	-	379	154245258	-	Xaut_1310	-	phosphonate metabolism protein PhnM
1301	 70.51	0	1506602..1507330	-	242	154245259	-	Xaut_1311	-	phosphonate C-P lyase system protein PhnL
1302	 69.17	0	1507507..1508304	-	265	154245260	-	Xaut_1312	-	phosphonates transport ATP-binding protein
1303	 65.22	0	1508301..1509200	-	299	154245261	-	Xaut_1313	-	phosphonate metabolism PhnJ
1304	 69.48	0	1509768..1511048	-	426	154245262	-	Xaut_1314	-	phosphonate metabolism
1305	 72.80	+1	1511053..1511688	-	211	154245263	-	Xaut_1315	-	phosphonate metabolism
1306	 71.66	+1	1511688..1512188	-	166	154245264	-	Xaut_1316	-	phosphonate metabolism PhnG
1307	 71.57	+1	1512320..1513135	+	271	154245265	-	Xaut_1317	-	GntR family transcriptional regulator
1308	 67.45	0	1513196..1513834	+	212	154245266	-	Xaut_1318	-	pyridoxamine 5'-phosphate oxidase-related FMN-binding
1309	 68.06	0	1513842..1514705	-	287	154245267	-	Xaut_1319	-	phosphonate ABC transporter, inner membrane subunit
1310	 66.33	0	1514702..1515586	-	294	154245268	-	Xaut_1320	-	phosphonate ABC transporter, inner membrane subunit
1311	 62.05	-1	1515688..1516596	-	302	154245269	-	Xaut_1321	-	phosphonate ABC transporter, periplasmic phosphonate-binding protein
1312	 71.36	0	1516695..1517504	-	269	154245270	-	Xaut_1322	-	phosphonate ABC transporter, ATPase subunit
1313	 74.09	+1	1518073..1519338	-	421	154245271	-	Xaut_1323	-	amidase
1314	 69.71	0	1519415..1520497	-	360	154245272	-	Xaut_1324	-	polysaccharide deacetylase
1315	 68.67	0	1520617..1521465	+	282	154245273	-	Xaut_1325	-	pyridoxamine kinase
1316	 69.75	0	1521563..1522471	+	302	154245274	-	Xaut_1326	-	PhzF family phenazine biosynthesis protein
1317	 69.04	0	1522610..1523704	+	364	154245275	-	Xaut_1327	-	NADH:flavin oxidoreductase/NADH oxidase
1318	 69.62	0	1523701..1524444	+	247	154245276	-	Xaut_1328	-	NUDIX hydrolase
1319	 67.55	0	1524798..1526381	+	527	154245277	-	Xaut_1329	-	2-isopropylmalate synthase
1320	 66.26	0	1526778..1527764	+	328	154245278	-	Xaut_1330	-	hypothetical protein
1321	 68.61	0	1527966..1528427	+	153	154245279	-	Xaut_1331	-	hypothetical protein
1322	 66.40	0	1528439..1529938	+	499	154245280	-	Xaut_1332	-	hypothetical protein
1323	 63.05	-1	1530175..1530423	+	82	154245281	-	Xaut_1333	-	hypothetical protein
1324	 64.54	0	1530433..1531467	-	344	154245282	-	Xaut_1334	-	alcohol dehydrogenase
1325	 67.97	0	1531556..1532938	+	460	154245283	-	Xaut_1335	-	acetyl-CoA acetyltransferase
1326	 70.18	0	1532972..1534195	-	407	154245284	-	Xaut_1336	-	cobalamin synthesis protein P47K
1327	 70.83	0	1534666..1536705	+	679	154245285	-	Xaut_1337	-	Fis family GAF modulated sigma54 specific transcriptional regulator
1328	 67.70	0	1537131..1539062	+	643	154245286	-	Xaut_1338	-	hydantoinase/oxoprolinase
1329	 64.66	0	1539068..1539466	+	132	154245287	-	Xaut_1339	-	acetone carboxylase gamma subunit
1330	 67.78	0	1540375..1541727	+	450	154245288	-	Xaut_1341	-	hydantoinase/oxoprolinase
1331	 64.29	0	1541769..1544087	+	772	154245289	-	Xaut_1342	-	hydantoinase B/oxoprolinase
1332	 71.89	+1	1544084..1544926	+	280	154245290	-	Xaut_1343	-	hypothetical protein
1333	 64.75	0	1545068..1545952	+	294	154245291	-	Xaut_1344	-	putative signal peptide
1334	 70.99	0	1546066..1546920	-	284	154245292	-	Xaut_1345	-	hypothetical protein
1335	 63.23	-1	1546937..1548100	-	387	154245293	-	Xaut_1346	-	acyl-CoA dehydrogenase domain-containing protein
1336	 72.48	+1	1548118..1549494	-	458	154245294	-	Xaut_1347	-	MmgE/PrpD family protein
1337	 73.04	+1	1549506..1550336	-	276	154245295	-	Xaut_1348	-	HpcH/HpaI aldolase
1338	 67.63	0	1550664..1551806	+	380	154245296	-	Xaut_1349	-	L-carnitine dehydratase/bile acid-inducible protein F
1339	 72.24	+1	1551818..1552552	+	244	154245297	-	Xaut_1350	-	methyltransferase type 11
1340	 70.65	0	1552616..1553593	+	325	154245298	-	Xaut_1351	-	LysR family transcriptional regulator
1341	 65.13	0	1553724..1555022	+	432	154245299	-	Xaut_1352	-	extracellular ligand-binding receptor
1342	 67.22	0	1555099..1556004	+	301	154245300	-	Xaut_1353	-	inner-membrane translocator
1343	 67.59	0	1556007..1556981	+	324	154245301	-	Xaut_1354	-	inner-membrane translocator
1344	 68.53	0	1556978..1557727	+	249	154245302	-	Xaut_1355	-	ABC transporter related
1345	 68.88	0	1557730..1558407	+	225	154245303	-	Xaut_1356	-	ABC transporter related
1346	 69.95	0	1558404..1559867	+	487	154245304	-	Xaut_1357	-	aldehyde dehydrogenase
1347	 67.45	0	1559882..1560649	+	255	154245305	-	Xaut_1358	-	3-ketoacyl-(acyl-carrier-protein) reductase
1348	 65.35	0	1560872..1561861	+	329	154245306	-	Xaut_1359	-	beta-lactamase domain-containing protein
1349	 69.73	0	1561987..1563555	+	522	154245307	-	Xaut_1360	-	tartrate/fumarate subfamily Fe-S type hydro-lyase alpha subunit
1350	 69.94	0	1563684..1564019	+	111	154245308	-	Xaut_1361	-	hypothetical protein
1351	 70.78	0	1564090..1565598	-	502	154245309	-	Xaut_1362	-	glycosyl transferase family protein
67.51	MEAN

3.97	STD DEV
