IslandPath Analysis: Xanthobacter autotrophicus Py2

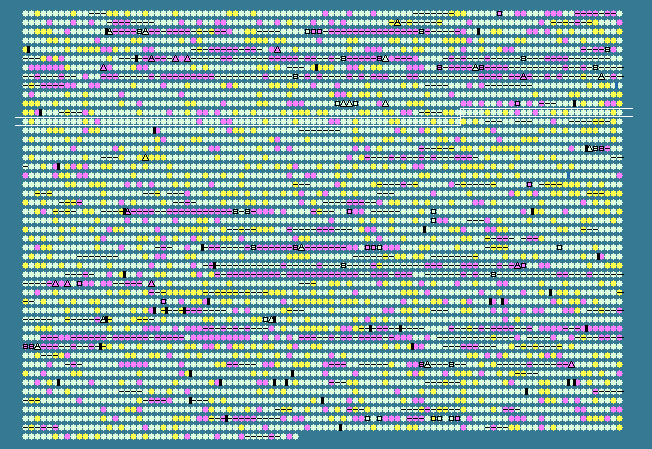

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.51 STD DEV: 3.97
Xanthobacter autotrophicus Py2, complete genome - 1..5308934
4746 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1174	 68.62	0	1361125..1362099	-	324	154245132	-	Xaut_1184	-	putative nicotinic acid mononucleotide (NMN) biosynthesis protein
1175	 64.52	0	1362504..1363109	-	201	154245133	-	Xaut_1185	-	isopropylmalate isomerase small subunit
1176	 65.98	0	1363241..1363822	-	193	154245134	-	Xaut_1186	-	cytochrome B561
1177	 68.71	0	1363877..1364317	-	146	154245135	-	Xaut_1187	-	hypothetical protein
1178	 71.21	0	1364919..1367711	-	930	154245136	-	Xaut_1188	-	DEAD/DEAH box helicase domain-containing protein
1179	 68.80	0	1367894..1368829	+	311	154245137	-	Xaut_1189	-	hypothetical protein
1180	 67.92	0	1368892..1370091	+	399	154245138	-	Xaut_1190	-	cell division protein FtsW
1181	 72.43	+1	1370325..1371452	+	375	154245139	-	Xaut_1191	-	N-acetylglucosaminyl transferase
1182	 67.02	0	1371449..1372861	+	470	154245140	-	Xaut_1192	-	UDP-N-acetylmuramate--L-alanine ligase
1183	 56.49	-2	1372845..1373414	-	189	154245141	-	Xaut_1193	-	hypothetical protein
1184	 66.44	0	1373519..1373962	-	147	154245142	-	Xaut_1194	-	CMP/dCMP deaminase zinc-binding
1185	 66.74	0	1374082..1375365	-	427	154245143	-	Xaut_1195	-	crotonyl-CoA reductase
1186	 62.45	-1	1375633..1375869	+	78	154245144	-	Xaut_1196	-	transglycosylase-associated protein
1187	 67.33	0	1376066..1378039	+	657	154245145	-	Xaut_1197	-	methylmalonyl-CoA mutase, large subunit
1188	 70.85	0	1378137..1378829	+	230	154245146	-	Xaut_1198	-	hypothetical protein
1189	 73.15	+1	1378983..1379846	+	287	154245147	-	Xaut_1199	-	glyoxalase/bleomycin resistance protein/dioxygenase
1190	 66.24	0	1380019..1380954	+	311	154245148	-	Xaut_1200	-	hypothetical protein
1191	 72.56	+1	1381063..1381605	+	180	154245149	-	Xaut_1201	-	hypothetical protein
1192	 66.16	0	1381725..1383311	-	528	154245150	-	Xaut_1202	-	D-3-phosphoglycerate dehydrogenase
1193	 67.01	0	1383744..1384919	-	391	154245151	-	Xaut_1203	-	phosphoserine aminotransferase
1194	 66.31	0	1385046..1385885	-	279	154245152	-	Xaut_1204	-	ABC-3 protein
1195	 65.65	0	1385885..1386769	-	294	154245153	-	Xaut_1205	-	ABC-3 protein
1196	 68.22	0	1386982..1387881	-	299	154245154	-	Xaut_1206	-	ABC transporter related
1197	 67.49	0	1387878..1388852	-	324	154245155	-	Xaut_1207	-	periplasmic solute binding protein
1198	 70.59	0	1388952..1390988	-	678	154245156	-	Xaut_1208	-	potassium efflux system protein
1199	 72.28	+1	1391367..1392239	-	290	154245157	-	Xaut_1209	-	ABC transporter related
1200	 70.78	0	1392239..1393186	-	315	154245158	-	Xaut_1210	-	binding-protein-dependent transport systems inner membrane component
1201	 69.88	0	1393213..1394178	-	321	154245159	-	Xaut_1211	-	aliphatic sulfonate ABC transporter periplasmic ligand-binding protein
1202	 72.76	+1	1394225..1394782	-	185	154245160	-	Xaut_1212	-	flavin reductase domain-containing protein
1203	 70.64	0	1394985..1396193	+	402	154245161	-	Xaut_1213	-	alkanesulfonate monooxygenase
1204	 67.39	0	1396245..1396661	-	138	154245162	-	Xaut_1214	-	putative signal peptide protein
1205	 68.90	0	1397195..1397866	+	223	154245163	-	Xaut_1215	-	ErfK/YbiS/YcfS/YnhG family protein
1206	 67.52	0	1398254..1399783	+	509	154245164	-	Xaut_1216	-	histidyl-tRNA synthetase
1207	 68.95	0	1399877..1400401	-	174	154245165	-	Xaut_1217	-	GcrA cell cycle regulator
1208	 68.65	0	1401142..1402350	+	402	154245166	-	Xaut_1218	-	acetylornithine and succinylornithine aminotransferase
1209	 65.70	0	1402347..1403276	+	309	154245167	-	Xaut_1219	-	ornithine carbamoyltransferase
1210	 69.95	0	1403501..1404535	+	344	154245168	-	Xaut_1220	-	Hsp33-like chaperonin
1211	 72.67	+1	1404623..1405072	-	149	154245169	-	Xaut_1221	-	putative amidase protein
1212	 69.52	0	1405094..1408636	-	1180	154245170	-	Xaut_1222	-	Urea carboxylase
1213	 63.44	-1	1408640..1409290	-	216	154245171	-	Xaut_1223	-	hypothetical protein
1214	 70.36	0	1409302..1410114	-	270	154245172	-	Xaut_1224	-	hypothetical protein
1215	 68.36	0	1410126..1410950	-	274	154245173	-	Xaut_1225	-	ABC transporter related
1216	 65.93	0	1410947..1411759	-	270	154245174	-	Xaut_1226	-	binding-protein-dependent transport systems inner membrane component
1217	 65.22	0	1412001..1413104	-	367	154245175	-	Xaut_1227	-	NLPA lipoprotein
1218	 66.37	0	1413533..1414549	+	338	154245176	-	Xaut_1228	-	hypothetical protein
1219	 67.89	0	1414577..1416052	-	491	154245177	-	Xaut_1229	-	hypothetical protein
1220	 65.26	0	1416212..1416709	+	165	154245178	-	Xaut_1230	-	hypothetical protein
1221	 70.07	0	1416793..1418085	+	430	154245179	-	Xaut_1231	-	histidinol dehydrogenase
1222	 65.86	0	1418102..1418596	+	164	154245180	-	Xaut_1232	-	hypothetical protein
1223	 65.80	0	1418603..1419064	+	153	154245181	-	Xaut_1233	-	protein tyrosine phosphatase
1224	 67.41	0	1419191..1420543	-	450	154245182	-	Xaut_1234	-	gluconate transporter
1225	 69.12	0	1420732..1421301	-	189	154245183	-	Xaut_1235	-	carbohydrate kinase
1226	 69.68	0	1421504..1422598	+	364	154245184	-	Xaut_1236	-	periplasmic binding protein/LacI transcriptional regulator
1227	 67.42	0	1422781..1423047	+	88	154245185	-	Xaut_1237	-	hypothetical protein
1228	 65.47	0	1423114..1425114	-	666	154245186	-	Xaut_1238	-	RNA polymerase sigma factor RpoD
1229	 68.85	0	1425407..1427326	-	639	154245187	-	Xaut_1239	-	DNA primase
1230	 58.81	-2	1427479..1428522	-	347	154245188	-	Xaut_1240	-	acyltransferase 3
1231	 66.67	0	1429038..1430453	+	471	154245189	-	Xaut_1241	-	amino acid carrier protein
1232	 66.88	0	1430519..1430980	-	153	154245190	-	Xaut_1242	-	GatB/Yqey domain-containing protein
1233	 68.20	0	1431209..1432444	+	411	154245191	-	Xaut_1243	-	carbamoyl phosphate synthase small subunit
1234	 63.91	0	1432513..1433202	-	229	154245192	-	Xaut_1244	-	GntR family transcriptional regulator
1235	 62.82	-1	1433602..1434069	+	155	154245193	-	Xaut_1245	-	signal-transduction protein
1236	 68.62	0	1434343..1435572	+	409	154245194	-	Xaut_1246	-	formyl-coenzyme A transferase
1237	 65.43	0	1435679..1436974	+	431	154245195	-	Xaut_1247	-	major facilitator transporter
1238	 66.90	0	1437682..1438992	+	436	154245196	-	Xaut_1248	-	major facilitator transporter
1239	 66.22	0	1439158..1439379	-	73	154245197	-	Xaut_1249	-	hypothetical protein
1240	 69.59	0	1439578..1441221	-	547	154245198	-	Xaut_1250	-	glucose-6-phosphate isomerase
1241	 74.76	+1	1441306..1442034	-	242	154245199	-	Xaut_1251	-	6-phosphogluconolactonase
1242	 67.95	0	1442057..1443532	-	491	154245200	-	Xaut_1252	-	glucose-6-phosphate 1-dehydrogenase
1243	 66.23	0	1443945..1444175	-	76	154245201	-	Xaut_1253	-	ribosomal protein S21
1244	 69.29	0	1444417..1444683	-	88	154245202	-	Xaut_1254	-	hypothetical protein
1245	 70.81	0	1444880..1445989	-	369	154245203	-	Xaut_1255	-	phosphoribosylaminoimidazole carboxylase, ATPase subunit
1246	 71.22	0	1445993..1446475	-	160	154245204	-	Xaut_1256	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
1247	 70.66	0	1446579..1447505	-	308	154245205	-	Xaut_1257	-	lipid A biosynthesis lauroyl acyltransferase
1248	 66.08	0	1447539..1448561	-	340	154245206	-	Xaut_1258	-	alcohol dehydrogenase
1249	 70.87	0	1448584..1449345	-	253	154245207	-	Xaut_1259	-	short-chain dehydrogenase/reductase SDR
1250	 68.93	0	1449359..1450642	-	427	154245208	-	Xaut_1260	-	3-oxoacyl-(acyl carrier protein) synthase II
1251	 70.77	0	1450896..1452089	-	397	154245209	-	Xaut_1261	-	3-oxoacyl-(acyl carrier protein) synthase II
1252	 62.87	-1	1452082..1452555	-	157	154245210	-	Xaut_1262	-	Beta-hydroxyacyl-(acyl-carrier-protein) dehydratase FabA/FabZ
1253	 60.99	-1	1452565..1452846	-	93	154245211	-	Xaut_1263	-	acyl carrier protein
1254	 70.82	0	1453194..1454831	-	545	154245212	-	Xaut_1264	-	acyl-CoA dehydrogenase domain-containing protein
1255	 68.11	0	1455090..1455992	-	300	154245213	-	Xaut_1265	-	protein of unknown function zinc metallopeptidase putative
1256	 72.67	+1	1456200..1456949	+	249	154245214	-	Xaut_1266	-	ribonuclease H
1257	 66.47	0	1457004..1458008	-	334	154245215	-	Xaut_1267	-	cytochrome d ubiquinol oxidase, subunit II
1258	 65.81	0	1458049..1459443	-	464	154245216	-	Xaut_1268	-	cytochrome bd ubiquinol oxidase subunit I
1259	 68.78	0	1460303..1462051	+	582	154245217	-	Xaut_1269	-	binding-protein-dependent transport systems inner membrane component
1260	 67.41	0	1462063..1463406	+	447	154245218	-	Xaut_1270	-	ABC transporter related
1261	 70.13	0	1463583..1464794	-	403	154245219	-	Xaut_1271	-	major facilitator transporter
1262	 73.01	+1	1464957..1466612	-	551	154245220	-	Xaut_1272	-	protein of unknown function DUF894 DitE
1263	 71.20	0	1466609..1467160	-	183	154245221	-	Xaut_1273	-	DoxX family protein
1264	 68.39	0	1467365..1469341	-	658	154245222	-	Xaut_1274	-	amidohydrolase 3
1265	 69.93	0	1469355..1469660	-	101	154245223	-	Xaut_1275	-	hypothetical protein
1266	 67.98	0	1469712..1470704	-	330	154245224	-	Xaut_1276	-	alpha/beta hydrolase fold
1267	 65.29	0	1470707..1471360	-	217	154245225	-	Xaut_1277	-	isochorismatase hydrolase
1268	 66.08	0	1471466..1471807	+	113	154245226	-	Xaut_1278	-	HxlR family transcriptional regulator
1269	 71.23	0	1472259..1473179	-	306	154245227	-	Xaut_1279	-	helix-turn-helix domain-containing protein
1270	 68.88	0	1473484..1474161	+	225	154245228	-	Xaut_1280	-	two component transcriptional regulator
1271	 69.33	0	1474158..1475507	+	449	154245229	-	Xaut_1281	-	integral membrane sensor signal transduction histidine kinase
1272	 72.85	+1	1475517..1476179	-	220	154245230	-	Xaut_1282	-	methyltransferase type 11
1273	 66.81	0	1476200..1476892	-	230	154245231	-	Xaut_1283	-	TPR repeat-containing protein
67.51	MEAN

3.97	STD DEV
