IslandPath Analysis: Wolbachia pipientis

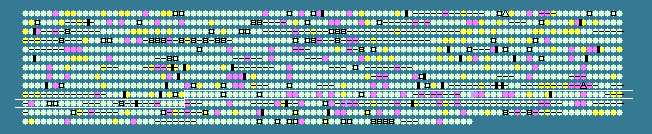

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.35 STD DEV: 2.87
Wolbachia pipientis, complete genome - 1..1482455
1275 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
928	 35.69	0	1081384..1082274	+	296	190571406	-	WP1014	-	Ankyrin repeat domain protein
929	 37.52	+1	1082446..1083687	+	413	190571407	iscS	WP1015	-	cysteine desulfurase
930	 35.24	0	1083736..1084839	-	367	190571408	rodA	WP1016	-	rod shape-determining protein RodA
931	 33.20	0	1084885..1086333	-	482	190571409	-	WP1017	-	nadh dehydrogenase (quinone)
932	 31.05	-1	1086398..1086703	+	101	190571410	-	WP1018	-	NADH:ubiquinone oxidoreductase
933	 35.31	0	1086706..1087161	+	151	190571411	-	WP1019	-	Mammalian cell entry related protein
934	 35.51	0	1089300..1090172	-	290	190571412	-	WP1024	-	transposase
935	 36.15	0	1090266..1091222	-	318	190571413	fabH	WP1025	-	3-oxoacyl-(acyl-carrier-protein) synthase III
936	 35.84	0	1091215..1092252	-	345	190571414	plsX	WP1026	-	fatty acid/phospholipid synthesis protein PlsX
937	 37.16	0	1092261..1092443	-	60	190571415	rpmF	WP1027	-	ribosomal protein L32
938	 33.97	0	1092675..1093457	+	260	190571416	-	WP1028	-	hypothetical protein
939	 32.05	0	1093450..1094151	+	233	190571417	-	WP1029	-	ABC transporter, ATP-binding protein
940	 35.51	0	1095021..1095893	-	290	190571418	-	WP1031	-	transposase
941	 36.24	0	1096403..1097746	-	447	190571419	ffh	WP1032	-	signal recognition particle protein
942	 33.46	0	1097731..1099290	-	519	190571420	-	WP1033	-	Putative oxidoreductase
943	 36.20	0	1099594..1102662	-	1022	190571421	-	WP1034	-	hypothetical protein
944	 33.80	0	1102708..1103139	-	143	190571422	fabZ	WP1035	-	(3R)-hydroxymyristoyl-(acyl-carrier-protein) dehydratase
945	 29.95	-1	1103144..1103704	-	186	190571423	-	WP1036	-	Outer membrane protein
946	 30.12	-1	1103705..1106038	-	777	190571424	-	WP1037	-	surface antigen
947	 33.78	0	1106046..1107161	-	371	190571425	-	WP1038	-	membrane-associated zinc metalloprotease
948	 32.60	0	1107255..1107527	+	90	190571426	-	WP1039	-	hypothetical protein
949	 31.45	-1	1107505..1107822	-	105	190571427	-	WP1040	-	hypothetical protein
950	 30.47	-1	1107866..1108144	-	92	190571428	-	WP1041	-	DNA-binding protein, HU family
951	 32.61	0	1108164..1109816	-	550	190571429	rpsA	WP1042	-	ribosomal protein S1
952	 30.70	-1	1109920..1110564	+	214	190571430	trmB	WP1043	-	trna (guanine-n(7)-)-methyltransferase (ec 2.1.1.33) (trna(m7g46)-methyltransferase)
953	 33.14	0	1110773..1111294	-	173	190571431	-	WP1044	-	hypothetical protein
954	 38.20	+1	1111417..1112814	-	465	190571432	-	WP1045	-	phage uncharacterized protein
955	 32.86	0	1112876..1113088	+	70	190571433	-	WP1046	-	hypothetical protein
956	 31.32	-1	1113123..1113965	+	280	190571434	-	WP1047	-	hypothetical protein
957	 35.51	0	1114225..1115097	-	290	190571435	-	WP1048	-	transposase
958	 35.34	0	1115640..1116737	-	365	190571436	-	WP1049	-	ATPase, AAA family
959	 29.46	-1	1116872..1118188	-	438	190571437	-	WP1050	-	hypothetical protein
960	 37.10	0	1118193..1121669	-	1158	190571438	-	WP1051	-	collagen triple helix repeat protein
961	 33.20	0	1122041..1123504	-	487	190571439	htrA	WP1052	-	protease DO
962	 31.39	-1	1123508..1124380	-	290	190571440	hflC	WP1053	-	hflC protein
963	 34.21	0	1124383..1125408	-	341	190571441	hflK	WP1054	-	hflK protein
964	 28.12	-2	1125531..1125818	-	95	190571442	-	WP1055	-	hypothetical protein
965	 34.86	0	1125823..1127652	-	609	190571443	mutL	WP1056	-	DNA mismatch repair protein MutL
966	 36.93	0	1127652..1128152	-	166	190571444	purE	WP1057	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
967	 29.97	-1	1129005..1129301	+	98	190571445	-	WP1058	-	Putative transcriptional regulator
968	 35.37	0	1129362..1129754	+	130	190571446	rpoZ	WP1059	-	DNA-directed RNA polymerase, omega subunit
969	 27.24	-2	1129784..1130029	+	81	190571447	-	WP1060	-	multiple resistance and ph regulation protein f
970	 30.04	-1	1130036..1130308	+	90	190571448	-	WP1061	-	multisubunit na+/h+ antiporter, mnhg subunit
971	 33.52	0	1130320..1130844	+	174	190571449	-	WP1062	-	hypothetical protein
972	 31.43	-1	1130837..1131256	+	139	190571450	-	WP1063	-	multisubunit na+/h+ antiporter, mnhb subunit
973	 28.71	-1	1131253..1131555	+	100	190571451	-	WP1064	-	multisubunit na+/h+ antiporter, mnhc subunit
974	 33.18	0	1131692..1133593	+	633	190571452	rpoD	WP1065	-	RNA polymerase sigma factor RpoD
975	 31.88	0	1135223..1135840	-	205	190571453	-	WP1067	-	hypothetical protein
976	 27.96	-2	1137600..1137971	+	123	190571454	sdhC	WP1068	-	succinate dehydrogenase, cytochrome b556 subunit
977	 30.87	-1	1137968..1138333	+	121	190571455	sdhD	WP1069	-	succinate dehydrogenase, hydrophobic membrane anchor protein
978	 33.98	0	1138410..1139642	+	410	190571456	-	WP1070	-	hypothetical protein
979	 34.41	0	1139761..1141062	+	433	190571457	-	WP1071	-	mannose-1-phosphate guanylyltransferase
980	 33.98	0	1141179..1142408	+	409	190571458	lolC	WP1072	-	lipoprotein releasing system transmembrane protein lolc
981	 30.46	-1	1142401..1143132	+	243	190571459	-	WP1073	-	hypothetical protein
982	 30.36	-1	1144515..1145387	+	290	190571460	atpG	WP1075	-	ATP synthase F1, gamma subunit
983	 33.03	0	1145406..1146740	+	444	190571461	pmbA	WP1076	-	pmbA protein
984	 35.71	0	1146915..1147166	+	83	190571462	-	WP1077	-	cold-shock domain family protein
985	 38.55	+1	1147201..1148427	+	408	190571463	-	WP1078	-	ATP-dependent RNA helicase, DeaD/DeaH box family
986	 34.12	0	1148725..1151004	+	759	190571464	clpA	WP1079	-	ATP-dependent Clp protease, ATP-binding subunit ClpA
987	 33.63	0	1151061..1152059	+	332	190571465	-	WP1080	-	dnaj domain protein
988	 38.61	+1	1152118..1153008	+	296	190571466	fba	WP1081	-	fructose-bisphosphate aldolase
989	 34.21	0	1153193..1153990	+	265	190571467	-	WP1082	-	putative lipoprotein
990	 33.90	0	1154063..1155130	+	355	190571468	pyrD	WP1083	-	dihydroorotate dehydrogenase
991	 34.78	0	1155223..1155915	+	230	190571469	rnc	WP1084	-	ribonuclease III
992	 31.67	0	1155968..1156567	-	199	190571470	-	WP1085	-	SCO1/SenC family protein
993	 33.76	0	1156603..1157307	-	234	190571471	dnaQ	WP1086	-	DNA polymerase III, epsilon subunit
994	 28.33	-2	1157307..1157966	-	219	190571472	-	WP1087	-	Tim44-like domain protein
995	 32.54	0	1158131..1158634	+	167	190571473	secB	WP1088	-	protein-export protein SecB
996	 37.80	+1	1158641..1161262	+	873	190571474	acnA	WP1089	-	aconitate hydratase
997	 36.71	0	1161384..1164524	+	1046	190571475	putA	WP1090	-	proline dehydrogenase/delta-1-pyrroline-5-carboxylate dehydrogenase
998	 33.49	0	1164691..1165332	+	213	190571476	-	WP1091	-	dioxygenase
999	 38.34	+1	1165387..1166925	+	512	190571477	pepA	WP1092	-	cytosol aminopeptidase
1000	 40.38	+2	1167183..1167395	+	70	190571478	-	WP1093	-	hypothetical protein
1001	 37.63	+1	1167401..1169449	+	682	190571479	nuoG	WP1094	-	NADH dehydrogenase I, G subunit
1002	 28.44	-2	1169433..1169882	+	149	190571480	-	WP1095	-	hypothetical protein
1003	 36.35	0	1169866..1170891	+	341	190571481	nuoH	WP1096	-	NADH dehydrogenase I, H subunit
1004	 35.94	0	1170884..1171882	+	332	190571482	hemB	WP1097	-	delta-aminolevulinic acid dehydratase
1005	 35.51	0	1172261..1173133	+	290	190571483	-	WP1098	-	transposase
1006	 35.51	0	1173875..1174747	-	290	190571484	-	WP1100	-	transposase
1007	 33.73	0	1175516..1178044	-	842	190571485	polA	WP1101	-	DNA polymerase I
1008	 37.42	+1	1178156..1179622	-	488	190571486	gatA	WP1102	-	glutamyl-tRNA(Gln) amidotransferase, A subunit
1009	 35.78	0	1179809..1182181	-	790	190571487	gyrB	WP1103	-	DNA gyrase, B subunit
1010	 32.68	0	1182403..1183635	-	410	190571488	-	WP1104	-	hypothetical protein
1011	 35.07	0	1183706..1184569	-	287	190571489	-	WP1105	-	ankyrin repeat domain protein
1012	 33.77	0	1184804..1185487	+	227	190571490	psd	WP1106	-	phosphatidylserine decarboxylase proenzyme (ec 4.1.1.65) [contains: phosphatidylserine decarboxylase alpha chain; phosphatidylserine decarboxylase beta chain]
1013	 31.13	-1	1185484..1186254	+	256	190571491	-	WP1107	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
1014	 34.38	0	1186277..1187614	+	445	190571492	-	WP1108	-	sodium/alanine symporter family protein
1015	 37.15	0	1187617..1189083	+	488	190571493	-	WP1109	-	sodium/alanine symporter family protein
1016	 33.16	0	1189096..1189671	+	191	190571494	-	WP1110	-	UPF0078 membrane protein
1017	 35.51	0	1190221..1191093	-	290	190571495	-	WP1112	-	transposase
1018	 31.24	-1	1191159..1192970	-	603	190571496	-	WP1113	-	hypothetical protein
1019	 34.00	0	1193026..1193922	-	298	190571497	-	WP1114	-	cation efflux family protein
1020	 34.90	0	1198121..1198312	+	63	190571498	-	WP1116	-	hypothetical protein
1021	 36.31	0	1198314..1199624	+	436	190571499	-	WP1117	-	hypothetical protein
1022	 33.33	0	1199715..1200482	-	255	190571500	-	WP1118	-	RNA methyltransferase, TrmH family, group 3
1023	 28.86	-1	1200575..1201066	+	163	190571501	-	WP1119	-	Smr domain family protein
1024	 34.32	0	1201078..1202895	-	605	190571502	uvrC	WP1120	-	excinuclease ABC, C subunit
1025	 33.19	0	1202879..1204987	-	702	190571503	glyS	WP1121	-	glycyl-tRNA synthetase, beta subunit
1026	 37.50	+1	1204991..1205830	-	279	190571504	glyQ	WP1122	-	glycyl-tRNA synthetase, alpha subunit
1027	 31.23	-1	1205875..1206633	-	252	190571505	-	WP1123	-	hypothetical protein
34.35	MEAN

2.87	STD DEV
