IslandPath Analysis: Wolbachia pipientis

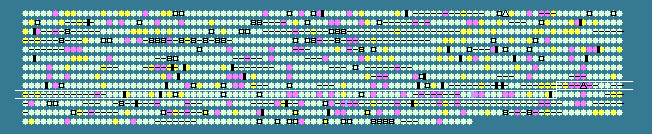

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.35 STD DEV: 2.87
Wolbachia pipientis, complete genome - 1..1482455
1275 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
890	 37.67	+1	1045042..1046286	+	414	190571368	-	WP0976	-	Putative reverse transcriptase
891	 40.74	+2	1047071..1047232	+	53	190571369	-	WP0977	-	hypothetical protein
892	 27.67	-2	1047251..1047886	+	211	190571370	-	WP0978	-	chromosomal DNA replication initiator-related protein
893	 19.88	-2	1048098..1048268	+	56	190571371	-	WP0979	-	hypothetical protein
894	 30.70	-1	1048258..1049244	+	328	190571372	-	WP0980	-	site-specific recombinase, phage integrase family
895	 30.58	-1	1049301..1050026	+	241	190571373	-	WP0981	-	1-acyl-sn-glycerol-3-phosphate acyltransferase family protein
896	 33.70	0	1050070..1050339	+	89	190571374	rpsT	WP0982	-	ribosomal protein S20
897	 35.43	0	1050419..1051660	+	413	190571375	gltA	WP0983	-	citrate synthase
898	 34.04	0	1051705..1053114	-	469	190571376	-	WP0984	-	hypothetical protein
899	 33.33	0	1053141..1053305	-	54	190571377	-	WP0985	-	hypothetical protein
900	 35.14	0	1053533..1054747	-	404	190571378	-	WP0986	-	hypothetical protein
901	 38.18	+1	1055016..1056005	-	329	190571379	ruvB	WP0987	-	Holliday junction DNA helicase RuvB
902	 33.86	0	1056002..1056574	-	190	190571380	ruvA	WP0988	-	Holliday junction DNA helicase RuvA
903	 38.48	+1	1056874..1057398	+	174	190571381	-	WP0989	-	cytochrome c family protein
904	 33.07	0	1057400..1058155	+	251	190571382	-	WP0990	-	hydrolase, alpha/beta fold family
905	 35.01	0	1058198..1060111	-	637	190571383	uvrD	WP0991	-	helicase II, UvrD
906	 32.86	0	1060225..1060650	-	141	190571384	-	WP0992	-	hypothetical protein
907	 36.22	0	1060837..1061424	+	195	190571385	nuoJ	WP0993	-	NADH dehydrogenase I, J subunit
908	 33.66	0	1061415..1061723	+	102	190571386	nuoK	WP0994	-	NADH dehydrogenase I, K subunit
909	 35.06	0	1061720..1063567	+	615	190571387	nuoL	WP0995	-	NADH dehydrogenase I, L subunit
910	 34.86	0	1063571..1065013	+	480	190571388	nuoM	WP0996	-	NADH dehydrogenase I, M subunit
911	 33.77	0	1065010..1066395	+	461	190571389	nuoN	WP0997	-	NADH dehydrogenase I, N subunit
912	 35.01	0	1066400..1067236	+	278	190571390	birA	WP0998	-	biotin-[acetyl-coa-carboxylase] ligase
913	 25.36	-2	1067233..1067370	+	45	190571391	-	WP0999	-	hypothetical protein
914	 33.08	0	1067354..1067746	+	130	190571392	ccmE	WP1000	-	cytochrome c-type biogenesis protein CcmE
915	 34.62	0	1067822..1068286	-	154	190571393	-	WP1001	-	hypothetical protein
916	 34.68	0	1068381..1068824	-	147	190571394	-	WP1002	-	hypothetical protein
917	 33.47	0	1068871..1070316	-	481	190571395	-	WP1003	-	hypothetical protein
918	 38.44	+1	1070983..1072236	+	417	190571396	nuoF	WP1004	-	NADH dehydrogenase I, F subunit
919	 34.30	0	1072259..1072777	-	172	190571397	infC	WP1005	-	translation initiation factor IF-3
920	 37.22	+1	1072790..1074691	-	633	190571398	thrS	WP1006	-	threonyl-tRNA synthetase
921	 37.70	+1	1074688..1074870	-	60	190571399	-	WP1007	-	hypothetical protein
922	 39.75	+1	1074877..1075359	-	160	190571400	nuoI	WP1008	-	NADH dehydrogenase I, I subunit
923	 35.52	0	1075557..1076885	+	442	190571401	trmE	WP1009	-	tRNA modification GTPase TrmE
924	 36.22	0	1077188..1078192	+	334	190571402	-	WP1010	-	pyridine nucleotide-disulphide oxidoreductase family protein
925	 38.99	+1	1078581..1078739	+	52	190571403	-	WP1011	-	hypothetical protein
926	 35.51	0	1078805..1079677	+	290	190571404	-	WP1012	-	transposase
927	 40.59	+2	1079829..1081262	+	477	190571405	-	WP1013	-	phage uncharacterized protein
928	 35.69	0	1081384..1082274	+	296	190571406	-	WP1014	-	Ankyrin repeat domain protein
929	 37.52	+1	1082446..1083687	+	413	190571407	iscS	WP1015	-	cysteine desulfurase
930	 35.24	0	1083736..1084839	-	367	190571408	rodA	WP1016	-	rod shape-determining protein RodA
931	 33.20	0	1084885..1086333	-	482	190571409	-	WP1017	-	nadh dehydrogenase (quinone)
932	 31.05	-1	1086398..1086703	+	101	190571410	-	WP1018	-	NADH:ubiquinone oxidoreductase
933	 35.31	0	1086706..1087161	+	151	190571411	-	WP1019	-	Mammalian cell entry related protein
934	 35.51	0	1089300..1090172	-	290	190571412	-	WP1024	-	transposase
935	 36.15	0	1090266..1091222	-	318	190571413	fabH	WP1025	-	3-oxoacyl-(acyl-carrier-protein) synthase III
936	 35.84	0	1091215..1092252	-	345	190571414	plsX	WP1026	-	fatty acid/phospholipid synthesis protein PlsX
937	 37.16	0	1092261..1092443	-	60	190571415	rpmF	WP1027	-	ribosomal protein L32
938	 33.97	0	1092675..1093457	+	260	190571416	-	WP1028	-	hypothetical protein
939	 32.05	0	1093450..1094151	+	233	190571417	-	WP1029	-	ABC transporter, ATP-binding protein
940	 35.51	0	1095021..1095893	-	290	190571418	-	WP1031	-	transposase
941	 36.24	0	1096403..1097746	-	447	190571419	ffh	WP1032	-	signal recognition particle protein
942	 33.46	0	1097731..1099290	-	519	190571420	-	WP1033	-	Putative oxidoreductase
943	 36.20	0	1099594..1102662	-	1022	190571421	-	WP1034	-	hypothetical protein
944	 33.80	0	1102708..1103139	-	143	190571422	fabZ	WP1035	-	(3R)-hydroxymyristoyl-(acyl-carrier-protein) dehydratase
945	 29.95	-1	1103144..1103704	-	186	190571423	-	WP1036	-	Outer membrane protein
946	 30.12	-1	1103705..1106038	-	777	190571424	-	WP1037	-	surface antigen
947	 33.78	0	1106046..1107161	-	371	190571425	-	WP1038	-	membrane-associated zinc metalloprotease
948	 32.60	0	1107255..1107527	+	90	190571426	-	WP1039	-	hypothetical protein
949	 31.45	-1	1107505..1107822	-	105	190571427	-	WP1040	-	hypothetical protein
950	 30.47	-1	1107866..1108144	-	92	190571428	-	WP1041	-	DNA-binding protein, HU family
951	 32.61	0	1108164..1109816	-	550	190571429	rpsA	WP1042	-	ribosomal protein S1
952	 30.70	-1	1109920..1110564	+	214	190571430	trmB	WP1043	-	trna (guanine-n(7)-)-methyltransferase (ec 2.1.1.33) (trna(m7g46)-methyltransferase)
953	 33.14	0	1110773..1111294	-	173	190571431	-	WP1044	-	hypothetical protein
954	 38.20	+1	1111417..1112814	-	465	190571432	-	WP1045	-	phage uncharacterized protein
955	 32.86	0	1112876..1113088	+	70	190571433	-	WP1046	-	hypothetical protein
956	 31.32	-1	1113123..1113965	+	280	190571434	-	WP1047	-	hypothetical protein
957	 35.51	0	1114225..1115097	-	290	190571435	-	WP1048	-	transposase
958	 35.34	0	1115640..1116737	-	365	190571436	-	WP1049	-	ATPase, AAA family
959	 29.46	-1	1116872..1118188	-	438	190571437	-	WP1050	-	hypothetical protein
960	 37.10	0	1118193..1121669	-	1158	190571438	-	WP1051	-	collagen triple helix repeat protein
961	 33.20	0	1122041..1123504	-	487	190571439	htrA	WP1052	-	protease DO
962	 31.39	-1	1123508..1124380	-	290	190571440	hflC	WP1053	-	hflC protein
963	 34.21	0	1124383..1125408	-	341	190571441	hflK	WP1054	-	hflK protein
964	 28.12	-2	1125531..1125818	-	95	190571442	-	WP1055	-	hypothetical protein
965	 34.86	0	1125823..1127652	-	609	190571443	mutL	WP1056	-	DNA mismatch repair protein MutL
966	 36.93	0	1127652..1128152	-	166	190571444	purE	WP1057	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
967	 29.97	-1	1129005..1129301	+	98	190571445	-	WP1058	-	Putative transcriptional regulator
968	 35.37	0	1129362..1129754	+	130	190571446	rpoZ	WP1059	-	DNA-directed RNA polymerase, omega subunit
969	 27.24	-2	1129784..1130029	+	81	190571447	-	WP1060	-	multiple resistance and ph regulation protein f
970	 30.04	-1	1130036..1130308	+	90	190571448	-	WP1061	-	multisubunit na+/h+ antiporter, mnhg subunit
971	 33.52	0	1130320..1130844	+	174	190571449	-	WP1062	-	hypothetical protein
972	 31.43	-1	1130837..1131256	+	139	190571450	-	WP1063	-	multisubunit na+/h+ antiporter, mnhb subunit
973	 28.71	-1	1131253..1131555	+	100	190571451	-	WP1064	-	multisubunit na+/h+ antiporter, mnhc subunit
974	 33.18	0	1131692..1133593	+	633	190571452	rpoD	WP1065	-	RNA polymerase sigma factor RpoD
975	 31.88	0	1135223..1135840	-	205	190571453	-	WP1067	-	hypothetical protein
976	 27.96	-2	1137600..1137971	+	123	190571454	sdhC	WP1068	-	succinate dehydrogenase, cytochrome b556 subunit
977	 30.87	-1	1137968..1138333	+	121	190571455	sdhD	WP1069	-	succinate dehydrogenase, hydrophobic membrane anchor protein
978	 33.98	0	1138410..1139642	+	410	190571456	-	WP1070	-	hypothetical protein
979	 34.41	0	1139761..1141062	+	433	190571457	-	WP1071	-	mannose-1-phosphate guanylyltransferase
980	 33.98	0	1141179..1142408	+	409	190571458	lolC	WP1072	-	lipoprotein releasing system transmembrane protein lolc
981	 30.46	-1	1142401..1143132	+	243	190571459	-	WP1073	-	hypothetical protein
982	 30.36	-1	1144515..1145387	+	290	190571460	atpG	WP1075	-	ATP synthase F1, gamma subunit
983	 33.03	0	1145406..1146740	+	444	190571461	pmbA	WP1076	-	pmbA protein
984	 35.71	0	1146915..1147166	+	83	190571462	-	WP1077	-	cold-shock domain family protein
985	 38.55	+1	1147201..1148427	+	408	190571463	-	WP1078	-	ATP-dependent RNA helicase, DeaD/DeaH box family
986	 34.12	0	1148725..1151004	+	759	190571464	clpA	WP1079	-	ATP-dependent Clp protease, ATP-binding subunit ClpA
987	 33.63	0	1151061..1152059	+	332	190571465	-	WP1080	-	dnaj domain protein
988	 38.61	+1	1152118..1153008	+	296	190571466	fba	WP1081	-	fructose-bisphosphate aldolase
989	 34.21	0	1153193..1153990	+	265	190571467	-	WP1082	-	putative lipoprotein
34.35	MEAN

2.87	STD DEV
