IslandPath Analysis: Wolbachia pipientis

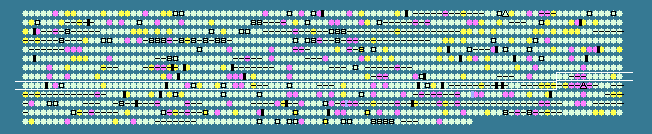

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.35 STD DEV: 2.87
Wolbachia pipientis, complete genome - 1..1482455
1275 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
790	 32.11	0	939764..940744	+	326	190571268	mraY	WP0869	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
791	 35.69	0	940750..941343	+	197	190571269	rnhB	WP0870	-	ribonuclease HII
792	 35.37	0	941351..942136	-	261	190571270	virB9	WP0871	-	Putative virB9 protein
793	 26.88	-2	942465..942743	-	92	190571271	-	WP0872	-	hypothetical protein
794	 30.07	-1	942815..943090	-	91	190571272	-	WP0873	-	hypothetical protein
795	 34.01	0	943228..944265	+	345	190571273	purM	WP0874	-	phosphoribosylformylglycinamidine cyclo-ligase
796	 32.64	0	944262..944984	-	240	190571274	purC	WP0875	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
797	 36.91	0	945050..945748	+	232	190571275	trmD	WP0876	-	tRNA (guanine-N1)-methyltransferase
798	 34.66	0	945745..946122	+	125	190571276	rplS	WP0877	-	ribosomal protein L19
799	 42.77	+2	946115..946273	-	52	190571277	-	WP0878	-	hypothetical protein
800	 33.81	0	946375..947628	+	417	190571278	-	WP0879	-	phosphate ABC transporter, permease protein, putative
801	 34.59	0	947625..948422	+	265	190571279	-	WP0880	-	phosphoribosylformylglycinamidine synthase I, putative
802	 37.37	+1	948511..949104	-	197	190571280	pdxH	WP0881	-	pyridoxamine 5'-phosphate oxidase
803	 32.97	0	949120..949935	-	271	190571281	mutM	WP0882	-	formamidopyrimidine-DNA glycosylase
804	 31.11	-1	949901..950035	-	44	190571282	-	WP0883	-	hypothetical protein
805	 31.88	0	950278..950553	-	91	190571283	-	WP0884	-	hypothetical protein
806	 26.64	-2	953298..954089	-	263	190571284	-	WP0887	-	Putative peptidase M61 family protein
807	 35.51	0	954396..955268	-	290	190571285	-	WP0888	-	transposase
808	 37.00	0	956182..957708	-	508	190571286	pccB	WP0889	-	propionyl-CoA carboxylase, beta subunit
809	 32.12	0	957833..958657	-	274	190571287	-	WP0890	-	hypothetical protein
810	 37.10	0	958793..960118	+	441	190571288	-	WP0891	-	GTP-binding protein
811	 32.36	0	960368..960676	+	102	190571289	-	WP0892	-	hypothetical protein
812	 31.48	0	960682..961275	+	197	190571290	-	WP0893	-	hypothetical protein
813	 35.57	0	961374..961865	+	163	190571291	-	WP0894	-	disulfide bond formation protein, DsbB family
814	 47.05	+2	961850..962731	+	293	190571292	-	WP0895	-	aminoglycoside phosphotransferase
815	 35.93	0	963371..964756	+	461	190571293	lpdA	WP0896	-	lipoamide dehydrogenase, pyruvate dehydrogenase complex, E3 component
816	 32.50	0	964758..965117	-	119	190571294	-	WP0897	-	hypothetical protein
817	 34.80	0	965191..966213	+	340	190571295	murG	WP0898	-	UDP-N-acetylglucosamine--N-acetylmuramyl-(pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
818	 32.47	0	966198..967124	-	308	190571296	gshB	WP0899	-	glutathione synthetase
819	 33.55	0	967188..967655	+	155	190571297	bcp	WP0900	-	bacterioferritin comigratory protein
820	 32.13	0	967664..968743	+	359	190571298	recF	WP0901	-	recF protein
821	 33.85	0	968759..969919	-	386	190571299	lysC	WP0902	-	aspartokinase
822	 36.30	0	970009..971727	-	572	190571300	-	WP0903	-	glutathione-regulated potassium-efflux system protein
823	 31.76	0	971733..972305	-	190	190571301	-	WP0904	-	thiol-disulfide isomerase, thioredoxin family
824	 31.07	-1	972412..973029	+	205	190571302	tmk	WP0905	-	thymidylate kinase
825	 32.89	0	973334..975358	+	674	190571303	-	WP0906	-	ComEC/Rec2 family protein
826	 31.46	-1	975404..977215	+	603	190571304	-	WP0907	-	hypothetical protein
827	 34.92	0	977200..978147	+	315	190571305	-	WP0908	-	ribosomal large subunit pseudouridine synthase, RluD subfamily
828	 29.89	-1	978154..978501	-	115	190571306	dgkA	WP0909	-	diacylglycerol kinase
829	 35.51	0	978767..979639	+	290	190571307	-	WP0910	-	transposase
830	 38.52	+1	980486..983704	-	1072	190571308	carB	WP0913	-	carbamoyl-phosphate synthase, large subunit
831	 37.25	+1	983821..984561	-	246	190571309	-	WP0914	-	oxidoreductase, short-chain dehydrogenase/reductase family
832	 33.33	0	984572..985387	-	271	190571310	-	WP0915	-	ribonuclease, BN family
833	 40.38	+2	985516..985884	+	122	190571311	-	WP0916	-	hypothetical protein
834	 35.51	0	986001..986873	+	290	190571312	-	WP0917	-	transposase
835	 36.08	0	987529..988914	-	461	190571313	purF	WP0918	-	amidophosphoribosyltransferase
836	 26.90	-2	988938..989108	+	56	190571314	-	WP0919	-	hypothetical protein
837	 29.44	-1	989164..990396	+	410	190571315	-	WP0920	-	hypothetical protein
838	 36.17	0	990528..991055	-	175	190571316	-	WP0921	-	Coq7 family protein
839	 39.41	+1	991565..992338	-	257	190571317	-	WP0922	-	putative DNA glycosylase
840	 36.11	0	992328..992867	-	179	190571318	def	WP0923	-	polypeptide deformylase
841	 36.40	0	993005..994243	+	412	190571319	ftsA	WP0924	-	cell division protein FtsA
842	 35.89	0	994361..995143	+	260	190571320	map	WP0925	-	methionine aminopeptidase, type I
843	 34.41	0	995174..996385	-	403	190571321	-	WP0926	-	major facilitator family transporter
844	 35.37	0	996591..997475	+	294	190571322	mraW	WP0927	-	S-adenosyl-methyltransferase MraW
845	 35.51	0	997736..998608	-	290	190571323	-	WP0928	-	transposase
846	 31.00	-1	999428..999727	-	99	190571324	-	WP0929	-	oxidoreductase, putative
847	 34.64	0	999870..1000481	+	203	190571325	-	WP0930	-	ribosomal 5S rRNA E-loop binding protein Ctc/L25/TL5
848	 31.91	0	1000481..1001044	+	187	190571326	pth	WP0931	-	peptidyl-tRNA hydrolase
849	 35.77	0	1001079..1002146	-	355	190571327	recA	WP0932	-	recA protein
850	 37.40	+1	1002261..1002998	+	245	190571328	truA	WP0933	-	tRNA pseudouridine synthase A
851	 34.11	0	1003000..1004151	-	383	190571329	dnaN	WP0934	-	DNA polymerase III, beta subunit
852	 33.94	0	1004263..1004760	-	165	190571330	-	WP0935	-	hypothetical protein
853	 33.45	0	1004753..1005646	-	297	190571331	rpoH	WP0936	-	heat shock sigma factor RpoH
854	 37.85	+1	1005930..1006616	-	228	190571332	-	WP0937	-	surface antigen Wsp
855	 35.14	0	1006953..1007285	-	110	190571333	-	WP0938	-	hypothetical protein
856	 33.33	0	1007289..1008872	-	527	190571334	dnaX	WP0939	-	DNA polymerase III, gamma and tau subunits
857	 34.91	0	1009046..1009426	+	126	190571335	-	WP0940	-	hypothetical protein
858	 33.03	0	1009423..1010076	+	217	190571336	-	WP0941	-	glutathione S-transferase family protein
859	 30.38	-1	1010048..1010725	-	225	190571337	-	WP0942	-	O-methyltransferase family protein
860	 31.54	0	1010977..1011255	+	92	190571338	-	WP0943	-	hypothetical protein
861	 28.83	-1	1011284..1012015	-	243	190571339	-	WP0944	-	hypothetical protein
862	 31.60	0	1012030..1012491	-	153	190571340	-	WP0945	-	hypothetical protein
863	 31.45	-1	1012788..1013372	+	194	190571341	-	WP0946	-	hypothetical protein
864	 37.22	+1	1013369..1014679	+	436	190571342	folC	WP0947	-	folylpolyglutamate synthase
865	 34.63	0	1014685..1015071	-	128	190571343	-	WP0948	-	hypothetical protein
866	 34.18	0	1015423..1015896	-	157	190571344	-	WP0949	-	hypothetical protein
867	 36.55	0	1016103..1017533	+	476	190571345	tldD	WP0950	-	tldD protein
868	 35.51	0	1018295..1019167	-	290	190571346	-	WP0951	-	transposase
869	 38.00	+1	1019495..1020094	-	199	190571347	petA	WP0952	-	ubiquinol-cytochrome c reductase, iron-sulfur subunit
870	 37.62	+1	1020189..1022891	-	900	190571348	gyrA	WP0953	-	DNA gyrase, A subunit
871	 31.72	0	1023080..1023946	-	288	190571349	-	WP0954	-	TPR domain protein
872	 32.83	0	1024015..1024413	-	132	190571350	-	WP0955	-	hypothetical protein
873	 35.80	0	1024410..1024937	-	175	190571351	-	WP0956	-	bioY family protein
874	 37.70	+1	1025034..1025606	+	190	190571352	-	WP0957	-	nitroreductase family protein
875	 34.14	0	1025582..1026694	-	370	190571353	-	WP0958	-	glycosyl hydrolase, family 5 protein
876	 35.35	0	1026800..1027594	+	264	190571354	dapF	WP0959	-	diaminopimelate epimerase
877	 41.50	+2	1027601..1028482	-	293	190571355	sucD	WP0960	-	succinyl-CoA synthetase, alpha subunit
878	 35.23	0	1028486..1029646	-	386	190571356	sucC	WP0961	-	succinyl-CoA synthase, beta subunit
879	 35.32	0	1029677..1029877	-	66	190571357	rpsU	WP0962	-	ribosomal protein S21, putative
880	 34.48	0	1030272..1030967	-	231	190571358	-	WP0963	-	hypothetical protein
881	 36.61	0	1032356..1033180	-	274	190571359	-	WP0965	-	coproporphyrinogen III oxidase
882	 31.84	0	1033340..1035820	+	826	190571360	-	WP0966	-	membrane associated signal transduction histidine kinase and receiver domain
883	 36.42	0	1035907..1036749	+	280	190571361	-	WP0967	-	Chromosome partitioning protein,ParA family
884	 35.87	0	1036746..1037612	+	288	190571362	-	WP0968	-	Chromosome partitioning protein, ParB family
885	 34.25	0	1037697..1038902	-	401	190571363	-	WP0969	-	ispD/ispF bifunctional enzyme
886	 31.77	0	1039253..1039891	+	212	190571364	-	WP0970	-	hypothetical protein
887	 39.66	+1	1040903..1042246	+	447	190571365	-	WP0972	-	Putative reverse transcriptase
888	 42.79	+2	1043043..1043243	+	66	190571366	-	WP0973	-	hypothetical protein
889	 42.65	+2	1043404..1043682	+	92	190571367	-	WP0974	-	hypothetical protein
34.35	MEAN

2.87	STD DEV
