IslandPathversion 1.0

IslandPath Analysis: Wolbachia pipientis

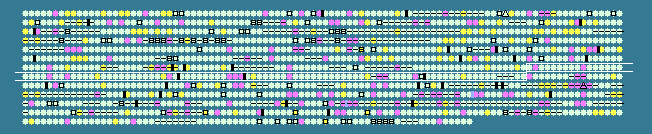

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.35 STD DEV: 2.87
Wolbachia pipientis, complete genome - 1..1482455
1275 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
685	 34.16	0	827648..828490	+	280	190571163	thyX	WP0761	-	Thymidylate synthase thyX
686	 29.50	-1	828515..829687	-	390	190571164	-	WP0762	-	hypothetical protein
687	 34.92	0	830067..833477	-	1136	190571165	-	WP0763	-	ankyrin repeat domain protein
688	 33.75	0	833487..834455	-	322	190571166	-	WP0764	-	hypothetical protein
689	 33.94	0	834600..836246	-	548	190571167	-	WP0765	-	hypothetical protein
690	 36.54	0	836345..838309	+	654	190571168	priA	WP0766	-	primosomal protein N
691	 31.94	0	838433..839221	+	262	190571169	-	WP0767	-	ankyrin repeat domain protein
692	 31.75	0	839780..841168	+	462	190571170	-	WP0768	-	Ankyrin repeat domain protein
693	 35.86	0	841295..841888	+	197	190571171	recR	WP0769	-	recombination protein RecR
694	 28.62	-1	842007..843089	+	360	190571172	-	WP0770	-	hypothetical protein
695	 32.10	0	843145..844365	+	406	190571173	-	WP0771	-	hypothetical protein
696	 36.15	0	844512..846428	+	638	190571174	htpG	WP0772	-	heat shock protein HtpG
697	 35.46	0	846467..847972	+	501	190571175	-	WP0773	-	hypothetical protein
698	 35.14	0	847978..849642	+	554	190571176	-	WP0774	-	ankyrin repeat domain protein
699	 33.74	0	849793..850284	+	163	190571177	-	WP0775	-	hypothetical protein
700	 35.42	0	850309..851169	+	286	190571178	-	WP0776	-	Ankyrin repeat domain protein
701	 36.98	0	851214..851624	+	136	190571179	-	WP0777	-	hypothetical protein
702	 37.18	0	851689..852885	+	398	190571180	hemA	WP0778	-	5-aminolevulinic acid synthase
703	 37.09	0	853166..853858	-	230	190571181	-	WP0779	-	inositol monophosphatase family protein
704	 34.92	0	853859..854425	-	188	190571182	efp	WP0780	-	translation elongation factor P
705	 30.54	-1	854485..854985	-	166	190571183	rimM	WP0781	-	16S rRNA processing protein RimM
706	 33.83	0	855083..858733	+	1216	190571184	-	WP0782	-	hypothetical protein
707	 35.81	0	858730..859899	-	389	190571185	argD	WP0783	-	acetylornithine aminotransferase
708	 28.71	-1	859964..861391	+	475	190571186	-	WP0784	-	sensor histidine kinase
709	 31.30	-1	861568..862305	+	245	190571187	-	WP0785	-	hypothetical protein
710	 37.49	+1	862378..863388	+	336	190571188	-	WP0786	-	peptidase, M22 family protein
711	 31.45	-1	863452..865899	+	815	190571189	-	WP0787	-	ankyrin repeat domain protein
712	 33.16	0	866001..867125	+	374	190571190	-	WP0788	-	hypothetical protein
713	 37.97	+1	867410..869155	+	581	190571191	-	WP0789	-	type I secretion system ATPase
714	 34.78	0	869255..870016	-	253	190571192	-	WP0790	-	hypothetical protein
715	 35.47	0	870074..871336	-	420	190571193	aceF	WP0791	-	pyruvate dehydrogenase complex, E2 component, dihydrolipoamide acetyltransferase
716	 33.33	0	871431..871586	+	51	190571194	-	WP0792	-	hypothetical protein
717	 32.73	0	871621..872115	-	164	190571195	-	WP0793	-	hypothetical protein
718	 35.67	0	872362..873303	+	313	190571196	-	WP0794	-	hypothetical protein
719	 37.16	0	873428..875257	-	609	190571197	ftsH	WP0795	-	cell division protein FtsH
720	 32.02	0	875270..876562	-	430	190571198	tilS	WP0796	-	trna(ile)-lysidine synthase (ec 6.3.4.-) (trna(ile)-lysidine synthetase) (trna(ile)-2-lysyl-cytidine synthase)
721	 34.38	0	876705..877184	-	159	190571199	-	WP0797	-	peptidoglycan-associated lipoprotein, putative
722	 31.22	-1	877459..878877	+	472	190571200	-	WP0798	-	Putative thermostable carboxypeptidase 1
723	 37.83	+1	878898..879965	+	355	190571201	mreB	WP0799	-	rod shape-determining protein MreB
724	 38.66	+1	880185..881291	+	368	190571202	trmU	WP0800	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
725	 29.41	-1	881404..882702	+	432	190571203	-	WP0801	-	hypothetical protein
726	 34.32	0	882783..883289	+	168	190571204	ppa	WP0802	-	inorganic pyrophosphatase
727	 31.91	0	883597..884724	+	375	190571205	-	WP0803	-	hypothetical protein
728	 32.86	0	884758..885387	+	209	190571206	-	WP0804	-	hypothetical protein
729	 32.07	0	885371..885922	+	183	190571207	-	WP0805	-	5-formyltetrahydrofolate cyclo-ligase, putative
730	 36.16	0	885965..886141	+	58	190571208	-	WP0806	-	hypothetical protein
731	 34.32	0	887846..888859	-	337	190571209	-	WP0808	-	hypothetical protein
732	 36.34	0	889001..889699	+	232	190571210	-	WP0809	-	enhancing lycopene biosynthesis protein 2, putative
733	 33.98	0	889829..890137	+	102	190571211	-	WP0810	-	hypothetical protein
734	 33.87	0	890196..891122	+	308	190571212	lytB	WP0811	-	penicillin tolerance protein LytB
735	 29.16	-1	891372..892832	+	486	190571213	-	WP0812	-	hypothetical protein
736	 27.75	-2	892837..893445	+	202	190571214	-	WP0813	-	hypothetical protein
737	 28.01	-2	893442..894230	+	262	190571215	-	WP0814	-	hypothetical protein
738	 34.58	0	894385..894867	+	160	190571216	ssb	WP0815	-	single-strand binding protein
739	 39.57	+1	894877..895758	+	293	190571217	dapA	WP0816	-	dihydrodipicolinate synthase
740	 35.07	0	895886..896863	-	325	190571218	-	WP0817	-	quinone oxidoreductase, putative
741	 33.15	0	897729..898265	-	178	190571219	-	WP0819	-	cytochrome c oxidase assembly protein CtaG, putative
742	 34.16	0	898266..898988	-	240	190571220	-	WP0820	-	hypothetical protein
743	 36.66	0	899190..900362	-	390	190571221	-	WP0821	-	aminotransferase, class V
744	 34.05	0	900513..901211	+	232	190571222	-	WP0822	-	alpha/beta superfamily hydrolase
745	 29.78	-1	901204..901428	+	74	190571223	-	WP0823	-	hypothetical protein
746	 35.11	0	901458..902132	-	224	190571224	-	WP0824	-	ABC transporter, ATP-binding protein
747	 36.24	0	902159..902605	-	148	190571225	-	WP0825	-	HesB/YadR/YfhF family protein
748	 35.28	0	902653..903834	+	393	190571226	dgt	WP0826	-	deoxyguanosinetriphosphate triphosphohydrolase
749	 37.68	+1	903834..905051	+	405	190571227	ribD	WP0827	-	riboflavin biosynthesis protein RibD
750	 33.78	0	905106..905783	-	225	190571228	-	WP0828	-	hypothetical protein
751	 34.84	0	905918..906979	+	353	190571229	truB	WP0829	-	trna pseudouridine synthase b
752	 31.87	0	906987..907259	+	90	190571230	rpsO	WP0830	-	ribosomal protein S15
753	 35.35	0	907274..909550	+	758	190571231	pnp	WP0831	-	polyribonucleotide nucleotidyltransferase
754	 33.33	0	909651..910325	-	224	190571232	rpe	WP0832	-	ribulose-phosphate 3-epimerase
755	 31.64	0	910479..911954	-	491	190571233	-	WP0833	-	N-acetylmuramoyl-L-alanine amidase, family 2
756	 37.08	0	912029..912856	-	275	190571234	-	WP0834	-	hypothetical protein
757	 35.94	0	912906..914096	-	396	190571235	pgk	WP0835	-	phosphoglycerate kinase
758	 39.20	+1	914173..915450	-	425	190571236	glyA	WP0836	-	serine hydroxymethyltransferase
759	 36.00	0	915422..916657	-	411	190571237	-	WP0837	-	Major facilitator superfamily protein
760	 23.72	-2	916749..916904	-	51	190571238	-	WP0838	-	hypothetical protein
761	 30.21	-1	917046..917558	+	170	190571239	-	WP0839	-	hypothetical protein
762	 37.11	0	917575..917892	-	105	190571240	sugE	WP0840	-	sugE protein
763	 37.02	0	917941..919134	-	397	190571241	aspC	WP0841	-	aspartate aminotransferase
764	 31.45	-1	919405..919563	-	52	190571242	-	WP0842	-	hypothetical protein
765	 36.09	0	919573..920589	-	338	190571243	hemE	WP0843	-	uroporphyrinogen decarboxylase
766	 30.16	-1	920992..921810	+	272	190571244	-	WP0844	-	CBS domain protein
767	 35.51	0	922364..923236	+	290	190571245	-	WP0846	-	transposase
768	 33.02	0	923481..924431	-	316	190571246	-	WP0847	-	NADH-ubiquinone oxidoreductase, putative
769	 32.10	0	924480..925856	-	458	190571247	murF	WP0848	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2, 6-diaminopimelate--D-alanyl-D-alanyl ligase
770	 31.84	0	926041..926775	+	244	190571248	-	WP0849	-	hypothetical protein
771	 37.19	0	926779..927063	+	94	190571249	-	WP0850	-	hypothetical protein
772	 31.71	0	927070..927438	+	122	190571250	-	WP0851	-	HIT family protein
773	 32.20	0	927456..927809	+	117	190571251	nuoA	WP0852	-	NADH dehydrogenase I, A subunit
774	 39.29	+1	927800..928303	+	167	190571252	nuoB	WP0853	-	NADH dehydrogenase I, B subunit
775	 34.20	0	928305..928880	+	191	190571253	nuoC	WP0854	-	NADH dehydrogenase I, C subunit
776	 36.93	0	928884..929828	+	314	190571254	mdh	WP0855	-	malate dehydrogenase
777	 33.08	0	929834..930622	-	262	190571255	-	WP0856	-	deoxyribonuclease, TatD family
778	 37.63	+1	930612..931100	-	162	190571256	-	WP0857	-	(di)nucleoside polyphosphate hydrolase
779	 31.25	-1	931166..931693	-	175	190571257	-	WP0858	-	hypothetical protein
780	 32.70	0	931822..932139	+	105	190571258	-	WP0859	-	iojap-related protein
781	 36.16	0	932195..932371	+	58	190571259	-	WP0860	-	hypothetical protein
782	 35.39	0	932368..933630	+	420	190571260	tyrS	WP0861	-	tyrosyl-tRNA synthetase
783	 35.19	0	933733..934485	-	250	190571261	-	WP0862	-	ankyrin repeat domain protein
784	 35.12	0	935119..935286	+	55	190571262	-	WP0863	-	hypothetical protein
34.35	MEAN

2.87	STD DEV
