IslandPathversion 1.0

IslandPath Analysis: Wolbachia pipientis

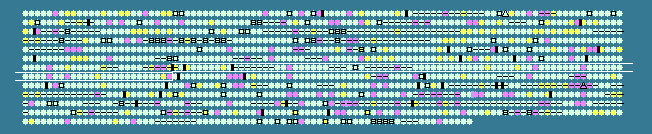

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.35 STD DEV: 2.87
Wolbachia pipientis, complete genome - 1..1482455
1275 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
626	 38.53	+1	770509..770835	-	108	190571104	trx	WP0702	-	thioredoxin
627	 34.46	0	770915..771535	-	206	190571105	-	WP0703	-	3'-5' exonuclease
628	 39.00	+1	771870..772328	+	152	190571106	-	WP0704	-	hypothetical protein
629	 35.37	0	772370..773254	+	294	190571107	era	WP0705	-	GTP-binding protein Era
630	 34.18	0	773247..774074	+	275	190571108	-	WP0706	-	hypothetical protein
631	 33.55	0	774117..775022	-	301	190571109	-	WP0707	-	putative lipase
632	 33.33	0	775099..775431	-	110	190571110	-	WP0708	-	hypothetical protein
633	 36.19	0	775763..777826	+	687	190571111	-	WP0709	-	Putative outer membrane protein
634	 39.58	+1	777947..778138	-	63	190571112	-	WP0710	-	hypothetical protein
635	 32.05	0	778142..778999	+	285	190571113	-	WP0711	-	hypothetical protein
636	 34.76	0	779472..779681	+	69	190571114	-	WP0712	-	hypothetical protein
637	 35.40	0	779662..779952	+	96	190571115	-	WP0713	-	hypothetical protein
638	 32.70	0	780234..780392	-	52	190571116	-	WP0714	-	hypothetical protein
639	 33.81	0	780530..780946	+	138	190571117	-	WP0715	-	Hypotehtical protein
640	 36.05	0	780943..781788	-	281	190571118	-	WP0716	-	rhodanese domain protein
641	 33.40	0	781919..783517	+	532	190571119	-	WP0717	-	iron compound ABC transporter, permease protein
642	 32.59	0	783720..784124	-	134	190571120	-	WP0718	-	apaG protein
643	 35.09	0	784228..785307	+	359	190571121	purK	WP0719	-	phosphoribosylaminoimidazole carboxylase, ATPase subunit
644	 36.17	0	785309..786331	-	340	190571122	asd	WP0720	-	aspartate-semialdehyde dehydrogenase
645	 30.52	-1	786470..786895	+	141	190571123	-	WP0721	-	hypothetical protein
646	 37.30	+1	786924..788210	-	428	190571124	-	WP0722	-	amino acid permease family protein
647	 36.31	0	788281..789555	-	424	190571125	-	WP0723	-	amino acid permease family protein
648	 33.12	0	789694..791133	+	479	190571126	-	WP0724	-	hypothetical protein
649	 33.85	0	791235..792005	+	256	190571127	surE	WP0725	-	acid phosphatase SurE
650	 34.64	0	792002..793225	-	407	190571128	hisS	WP0726	-	histidyl-tRNA synthetase
651	 33.86	0	793222..793794	-	190	190571129	-	WP0727	-	NifU domain protein
652	 33.61	0	793856..794215	+	119	190571130	-	WP0728	-	DnaJ domain protein
653	 33.42	0	794243..795388	+	381	190571131	-	WP0729	-	ankyrin repeat domain protein
654	 35.92	0	795573..796691	+	372	190571132	-	WP0730	-	ankyrin repeat domain protein
655	 33.85	0	796949..798118	+	389	190571133	-	WP0731	-	ankyrin repeat domain protein
656	 35.51	0	798463..799335	+	290	190571134	-	WP0732	-	transposase
657	 35.62	0	799362..800543	+	393	190571135	-	WP0733	-	ankyrin repeat domain protein
658	 34.64	0	800666..801892	+	408	190571136	petB	WP0734	-	ubiquinol-cytochrome c reductase, cytochrome b
659	 37.40	+1	801892..802653	+	253	190571137	petC	WP0735	-	ubiquinol-cytochrome c reductase, cytochrome c1
660	 36.28	0	802739..804673	+	644	190571138	uvrB	WP0736	-	excinuclease ABC, B subunit
661	 33.42	0	804980..806176	+	398	190571139	-	WP0737	-	major facilitator family transporter
662	 31.00	-1	806215..806514	+	99	190571140	-	WP0738	-	DNA-binding protein, HU family
663	 28.44	-2	806511..806837	+	108	190571141	-	WP0739	-	Putative transcriptional regulator, MerR family
664	 35.03	0	806890..807480	+	196	190571142	nlpD	WP0740	-	Putative Lipoprotein
665	 36.34	0	807485..809944	+	819	190571143	leuS	WP0741	-	leucyl-tRNA synthetase
666	 36.82	0	810065..810724	+	219	190571144	-	WP0742	-	ompA-like protein
667	 35.77	0	810835..811572	+	245	190571145	-	WP0743	-	ompA-like protein
668	 34.68	0	811672..812559	-	295	190571146	folD	WP0744	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
669	 34.90	0	812543..813118	-	191	190571147	ubiX	WP0745	-	phenylacrylic acid decarboxylase, 3-octaprenyl-4-hydroxybenzoate carboxy-lyase
670	 35.27	0	813111..813368	-	85	190571148	-	WP0746	-	hypothetical protein
671	 32.71	0	813378..814655	-	425	190571149	-	WP0747	-	Putative CBS domain membrane protein
672	 36.47	0	814724..815902	-	392	190571150	argD	WP0748	-	acetylornithine aminotransferase
673	 34.29	0	816025..816444	-	139	190571151	ndk	WP0749	-	nucleoside diphosphate kinase
674	 35.17	0	816550..817311	+	253	190571152	-	WP0750	-	hypothetical protein
675	 35.43	0	817308..818261	+	317	190571153	hemH	WP0751	-	ferrochelatase
676	 32.18	0	818323..819186	+	287	190571154	-	WP0752	-	hypothetical protein
677	 32.82	0	819174..820331	-	385	190571155	-	WP0753	-	glutamate--cysteine ligase-related protein
678	 38.74	+1	820414..820968	+	184	190571156	hslV	WP0754	-	heat shock protein HslV
679	 35.06	0	820970..822421	+	483	190571157	hslU	WP0755	-	heat shock protein HslVU, ATPase subunit HslU
680	 32.31	0	822492..823373	-	293	190571158	-	WP0756	-	peptidyl-prolyl cis-trans isomerase
681	 35.89	0	823366..824148	-	260	190571159	ispA	WP0757	-	geranyltranstransferase
682	 34.48	0	824276..824536	+	86	190571160	acpP	WP0758	-	acyl carrier protein
683	 39.98	+1	824543..825805	+	420	190571161	fabF	WP0759	-	3-oxoacyl-(acyl-carrier-protein) synthase II
684	 35.68	0	826361..827638	+	425	190571162	murA	WP0760	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
685	 34.16	0	827648..828490	+	280	190571163	thyX	WP0761	-	Thymidylate synthase thyX
686	 29.50	-1	828515..829687	-	390	190571164	-	WP0762	-	hypothetical protein
687	 34.92	0	830067..833477	-	1136	190571165	-	WP0763	-	ankyrin repeat domain protein
688	 33.75	0	833487..834455	-	322	190571166	-	WP0764	-	hypothetical protein
689	 33.94	0	834600..836246	-	548	190571167	-	WP0765	-	hypothetical protein
690	 36.54	0	836345..838309	+	654	190571168	priA	WP0766	-	primosomal protein N
691	 31.94	0	838433..839221	+	262	190571169	-	WP0767	-	ankyrin repeat domain protein
692	 31.75	0	839780..841168	+	462	190571170	-	WP0768	-	Ankyrin repeat domain protein
693	 35.86	0	841295..841888	+	197	190571171	recR	WP0769	-	recombination protein RecR
694	 28.62	-1	842007..843089	+	360	190571172	-	WP0770	-	hypothetical protein
695	 32.10	0	843145..844365	+	406	190571173	-	WP0771	-	hypothetical protein
696	 36.15	0	844512..846428	+	638	190571174	htpG	WP0772	-	heat shock protein HtpG
697	 35.46	0	846467..847972	+	501	190571175	-	WP0773	-	hypothetical protein
698	 35.14	0	847978..849642	+	554	190571176	-	WP0774	-	ankyrin repeat domain protein
699	 33.74	0	849793..850284	+	163	190571177	-	WP0775	-	hypothetical protein
700	 35.42	0	850309..851169	+	286	190571178	-	WP0776	-	Ankyrin repeat domain protein
701	 36.98	0	851214..851624	+	136	190571179	-	WP0777	-	hypothetical protein
702	 37.18	0	851689..852885	+	398	190571180	hemA	WP0778	-	5-aminolevulinic acid synthase
703	 37.09	0	853166..853858	-	230	190571181	-	WP0779	-	inositol monophosphatase family protein
704	 34.92	0	853859..854425	-	188	190571182	efp	WP0780	-	translation elongation factor P
705	 30.54	-1	854485..854985	-	166	190571183	rimM	WP0781	-	16S rRNA processing protein RimM
706	 33.83	0	855083..858733	+	1216	190571184	-	WP0782	-	hypothetical protein
707	 35.81	0	858730..859899	-	389	190571185	argD	WP0783	-	acetylornithine aminotransferase
708	 28.71	-1	859964..861391	+	475	190571186	-	WP0784	-	sensor histidine kinase
709	 31.30	-1	861568..862305	+	245	190571187	-	WP0785	-	hypothetical protein
710	 37.49	+1	862378..863388	+	336	190571188	-	WP0786	-	peptidase, M22 family protein
711	 31.45	-1	863452..865899	+	815	190571189	-	WP0787	-	ankyrin repeat domain protein
712	 33.16	0	866001..867125	+	374	190571190	-	WP0788	-	hypothetical protein
713	 37.97	+1	867410..869155	+	581	190571191	-	WP0789	-	type I secretion system ATPase
714	 34.78	0	869255..870016	-	253	190571192	-	WP0790	-	hypothetical protein
715	 35.47	0	870074..871336	-	420	190571193	aceF	WP0791	-	pyruvate dehydrogenase complex, E2 component, dihydrolipoamide acetyltransferase
716	 33.33	0	871431..871586	+	51	190571194	-	WP0792	-	hypothetical protein
717	 32.73	0	871621..872115	-	164	190571195	-	WP0793	-	hypothetical protein
718	 35.67	0	872362..873303	+	313	190571196	-	WP0794	-	hypothetical protein
719	 37.16	0	873428..875257	-	609	190571197	ftsH	WP0795	-	cell division protein FtsH
720	 32.02	0	875270..876562	-	430	190571198	tilS	WP0796	-	trna(ile)-lysidine synthase (ec 6.3.4.-) (trna(ile)-lysidine synthetase) (trna(ile)-2-lysyl-cytidine synthase)
721	 34.38	0	876705..877184	-	159	190571199	-	WP0797	-	peptidoglycan-associated lipoprotein, putative
722	 31.22	-1	877459..878877	+	472	190571200	-	WP0798	-	Putative thermostable carboxypeptidase 1
723	 37.83	+1	878898..879965	+	355	190571201	mreB	WP0799	-	rod shape-determining protein MreB
724	 38.66	+1	880185..881291	+	368	190571202	trmU	WP0800	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
725	 29.41	-1	881404..882702	+	432	190571203	-	WP0801	-	hypothetical protein
34.35	MEAN

2.87	STD DEV
