IslandPath Analysis: Wolbachia pipientis

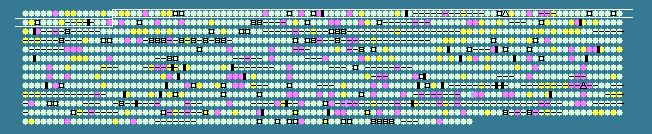

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.35 STD DEV: 2.87
Wolbachia pipientis, complete genome - 1..1482455
1275 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
16	 36.75	0	10978..12237	-	419	190570494	proS	WP0016	-	prolyl-tRNA synthetase
17	 38.75	+1	12344..13930	-	528	190570495	-	WP0017	-	hypothetical protein
18	 41.30	+2	14244..14657	+	137	190570496	-	WP0018	-	hypothetical protein
19	 33.92	0	14670..15008	-	112	190570497	-	WP0019	-	Putative lipoprotein
20	 33.94	0	15138..16127	+	329	190570498	nrdB	WP0020	-	ribonucleoside-diphosphate reductase, beta subunit
21	 26.87	-2	16935..17135	+	66	190570499	-	WP0023	-	hypothetical protein
22	 32.90	0	17620..18537	-	305	190570500	-	WP0024	-	hypothetical protein
23	 34.59	0	18600..19397	-	265	190570501	-	WP0025	-	aminomethyl transferase family protein
24	 39.18	+1	19510..19800	+	96	190570502	groES	WP0026	-	chaperonin, 10 kDa
25	 38.22	+1	19890..21548	+	552	190570503	groEL	WP0027	-	chaperonin, 60 kDa
26	 35.17	0	21750..22130	+	126	190570504	-	WP0028	-	Putative transposase
27	 35.20	0	22127..22609	+	160	190570505	-	WP0029	-	Putative transposase
28	 32.94	0	22787..23290	+	167	190570506	-	WP0030	-	hypothetical protein
29	 32.67	0	23435..24340	-	301	190570507	-	WP0031	-	hypothetical protein
30	 33.33	0	24649..24924	-	91	190570508	-	WP0032	-	hypothetical protein
31	 33.41	0	24964..26301	+	445	190570509	-	WP0033	-	sodium/alanine symporter family protein
32	 34.42	0	27764..29977	+	737	190570510	-	WP0035	-	hypothetical protein
33	 36.38	0	29964..30554	-	196	190570511	-	WP0036	-	maf-like protein
34	 34.60	0	30551..30787	-	78	190570512	infA	WP0037	-	translation initiation factor IF-1
35	 33.66	0	30859..32988	-	709	190570513	-	WP0038	-	hypothetical protein
36	 35.52	0	33147..34424	-	425	190570514	purA	WP0039	-	adenylosuccinate synthetase
37	 31.64	0	34604..36136	+	510	190570515	-	WP0040	-	hypothetical protein
38	 31.68	0	36508..37416	-	302	190570516	argB	WP0041	-	acetylglutamate kinase
39	 31.99	0	37421..38014	-	197	190570517	-	WP0042	-	GTP-binding protein
40	 35.71	0	38128..39219	+	363	190570518	prfA	WP0043	-	peptide chain release factor 1
41	 28.60	-2	39338..39781	+	147	190570519	-	WP0044	-	hypothetical protein
42	 31.08	-1	40146..41075	-	309	190570520	-	WP0045	-	hypothetical protein
43	 31.54	0	41329..41886	-	185	190570521	-	WP0046	-	hypothetical protein
44	 35.06	0	41903..43063	+	386	190570522	-	WP0047	-	drug resistance transporter
45	 35.51	0	43175..44047	-	290	190570523	-	WP0048	-	transposase
46	 35.58	0	45346..46014	+	222	190570524	-	WP0050	-	Putative rare lipoprotein A
47	 27.21	-2	47812..48219	-	135	190570525	-	WP0052	-	hypothetical protein
48	 34.28	0	48381..49538	+	385	190570526	ubiH	WP0053	-	2-polyprenyl-6-methoxyphenol hydroxylase, fad-dependent oxidoreductase
49	 35.51	0	50592..51464	-	290	190570527	-	WP0055	-	transposase
50	 30.56	-1	51838..52776	-	312	190570528	-	WP0056	-	hypothetical protein
51	 34.12	0	52984..53490	+	168	190570529	coaD	WP0057	-	phosphopantetheine adenylyltransferase
52	 34.29	0	53562..53771	+	69	190570530	-	WP0058	-	hypothetical protein
53	 32.70	0	53787..54413	-	208	190570531	cdsA	WP0059	-	phosphatidate cytidylyltransferase
54	 32.18	0	54403..55098	-	231	190570532	uppS	WP0060	-	undecaprenyl diphosphate synthase
55	 30.13	-1	55375..56592	-	405	190570533	-	WP0061	-	hypothetical protein
56	 36.83	0	56736..57908	+	390	190570534	sucB	WP0062	-	2-oxoglutarate dehydrogenase, E2 component, dihydrolipoamide succinyltransferase
57	 38.80	+1	57956..58138	+	60	190570535	-	WP0063	-	hypothetical protein
58	 33.22	0	58959..59804	+	281	190570536	-	WP0065	-	hypothetical protein
59	 34.62	0	60223..60999	+	258	190570537	fabI	WP0066	-	enoyl-(acyl-carrier-protein) reductase
60	 34.10	0	62746..63924	-	392	190570538	-	WP0068	-	hypothetical protein
61	 36.71	0	64043..65137	+	364	190570539	-	WP0069	-	GTP-binding protein YchF
62	 31.40	-1	65180..66526	-	448	190570540	-	WP0070	-	hypothetical protein
63	 38.94	+1	66667..67593	-	308	190570541	glpX	WP0071	-	Frusctose-1,6-bisphosphatase, class II
64	 34.08	0	67705..69045	+	446	190570542	-	WP0072	-	hypothetical protein
65	 32.25	0	69348..70085	+	245	190570543	-	WP0073	-	ABC transporter, ATP-binding protein
66	 36.31	0	70226..70393	+	55	190570544	-	WP0074	-	Twin-arginine translocation protein
67	 34.71	0	70520..71173	+	217	190570545	-	WP0075	-	exopolysaccharide synthesis protein ExoD-like
68	 33.49	0	71288..71944	+	218	190570546	-	WP0076	-	exopolysaccharide synthesis protein ExoD-like
69	 34.19	0	71937..73331	+	464	190570547	cysS	WP0077	-	cysteinyl-tRNA synthetase
70	 33.57	0	73300..73713	+	137	190570548	-	WP0078	-	hypothetical protein
71	 30.85	-1	73744..76677	-	977	190570549	-	WP0079	-	hypothetical protein
72	 33.79	0	76670..77107	-	145	190570550	rnhA	WP0080	-	ribonuclease H
73	 34.80	0	77283..78170	-	295	190570551	ctaB	WP0081	-	protoheme IX farnesyltransferase
74	 37.91	+1	78172..79722	-	516	190570552	coxA	WP0082	-	cytochrome c oxidase, subunit I
75	 33.59	0	79738..80502	-	254	190570553	coxB	WP0083	-	cytochrome c oxidase, subunit II
76	 35.05	0	81059..82570	-	503	190570554	-	WP0084	-	secretion protein, HlyD family
77	 35.20	0	82725..83153	-	142	190570555	-	WP0085	-	hypothetical protein
78	 36.29	0	83219..84199	+	326	190570556	pdhA	WP0086	-	pyruvate dehydrogenase complex, E1 component, alpha subunit
79	 36.08	0	84405..85826	+	473	190570557	gatB	WP0087	-	glutamyl-tRNA(Gln) amidotransferase, B subunit
80	 35.51	0	89812..90684	-	290	190570558	-	WP0091	-	transposase
81	 34.42	0	91819..92739	-	306	190570559	-	WP0092	-	site-specific recombinase, phage integrase family
82	 38.33	+1	92742..94121	-	459	190570560	lpdA	WP0093	-	pyruvate dehydrogenase complex, E3 component, Dihydrolipoamide dehydrogenase
83	 32.88	0	94114..95223	-	369	190570561	-	WP0094	-	PQQ enzyme repeat family protein
84	 34.73	0	95539..96831	+	430	190570562	-	WP0095	-	hypothetical protein
85	 30.21	-1	96949..97524	-	191	190570563	-	WP0096	-	hypothetical protein
86	 37.02	0	97610..100183	+	857	190570564	valS	WP0097	-	valyl-tRNA synthetase
87	 30.73	-1	100225..102336	+	703	190570565	-	WP0098	-	hypothetical protein
88	 29.65	-1	103826..104992	+	388	190570566	-	WP0100	-	hypothetical protein
89	 38.03	+1	105036..105716	+	226	190570567	pyrF	WP0101	-	orotidine 5`-phosphate decarboxylase
90	 36.60	0	106468..107631	+	387	190570568	-	WP0102	-	phage major capsid protein, HK97 family
91	 34.90	0	107706..108407	+	233	190570569	-	WP0103	-	hypothetical protein
92	 31.97	0	108541..109344	+	267	190570570	-	WP0104	-	hypothetical protein
93	 30.89	-1	109465..111183	+	572	190570571	-	WP0105	-	hypothetical protein
94	 31.17	-1	111496..112050	+	184	190570572	-	WP0106	-	hypothetical protein
95	 35.51	0	112127..112999	+	290	190570573	-	WP0107	-	transposase
96	 37.14	0	113288..114076	+	262	190570574	dapB	WP0108	-	dihydrodipicolinate reductase
97	 34.78	0	114073..114831	+	252	190570575	pstB	WP0109	-	phosphate ABC transporter, ATP-binding protein
98	 33.78	0	114900..115121	+	73	190570576	-	WP0110	-	hypothetical protein
99	 35.51	0	115187..116059	+	290	190570577	-	WP0111	-	transposase
100	 35.56	0	116108..116782	+	224	190570578	-	WP0112	-	ankyrin repeat domain protein
101	 35.46	0	116933..118108	-	391	190570579	dxr	WP0113	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
102	 42.83	+2	118136..118630	-	164	190570580	-	WP0114	-	hypothetical protein
103	 35.51	0	120427..121299	-	290	190570581	-	WP0116	-	transposase
104	 35.38	0	121424..121618	+	64	190570582	-	WP0117	-	hypothetical protein
105	 37.58	+1	121673..123202	-	509	190570583	metG	WP0118	-	methionyl-tRNA synthetase
106	 37.05	0	123329..124243	-	304	190570584	-	WP0119	-	hypothetical protein
107	 39.39	+1	124325..125728	-	467	190570585	-	WP0120	-	probable dioxygenase
108	 35.23	0	125864..126442	+	192	190570586	coaE	WP0121	-	dephospho-coa kinase
109	 33.16	0	126432..127616	-	394	190570587	-	WP0122	-	Putative ribonuclease D
110	 38.00	+1	127701..129071	-	456	190570588	pyrC	WP0123	-	dihydroorotase
111	 34.33	0	133070..133672	-	200	190570589	-	WP0127	-	Putative membrane RDD family protein
112	 36.04	0	133880..135322	+	480	190570590	dnaB	WP0128	-	replicative DNA helicase
113	 33.06	0	135670..137157	+	495	190570591	-	WP0129	-	putative nadh-ubiquinone oxidoreductase subunit
114	 31.34	-1	137172..137822	-	216	190570592	-	WP0130	-	Putative type IV secretion system protein VirB8
115	 30.46	-1	137852..138583	-	243	190570593	-	WP0131	-	hypothetical protein
34.35	MEAN

2.87	STD DEV
