IslandPathversion 1.0

IslandPath Analysis: Wolbachia pipientis

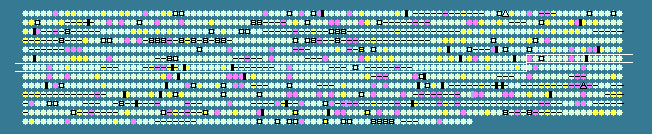

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.35 STD DEV: 2.87
Wolbachia pipientis, complete genome - 1..1482455
1275 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
585	 30.49	-1	720967..721740	-	257	190571063	rpsF	WP0657	-	30s ribosomal protein s6
586	 36.22	0	721790..725110	-	1106	190571064	dnaE	WP0658	-	DNA polymerase III, alpha subunit
587	 35.51	0	726165..727037	+	290	190571065	-	WP0660	-	transposase
588	 35.44	0	727759..728658	-	299	190571066	fmt	WP0661	-	methionyl-tRNA formyltransferase
589	 36.07	0	728678..729043	-	121	190571067	rplT	WP0662	-	ribosomal protein L20
590	 33.82	0	729065..729271	-	68	190571068	rpmI	WP0663	-	ribosomal protein L35
591	 32.88	0	729370..729813	-	147	190571069	-	WP0664	-	hypothetical protein
592	 30.67	-1	730025..730774	-	249	190571070	-	WP0665	-	hypothetical protein
593	 33.44	0	731064..732020	-	318	190571071	-	WP0666	-	hypothetical protein
594	 35.19	0	732239..734821	+	860	190571072	alaS	WP0667	-	alanyl-tRNA synthetase
595	 33.74	0	735184..735921	-	245	190571073	-	WP0668	-	leucine-rich repeat protein
596	 36.91	0	736118..737626	+	502	190571074	pgm	WP0669	-	phosphoglycerate mutase, 2,3-bisphosphoglycerate-independent
597	 36.81	0	737621..738367	-	248	190571075	-	WP0670	-	hypothetical protein
598	 37.47	+1	738423..739388	-	321	190571076	fabD	WP0671	-	malonyl CoA-acyl carrier protein transacylase
599	 36.62	0	739514..739726	+	70	190571077	rpmE	WP0672	-	ribosomal protein L31
600	 35.11	0	739748..740533	+	261	190571078	ppnK	WP0673	-	ATP-NAD kinase
601	 34.62	0	740617..741861	+	414	190571079	-	WP0674	-	hypothetical protein
602	 33.73	0	741985..743001	+	338	190571080	-	WP0675	-	iron compound ABC transporter, periplasmic iron compound-binding protein
603	 33.11	0	743082..743969	+	295	190571081	pyrB	WP0676	-	aspartate carbamoyltransferase
604	 31.70	0	744600..745580	+	326	190571082	-	WP0677	-	ankyrin repeat domain protein
605	 28.92	-1	745564..747330	+	588	190571083	-	WP0678	-	pentapeptide repeat domain protein
606	 32.51	0	747366..747974	+	202	190571084	gmk	WP0679	-	guanylate kinase
607	 32.70	0	748219..750267	+	682	190571085	-	WP0680	-	ankyrin repeat domain protein
608	 41.50	+2	750239..752038	-	599	190571086	sdhA	WP0681	-	succinate dehydrogenase, flavoprotein subunit
609	 32.60	0	752247..752657	-	136	190571087	-	WP0682	-	hypothetical protein
610	 35.11	0	752696..753538	+	280	190571088	dapD	WP0683	-	2,3,4,5-tetrahydropyridine-2,6-dicarboxylate N-succinyltransferase
611	 34.40	0	753539..753820	-	93	190571089	-	WP0684	-	hypothetical protein
612	 33.08	0	753821..754213	-	130	190571090	-	WP0685	-	hypothetical protein
613	 33.62	0	754281..755324	+	347	190571091	-	WP0686	-	hypothetical protein
614	 38.17	+1	755533..755718	+	61	190571092	-	WP0687	-	hypothetical protein
615	 31.77	0	756231..757571	-	446	190571093	-	WP0688	-	ankyrin repeat domain protein
616	 33.33	0	757822..759600	-	592	190571094	-	WP0689	-	ankyrin repeat domain protein
617	 34.59	0	761165..762361	-	398	190571095	dapE	WP0691	-	succinyl-diaminopimelate desuccinylase
618	 36.20	0	762404..763660	+	418	190571096	-	WP0692	-	araM protein
619	 35.24	0	764253..765089	+	278	190571097	-	WP0693	-	hypothetical protein
620	 35.00	0	765369..765848	-	159	190571098	folA	WP0694	-	dihydrofolate reductase
621	 37.57	+1	767199..767576	-	125	190571099	folB	WP0696	-	dihydroneopterin aldolase
622	 38.18	+1	767599..768258	-	219	190571100	-	WP0697	-	coenzyme PQQ synthesis protein C
623	 30.49	-1	769183..769569	+	128	190571101	-	WP0699	-	hypothetical protein
624	 27.84	-2	769585..769875	-	96	190571102	-	WP0700	-	hypothetical protein
625	 38.03	+1	770203..770436	+	77	190571103	-	WP0701	-	hypothetical protein
626	 38.53	+1	770509..770835	-	108	190571104	trx	WP0702	-	thioredoxin
627	 34.46	0	770915..771535	-	206	190571105	-	WP0703	-	3'-5' exonuclease
628	 39.00	+1	771870..772328	+	152	190571106	-	WP0704	-	hypothetical protein
629	 35.37	0	772370..773254	+	294	190571107	era	WP0705	-	GTP-binding protein Era
630	 34.18	0	773247..774074	+	275	190571108	-	WP0706	-	hypothetical protein
631	 33.55	0	774117..775022	-	301	190571109	-	WP0707	-	putative lipase
632	 33.33	0	775099..775431	-	110	190571110	-	WP0708	-	hypothetical protein
633	 36.19	0	775763..777826	+	687	190571111	-	WP0709	-	Putative outer membrane protein
634	 39.58	+1	777947..778138	-	63	190571112	-	WP0710	-	hypothetical protein
635	 32.05	0	778142..778999	+	285	190571113	-	WP0711	-	hypothetical protein
636	 34.76	0	779472..779681	+	69	190571114	-	WP0712	-	hypothetical protein
637	 35.40	0	779662..779952	+	96	190571115	-	WP0713	-	hypothetical protein
638	 32.70	0	780234..780392	-	52	190571116	-	WP0714	-	hypothetical protein
639	 33.81	0	780530..780946	+	138	190571117	-	WP0715	-	Hypotehtical protein
640	 36.05	0	780943..781788	-	281	190571118	-	WP0716	-	rhodanese domain protein
641	 33.40	0	781919..783517	+	532	190571119	-	WP0717	-	iron compound ABC transporter, permease protein
642	 32.59	0	783720..784124	-	134	190571120	-	WP0718	-	apaG protein
643	 35.09	0	784228..785307	+	359	190571121	purK	WP0719	-	phosphoribosylaminoimidazole carboxylase, ATPase subunit
644	 36.17	0	785309..786331	-	340	190571122	asd	WP0720	-	aspartate-semialdehyde dehydrogenase
645	 30.52	-1	786470..786895	+	141	190571123	-	WP0721	-	hypothetical protein
646	 37.30	+1	786924..788210	-	428	190571124	-	WP0722	-	amino acid permease family protein
647	 36.31	0	788281..789555	-	424	190571125	-	WP0723	-	amino acid permease family protein
648	 33.12	0	789694..791133	+	479	190571126	-	WP0724	-	hypothetical protein
649	 33.85	0	791235..792005	+	256	190571127	surE	WP0725	-	acid phosphatase SurE
650	 34.64	0	792002..793225	-	407	190571128	hisS	WP0726	-	histidyl-tRNA synthetase
651	 33.86	0	793222..793794	-	190	190571129	-	WP0727	-	NifU domain protein
652	 33.61	0	793856..794215	+	119	190571130	-	WP0728	-	DnaJ domain protein
653	 33.42	0	794243..795388	+	381	190571131	-	WP0729	-	ankyrin repeat domain protein
654	 35.92	0	795573..796691	+	372	190571132	-	WP0730	-	ankyrin repeat domain protein
655	 33.85	0	796949..798118	+	389	190571133	-	WP0731	-	ankyrin repeat domain protein
656	 35.51	0	798463..799335	+	290	190571134	-	WP0732	-	transposase
657	 35.62	0	799362..800543	+	393	190571135	-	WP0733	-	ankyrin repeat domain protein
658	 34.64	0	800666..801892	+	408	190571136	petB	WP0734	-	ubiquinol-cytochrome c reductase, cytochrome b
659	 37.40	+1	801892..802653	+	253	190571137	petC	WP0735	-	ubiquinol-cytochrome c reductase, cytochrome c1
660	 36.28	0	802739..804673	+	644	190571138	uvrB	WP0736	-	excinuclease ABC, B subunit
661	 33.42	0	804980..806176	+	398	190571139	-	WP0737	-	major facilitator family transporter
662	 31.00	-1	806215..806514	+	99	190571140	-	WP0738	-	DNA-binding protein, HU family
663	 28.44	-2	806511..806837	+	108	190571141	-	WP0739	-	Putative transcriptional regulator, MerR family
664	 35.03	0	806890..807480	+	196	190571142	nlpD	WP0740	-	Putative Lipoprotein
665	 36.34	0	807485..809944	+	819	190571143	leuS	WP0741	-	leucyl-tRNA synthetase
666	 36.82	0	810065..810724	+	219	190571144	-	WP0742	-	ompA-like protein
667	 35.77	0	810835..811572	+	245	190571145	-	WP0743	-	ompA-like protein
668	 34.68	0	811672..812559	-	295	190571146	folD	WP0744	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
669	 34.90	0	812543..813118	-	191	190571147	ubiX	WP0745	-	phenylacrylic acid decarboxylase, 3-octaprenyl-4-hydroxybenzoate carboxy-lyase
670	 35.27	0	813111..813368	-	85	190571148	-	WP0746	-	hypothetical protein
671	 32.71	0	813378..814655	-	425	190571149	-	WP0747	-	Putative CBS domain membrane protein
672	 36.47	0	814724..815902	-	392	190571150	argD	WP0748	-	acetylornithine aminotransferase
673	 34.29	0	816025..816444	-	139	190571151	ndk	WP0749	-	nucleoside diphosphate kinase
674	 35.17	0	816550..817311	+	253	190571152	-	WP0750	-	hypothetical protein
675	 35.43	0	817308..818261	+	317	190571153	hemH	WP0751	-	ferrochelatase
676	 32.18	0	818323..819186	+	287	190571154	-	WP0752	-	hypothetical protein
677	 32.82	0	819174..820331	-	385	190571155	-	WP0753	-	glutamate--cysteine ligase-related protein
678	 38.74	+1	820414..820968	+	184	190571156	hslV	WP0754	-	heat shock protein HslV
679	 35.06	0	820970..822421	+	483	190571157	hslU	WP0755	-	heat shock protein HslVU, ATPase subunit HslU
680	 32.31	0	822492..823373	-	293	190571158	-	WP0756	-	peptidyl-prolyl cis-trans isomerase
681	 35.89	0	823366..824148	-	260	190571159	ispA	WP0757	-	geranyltranstransferase
682	 34.48	0	824276..824536	+	86	190571160	acpP	WP0758	-	acyl carrier protein
683	 39.98	+1	824543..825805	+	420	190571161	fabF	WP0759	-	3-oxoacyl-(acyl-carrier-protein) synthase II
684	 35.68	0	826361..827638	+	425	190571162	murA	WP0760	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
34.35	MEAN

2.87	STD DEV
