IslandPathversion 1.0

IslandPath Analysis: Wolbachia pipientis

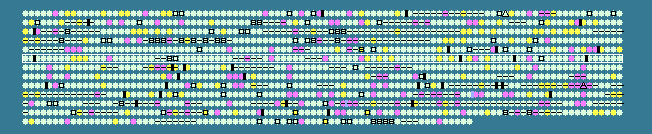

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.35 STD DEV: 2.87
Wolbachia pipientis, complete genome - 1..1482455
1275 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
501	 33.92	0	610547..611398	+	283	190570979	-	WP0565	-	modification methylase, HemK family
502	 34.00	0	612115..612714	-	199	190570980	-	WP0568	-	Putative lipoprotein
503	 31.03	-1	613208..614551	+	447	190570981	-	WP0569	-	trigger factor, putative
504	 34.93	0	614564..615190	+	208	190570982	clpP	WP0570	-	ATP-dependent Clp protease, proteolytic subunit ClpP
505	 36.15	0	615190..616467	+	425	190570983	clpX	WP0571	-	ATP-dependent Clp protease, ATP-binding subunit ClpX
506	 34.84	0	616483..618939	+	818	190570984	lon	WP0572	-	ATP-dependent protease La
507	 35.39	0	619039..620595	-	518	190570985	-	WP0573	-	penicillin-binding protein
508	 32.68	0	620616..621386	-	256	190570986	-	WP0574	-	polysaccharide deacetylase, putative
509	 38.69	+1	621507..623018	+	503	190570987	-	WP0575	-	Mg chelatase-related protein
510	 37.87	+1	623090..623596	+	168	190570988	-	WP0576	-	hypothetical protein
511	 38.57	+1	623830..625014	+	394	190570989	ftsZ	WP0577	-	cell division protein FtsZ
512	 32.58	0	625014..625412	+	132	190570990	-	WP0578	-	hypothetical protein
513	 32.03	0	625406..625864	+	152	190570991	-	WP0579	-	conserved hypothetical protein TIGR00043
514	 33.84	0	625919..626707	+	262	190570992	sdhB	WP0580	-	succinate dehydrogenase, iron-sulfur protein
515	 27.53	-2	626711..627847	-	378	190570993	-	WP0581	-	hypothetical protein
516	 31.57	0	627883..628674	-	263	190570994	-	WP0582	-	acetyltransferase, GNAT family
517	 31.68	0	628664..629146	-	160	190570995	-	WP0583	-	phosphatidylglycerophosphatase A, putative
518	 33.84	0	629166..630143	-	325	190570996	gpsA	WP0584	-	glycerol-3-phosphate dehydrogenase (NAD+)
519	 36.84	0	630467..631237	+	256	190570997	-	WP0585	-	two component transcriptional regulator
520	 36.33	0	635537..636037	+	166	190570998	nuoE	WP0588	-	NADH dehydrogenase I, E subunit
521	 37.38	+1	636038..637249	+	403	190570999	tgt	WP0589	-	queuine tRNA-ribosyltransferase
522	 34.59	0	637666..638940	-	424	190571000	-	WP0591	-	peptidase, M16 family
523	 32.18	0	638942..639550	-	202	190571001	sodB	WP0592	-	superoxide dismutase, Fe
524	 36.35	0	639685..640215	+	176	190571002	-	WP0593	-	hypothetical protein
525	 35.51	0	640649..641521	+	290	190571003	-	WP0595	-	transposase
526	 35.51	0	641671..642543	+	290	190571004	-	WP0596	-	transposase
527	 34.61	0	642684..643232	-	182	190571005	-	WP0597	-	Putative methyltransferase
528	 33.02	0	643337..643966	-	209	190571006	-	WP0598	-	hypothetical protein
529	 35.05	0	643950..647204	-	1084	190571007	-	WP0599	-	TrlB/VirB6 plasmid conjugal transfer domain protein
530	 33.44	0	647286..650186	-	966	190571008	-	WP0600	-	TrbL/VirB6 plasmid conjugal transfer family protein
531	 33.75	0	650183..652555	-	790	190571009	-	WP0601	-	TrbL/VirB6 plasmid conjugal transfer family protein
532	 36.59	0	652573..655149	-	858	190571010	-	WP0602	-	type IV secretion system protein VirB6
533	 33.87	0	655142..657547	-	801	190571011	-	WP0603	-	type IV secretion system protein VirB4
534	 33.00	0	657557..657853	-	98	190571012	-	WP0604	-	type IV secretion system protein VirB3, putative
535	 36.12	0	657918..659495	+	525	190571013	lysS	WP0605	-	lysyl-tRNA synthetase
536	 31.68	0	660084..660809	-	241	190571014	-	WP0606	-	ankyrin repeat domain protein
537	 33.51	0	660985..661563	-	192	190571015	-	WP0607	-	ribosomal RNA large subunit methyltransferase J, putative
538	 30.81	-1	661639..662154	-	171	190571016	-	WP0608	-	hypothetical protein
539	 32.77	0	662165..663400	-	411	190571017	-	WP0609	-	putative outer membrane protein
540	 33.99	0	663532..663990	+	152	190571018	rplM	WP0610	-	ribosomal protein L13
541	 35.62	0	664002..664439	+	145	190571019	rpsI	WP0611	-	ribosomal protein S9
542	 30.77	-1	664574..664885	+	103	190571020	-	WP0612	-	DNA-binding protein, HU family
543	 35.17	0	664878..665585	-	235	190571021	pdxJ	WP0613	-	pyridoxal phosphate biosynthetic protein PdxJ
544	 33.11	0	665957..666412	+	151	190571022	-	WP0614	-	heat shock protein, Hsp20 family
545	 37.10	0	667260..668612	-	450	190571023	gltX	WP0615	-	glutamyl-tRNA synthetase
546	 34.10	0	668764..669414	+	216	190571024	-	WP0616	-	hypothetical protein
547	 36.07	0	669476..671446	+	656	190571025	pccA	WP0617	-	propionyl-CoA carboxylase, alpha subunit
548	 34.14	0	671429..672424	-	331	190571026	-	WP0618	-	cytochrome c oxidase assembly protein
549	 31.13	-1	672406..673995	-	529	190571027	-	WP0619	-	glycosyl transferase, group 2 family protein
550	 31.24	-1	674001..674477	-	158	190571028	-	WP0620	-	hypothetical protein
551	 30.00	-1	674485..674964	-	159	190571029	-	WP0621	-	ATP synthase F0, B subunit
552	 36.40	0	674968..675195	-	75	190571030	atpE	WP0622	-	ATP synthase F0, C subunit
553	 31.13	-1	675255..675980	-	241	190571031	atpB	WP0623	-	ATP synthase F0, A subunit
554	 33.33	0	676197..676466	+	89	190571032	-	WP0624	-	hypothetical protein
555	 34.79	0	676579..678918	+	779	190571033	pheT	WP0625	-	phenylalanyl-tRNA synthetase, beta subunit
556	 37.59	+1	681762..684932	-	1056	190571034	ileS	WP0627	-	isoleucyl-trna synthetase
557	 28.51	-2	685017..685265	+	82	190571035	-	WP0628	-	hypothetical protein
558	 37.94	+1	685368..686690	-	440	190571036	-	WP0629	-	trna-i(6)a37 thiotransferase enzyme
559	 37.01	0	687357..689096	+	579	190571037	recJ	WP0630	-	single-stranded-DNA-specific exonuclease RecJ
560	 40.32	+2	689115..690287	-	390	190571038	nuoD	WP0631	-	NADH dehydrogenase I, D subunit
561	 32.18	0	690553..691074	+	173	190571039	-	WP0632	-	cytochrome b561
562	 38.65	+1	691080..692075	+	331	190571040	fabK	WP0633	-	enoyl-(acyl-carrier-protein) reductase II
563	 34.90	0	692208..693671	+	487	190571041	-	WP0634	-	hypothetical protein
564	 32.51	0	693776..694141	+	121	190571042	-	WP0635	-	Putative lipoprotein
565	 31.63	0	694193..696547	+	784	190571043	-	WP0636	-	type IV secretion system protein VirB4
566	 34.20	0	696528..699416	+	962	190571044	-	WP0637	-	hypothetical protein
567	 35.29	0	699661..700734	-	357	190571045	-	WP0638	-	ankyrin repeat domain protein
568	 36.15	0	700826..701605	-	259	190571046	-	WP0639	-	hypothetical protein
569	 36.12	0	701611..702255	-	214	190571047	-	WP0640	-	phospholipase/carboxylesterase family protein
570	 37.98	+1	702353..702718	-	121	190571048	-	WP0641	-	hypothetical protein
571	 34.39	0	702813..704609	-	598	190571049	-	WP0642	-	aminopeptidase P
572	 38.60	+1	704611..706659	-	682	190571050	gidA	WP0643	-	glucose-inhibited division protein A
573	 37.29	+1	706749..707279	-	176	190571051	-	WP0644	-	hypothetical protein
574	 31.40	-1	707647..709143	+	498	190571052	mviN	WP0645	-	integral membrane protein MviN
575	 38.38	+1	709166..709522	+	118	190571053	-	WP0646	-	hypothetical protein
576	 30.28	-1	709519..712008	+	829	190571054	-	WP0647	-	hypothetical protein
577	 34.43	0	712244..712789	-	181	190571055	-	WP0648	-	ankyrin repeat domain protein
578	 39.46	+1	712843..714018	-	391	190571056	-	WP0649	-	phage portal protein, HK97 family
579	 33.66	0	714330..714947	+	205	190571057	lipB	WP0650	-	lipoate-protein ligase B
580	 32.81	0	714947..715906	+	319	190571058	-	WP0651	-	Peptidase S66 family protein
581	 36.81	0	716095..716958	-	287	190571059	-	WP0652	-	ankyrin repeat domain protein
582	 34.49	0	718699..720000	-	433	190571060	purB	WP0654	-	adenylosuccinate lyase
583	 33.15	0	720131..720685	-	184	190571061	rplI	WP0655	-	ribosomal protein L9
584	 35.87	0	720689..720964	-	91	190571062	rpsR	WP0656	-	ribosomal protein S18
585	 30.49	-1	720967..721740	-	257	190571063	rpsF	WP0657	-	30s ribosomal protein s6
586	 36.22	0	721790..725110	-	1106	190571064	dnaE	WP0658	-	DNA polymerase III, alpha subunit
587	 35.51	0	726165..727037	+	290	190571065	-	WP0660	-	transposase
588	 35.44	0	727759..728658	-	299	190571066	fmt	WP0661	-	methionyl-tRNA formyltransferase
589	 36.07	0	728678..729043	-	121	190571067	rplT	WP0662	-	ribosomal protein L20
590	 33.82	0	729065..729271	-	68	190571068	rpmI	WP0663	-	ribosomal protein L35
591	 32.88	0	729370..729813	-	147	190571069	-	WP0664	-	hypothetical protein
592	 30.67	-1	730025..730774	-	249	190571070	-	WP0665	-	hypothetical protein
593	 33.44	0	731064..732020	-	318	190571071	-	WP0666	-	hypothetical protein
594	 35.19	0	732239..734821	+	860	190571072	alaS	WP0667	-	alanyl-tRNA synthetase
595	 33.74	0	735184..735921	-	245	190571073	-	WP0668	-	leucine-rich repeat protein
596	 36.91	0	736118..737626	+	502	190571074	pgm	WP0669	-	phosphoglycerate mutase, 2,3-bisphosphoglycerate-independent
597	 36.81	0	737621..738367	-	248	190571075	-	WP0670	-	hypothetical protein
598	 37.47	+1	738423..739388	-	321	190571076	fabD	WP0671	-	malonyl CoA-acyl carrier protein transacylase
599	 36.62	0	739514..739726	+	70	190571077	rpmE	WP0672	-	ribosomal protein L31
600	 35.11	0	739748..740533	+	261	190571078	ppnK	WP0673	-	ATP-NAD kinase
34.35	MEAN

2.87	STD DEV
