IslandPath Analysis: Wolbachia pipientis

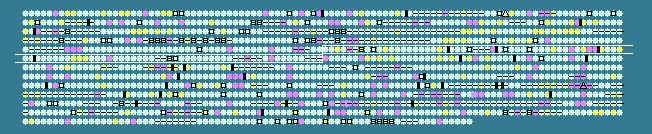

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.35 STD DEV: 2.87
Wolbachia pipientis, complete genome - 1..1482455
1275 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
451	 31.31	-1	545406..545948	-	180	190570929	-	WP0509	-	hypothetical protein
452	 35.38	0	546033..546569	-	178	190570930	-	WP0510	-	Putative endonuclease protein
453	 39.72	+1	546601..548088	-	495	190570931	-	WP0511	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
454	 33.70	0	548136..550019	-	627	190570932	-	WP0512	-	hypothetical protein
455	 30.23	-1	550359..551099	+	246	190570933	-	WP0513	-	DsbA-like disulfide oxidoreductase
456	 32.47	0	551291..552679	+	462	190570934	-	WP0514	-	hypothetical protein
457	 39.47	+1	552699..553937	-	412	190570935	-	WP0515	-	transposase
458	 34.92	0	554057..554245	+	62	190570936	-	WP0516	-	hypothetical protein
459	 35.51	0	554404..555276	-	290	190570937	-	WP0518	-	transposase
460	 32.17	0	555952..556725	-	257	190570938	-	WP0519	-	hypothetical protein
461	 38.95	+1	556920..559589	-	889	190570939	sucA	WP0520	-	2-oxoglutarate dehydrogenase, E1 component
462	 34.87	0	559982..561349	+	455	190570940	-	WP0521	-	hypothetical protein
463	 34.93	0	561357..562355	-	332	190570941	trpS	WP0522	-	tryptophanyl-tRNA synthetase
464	 34.40	0	562371..562931	-	186	190570942	grpE	WP0523	-	heat shock protein GrpE
465	 33.74	0	562993..563979	-	328	190570943	ispB	WP0524	-	octaprenyl-diphosphate synthase
466	 36.83	0	563990..564304	-	104	190570944	rpsP	WP0525	-	ribosomal protein S16
467	 30.94	-1	564439..566238	-	599	190570945	-	WP0526	-	peptidyl-prolyl cis-trans isomerse D, putative
468	 31.52	0	567245..567850	+	201	190570946	-	WP0528	-	hypothetical protein
469	 36.53	0	568045..569451	+	468	190570947	rho	WP0529	-	transcription termination factor Rho
470	 38.04	+1	569717..571204	-	495	190570948	guaB	WP0530	-	inosine-5'-monophosphate dehydrogenase
471	 33.46	0	571328..572122	-	264	190570949	ksgA	WP0531	-	dimethyladenosine transferase
472	 32.34	0	572297..572998	+	233	190570950	tpiA	WP0532	-	triosephosphate isomerase
473	 34.88	0	573149..574504	+	451	190570951	murD	WP0533	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
474	 31.98	0	574523..575113	+	196	190570952	-	WP0534	-	hypothetical protein
475	 35.51	0	575514..576386	-	290	190570953	-	WP0535	-	transposase
476	 36.07	0	576483..576665	-	60	190570954	-	WP0536	-	hypothetical protein
477	 33.68	0	578035..578325	+	96	190570955	-	WP0538	-	hypothetical protein
478	 31.14	-1	578322..578867	-	181	190570956	-	WP0539	-	hypothetical protein
479	 30.65	-1	578951..579286	-	111	190570957	cutA	WP0540	-	periplasmic divalent cation tolerance protein
480	 33.73	0	580764..582284	+	506	190570958	purH	WP0542	-	phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
481	 32.56	0	582761..583018	+	85	190570959	-	WP0543	-	transposase, (fragment)
482	 35.68	0	583788..584426	-	212	190570960	nth	WP0545	-	endonuclease III
483	 33.18	0	584448..585749	-	433	190570961	-	WP0546	-	Putative dnaj domain membrane protein
484	 36.93	0	585832..587250	-	472	190570962	-	WP0547	-	isocitrate dehydrogenase, NAD-dependent
485	 35.51	0	587718..588590	-	290	190570963	-	WP0549	-	transposase
486	 36.40	0	589072..590343	-	423	190570964	purD	WP0550	-	phosphoribosylamine--glycine ligase
487	 34.74	0	590375..591655	-	426	190570965	serS	WP0551	-	seryl-tRNA synthetase
488	 32.49	0	591783..593204	+	473	190570966	-	WP0552	-	hypothetical protein
489	 38.91	+1	593212..594162	+	316	190570967	-	WP0553	-	NifR3 family protein
490	 34.65	0	594197..602716	-	2839	190570968	rpoBC	WP0554	-	DNA-directed RNA polymerase, beta/beta' subunits
491	 32.09	0	602775..603176	-	133	190570969	rplL	WP0555	-	ribosomal protein L7/L12
492	 29.87	-1	603203..603721	-	172	190570970	rplJ	WP0556	-	ribosomal protein L10
493	 33.18	0	603734..604387	-	217	190570971	rplA	WP0557	-	ribosomal protein L1
494	 38.32	+1	604392..604832	-	146	190570972	rplK	WP0558	-	ribosomal protein L11
495	 28.91	-1	604835..605671	-	278	190570973	-	WP0559	-	transcription antiterminator
496	 25.71	-2	605661..605870	-	69	190570974	secE	WP0560	-	protein translocase subunit secE
497	 40.75	+2	605966..607138	-	390	190570975	tuf	WP0561	-	translation elongation factor Tu
498	 35.84	0	607151..609226	-	691	190570976	fusA	WP0562	-	translation elongation factor G
499	 35.64	0	609248..609724	-	158	190570977	rpsG	WP0563	-	ribosomal protein S7
500	 41.33	+2	609730..610104	-	124	190570978	rpsL	WP0564	-	ribosomal protein S12
501	 33.92	0	610547..611398	+	283	190570979	-	WP0565	-	modification methylase, HemK family
502	 34.00	0	612115..612714	-	199	190570980	-	WP0568	-	Putative lipoprotein
503	 31.03	-1	613208..614551	+	447	190570981	-	WP0569	-	trigger factor, putative
504	 34.93	0	614564..615190	+	208	190570982	clpP	WP0570	-	ATP-dependent Clp protease, proteolytic subunit ClpP
505	 36.15	0	615190..616467	+	425	190570983	clpX	WP0571	-	ATP-dependent Clp protease, ATP-binding subunit ClpX
506	 34.84	0	616483..618939	+	818	190570984	lon	WP0572	-	ATP-dependent protease La
507	 35.39	0	619039..620595	-	518	190570985	-	WP0573	-	penicillin-binding protein
508	 32.68	0	620616..621386	-	256	190570986	-	WP0574	-	polysaccharide deacetylase, putative
509	 38.69	+1	621507..623018	+	503	190570987	-	WP0575	-	Mg chelatase-related protein
510	 37.87	+1	623090..623596	+	168	190570988	-	WP0576	-	hypothetical protein
511	 38.57	+1	623830..625014	+	394	190570989	ftsZ	WP0577	-	cell division protein FtsZ
512	 32.58	0	625014..625412	+	132	190570990	-	WP0578	-	hypothetical protein
513	 32.03	0	625406..625864	+	152	190570991	-	WP0579	-	conserved hypothetical protein TIGR00043
514	 33.84	0	625919..626707	+	262	190570992	sdhB	WP0580	-	succinate dehydrogenase, iron-sulfur protein
515	 27.53	-2	626711..627847	-	378	190570993	-	WP0581	-	hypothetical protein
516	 31.57	0	627883..628674	-	263	190570994	-	WP0582	-	acetyltransferase, GNAT family
517	 31.68	0	628664..629146	-	160	190570995	-	WP0583	-	phosphatidylglycerophosphatase A, putative
518	 33.84	0	629166..630143	-	325	190570996	gpsA	WP0584	-	glycerol-3-phosphate dehydrogenase (NAD+)
519	 36.84	0	630467..631237	+	256	190570997	-	WP0585	-	two component transcriptional regulator
520	 36.33	0	635537..636037	+	166	190570998	nuoE	WP0588	-	NADH dehydrogenase I, E subunit
521	 37.38	+1	636038..637249	+	403	190570999	tgt	WP0589	-	queuine tRNA-ribosyltransferase
522	 34.59	0	637666..638940	-	424	190571000	-	WP0591	-	peptidase, M16 family
523	 32.18	0	638942..639550	-	202	190571001	sodB	WP0592	-	superoxide dismutase, Fe
524	 36.35	0	639685..640215	+	176	190571002	-	WP0593	-	hypothetical protein
525	 35.51	0	640649..641521	+	290	190571003	-	WP0595	-	transposase
526	 35.51	0	641671..642543	+	290	190571004	-	WP0596	-	transposase
527	 34.61	0	642684..643232	-	182	190571005	-	WP0597	-	Putative methyltransferase
528	 33.02	0	643337..643966	-	209	190571006	-	WP0598	-	hypothetical protein
529	 35.05	0	643950..647204	-	1084	190571007	-	WP0599	-	TrlB/VirB6 plasmid conjugal transfer domain protein
530	 33.44	0	647286..650186	-	966	190571008	-	WP0600	-	TrbL/VirB6 plasmid conjugal transfer family protein
531	 33.75	0	650183..652555	-	790	190571009	-	WP0601	-	TrbL/VirB6 plasmid conjugal transfer family protein
532	 36.59	0	652573..655149	-	858	190571010	-	WP0602	-	type IV secretion system protein VirB6
533	 33.87	0	655142..657547	-	801	190571011	-	WP0603	-	type IV secretion system protein VirB4
534	 33.00	0	657557..657853	-	98	190571012	-	WP0604	-	type IV secretion system protein VirB3, putative
535	 36.12	0	657918..659495	+	525	190571013	lysS	WP0605	-	lysyl-tRNA synthetase
536	 31.68	0	660084..660809	-	241	190571014	-	WP0606	-	ankyrin repeat domain protein
537	 33.51	0	660985..661563	-	192	190571015	-	WP0607	-	ribosomal RNA large subunit methyltransferase J, putative
538	 30.81	-1	661639..662154	-	171	190571016	-	WP0608	-	hypothetical protein
539	 32.77	0	662165..663400	-	411	190571017	-	WP0609	-	putative outer membrane protein
540	 33.99	0	663532..663990	+	152	190571018	rplM	WP0610	-	ribosomal protein L13
541	 35.62	0	664002..664439	+	145	190571019	rpsI	WP0611	-	ribosomal protein S9
542	 30.77	-1	664574..664885	+	103	190571020	-	WP0612	-	DNA-binding protein, HU family
543	 35.17	0	664878..665585	-	235	190571021	pdxJ	WP0613	-	pyridoxal phosphate biosynthetic protein PdxJ
544	 33.11	0	665957..666412	+	151	190571022	-	WP0614	-	heat shock protein, Hsp20 family
545	 37.10	0	667260..668612	-	450	190571023	gltX	WP0615	-	glutamyl-tRNA synthetase
546	 34.10	0	668764..669414	+	216	190571024	-	WP0616	-	hypothetical protein
547	 36.07	0	669476..671446	+	656	190571025	pccA	WP0617	-	propionyl-CoA carboxylase, alpha subunit
548	 34.14	0	671429..672424	-	331	190571026	-	WP0618	-	cytochrome c oxidase assembly protein
549	 31.13	-1	672406..673995	-	529	190571027	-	WP0619	-	glycosyl transferase, group 2 family protein
550	 31.24	-1	674001..674477	-	158	190571028	-	WP0620	-	hypothetical protein
34.35	MEAN

2.87	STD DEV
