IslandPath Analysis: Wolbachia pipientis

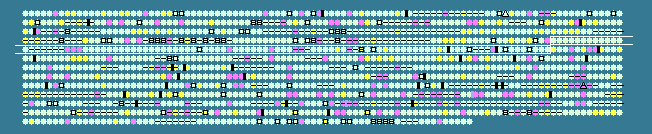

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.35 STD DEV: 2.87
Wolbachia pipientis, complete genome - 1..1482455
1275 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
389	 35.44	0	475480..476853	+	457	190570867	-	WP0443	-	Putative phage related protein
390	 32.61	0	476876..477427	+	183	190570868	-	WP0444	-	Putative phage related protein
391	 37.32	+1	477420..478598	+	392	190570869	-	WP0445	-	Phage major tail sheath protein
392	 36.29	0	478614..479120	+	168	190570870	-	WP0446	-	Phage tail tube protein
393	 35.29	0	479157..479411	+	84	190570871	-	WP0447	-	putative phage related protein
394	 35.01	0	479527..481791	+	754	190570872	-	WP0448	-	Phage tail tape measure protein
395	 31.65	0	481791..482147	+	118	190570873	-	WP0449	-	phage tail protein GpU
396	 33.33	0	482144..482353	+	69	190570874	-	WP0450	-	Phage tail protein GpX
397	 33.97	0	482354..483289	+	311	190570875	-	WP0451	-	phage late control gene d protein GpD
398	 32.02	0	483337..483870	+	177	190570876	-	WP0452	-	ankyrin repeat domain protein
399	 36.11	0	483918..484133	+	71	190570877	-	WP0453	-	hypothetical protein
400	 33.89	0	484125..484667	-	180	190570878	-	WP0454	-	Putative endonuclease protein
401	 34.20	0	484654..485577	+	307	190570879	-	WP0455	-	patatin family protein
402	 32.13	0	485656..485988	-	110	190570880	-	WP0456	-	hypothetical protein
403	 33.13	0	486388..487365	-	325	190570881	-	WP0457	-	Putative transcriptional regulator
404	 35.10	0	487429..488670	-	413	190570882	-	WP0458	-	hypothetical protein
405	 37.52	+1	488966..489634	-	222	190570883	-	WP0459	-	Putative dna repair protein radc
406	 34.21	0	490838..491749	+	303	190570884	-	WP0461	-	hypothetical protein
407	 32.82	0	491755..499743	-	2662	190570885	-	WP0462	-	ankyrin repeat domain protein
408	 29.55	-1	499843..500106	-	87	190570886	-	WP0463	-	hypothetical protein
409	 29.68	-1	500899..501309	+	136	190570887	-	WP0464	-	putative acetyltransferase
410	 28.27	-2	501322..502566	+	414	190570888	-	WP0465	-	Major facilitator superfamily protein
411	 34.46	0	502720..504675	-	651	190570889	ligA	WP0466	-	DNA ligase, NAD-dependent
412	 31.33	-1	504830..505129	+	99	190570890	-	WP0467	-	hypothetical protein
413	 34.52	0	507483..508073	-	196	190570891	pyrE	WP0470	-	orotate phosphoribosyltransferase
414	 33.42	0	508070..509254	-	394	190570892	-	WP0471	-	sodium/glutamate symporter family protein, putative
415	 33.97	0	509373..509846	+	157	190570893	-	WP0472	-	hypothetical protein
416	 36.16	0	509929..510813	-	294	190570894	murB	WP0473	-	UDP-N-acetylenolpyruvoylglucosamine reductase
417	 36.29	0	510804..511682	-	292	190570895	hemC	WP0474	-	porphobilinogen deaminase
418	 32.27	0	511802..512176	+	124	190570896	-	WP0475	-	hypothetical protein
419	 33.73	0	512249..513763	+	504	190570897	secD	WP0476	-	protein-export membrane protein SecD
420	 31.91	0	514043..514957	-	304	190570898	-	WP0477	-	surface antigen-related protein
421	 32.68	0	515017..516243	-	408	190570899	-	WP0478	-	MiaB-like tRNA modifying enzyme
422	 33.69	0	516463..517017	-	184	190570900	-	WP0479	-	hypothetical protein
423	 36.95	0	517381..517629	+	82	190570901	-	WP0480	-	hypothetical protein
424	 32.97	0	518005..518838	-	277	190570902	-	WP0481	-	hypothetical protein
425	 35.66	0	518987..521008	+	673	190570903	recG	WP0482	-	ATP-dependent DNA helicase RecG
426	 34.92	0	521338..521526	+	62	190570904	-	WP0484	-	hypothetical protein
427	 33.33	0	521739..521867	-	42	190570905	-	WP0485	-	ribosomal protein L36
428	 31.87	0	521929..522747	-	272	190570906	-	WP0486	-	hypothetical protein
429	 37.27	+1	522890..523600	+	236	190570907	ccmC	WP0487	-	heme exporter protein CcmC
430	 35.51	0	523850..524722	+	290	190570908	-	WP0488	-	transposase
431	 32.95	0	524971..526011	+	346	190570909	-	WP0489	-	hypothetical protein
432	 31.41	-1	526020..526175	+	51	190570910	-	WP0490	-	hypothetical protein
433	 31.97	0	526576..528042	+	488	190570911	-	WP0491	-	type II secretion system protein, putative
434	 35.70	0	528270..529832	+	520	190570912	guaA	WP0492	-	GMP synthase
435	 30.74	-1	530053..530745	-	230	190570913	-	WP0493	-	membrane protein, TerC family
436	 34.20	0	531027..532403	+	458	190570914	-	WP0494	-	malonyl-CoA decarboxylase, putative
437	 32.06	0	532489..533511	+	340	190570915	-	WP0495	-	hypothetical protein
438	 37.34	+1	533593..535389	+	598	190570916	lepA	WP0496	-	GTP-binding protein LepA
439	 31.39	-1	535629..536501	-	290	190570917	-	WP0497	-	hypothetical protein
440	 32.35	0	536560..536967	-	135	190570918	-	WP0498	-	glutaredoxin family protein
441	 32.05	0	537036..537968	+	310	190570919	ribF	WP0499	-	riboflavin biosynthesis protein RibF
442	 30.82	-1	537965..538441	+	158	190570920	lspA	WP0500	-	lipoprotein signal peptidase
443	 33.56	0	538446..539774	+	442	190570921	-	WP0501	-	protease, insulinase family
444	 32.43	0	539761..541083	+	440	190570922	-	WP0502	-	peptidase, M16 family
445	 36.68	0	541077..541643	-	188	190570923	-	WP0503	-	phosphoribosylglycinamide formyltransferase, putative
446	 28.78	-1	541910..542326	+	138	190570924	-	WP0504	-	hypothetical protein
447	 30.27	-1	542319..542840	-	173	190570925	-	WP0505	-	Na+/H+ ion antiporter family protein
448	 37.17	0	542944..543855	+	303	190570926	-	WP0506	-	ankyrin repeat domain protein
449	 32.67	0	543944..544393	+	149	190570927	smpB	WP0507	-	SsrA-binding protein
450	 34.97	0	544400..545191	+	263	190570928	lgt	WP0508	-	prolipoprotein diacylglyceryl transferase
451	 31.31	-1	545406..545948	-	180	190570929	-	WP0509	-	hypothetical protein
452	 35.38	0	546033..546569	-	178	190570930	-	WP0510	-	Putative endonuclease protein
453	 39.72	+1	546601..548088	-	495	190570931	-	WP0511	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
454	 33.70	0	548136..550019	-	627	190570932	-	WP0512	-	hypothetical protein
455	 30.23	-1	550359..551099	+	246	190570933	-	WP0513	-	DsbA-like disulfide oxidoreductase
456	 32.47	0	551291..552679	+	462	190570934	-	WP0514	-	hypothetical protein
457	 39.47	+1	552699..553937	-	412	190570935	-	WP0515	-	transposase
458	 34.92	0	554057..554245	+	62	190570936	-	WP0516	-	hypothetical protein
459	 35.51	0	554404..555276	-	290	190570937	-	WP0518	-	transposase
460	 32.17	0	555952..556725	-	257	190570938	-	WP0519	-	hypothetical protein
461	 38.95	+1	556920..559589	-	889	190570939	sucA	WP0520	-	2-oxoglutarate dehydrogenase, E1 component
462	 34.87	0	559982..561349	+	455	190570940	-	WP0521	-	hypothetical protein
463	 34.93	0	561357..562355	-	332	190570941	trpS	WP0522	-	tryptophanyl-tRNA synthetase
464	 34.40	0	562371..562931	-	186	190570942	grpE	WP0523	-	heat shock protein GrpE
465	 33.74	0	562993..563979	-	328	190570943	ispB	WP0524	-	octaprenyl-diphosphate synthase
466	 36.83	0	563990..564304	-	104	190570944	rpsP	WP0525	-	ribosomal protein S16
467	 30.94	-1	564439..566238	-	599	190570945	-	WP0526	-	peptidyl-prolyl cis-trans isomerse D, putative
468	 31.52	0	567245..567850	+	201	190570946	-	WP0528	-	hypothetical protein
469	 36.53	0	568045..569451	+	468	190570947	rho	WP0529	-	transcription termination factor Rho
470	 38.04	+1	569717..571204	-	495	190570948	guaB	WP0530	-	inosine-5'-monophosphate dehydrogenase
471	 33.46	0	571328..572122	-	264	190570949	ksgA	WP0531	-	dimethyladenosine transferase
472	 32.34	0	572297..572998	+	233	190570950	tpiA	WP0532	-	triosephosphate isomerase
473	 34.88	0	573149..574504	+	451	190570951	murD	WP0533	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
474	 31.98	0	574523..575113	+	196	190570952	-	WP0534	-	hypothetical protein
475	 35.51	0	575514..576386	-	290	190570953	-	WP0535	-	transposase
476	 36.07	0	576483..576665	-	60	190570954	-	WP0536	-	hypothetical protein
477	 33.68	0	578035..578325	+	96	190570955	-	WP0538	-	hypothetical protein
478	 31.14	-1	578322..578867	-	181	190570956	-	WP0539	-	hypothetical protein
479	 30.65	-1	578951..579286	-	111	190570957	cutA	WP0540	-	periplasmic divalent cation tolerance protein
480	 33.73	0	580764..582284	+	506	190570958	purH	WP0542	-	phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
481	 32.56	0	582761..583018	+	85	190570959	-	WP0543	-	transposase, (fragment)
482	 35.68	0	583788..584426	-	212	190570960	nth	WP0545	-	endonuclease III
483	 33.18	0	584448..585749	-	433	190570961	-	WP0546	-	Putative dnaj domain membrane protein
484	 36.93	0	585832..587250	-	472	190570962	-	WP0547	-	isocitrate dehydrogenase, NAD-dependent
485	 35.51	0	587718..588590	-	290	190570963	-	WP0549	-	transposase
486	 36.40	0	589072..590343	-	423	190570964	purD	WP0550	-	phosphoribosylamine--glycine ligase
487	 34.74	0	590375..591655	-	426	190570965	serS	WP0551	-	seryl-tRNA synthetase
488	 32.49	0	591783..593204	+	473	190570966	-	WP0552	-	hypothetical protein
34.35	MEAN

2.87	STD DEV
