IslandPath Analysis: Wolbachia pipientis

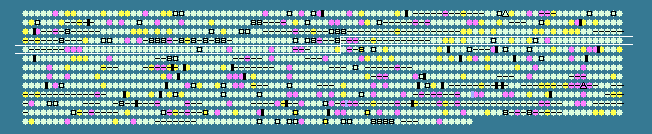

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.35 STD DEV: 2.87
Wolbachia pipientis, complete genome - 1..1482455
1275 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
354	 32.27	0	431883..439745	-	2620	190570832	-	WP0407	-	ankyrin and tpr repeat domain protein
355	 28.76	-1	440137..440289	-	50	190570833	-	WP0408	-	hypothetical protein
356	 30.52	-1	440431..441426	+	331	190570834	-	WP0409	-	putative RDD domain transmembrane protein
357	 37.60	+1	441672..444392	+	906	190570835	-	WP0410	-	ankyrin repeat domain protein
358	 34.14	0	444716..446203	-	495	190570836	-	WP0411	-	site-specific recombinase, resolvase family
359	 37.96	+1	446213..446644	-	143	190570837	-	WP0412	-	Putative phage related protein
360	 37.56	+1	446649..447098	-	149	190570838	-	WP0413	-	Ankyrin repeat domain protein
361	 36.71	0	447124..447834	-	236	190570839	-	WP0414	-	ankyrin repeat domain protein
362	 34.19	0	448002..449162	-	386	190570840	-	WP0415	-	Putative phage related protein
363	 34.86	0	449162..449947	-	261	190570841	-	WP0416	-	baseplate assembly protein GpJ
364	 33.63	0	449950..450285	-	111	190570842	-	WP0417	-	baseplate assembly protein GpW
365	 34.12	0	450288..450542	-	84	190570843	-	WP0418	-	Putative phage related protein
366	 34.19	0	450539..451003	-	154	190570844	-	WP0419	-	baseplate assembly protein GpV
367	 35.65	0	450990..451463	-	157	190570845	-	WP0420	-	putative phage related protein
368	 33.74	0	451460..451951	-	163	190570846	-	WP0421	-	Putative minor tail protein Z
369	 36.63	0	451953..452255	-	100	190570847	-	WP0422	-	putative phage related protein
370	 33.59	0	452262..452657	-	131	190570848	-	WP0423	-	glyoxalase/bleomycin resistance protein/dioxygenase domain protein
371	 39.42	+1	452710..453711	-	333	190570849	-	WP0424	-	putative phage related protein
372	 39.25	+1	453737..454108	-	123	190570850	-	WP0425	-	putative phage related protein
373	 35.78	0	454183..455244	-	353	190570851	-	WP0426	-	putative minor capsid protein c
374	 38.98	+1	455259..456479	-	406	190570852	-	WP0427	-	Putative phage portal protein
375	 33.94	0	456648..458621	-	657	190570853	-	WP0428	-	hypothetical protein
376	 37.43	+1	458665..459885	-	406	190570854	-	WP0429	-	Phage related DNA methylase
377	 36.99	0	459999..460463	-	154	190570855	-	WP0430	-	putative phage related protein
378	 34.31	0	460932..461951	+	339	190570856	-	WP0431	-	Putative virulence factor RhuM protein
379	 35.51	0	463624..464496	-	290	190570857	-	WP0432	-	transposase
380	 36.59	0	465011..467068	+	685	190570858	-	WP0433	-	putative phage related protein
381	 34.53	0	467103..467603	+	166	190570859	-	WP0434	-	RNA polymerase sigma-70 domain protein
382	 39.75	+1	467621..468430	+	269	190570860	-	WP0435	-	Putative phage related protein
383	 36.68	0	468465..469271	+	268	190570861	-	WP0436	-	Putative phage related protein
384	 35.32	0	469306..469809	+	167	190570862	-	WP0437	-	Putative phage related protein
385	 38.45	+1	470102..470785	+	227	190570863	-	WP0438	-	putative phage related protein
386	 34.81	0	471885..472832	-	315	190570864	-	WP0440	-	transposase
387	 37.05	0	474100..475284	+	394	190570865	-	WP0441	-	Putative phage related protein
388	 30.77	-1	475289..475483	+	64	190570866	-	WP0442	-	Putative phage related protein
389	 35.44	0	475480..476853	+	457	190570867	-	WP0443	-	Putative phage related protein
390	 32.61	0	476876..477427	+	183	190570868	-	WP0444	-	Putative phage related protein
391	 37.32	+1	477420..478598	+	392	190570869	-	WP0445	-	Phage major tail sheath protein
392	 36.29	0	478614..479120	+	168	190570870	-	WP0446	-	Phage tail tube protein
393	 35.29	0	479157..479411	+	84	190570871	-	WP0447	-	putative phage related protein
394	 35.01	0	479527..481791	+	754	190570872	-	WP0448	-	Phage tail tape measure protein
395	 31.65	0	481791..482147	+	118	190570873	-	WP0449	-	phage tail protein GpU
396	 33.33	0	482144..482353	+	69	190570874	-	WP0450	-	Phage tail protein GpX
397	 33.97	0	482354..483289	+	311	190570875	-	WP0451	-	phage late control gene d protein GpD
398	 32.02	0	483337..483870	+	177	190570876	-	WP0452	-	ankyrin repeat domain protein
399	 36.11	0	483918..484133	+	71	190570877	-	WP0453	-	hypothetical protein
400	 33.89	0	484125..484667	-	180	190570878	-	WP0454	-	Putative endonuclease protein
401	 34.20	0	484654..485577	+	307	190570879	-	WP0455	-	patatin family protein
402	 32.13	0	485656..485988	-	110	190570880	-	WP0456	-	hypothetical protein
403	 33.13	0	486388..487365	-	325	190570881	-	WP0457	-	Putative transcriptional regulator
404	 35.10	0	487429..488670	-	413	190570882	-	WP0458	-	hypothetical protein
405	 37.52	+1	488966..489634	-	222	190570883	-	WP0459	-	Putative dna repair protein radc
406	 34.21	0	490838..491749	+	303	190570884	-	WP0461	-	hypothetical protein
407	 32.82	0	491755..499743	-	2662	190570885	-	WP0462	-	ankyrin repeat domain protein
408	 29.55	-1	499843..500106	-	87	190570886	-	WP0463	-	hypothetical protein
409	 29.68	-1	500899..501309	+	136	190570887	-	WP0464	-	putative acetyltransferase
410	 28.27	-2	501322..502566	+	414	190570888	-	WP0465	-	Major facilitator superfamily protein
411	 34.46	0	502720..504675	-	651	190570889	ligA	WP0466	-	DNA ligase, NAD-dependent
412	 31.33	-1	504830..505129	+	99	190570890	-	WP0467	-	hypothetical protein
413	 34.52	0	507483..508073	-	196	190570891	pyrE	WP0470	-	orotate phosphoribosyltransferase
414	 33.42	0	508070..509254	-	394	190570892	-	WP0471	-	sodium/glutamate symporter family protein, putative
415	 33.97	0	509373..509846	+	157	190570893	-	WP0472	-	hypothetical protein
416	 36.16	0	509929..510813	-	294	190570894	murB	WP0473	-	UDP-N-acetylenolpyruvoylglucosamine reductase
417	 36.29	0	510804..511682	-	292	190570895	hemC	WP0474	-	porphobilinogen deaminase
418	 32.27	0	511802..512176	+	124	190570896	-	WP0475	-	hypothetical protein
419	 33.73	0	512249..513763	+	504	190570897	secD	WP0476	-	protein-export membrane protein SecD
420	 31.91	0	514043..514957	-	304	190570898	-	WP0477	-	surface antigen-related protein
421	 32.68	0	515017..516243	-	408	190570899	-	WP0478	-	MiaB-like tRNA modifying enzyme
422	 33.69	0	516463..517017	-	184	190570900	-	WP0479	-	hypothetical protein
423	 36.95	0	517381..517629	+	82	190570901	-	WP0480	-	hypothetical protein
424	 32.97	0	518005..518838	-	277	190570902	-	WP0481	-	hypothetical protein
425	 35.66	0	518987..521008	+	673	190570903	recG	WP0482	-	ATP-dependent DNA helicase RecG
426	 34.92	0	521338..521526	+	62	190570904	-	WP0484	-	hypothetical protein
427	 33.33	0	521739..521867	-	42	190570905	-	WP0485	-	ribosomal protein L36
428	 31.87	0	521929..522747	-	272	190570906	-	WP0486	-	hypothetical protein
429	 37.27	+1	522890..523600	+	236	190570907	ccmC	WP0487	-	heme exporter protein CcmC
430	 35.51	0	523850..524722	+	290	190570908	-	WP0488	-	transposase
431	 32.95	0	524971..526011	+	346	190570909	-	WP0489	-	hypothetical protein
432	 31.41	-1	526020..526175	+	51	190570910	-	WP0490	-	hypothetical protein
433	 31.97	0	526576..528042	+	488	190570911	-	WP0491	-	type II secretion system protein, putative
434	 35.70	0	528270..529832	+	520	190570912	guaA	WP0492	-	GMP synthase
435	 30.74	-1	530053..530745	-	230	190570913	-	WP0493	-	membrane protein, TerC family
436	 34.20	0	531027..532403	+	458	190570914	-	WP0494	-	malonyl-CoA decarboxylase, putative
437	 32.06	0	532489..533511	+	340	190570915	-	WP0495	-	hypothetical protein
438	 37.34	+1	533593..535389	+	598	190570916	lepA	WP0496	-	GTP-binding protein LepA
439	 31.39	-1	535629..536501	-	290	190570917	-	WP0497	-	hypothetical protein
440	 32.35	0	536560..536967	-	135	190570918	-	WP0498	-	glutaredoxin family protein
441	 32.05	0	537036..537968	+	310	190570919	ribF	WP0499	-	riboflavin biosynthesis protein RibF
442	 30.82	-1	537965..538441	+	158	190570920	lspA	WP0500	-	lipoprotein signal peptidase
443	 33.56	0	538446..539774	+	442	190570921	-	WP0501	-	protease, insulinase family
444	 32.43	0	539761..541083	+	440	190570922	-	WP0502	-	peptidase, M16 family
445	 36.68	0	541077..541643	-	188	190570923	-	WP0503	-	phosphoribosylglycinamide formyltransferase, putative
446	 28.78	-1	541910..542326	+	138	190570924	-	WP0504	-	hypothetical protein
447	 30.27	-1	542319..542840	-	173	190570925	-	WP0505	-	Na+/H+ ion antiporter family protein
448	 37.17	0	542944..543855	+	303	190570926	-	WP0506	-	ankyrin repeat domain protein
449	 32.67	0	543944..544393	+	149	190570927	smpB	WP0507	-	SsrA-binding protein
450	 34.97	0	544400..545191	+	263	190570928	lgt	WP0508	-	prolipoprotein diacylglyceryl transferase
451	 31.31	-1	545406..545948	-	180	190570929	-	WP0509	-	hypothetical protein
452	 35.38	0	546033..546569	-	178	190570930	-	WP0510	-	Putative endonuclease protein
453	 39.72	+1	546601..548088	-	495	190570931	-	WP0511	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
34.35	MEAN

2.87	STD DEV
