IslandPath Analysis: Wolbachia pipientis

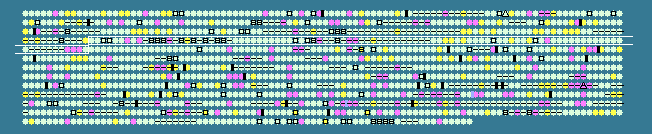

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.35 STD DEV: 2.87
Wolbachia pipientis, complete genome - 1..1482455
1275 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
312	 33.00	0	369386..371752	+	788	190570790	-	WP0350	-	hypothetical protein
313	 31.45	-1	371885..373738	+	617	190570791	-	WP0351	-	hypothetical protein
314	 33.33	0	373840..374019	+	59	190570792	-	WP0352	-	transposase (fragment)
315	 35.51	0	374116..374988	+	290	190570793	-	WP0353	-	transposase
316	 37.43	+1	375604..378165	+	853	190570794	clpB	WP0355	-	ATP-dependent Clp protease, ATP-binding subunit ClpB
317	 33.76	0	378193..382863	+	1556	190570795	gdhB	WP0356	-	nad-dependent glutamate dehydrogenase
318	 27.84	-2	382869..383159	+	96	190570796	-	WP0357	-	hypothetical protein
319	 34.28	0	383131..384507	+	458	190570797	-	WP0358	-	response regulator/GGDEF domain protein
320	 30.73	-1	384530..385258	-	242	190570798	-	WP0359	-	recO-related protein
321	 33.17	0	385392..386003	+	203	190570799	-	WP0360	-	hypothetical protein
322	 35.26	0	387504..388280	-	258	190570800	-	WP0363	-	transposase
323	 33.33	0	390751..390930	+	59	190570801	-	WP0365	-	transposase (fragment)
324	 33.81	0	391005..391427	+	140	190570802	-	WP0366	-	transposase (fragment)
325	 25.86	-2	391501..391674	-	57	190570803	-	WP0367	-	hypothetical protein
326	 35.67	0	391873..394524	+	883	190570804	secA	WP0368	-	preprotein translocase, SecA subunit
327	 35.51	0	394714..395586	-	290	190570805	-	WP0369	-	transposase
328	 41.22	+2	396604..397161	+	185	190570806	-	WP0372	-	terminase large subunit (fragment)
329	 35.51	0	397191..398063	-	290	190570807	-	WP0373	-	transposase
330	 34.59	0	398129..398605	-	158	190570808	-	WP0374	-	minor capsid protein c (fragment)
331	 35.51	0	399932..400804	+	290	190570809	-	WP0376	-	transposase
332	 33.68	0	401430..401717	-	95	190570810	-	WP0378	-	hypothetical protein
333	 33.81	0	401981..402403	-	140	190570811	-	WP0380	-	transposase (fragment)
334	 33.33	0	402478..402657	-	59	190570812	-	WP0381	-	transposase (fragment)
335	 35.75	0	402726..404009	-	427	190570813	-	WP0382	-	Na+/H+ antiporter, putative
336	 35.50	0	404202..406559	+	785	190570814	-	WP0383	-	ankyrin repeat domain protein
337	 33.66	0	406668..407591	+	307	190570815	-	WP0384	-	ribosomal large subunit pseudouridine synthase C, putative
338	 35.08	0	407599..408861	-	420	190570816	-	WP0385	-	major facilitator family transporter
339	 37.12	0	409039..409671	+	210	190570817	-	WP0386	-	glycoside hydrolase, family 25
340	 36.88	0	409770..411572	-	600	190570818	aspS	WP0387	-	aspartyl-tRNA synthetase
341	 33.99	0	411704..413080	+	458	190570819	-	WP0388	-	ankyrin repeat domain protein
342	 36.49	0	413141..415642	-	833	190570820	mutS	WP0389	-	DNA mismatch repair protein MutS
343	 33.03	0	415756..418083	+	775	190570821	-	WP0390	-	ankyrin repeat domain protein
344	 36.54	0	418134..420224	-	696	190570822	-	WP0391	-	cytochrome c-type biogenesis protein CcmF, putative
345	 31.56	0	420371..421612	+	413	190570823	-	WP0392	-	hypothetical protein
346	 35.26	0	423542..424318	-	258	190570824	-	WP0395	-	transposase
347	 34.99	0	424448..425170	+	240	190570825	-	WP0396	-	putative site-specific recombinase, resolvase family
348	 33.33	0	427862..428041	+	59	190570826	-	WP0400	-	transposase (fragment)
349	 35.76	0	428116..428445	+	109	190570827	-	WP0401	-	transposase (fragment)
350	 29.23	-1	428609..428803	+	64	190570828	-	WP0402	-	hypothetical protein
351	 34.28	0	428816..429769	+	317	190570829	-	WP0403	-	D-alanine--D-alanine ligase
352	 31.36	-1	429750..430508	+	252	190570830	-	WP0404	-	cell division protein FtsQ, putative
353	 35.51	0	430749..431621	-	290	190570831	-	WP0405	-	transposase
354	 32.27	0	431883..439745	-	2620	190570832	-	WP0407	-	ankyrin and tpr repeat domain protein
355	 28.76	-1	440137..440289	-	50	190570833	-	WP0408	-	hypothetical protein
356	 30.52	-1	440431..441426	+	331	190570834	-	WP0409	-	putative RDD domain transmembrane protein
357	 37.60	+1	441672..444392	+	906	190570835	-	WP0410	-	ankyrin repeat domain protein
358	 34.14	0	444716..446203	-	495	190570836	-	WP0411	-	site-specific recombinase, resolvase family
359	 37.96	+1	446213..446644	-	143	190570837	-	WP0412	-	Putative phage related protein
360	 37.56	+1	446649..447098	-	149	190570838	-	WP0413	-	Ankyrin repeat domain protein
361	 36.71	0	447124..447834	-	236	190570839	-	WP0414	-	ankyrin repeat domain protein
362	 34.19	0	448002..449162	-	386	190570840	-	WP0415	-	Putative phage related protein
363	 34.86	0	449162..449947	-	261	190570841	-	WP0416	-	baseplate assembly protein GpJ
364	 33.63	0	449950..450285	-	111	190570842	-	WP0417	-	baseplate assembly protein GpW
365	 34.12	0	450288..450542	-	84	190570843	-	WP0418	-	Putative phage related protein
366	 34.19	0	450539..451003	-	154	190570844	-	WP0419	-	baseplate assembly protein GpV
367	 35.65	0	450990..451463	-	157	190570845	-	WP0420	-	putative phage related protein
368	 33.74	0	451460..451951	-	163	190570846	-	WP0421	-	Putative minor tail protein Z
369	 36.63	0	451953..452255	-	100	190570847	-	WP0422	-	putative phage related protein
370	 33.59	0	452262..452657	-	131	190570848	-	WP0423	-	glyoxalase/bleomycin resistance protein/dioxygenase domain protein
371	 39.42	+1	452710..453711	-	333	190570849	-	WP0424	-	putative phage related protein
372	 39.25	+1	453737..454108	-	123	190570850	-	WP0425	-	putative phage related protein
373	 35.78	0	454183..455244	-	353	190570851	-	WP0426	-	putative minor capsid protein c
374	 38.98	+1	455259..456479	-	406	190570852	-	WP0427	-	Putative phage portal protein
375	 33.94	0	456648..458621	-	657	190570853	-	WP0428	-	hypothetical protein
376	 37.43	+1	458665..459885	-	406	190570854	-	WP0429	-	Phage related DNA methylase
377	 36.99	0	459999..460463	-	154	190570855	-	WP0430	-	putative phage related protein
378	 34.31	0	460932..461951	+	339	190570856	-	WP0431	-	Putative virulence factor RhuM protein
379	 35.51	0	463624..464496	-	290	190570857	-	WP0432	-	transposase
380	 36.59	0	465011..467068	+	685	190570858	-	WP0433	-	putative phage related protein
381	 34.53	0	467103..467603	+	166	190570859	-	WP0434	-	RNA polymerase sigma-70 domain protein
382	 39.75	+1	467621..468430	+	269	190570860	-	WP0435	-	Putative phage related protein
383	 36.68	0	468465..469271	+	268	190570861	-	WP0436	-	Putative phage related protein
384	 35.32	0	469306..469809	+	167	190570862	-	WP0437	-	Putative phage related protein
385	 38.45	+1	470102..470785	+	227	190570863	-	WP0438	-	putative phage related protein
386	 34.81	0	471885..472832	-	315	190570864	-	WP0440	-	transposase
387	 37.05	0	474100..475284	+	394	190570865	-	WP0441	-	Putative phage related protein
388	 30.77	-1	475289..475483	+	64	190570866	-	WP0442	-	Putative phage related protein
389	 35.44	0	475480..476853	+	457	190570867	-	WP0443	-	Putative phage related protein
390	 32.61	0	476876..477427	+	183	190570868	-	WP0444	-	Putative phage related protein
391	 37.32	+1	477420..478598	+	392	190570869	-	WP0445	-	Phage major tail sheath protein
392	 36.29	0	478614..479120	+	168	190570870	-	WP0446	-	Phage tail tube protein
393	 35.29	0	479157..479411	+	84	190570871	-	WP0447	-	putative phage related protein
394	 35.01	0	479527..481791	+	754	190570872	-	WP0448	-	Phage tail tape measure protein
395	 31.65	0	481791..482147	+	118	190570873	-	WP0449	-	phage tail protein GpU
396	 33.33	0	482144..482353	+	69	190570874	-	WP0450	-	Phage tail protein GpX
397	 33.97	0	482354..483289	+	311	190570875	-	WP0451	-	phage late control gene d protein GpD
398	 32.02	0	483337..483870	+	177	190570876	-	WP0452	-	ankyrin repeat domain protein
399	 36.11	0	483918..484133	+	71	190570877	-	WP0453	-	hypothetical protein
400	 33.89	0	484125..484667	-	180	190570878	-	WP0454	-	Putative endonuclease protein
401	 34.20	0	484654..485577	+	307	190570879	-	WP0455	-	patatin family protein
402	 32.13	0	485656..485988	-	110	190570880	-	WP0456	-	hypothetical protein
403	 33.13	0	486388..487365	-	325	190570881	-	WP0457	-	Putative transcriptional regulator
404	 35.10	0	487429..488670	-	413	190570882	-	WP0458	-	hypothetical protein
405	 37.52	+1	488966..489634	-	222	190570883	-	WP0459	-	Putative dna repair protein radc
406	 34.21	0	490838..491749	+	303	190570884	-	WP0461	-	hypothetical protein
407	 32.82	0	491755..499743	-	2662	190570885	-	WP0462	-	ankyrin repeat domain protein
408	 29.55	-1	499843..500106	-	87	190570886	-	WP0463	-	hypothetical protein
409	 29.68	-1	500899..501309	+	136	190570887	-	WP0464	-	putative acetyltransferase
410	 28.27	-2	501322..502566	+	414	190570888	-	WP0465	-	Major facilitator superfamily protein
411	 34.46	0	502720..504675	-	651	190570889	ligA	WP0466	-	DNA ligase, NAD-dependent
34.35	MEAN

2.87	STD DEV
