IslandPath Analysis: Wolbachia pipientis

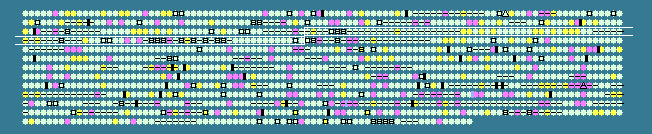

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 34.35   STD DEV: 2.87
Wolbachia pipientis, complete genome - 1..1482455
1275 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
248	 36.52	0	283821..284354	-	177	190570726	rnhA	WP0279	-	ribonuclease h
249	 39.66	+1	284961..286304	-	447	190570727	-	WP0280	-	putative reverse transcriptase
250	 35.91	0	287774..289249	+	491	190570728	-	WP0282	-	hypothetical protein
251	 36.17	0	289303..292827	+	1174	190570729	-	WP0283	-	hypothetical protein
252	 32.76	0	293401..293919	+	172	190570730	-	WP0284	-	Putative transposase
253	 34.31	0	293993..294403	+	136	190570731	-	WP0285	-	Putative transposase (fragment)
254	 33.33	0	294562..294741	+	59	190570732	-	WP0286	-	transposase (fragment)
255	 35.86	0	296912..297466	-	184	190570733	-	WP0290	-	Putative transcriptional regulator
256	 33.87	0	297580..298512	+	310	190570734	-	WP0291	-	hypothetical protein
257	 33.14	0	298496..306742	-	2748	190570735	-	WP0292	-	Ankyrin repeat domain protein
258	 32.06	0	306739..312651	-	1970	190570736	-	WP0293	-	Ankyrin repeat domain protein
259	 31.17	-1	313400..314737	+	445	190570737	-	WP0294	-	hypothetical protein
260	 32.15	0	314745..316943	+	732	190570738	-	WP0295	-	hypothetical protein
261	 33.23	0	317593..319539	+	648	190570739	-	WP0296	-	Ankyrin repeat domain protein
262	 34.35	0	320006..321487	-	493	190570740	-	WP0297	-	site-specific recombinase, resolvase family
263	 37.96	+1	321497..321928	-	143	190570741	-	WP0298	-	Putative phage related protein
264	 37.56	+1	321933..322382	-	149	190570742	-	WP0299	-	Ankyrin repeat domain protein
265	 36.71	0	322408..323118	-	236	190570743	-	WP0300	-	ankyrin repeat domain protein
266	 34.19	0	323286..324446	-	386	190570744	-	WP0301	-	Putative phage related protein
267	 34.86	0	324446..325231	-	261	190570745	-	WP0302	-	baseplate assembly protein GpJ
268	 33.63	0	325234..325569	-	111	190570746	-	WP0303	-	baseplate assembly protein GpW
269	 34.12	0	325572..325826	-	84	190570747	-	WP0304	-	Putative phage related protein
270	 34.19	0	325823..326287	-	154	190570748	-	WP0305	-	baseplate assembly protein GpV
271	 35.65	0	326274..326747	-	157	190570749	-	WP0306	-	Putative phage related protein
272	 35.14	0	326744..327241	-	165	190570750	-	WP0307	-	Putative minor tail protein z
273	 34.27	0	327231..327551	-	106	190570751	-	WP0308	-	Putative phage related protein
274	 38.81	+1	327551..328555	-	334	190570752	-	WP0309	-	PUtative phage related protein
275	 38.71	+1	328581..328952	-	123	190570753	-	WP0310	-	Putative phage related protein
276	 34.38	0	329094..330140	-	348	190570754	-	WP0311	-	Putative minor capsid protein c
277	 38.90	+1	330140..331558	-	472	190570755	-	WP0312	-	Putative phage portal protein
278	 34.22	0	331559..331783	-	74	190570756	-	WP0313	-	Putative phage related protein
279	 39.81	+1	331773..333608	-	611	190570757	-	WP0314	-	Phage terminase large subunit GpA
280	 34.01	0	333608..335080	-	490	190570758	-	WP0315	-	Ankyrin repeat domain protein
281	 34.80	0	335088..335564	-	158	190570759	-	WP0316	-	Putative phage related protein
282	 37.39	+1	335561..336793	-	410	190570760	-	WP0317	-	Phage related DNA methylase
283	 36.77	0	336907..337371	-	154	190570761	-	WP0318	-	Putative phage related protein
284	 34.12	0	338019..341555	+	1178	190570762	-	WP0319	-	helicase, SNF2 family
285	 32.12	0	345022..345516	+	164	190570763	-	WP0321	-	RNA polymerase sigma-70 domain protein
286	 39.71	+1	345571..346056	+	161	190570764	-	WP0322	-	hypothetical protein
287	 40.09	+2	346157..347029	+	290	190570765	-	WP0323	-	Phage terminase large subunit GpA (fragment)
288	 34.22	0	347019..347243	+	74	190570766	-	WP0324	-	Putative phage related protein
289	 38.90	+1	347244..348662	+	472	190570767	-	WP0325	-	Putative phage portal protein
290	 34.38	0	348662..349708	+	348	190570768	-	WP0326	-	Putative minor capsid protein c
291	 38.71	+1	349850..350221	+	123	190570769	-	WP0327	-	Putative phage related protein
292	 39.00	+1	350247..351251	+	334	190570770	-	WP0328	-	Putative phage related protein
293	 37.91	+1	351349..351654	+	101	190570771	-	WP0329	-	Putative phage related protein
294	 33.53	0	351656..352153	+	165	190570772	-	WP0330	-	Putative minor tail protein z
295	 37.11	0	352150..352626	+	158	190570773	-	WP0331	-	Putative phage related protein
296	 33.98	0	352613..353077	+	154	190570774	-	WP0332	-	Putative baseplate assembly protein GpV
297	 37.25	+1	353077..353331	+	84	190570775	-	WP0333	-	Putative phage related protein
298	 32.74	0	353334..353669	+	111	190570776	-	WP0334	-	baseplate assembly protein GpW
299	 36.01	0	353672..354457	+	261	190570777	-	WP0335	-	baseplate assembly protein GpJ
300	 34.19	0	354457..355617	+	386	190570778	-	WP0336	-	Putative phage related protein
301	 43.73	+2	355786..356112	+	108	190570779	-	WP0337	-	hypothetical protein
302	 36.94	0	356283..357584	+	433	190570780	-	WP0338	-	reverse transcriptase
303	 37.88	+1	357596..358408	+	270	190570781	-	WP0339	-	ankyrin repeat domain protein
304	 36.71	0	358447..358920	+	157	190570782	-	WP0340	-	Ankyrin repeat domain protein
305	 37.04	0	358925..359356	+	143	190570783	-	WP0341	-	putative phage related protein
306	 35.95	0	359359..360657	+	432	190570784	-	WP0342	-	site-specific recombinase, resolvase family
307	 35.51	0	362176..363048	-	290	190570785	-	WP0344	-	transposase
308	 35.14	0	363648..366749	-	1033	190570786	-	WP0346	-	ankyrin repeat domain protein
309	 34.41	0	366743..367768	-	341	190570787	-	WP0347	-	ankyrin repeat domain protein
310	 36.08	0	368360..368905	-	181	190570788	-	WP0348	-	hypothetical protein
311	 39.26	+1	368937..369071	-	44	190570789	-	WP0349	-	hypothetical protein
312	 33.00	0	369386..371752	+	788	190570790	-	WP0350	-	hypothetical protein
313	 31.45	-1	371885..373738	+	617	190570791	-	WP0351	-	hypothetical protein
314	 33.33	0	373840..374019	+	59	190570792	-	WP0352	-	transposase (fragment)
315	 35.51	0	374116..374988	+	290	190570793	-	WP0353	-	transposase
316	 37.43	+1	375604..378165	+	853	190570794	clpB	WP0355	-	ATP-dependent Clp protease, ATP-binding subunit ClpB
317	 33.76	0	378193..382863	+	1556	190570795	gdhB	WP0356	-	nad-dependent glutamate dehydrogenase
318	 27.84	-2	382869..383159	+	96	190570796	-	WP0357	-	hypothetical protein
319	 34.28	0	383131..384507	+	458	190570797	-	WP0358	-	response regulator/GGDEF domain protein
320	 30.73	-1	384530..385258	-	242	190570798	-	WP0359	-	recO-related protein
321	 33.17	0	385392..386003	+	203	190570799	-	WP0360	-	hypothetical protein
322	 35.26	0	387504..388280	-	258	190570800	-	WP0363	-	transposase
323	 33.33	0	390751..390930	+	59	190570801	-	WP0365	-	transposase (fragment)
324	 33.81	0	391005..391427	+	140	190570802	-	WP0366	-	transposase (fragment)
325	 25.86	-2	391501..391674	-	57	190570803	-	WP0367	-	hypothetical protein
326	 35.67	0	391873..394524	+	883	190570804	secA	WP0368	-	preprotein translocase, SecA subunit
327	 35.51	0	394714..395586	-	290	190570805	-	WP0369	-	transposase
328	 41.22	+2	396604..397161	+	185	190570806	-	WP0372	-	terminase large subunit (fragment)
329	 35.51	0	397191..398063	-	290	190570807	-	WP0373	-	transposase
330	 34.59	0	398129..398605	-	158	190570808	-	WP0374	-	minor capsid protein c (fragment)
331	 35.51	0	399932..400804	+	290	190570809	-	WP0376	-	transposase
332	 33.68	0	401430..401717	-	95	190570810	-	WP0378	-	hypothetical protein
333	 33.81	0	401981..402403	-	140	190570811	-	WP0380	-	transposase (fragment)
334	 33.33	0	402478..402657	-	59	190570812	-	WP0381	-	transposase (fragment)
335	 35.75	0	402726..404009	-	427	190570813	-	WP0382	-	Na+/H+ antiporter, putative
336	 35.50	0	404202..406559	+	785	190570814	-	WP0383	-	ankyrin repeat domain protein
337	 33.66	0	406668..407591	+	307	190570815	-	WP0384	-	ribosomal large subunit pseudouridine synthase C, putative
338	 35.08	0	407599..408861	-	420	190570816	-	WP0385	-	major facilitator family transporter
339	 37.12	0	409039..409671	+	210	190570817	-	WP0386	-	glycoside hydrolase, family 25
340	 36.88	0	409770..411572	-	600	190570818	aspS	WP0387	-	aspartyl-tRNA synthetase
341	 33.99	0	411704..413080	+	458	190570819	-	WP0388	-	ankyrin repeat domain protein
342	 36.49	0	413141..415642	-	833	190570820	mutS	WP0389	-	DNA mismatch repair protein MutS
343	 33.03	0	415756..418083	+	775	190570821	-	WP0390	-	ankyrin repeat domain protein
344	 36.54	0	418134..420224	-	696	190570822	-	WP0391	-	cytochrome c-type biogenesis protein CcmF, putative
345	 31.56	0	420371..421612	+	413	190570823	-	WP0392	-	hypothetical protein
346	 35.26	0	423542..424318	-	258	190570824	-	WP0395	-	transposase
347	 34.99	0	424448..425170	+	240	190570825	-	WP0396	-	putative site-specific recombinase, resolvase family
34.35	MEAN

2.87	STD DEV




Last Updated: Dec 04, 2008
