IslandPath Analysis: Wolbachia pipientis

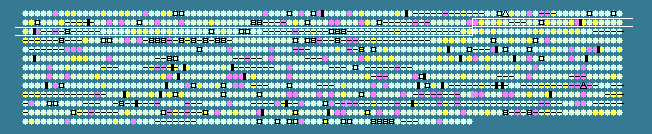

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.35 STD DEV: 2.87
Wolbachia pipientis, complete genome - 1..1482455
1275 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
176	 30.77	-1	209992..210420	-	142	190570654	-	WP0202	-	hypothetical protein
177	 39.36	+1	210515..210763	+	82	190570655	-	WP0203	-	hypothetical protein
178	 35.50	0	211223..212236	-	337	190570656	-	WP0204	-	GTP-binding protein, GTP1/OBG family
179	 37.49	+1	212224..213498	-	424	190570657	eno	WP0205	-	enolase
180	 41.58	+2	213495..213797	-	100	190570658	-	WP0206	-	hypothetical protein
181	 35.60	0	213819..214787	-	322	190570659	-	WP0207	-	murC-like protein
182	 31.37	-1	214827..215438	-	203	190570660	-	WP0208	-	SURF1 family protein
183	 32.08	0	215440..215916	-	158	190570661	bfr	WP0209	-	bacterioferritin
184	 32.28	0	215970..216443	-	157	190570662	-	WP0210	-	hypothetical protein
185	 33.96	0	216443..217084	-	213	190570663	-	WP0211	-	haloacid dehalogenase-like hydrolase
186	 32.41	0	217228..218412	+	394	190570664	-	WP0212	-	hypothetical protein
187	 35.51	0	220492..221364	-	290	190570665	-	WP0215	-	transposase
188	 38.37	+1	221716..223104	-	462	190570666	fumC	WP0216	-	fumarate hydratase, class II
189	 35.07	0	223297..224046	-	249	190570667	-	WP0217	-	Ankyrin repeat domain protein
190	 35.36	0	224107..224748	-	213	190570668	-	WP0218	-	Ankyrin repeat domain protein
191	 34.16	0	224918..227716	-	932	190570669	-	WP0219	-	hypothetical protein
192	 38.59	+1	227825..230884	+	1019	190570670	-	WP0220	-	phosphoribosylformylglycinamidine synthase II domain protein
193	 29.82	-1	230962..231474	+	170	190570671	-	WP0221	-	hypothetical protein
194	 38.34	+1	231897..233015	+	372	190570672	dnaJ	WP0222	-	dnaJ protein
195	 37.31	+1	233185..234819	+	544	190570673	-	WP0223	-	metallo-beta-lactamase family protein
196	 38.51	+1	234866..235213	+	115	190570674	-	WP0224	-	hypothetical protein
197	 32.06	0	235266..236522	+	418	190570675	tolB	WP0225	-	Protein tolB precursor
198	 32.20	0	236561..236914	-	117	190570676	gatC	WP0226	-	glutamyl-tRNA(Gln) amidotransferase, C subunit
199	 35.18	0	236904..237824	-	306	190570677	prsA	WP0227	-	ribose-phosphate pyrophosphokinase
200	 32.68	0	238111..240111	+	666	190570678	-	WP0228	-	AAA ATPase family protein
201	 38.37	+1	240458..242422	-	654	190570679	tkt	WP0229	-	transketolase
202	 35.28	0	242536..243150	+	204	190570680	rpsD	WP0230	-	ribosomal protein S4
203	 29.74	-1	243268..243462	+	64	190570681	-	WP0231	-	hypothetical protein
204	 31.95	0	243749..244183	+	144	190570682	-	WP0232	-	Putative lipoprotein protein
205	 31.17	-1	244193..244516	+	107	190570683	-	WP0233	-	hypothetical protein
206	 30.79	-1	244571..244885	+	104	190570684	rpmB	WP0234	-	ribosomal protein L28
207	 37.11	0	244878..245750	+	290	190570685	lipA	WP0235	-	lipoic acid synthetase
208	 35.51	0	246045..246917	+	290	190570686	-	WP0236	-	transposase
209	 32.14	0	247653..248570	-	305	190570687	-	WP0239	-	Putative transcriptional regulator
210	 33.89	0	248691..249584	+	297	190570688	-	WP0240	-	hypothetical protein
211	 33.16	0	249946..250506	-	186	190570689	-	WP0241	-	hypothetical protein
212	 33.33	0	250652..250819	-	55	190570690	-	WP0242	-	Putative phage related protein (fragment)
213	 35.86	0	250819..251610	-	263	190570691	-	WP0243	-	baseplate assembly protein GpJ
214	 32.74	0	251613..251948	-	111	190570692	-	WP0244	-	Baseplate assembly protein GpW
215	 37.25	+1	251951..252205	-	84	190570693	-	WP0245	-	Putative phage related protein
216	 33.98	0	252205..252669	-	154	190570694	-	WP0246	-	baseplate assembly protein GpV
217	 37.11	0	252656..253132	-	158	190570695	-	WP0247	-	Putative phage related protein
218	 33.53	0	253129..253626	-	165	190570696	-	WP0248	-	Puative minor tail protein z
219	 37.91	+1	253628..253933	-	101	190570697	-	WP0249	-	Putative phage related protein
220	 39.00	+1	254031..255035	-	334	190570698	-	WP0250	-	Putative phage related protein
221	 38.71	+1	255061..255432	-	123	190570699	-	WP0251	-	Putative phage related protein
222	 34.38	0	255574..256620	-	348	190570700	-	WP0252	-	Putative minor capsid protein c
223	 38.90	+1	256620..258038	-	472	190570701	-	WP0253	-	Putative phage portal protein
224	 34.22	0	258039..258263	-	74	190570702	-	WP0254	-	Putative phage related protein
225	 39.81	+1	258253..260088	-	611	190570703	-	WP0255	-	Phage terminase large subunit GpA
226	 34.01	0	260088..261560	-	490	190570704	-	WP0256	-	Ankyrin repeat domain protein
227	 34.80	0	261568..262044	-	158	190570705	-	WP0257	-	Putative phage related protein
228	 37.39	+1	262041..263273	-	410	190570706	-	WP0258	-	Phage related DNA methylase
229	 36.77	0	263387..263851	-	154	190570707	-	WP0259	-	Putative phage related protein
230	 35.80	0	264507..265358	-	283	190570708	-	WP0260	-	Putative phage related protein
231	 32.42	0	265428..266846	-	472	190570709	-	WP0261	-	Putative phage related ATPase
232	 35.70	0	267301..268692	-	463	190570710	-	WP0262	-	Putative transposase
233	 32.12	0	271517..272011	+	164	190570711	-	WP0264	-	RNA polymerase sigma-70 domain protein
234	 39.75	+1	272066..272875	+	269	190570712	-	WP0265	-	Putative phage related protein
235	 36.68	0	272910..273716	+	268	190570713	-	WP0266	-	Putative phage related protein
236	 34.76	0	273751..274242	+	163	190570714	-	WP0267	-	Putative phage related protein
237	 35.17	0	274390..274770	+	126	190570715	-	WP0268	-	Putative transposase
238	 35.20	0	274767..275249	+	160	190570716	-	WP0269	-	putative transposase
239	 31.37	-1	275265..275468	+	67	190570717	-	WP0270	-	hypothetical protein
240	 33.14	0	275469..275975	-	168	190570718	-	WP0271	-	Putative endonuclease
241	 35.06	0	275981..276904	+	307	190570719	-	WP0272	-	patatin family protein
242	 31.43	-1	277056..277895	-	279	190570720	-	WP0273	-	Putative transcriptional regulator
243	 33.11	0	277921..278835	-	304	190570721	-	WP0274	-	Putative transcriptional regulator
244	 35.26	0	278914..280107	-	397	190570722	-	WP0275	-	hypothetical protein
245	 36.07	0	280207..280863	-	218	190570723	-	WP0276	-	Putative dna repair protein radc
246	 30.29	-1	281034..281954	-	306	190570724	-	WP0277	-	Putative transcriptional regulator
247	 35.82	0	282022..283830	-	602	190570725	mutL	WP0278	-	DNA mismatch repair protein MutL
248	 36.52	0	283821..284354	-	177	190570726	rnhA	WP0279	-	ribonuclease h
249	 39.66	+1	284961..286304	-	447	190570727	-	WP0280	-	putative reverse transcriptase
250	 35.91	0	287774..289249	+	491	190570728	-	WP0282	-	hypothetical protein
251	 36.17	0	289303..292827	+	1174	190570729	-	WP0283	-	hypothetical protein
252	 32.76	0	293401..293919	+	172	190570730	-	WP0284	-	Putative transposase
253	 34.31	0	293993..294403	+	136	190570731	-	WP0285	-	Putative transposase (fragment)
254	 33.33	0	294562..294741	+	59	190570732	-	WP0286	-	transposase (fragment)
255	 35.86	0	296912..297466	-	184	190570733	-	WP0290	-	Putative transcriptional regulator
256	 33.87	0	297580..298512	+	310	190570734	-	WP0291	-	hypothetical protein
257	 33.14	0	298496..306742	-	2748	190570735	-	WP0292	-	Ankyrin repeat domain protein
258	 32.06	0	306739..312651	-	1970	190570736	-	WP0293	-	Ankyrin repeat domain protein
259	 31.17	-1	313400..314737	+	445	190570737	-	WP0294	-	hypothetical protein
260	 32.15	0	314745..316943	+	732	190570738	-	WP0295	-	hypothetical protein
261	 33.23	0	317593..319539	+	648	190570739	-	WP0296	-	Ankyrin repeat domain protein
262	 34.35	0	320006..321487	-	493	190570740	-	WP0297	-	site-specific recombinase, resolvase family
263	 37.96	+1	321497..321928	-	143	190570741	-	WP0298	-	Putative phage related protein
264	 37.56	+1	321933..322382	-	149	190570742	-	WP0299	-	Ankyrin repeat domain protein
265	 36.71	0	322408..323118	-	236	190570743	-	WP0300	-	ankyrin repeat domain protein
266	 34.19	0	323286..324446	-	386	190570744	-	WP0301	-	Putative phage related protein
267	 34.86	0	324446..325231	-	261	190570745	-	WP0302	-	baseplate assembly protein GpJ
268	 33.63	0	325234..325569	-	111	190570746	-	WP0303	-	baseplate assembly protein GpW
269	 34.12	0	325572..325826	-	84	190570747	-	WP0304	-	Putative phage related protein
270	 34.19	0	325823..326287	-	154	190570748	-	WP0305	-	baseplate assembly protein GpV
271	 35.65	0	326274..326747	-	157	190570749	-	WP0306	-	Putative phage related protein
272	 35.14	0	326744..327241	-	165	190570750	-	WP0307	-	Putative minor tail protein z
273	 34.27	0	327231..327551	-	106	190570751	-	WP0308	-	Putative phage related protein
274	 38.81	+1	327551..328555	-	334	190570752	-	WP0309	-	PUtative phage related protein
275	 38.71	+1	328581..328952	-	123	190570753	-	WP0310	-	Putative phage related protein
34.35	MEAN

2.87	STD DEV
