IslandPath Analysis: Wolbachia pipientis

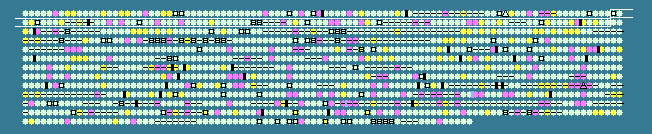

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.35 STD DEV: 2.87
Wolbachia pipientis, complete genome - 1..1482455
1275 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
99	 35.51	0	115187..116059	+	290	190570577	-	WP0111	-	transposase
100	 35.56	0	116108..116782	+	224	190570578	-	WP0112	-	ankyrin repeat domain protein
101	 35.46	0	116933..118108	-	391	190570579	dxr	WP0113	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
102	 42.83	+2	118136..118630	-	164	190570580	-	WP0114	-	hypothetical protein
103	 35.51	0	120427..121299	-	290	190570581	-	WP0116	-	transposase
104	 35.38	0	121424..121618	+	64	190570582	-	WP0117	-	hypothetical protein
105	 37.58	+1	121673..123202	-	509	190570583	metG	WP0118	-	methionyl-tRNA synthetase
106	 37.05	0	123329..124243	-	304	190570584	-	WP0119	-	hypothetical protein
107	 39.39	+1	124325..125728	-	467	190570585	-	WP0120	-	probable dioxygenase
108	 35.23	0	125864..126442	+	192	190570586	coaE	WP0121	-	dephospho-coa kinase
109	 33.16	0	126432..127616	-	394	190570587	-	WP0122	-	Putative ribonuclease D
110	 38.00	+1	127701..129071	-	456	190570588	pyrC	WP0123	-	dihydroorotase
111	 34.33	0	133070..133672	-	200	190570589	-	WP0127	-	Putative membrane RDD family protein
112	 36.04	0	133880..135322	+	480	190570590	dnaB	WP0128	-	replicative DNA helicase
113	 33.06	0	135670..137157	+	495	190570591	-	WP0129	-	putative nadh-ubiquinone oxidoreductase subunit
114	 31.34	-1	137172..137822	-	216	190570592	-	WP0130	-	Putative type IV secretion system protein VirB8
115	 30.46	-1	137852..138583	-	243	190570593	-	WP0131	-	hypothetical protein
116	 31.34	-1	138683..139534	-	283	190570594	-	WP0132	-	Putative DNA polymerase III, gamma/tau subunits
117	 29.42	-1	139552..140139	-	195	190570595	-	WP0133	-	Sua5/YciO/YrdC/YwlC family protein
118	 36.52	0	140278..140748	-	156	190570596	-	WP0134	-	hypothetical protein
119	 34.00	0	140824..141717	+	297	190570597	miaA	WP0135	-	tRNA delta(2)-isopentenylpyrophosphate transferase
120	 35.51	0	142066..142938	+	290	190570598	-	WP0136	-	transposase
121	 37.75	+1	143062..144624	-	520	190570599	murE	WP0137	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2, 6-diaminopimelate ligase
122	 36.66	0	144593..145825	-	410	190570600	metC	WP0138	-	cystathionine beta-lyase
123	 29.12	-1	145833..146117	-	94	190570601	-	WP0139	-	bolA protein, putative
124	 37.36	+1	146190..148103	-	637	190570602	dnaK	WP0140	-	chaperone protein dnak (hsp70)
125	 33.62	0	148177..149925	-	582	190570603	-	WP0141	-	ribonuclease, Rne/Rng family protein
126	 34.83	0	150075..150275	+	66	190570604	rpmG	WP0142	-	ribosomal protein L33
127	 29.91	-1	150498..150731	+	77	190570605	-	WP0143	-	hypothetical protein
128	 30.98	-1	150985..151281	+	98	190570606	-	WP0144	-	hypothetical protein
129	 31.62	0	151641..152516	-	291	190570607	-	WP0145	-	Putative cation ABC transporter, periplasmic cation-binding protein
130	 32.24	0	152508..153239	+	243	190570608	-	WP0146	-	Putative cation ABC transporter, ATP-binding protein
131	 32.77	0	153236..154657	+	473	190570609	-	WP0147	-	ubiquinone biosynthesis protein ubiB
132	 39.14	+1	157921..158868	-	315	190570610	trxB	WP0150	-	thioredoxin reductase
133	 34.33	0	158855..159454	-	199	190570611	-	WP0151	-	antioxidant, AhpC/Tsa family
134	 32.66	0	159612..160796	-	394	190570612	-	WP0152	-	hypothetical protein
135	 32.99	0	161701..162861	-	386	190570613	-	WP0154	-	hypothetical protein
136	 34.65	0	163017..163775	-	252	190570614	-	WP0155	-	sec-independent protein translocase, tatc
137	 37.76	+1	163779..164750	-	323	190570615	gap	WP0156	-	glyceraldehyde 3-phosphate dehydrogenase
138	 33.70	0	164900..165175	-	91	190570616	-	WP0157	-	hypothetical protein
139	 35.20	0	165191..165673	-	160	190570617	-	WP0158	-	Putative transposase
140	 35.17	0	165670..166050	-	126	190570618	-	WP0159	-	Putative transposase
141	 36.12	0	166422..167282	+	286	190570619	-	WP0160	-	hypothetical protein
142	 37.14	0	167650..167859	+	69	190570620	-	WP0161	-	hypothetical protein
143	 34.64	0	168035..168568	+	177	190570621	-	WP0162	-	phage prohead protease
144	 30.40	-1	168677..170923	+	748	190570622	-	WP0163	-	hypothetical protein
145	 35.29	0	170916..172142	-	408	190570623	-	WP0164	-	poly A polymerase family protein
146	 38.91	+1	172476..174305	-	609	190570624	-	WP0165	-	GTP-binding protein, typA
147	 34.38	0	174528..175862	+	444	190570625	gltX	WP0166	-	glutamyl-tRNA synthetase
148	 32.81	0	176646..177029	-	127	190570626	-	WP0168	-	Putative transposase (fragment)
149	 37.67	+1	177195..178439	-	414	190570627	-	WP0169	-	Putative reverse transcriptase
150	 32.55	0	179020..180039	-	339	190570628	-	WP0170	-	Putative DNA polymerase III, delta subunit
151	 31.15	-1	180045..180227	-	60	190570629	-	WP0171	-	hypothetical protein
152	 30.86	-1	180342..181151	-	269	190570630	-	WP0172	-	Putative cation ABC transporter
153	 30.46	-1	181145..181492	-	115	190570631	-	WP0173	-	hypothetical protein
154	 36.33	0	181496..182362	-	288	190570632	ispE	WP0174	-	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
155	 35.02	0	182437..185706	+	1089	190570633	-	WP0175	-	helicase, UvrD/Rep family
156	 31.59	0	185766..186167	-	133	190570634	-	WP0176	-	Putative cytochrome c-type biogenesis protein
157	 27.51	-2	186151..187164	-	337	190570635	-	WP0177	-	Putative outer membrane protein
158	 38.22	+1	187172..187519	-	115	190570636	fdx	WP0178	-	ferredoxin
159	 32.65	0	187757..188776	-	339	190570637	-	WP0179	-	Ankyrin repeat domain protein
160	 35.51	0	188943..189815	+	290	190570638	-	WP0180	-	transposase
161	 31.72	0	189936..191234	-	432	190570639	-	WP0181	-	Putative Na+/H+ antiporter
162	 34.95	0	191333..193066	-	577	190570640	dnaG	WP0182	-	DNA primase
163	 36.68	0	193212..194378	+	388	190570641	-	WP0183	-	3-demethylubiquinone-9 3-methyltransferase/sugar-phosphate isomerase family protein
164	 32.80	0	194486..195616	+	376	190570642	-	WP0184	-	hypothetical protein
165	 34.65	0	195616..196221	+	201	190570643	-	WP0185	-	Putative glycoprotease
166	 28.36	-2	196191..196673	-	160	190570644	-	WP0186	-	hypothetical protein
167	 33.47	0	197012..197722	+	236	190570645	-	WP0187	-	class II aldolase/adducin domain protein
168	 28.86	-1	198811..199458	-	215	190570646	ccmB	WP0190	-	heme exporter protein CcmB
169	 30.95	-1	199567..199944	+	125	190570647	-	WP0191	-	Putative dnaK suppressor protein
170	 31.77	0	201722..202936	-	404	190570648	-	WP0195	-	Ankyrin repeat domain protein
171	 37.55	+1	203187..204467	-	426	190570649	ispG	WP0196	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
172	 34.44	0	204484..205113	-	209	190570650	-	WP0197	-	hypothetical protein
173	 36.02	0	205290..205847	-	185	190570651	-	WP0198	-	hypothetical protein
174	 37.36	+1	206029..208140	-	703	190570652	-	WP0199	-	Putative cell division protein FtsK
175	 29.75	-1	208141..208419	-	92	190570653	-	WP0200	-	YGGT family protein
176	 30.77	-1	209992..210420	-	142	190570654	-	WP0202	-	hypothetical protein
177	 39.36	+1	210515..210763	+	82	190570655	-	WP0203	-	hypothetical protein
178	 35.50	0	211223..212236	-	337	190570656	-	WP0204	-	GTP-binding protein, GTP1/OBG family
179	 37.49	+1	212224..213498	-	424	190570657	eno	WP0205	-	enolase
180	 41.58	+2	213495..213797	-	100	190570658	-	WP0206	-	hypothetical protein
181	 35.60	0	213819..214787	-	322	190570659	-	WP0207	-	murC-like protein
182	 31.37	-1	214827..215438	-	203	190570660	-	WP0208	-	SURF1 family protein
183	 32.08	0	215440..215916	-	158	190570661	bfr	WP0209	-	bacterioferritin
184	 32.28	0	215970..216443	-	157	190570662	-	WP0210	-	hypothetical protein
185	 33.96	0	216443..217084	-	213	190570663	-	WP0211	-	haloacid dehalogenase-like hydrolase
186	 32.41	0	217228..218412	+	394	190570664	-	WP0212	-	hypothetical protein
187	 35.51	0	220492..221364	-	290	190570665	-	WP0215	-	transposase
188	 38.37	+1	221716..223104	-	462	190570666	fumC	WP0216	-	fumarate hydratase, class II
189	 35.07	0	223297..224046	-	249	190570667	-	WP0217	-	Ankyrin repeat domain protein
190	 35.36	0	224107..224748	-	213	190570668	-	WP0218	-	Ankyrin repeat domain protein
191	 34.16	0	224918..227716	-	932	190570669	-	WP0219	-	hypothetical protein
192	 38.59	+1	227825..230884	+	1019	190570670	-	WP0220	-	phosphoribosylformylglycinamidine synthase II domain protein
193	 29.82	-1	230962..231474	+	170	190570671	-	WP0221	-	hypothetical protein
194	 38.34	+1	231897..233015	+	372	190570672	dnaJ	WP0222	-	dnaJ protein
195	 37.31	+1	233185..234819	+	544	190570673	-	WP0223	-	metallo-beta-lactamase family protein
196	 38.51	+1	234866..235213	+	115	190570674	-	WP0224	-	hypothetical protein
197	 32.06	0	235266..236522	+	418	190570675	tolB	WP0225	-	Protein tolB precursor
198	 32.20	0	236561..236914	-	117	190570676	gatC	WP0226	-	glutamyl-tRNA(Gln) amidotransferase, C subunit
34.35	MEAN

2.87	STD DEV
