IslandPath Analysis: Wolbachia pipientis

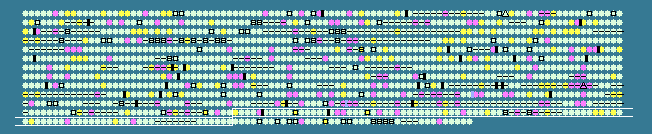

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 34.35   STD DEV: 2.87
Wolbachia pipientis, complete genome - 1..1482455
1275 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1136	 38.29	+1	1309620..1310144	+	174	190571614	-	WP1237	-	hexapeptide transferase family protein
1137	 31.40	-1	1310134..1311168	-	344	190571615	-	WP1238	-	hypothetical protein
1138	 32.00	0	1311396..1312145	-	249	190571616	-	WP1239	-	hypothetical protein
1139	 33.39	0	1312771..1314582	-	603	190571617	glmS	WP1241	-	glucosamine--fructose-6-phosphate aminotransferase (isomerizing)
1140	 29.71	-1	1314591..1315004	-	137	190571618	-	WP1242	-	preprotein translocase, YajC subunit
1141	 34.31	0	1315393..1316208	+	271	190571619	rpsB	WP1243	-	ribosomal protein S2
1142	 34.63	0	1316205..1317050	+	281	190571620	tsf	WP1244	-	translation elongation factor Ts
1143	 34.81	0	1317034..1317777	+	247	190571621	pyrH	WP1245	-	uridylate kinase
1144	 31.36	-1	1317785..1318342	+	185	190571622	frr	WP1246	-	ribosome recycling factor
1145	 31.27	-1	1318536..1319552	+	338	190571623	-	WP1247	-	phosphate ABC transporter, periplasmic phosphate-binding protein
1146	 39.47	+1	1319609..1320847	-	412	190571624	-	WP1248	-	transposase
1147	 31.27	-1	1321008..1321976	-	322	190571625	-	WP1249	-	hypothetical protein
1148	 34.77	0	1322101..1323558	+	485	190571626	-	WP1250	-	Cation transport protein
1149	 36.20	0	1323630..1324187	+	185	190571627	-	WP1251	-	deoxycytidine triphosphate deaminase
1150	 33.14	0	1324188..1325213	-	341	190571628	-	WP1252	-	hypothetical protein
1151	 33.41	0	1325340..1326575	-	411	190571629	-	WP1253	-	Metallophosphoesterase
1152	 32.69	0	1326874..1327959	+	361	190571630	ribA	WP1254	-	GTP cyclohydrolase II
1153	 28.93	-1	1328032..1328712	+	226	190571631	-	WP1255	-	type IV secretion system protein VirB8
1154	 29.06	-1	1328696..1329490	+	264	190571632	-	WP1256	-	type IV secretion system protein VirB9
1155	 36.77	0	1329507..1331018	+	503	190571633	-	WP1257	-	type IV secretion system protein VirB10
1156	 35.85	0	1331020..1332012	+	330	190571634	-	WP1258	-	type IV secretion system protein VirB11
1157	 36.75	0	1332043..1334061	+	672	190571635	-	WP1259	-	type IV secretion system protein VirD4
1158	 39.47	+1	1334630..1335868	-	412	190571636	-	WP1261	-	transposase
1159	 36.52	0	1336502..1338952	-	816	190571637	topA	WP1262	-	DNA topoisomerase I
1160	 29.47	-1	1339042..1339248	+	68	190571638	-	WP1263	-	hypothetical protein
1161	 34.28	0	1339601..1340872	+	423	190571639	-	WP1264	-	major facilitator family transporter
1162	 36.81	0	1340930..1342282	+	450	190571640	radA	WP1265	-	DNA repair protein RadA
1163	 27.72	-2	1342390..1342674	-	94	190571641	-	WP1266	-	hypothetical protein
1164	 37.61	+1	1343304..1344215	-	303	190571642	ftsY	WP1267	-	signal recognition particle protein FtsY
1165	 33.07	0	1344393..1344776	+	127	190571643	-	WP1268	-	NifU domain protein
1166	 34.88	0	1344782..1345168	+	128	190571644	-	WP1269	-	HesB/YadR/YfhF family protein
1167	 32.46	0	1345161..1345619	+	152	190571645	hscB	WP1270	-	co-chaperone Hsc20
1168	 35.72	0	1345597..1347483	+	628	190571646	hscA	WP1271	-	chaperone protein HscA
1169	 32.95	0	1347487..1348272	-	261	190571647	lepB	WP1272	-	signal peptidase I
1170	 36.97	0	1348472..1348828	+	118	190571648	-	WP1273	-	Putaive membrane protein
1171	 40.94	+2	1348831..1349829	-	332	190571649	-	WP1274	-	pyruvate dehydrogenase complex, E1 component, pyruvate dehydrogenase beta subunit
1172	 33.95	0	1349890..1351191	-	433	190571650	-	WP1275	-	ankyrin repeat domain protein
1173	 36.99	0	1351517..1354330	+	937	190571651	uvrA	WP1276	-	excinuclease ABC, A subunit
1174	 30.78	-1	1354382..1355086	+	234	190571652	comF	WP1277	-	competence protein f
1175	 31.25	-1	1355460..1355651	-	63	190571653	-	WP1278	-	hypothetical protein
1176	 34.02	0	1355965..1357122	+	385	190571654	-	WP1279	-	ankyrin repeat domain protein
1177	 34.08	0	1357428..1358765	+	445	190571655	-	WP1280	-	ATPase, AAA family
1178	 43.43	+2	1358979..1359176	-	65	190571656	-	WP1281	-	hypothetical protein
1179	 31.57	0	1362545..1363738	+	397	190571657	-	WP1283	-	hypothetical protein
1180	 32.67	0	1363843..1364748	+	301	190571658	-	WP1284	-	hypothetical protein
1181	 35.51	0	1364998..1365870	-	290	190571659	-	WP1285	-	transposase
1182	 32.99	0	1366044..1367192	+	382	190571660	-	WP1286	-	hypothetical protein
1183	 30.55	-1	1367298..1368122	+	274	190571661	-	WP1287	-	hypothetical protein
1184	 32.00	0	1368243..1369070	+	275	190571662	-	WP1288	-	hypothetical protein
1185	 35.51	0	1369259..1370131	-	290	190571663	-	WP1289	-	transposase
1186	 28.68	-1	1370322..1370450	+	42	190571664	-	WP1290	-	hypothetical protein
1187	 35.78	0	1371265..1372326	-	353	190571665	-	WP1291	-	hypothetical protein
1188	 42.02	+2	1372485..1372841	+	118	190571666	-	WP1292	-	hypothetical protein
1189	 33.13	0	1373737..1375719	+	660	190571667	-	WP1293	-	ankyrin repeat domain protein
1190	 34.39	0	1376656..1377126	-	156	190571668	-	WP1295	-	hypothetical protein
1191	 34.12	0	1377110..1377364	-	84	190571669	-	WP1296	-	Putative phage related protein
1192	 33.12	0	1377364..1377828	-	154	190571670	-	WP1297	-	baseplate assembly protein GpV
1193	 37.53	+1	1377815..1378291	-	158	190571671	-	WP1298	-	Putative phage related protein
1194	 32.11	0	1378288..1378779	-	163	190571672	-	WP1299	-	Putative minor tail protein z
1195	 35.29	0	1378781..1379086	-	101	190571673	-	WP1300	-	Putative phage related protein
1196	 38.81	+1	1379161..1380165	-	334	190571674	-	WP1301	-	Putative phage related protein
1197	 39.78	+1	1380191..1380562	-	123	190571675	-	WP1302	-	putative phage related protein
1198	 36.32	0	1380688..1381725	-	345	190571676	-	WP1303	-	Putative minor capsid protein c
1199	 38.57	+1	1381740..1383152	-	470	190571677	-	WP1304	-	Putative phage portal protein
1200	 33.72	0	1383152..1384183	-	343	190571678	-	WP1305	-	phage uncharacterized protein
1201	 35.56	0	1384210..1384434	-	74	190571679	-	WP1306	-	putative phage related protein
1202	 39.81	+1	1384424..1386259	-	611	190571680	-	WP1307	-	Phage terminase large subunit GpA
1203	 34.01	0	1386259..1387731	-	490	190571681	-	WP1308	-	ankyrin repeat domain protein
1204	 34.80	0	1387739..1388215	-	158	190571682	-	WP1309	-	Putative phage related protein
1205	 37.39	+1	1388212..1389444	-	410	190571683	-	WP1310	-	Phage related DNA methylase
1206	 36.77	0	1389558..1390022	-	154	190571684	-	WP1311	-	putative phage related protein
1207	 37.04	0	1390240..1392399	+	719	190571685	-	WP1312	-	putative phage related protein
1208	 22.22	-2	1392768..1393010	-	80	190571686	-	WP1313	-	Putative phage related protein
1209	 32.95	0	1393753..1394277	+	174	190571687	-	WP1314	-	putative phage related protein
1210	 37.58	+1	1394338..1395162	+	274	190571688	-	WP1315	-	putative phage related protein
1211	 36.93	0	1395179..1395985	+	268	190571689	-	WP1316	-	putative phage related protein
1212	 36.33	0	1396025..1396525	+	166	190571690	-	WP1317	-	putative phage related protein
1213	 32.76	0	1396568..1398316	+	582	190571691	-	WP1318	-	putative phage related protein
1214	 32.45	0	1398323..1399459	-	378	190571692	-	WP1319	-	putative phage related protein
1215	 31.60	0	1399401..1400612	-	403	190571693	-	WP1320	-	putative phage related protein
1216	 38.45	+1	1400753..1401436	+	227	190571694	-	WP1321	-	putative phage related protein
1217	 37.02	0	1401443..1403368	+	641	190571695	-	WP1322	-	putative phage related protein
1218	 37.05	0	1403373..1404557	+	394	190571696	-	WP1323	-	Putative phage related protein
1219	 30.77	-1	1404562..1404756	+	64	190571697	-	WP1324	-	Putative phage related protein
1220	 35.44	0	1404753..1406126	+	457	190571698	-	WP1325	-	Putative phage related protein
1221	 32.61	0	1406149..1406700	+	183	190571699	-	WP1326	-	Putative phage related protein
1222	 37.32	+1	1406693..1407871	+	392	190571700	-	WP1327	-	Phage major tail sheath protein
1223	 36.49	0	1407887..1408393	+	168	190571701	-	WP1328	-	phage tail tube protein
1224	 34.75	0	1408639..1408920	+	93	190571702	-	WP1330	-	Putative phage related protein
1225	 34.50	0	1409004..1409261	+	85	190571703	-	WP1331	-	putative phage related protein
1226	 36.36	0	1409258..1409389	+	43	190571704	-	WP1332	-	Putative phage related protein
1227	 35.03	0	1409371..1411662	+	763	190571705	-	WP1333	-	phage tail tape measure protein
1228	 31.90	0	1411662..1412009	+	115	190571706	-	WP1334	-	phage tail protein GpU
1229	 34.29	0	1412006..1412215	+	69	190571707	-	WP1335	-	phage tail protein GpX
1230	 34.29	0	1412216..1413160	+	314	190571708	-	WP1336	-	phage late control gene d protein GpD
1231	 31.98	0	1413213..1413731	+	172	190571709	-	WP1337	-	ankyrin repeat domain protein
1232	 31.51	0	1413779..1413997	+	72	190571710	-	WP1338	-	hypothetical protein
1233	 35.73	0	1413880..1414506	-	208	190571711	-	WP1339	-	Putative endonuclease
1234	 35.50	0	1414493..1415413	+	306	190571712	-	WP1340	-	patatin family protein
1235	 33.03	0	1415480..1416457	-	325	190571713	-	WP1341	-	putative transcriptional regulator
34.35	MEAN

2.87	STD DEV
