IslandPath Analysis: Wolbachia pipientis

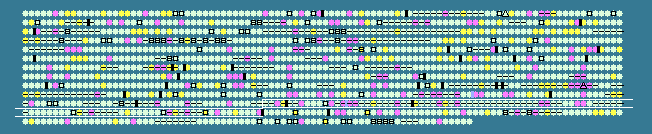

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.35 STD DEV: 2.87
Wolbachia pipientis, complete genome - 1..1482455
1275 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1041	 34.51	0	1223493..1224002	+	169	190571519	-	WP1138	-	Putative outer membrane protein
1042	 35.04	0	1224231..1224698	+	155	190571520	-	WP1139	-	Putative outer membrane protein
1043	 30.69	-1	1224917..1225219	+	100	190571521	rplU	WP1140	-	ribosomal protein L21
1044	 38.89	+1	1225230..1225499	+	89	190571522	rpmA	WP1141	-	ribosomal protein L27
1045	 37.02	0	1225624..1226790	+	388	190571523	metK	WP1142	-	S-adenosylmethionine synthetase
1046	 31.53	0	1226900..1227565	+	221	190571524	-	WP1143	-	Putative transcriptional activator, tenA family
1047	 29.09	-1	1227605..1228264	+	219	190571525	-	WP1144	-	Putative transcriptional activator, tenA family
1048	 33.82	0	1228312..1229139	+	275	190571526	coxC	WP1145	-	cytochrome c oxidase, subunit III
1049	 32.13	0	1229140..1229637	+	165	190571527	ruvC	WP1146	-	crossover junction endodeoxyribonuclease RuvC
1050	 33.74	0	1229823..1230800	-	325	190571528	-	WP1147	-	ankyrin repeat domain protein
1051	 35.51	0	1230898..1231770	+	290	190571529	-	WP1148	-	transposase
1052	 30.56	-1	1232184..1232651	-	155	190571530	-	WP1150	-	putative holliday junction resolvase
1053	 35.01	0	1232709..1234493	-	594	190571531	nrdA	WP1151	-	ribonucleoside-diphosphate reductase, alpha subunit
1054	 30.35	-1	1234542..1235612	-	356	190571532	-	WP1152	-	TPR domain protein
1055	 30.18	-1	1239904..1240125	-	73	190571533	-	WP1153	-	hypothetical protein
1056	 26.28	-2	1240186..1240341	-	51	190571534	-	WP1154	-	hypothetical protein
1057	 31.11	-1	1240547..1240681	-	44	190571535	rpmH	WP1155	-	ribosomal protein L34
1058	 31.50	0	1240789..1241877	+	362	190571536	-	WP1156	-	phosphate ABC transporter, permease protein
1059	 37.93	+1	1241974..1243410	+	478	190571537	atpD	WP1157	-	ATP synthase F1, beta subunit
1060	 30.99	-1	1243416..1243757	+	113	190571538	atpC	WP1158	-	ATP synthase F1, epsilon subunit
1061	 33.88	0	1243888..1247334	-	1148	190571539	-	WP1159	-	hypothetical protein
1062	 34.42	0	1247744..1248388	+	214	190571540	-	WP1160	-	transaldolase
1063	 29.91	-1	1249163..1249630	-	155	190571541	-	WP1161	-	hypothetical protein
1064	 33.33	0	1249763..1250479	-	238	190571542	-	WP1162	-	short chain dehydrogenase
1065	 34.44	0	1250682..1251770	+	362	190571543	carA	WP1163	-	carbamoyl-phosphate synthase, small subunit
1066	 40.75	+2	1252115..1253287	+	390	190571544	tuf	WP1164	-	translation elongation factor tu
1067	 31.78	0	1253302..1253622	+	106	190571545	rpsJ	WP1165	-	30s ribosomal protein s10
1068	 34.99	0	1253632..1254354	+	240	190571546	rplC	WP1166	-	ribosomal protein L3
1069	 31.87	0	1254357..1254971	+	204	190571547	rplD	WP1167	-	ribosomal protein L4
1070	 26.04	-2	1254968..1255255	+	95	190571548	rplW	WP1168	-	ribosomal protein L23
1071	 38.18	+1	1255257..1256081	+	274	190571549	rplB	WP1169	-	ribosomal protein L2
1072	 33.68	0	1256085..1256369	+	94	190571550	rpsS	WP1170	-	ribosomal protein S19
1073	 28.77	-1	1256379..1256729	+	116	190571551	rplV	WP1171	-	ribosomal protein L22
1074	 34.46	0	1256769..1257389	+	206	190571552	rpsC	WP1172	-	ribosomal protein S3
1075	 37.44	+1	1257401..1257814	+	137	190571553	rplP	WP1173	-	ribosomal protein L16
1076	 31.86	0	1257826..1258029	+	67	190571554	rpmC	WP1174	-	50s ribosomal protein l29
1077	 32.47	0	1258022..1258252	+	76	190571555	rpsQ	WP1175	-	ribosomal protein S17
1078	 33.06	0	1258271..1258630	+	119	190571556	rplN	WP1176	-	ribosomal protein L14
1079	 31.13	-1	1258630..1258947	+	105	190571557	rplX	WP1177	-	ribosomal protein L24
1080	 30.91	-1	1258954..1259490	+	178	190571558	rplE	WP1178	-	ribosomal protein L5
1081	 32.69	0	1259503..1259811	+	102	190571559	rspN	WP1179	-	ribosomal protein S14
1082	 33.84	0	1259834..1260229	+	131	190571560	rpsH	WP1180	-	30s ribosomal protein s8
1083	 32.05	0	1260246..1260791	+	181	190571561	rplF	WP1181	-	ribosomal protein L6
1084	 34.95	0	1260797..1261168	+	123	190571562	rpl18	WP1182	-	ribosomal protein L18
1085	 37.43	+1	1261181..1261693	+	170	190571563	rpsE	WP1183	-	ribosomal protein S5
1086	 33.12	0	1261697..1262167	+	156	190571564	rplO	WP1184	-	ribosomal protein L15
1087	 30.25	-1	1262171..1263499	+	442	190571565	secY	WP1185	-	preprotein translocase, SecY subunit
1088	 29.75	-1	1263496..1264137	+	213	190571566	adk	WP1186	-	adenylate kinase
1089	 34.42	0	1264197..1264565	+	122	190571567	rpsM	WP1187	-	ribosomal protein S13
1090	 37.73	+1	1264590..1264976	+	128	190571568	rpsK	WP1188	-	ribosomal protein S11
1091	 33.33	0	1264997..1266064	+	355	190571569	rpoA	WP1189	-	DNA-directed RNA polymerase, alpha subunit
1092	 32.63	0	1266072..1266500	+	142	190571570	rplQ	WP1190	-	ribosomal protein L17
1093	 27.68	-2	1266512..1266865	+	117	190571571	-	WP1191	-	hypothetical protein
1094	 29.19	-1	1266898..1267452	+	184	190571572	atpH	WP1192	-	ATP synthase F1, delta subunit
1095	 36.84	0	1267449..1268990	+	513	190571573	atpA	WP1193	-	ATP synthase F1, alpha subunit
1096	 35.96	0	1269000..1269494	+	164	190571574	greA	WP1194	-	transcription elongation factor GreA
1097	 35.81	0	1269498..1270142	+	214	190571575	ribB	WP1195	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
1098	 32.02	0	1270214..1271503	+	429	190571576	-	WP1196	-	peptidase, M48 family
1099	 35.12	0	1271505..1271840	-	111	190571577	-	WP1197	-	hypothetical protein
1100	 34.01	0	1271936..1272670	-	244	190571578	fabG	WP1198	-	3-oxoacyl-(acyl-carrier-protein) reductase
1101	 37.25	+1	1274101..1274304	-	67	190571579	-	WP1200	-	hypothetical protein
1102	 37.56	+1	1274446..1277073	+	875	190571580	ppdK	WP1201	-	pyruvate phosphate dikinase
1103	 32.04	0	1277262..1278494	+	410	190571581	-	WP1202	-	hypothetical protein
1104	 32.58	0	1278502..1278633	+	43	190571582	-	WP1203	-	hypothetical protein
1105	 33.24	0	1278843..1279925	+	360	190571583	-	WP1204	-	efflux transporter, RND family, MFP subunit
1106	 32.06	0	1280047..1280985	+	312	190571584	-	WP1205	-	hypothetical protein
1107	 34.28	0	1281043..1281360	-	105	190571585	-	WP1206	-	glutaredoxin-related protein
1108	 35.62	0	1281377..1281595	-	72	190571586	-	WP1207	-	BolA-like protein
1109	 34.81	0	1282514..1283461	-	315	190571587	-	WP1209	-	transposase
1110	 40.29	+2	1284018..1285340	-	440	190571588	maeB	WP1210	-	NADP-dependent malic enzyme
1111	 35.36	0	1285462..1286004	+	180	190571589	pgsA	WP1211	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1112	 30.86	-1	1287129..1287815	+	228	190571590	-	WP1213	-	competence lipoprotein ComL, putative
1113	 36.44	0	1287823..1288563	+	246	190571591	-	WP1214	-	hypothetical protein
1114	 34.87	0	1288560..1289600	+	346	190571592	-	WP1215	-	M23 peptidase domain protein
1115	 34.02	0	1289584..1290453	+	289	190571593	-	WP1216	-	Putative Band 7 family membrane protein
1116	 32.63	0	1290622..1290906	+	94	190571594	-	WP1217	-	hypothetical protein
1117	 33.80	0	1290911..1291558	+	215	190571595	-	WP1218	-	thiamine pyrophosphokinase
1118	 39.39	+1	1291858..1292055	-	65	190571596	-	WP1219	-	hypothetical protein
1119	 34.04	0	1292102..1294078	-	658	190571597	-	WP1220	-	ankyrin repeat domain protein
1120	 33.25	0	1294157..1295344	-	395	190571598	-	WP1221	-	bicyclomycin resistance protein
1121	 33.48	0	1295455..1296153	+	232	190571599	ubiE	WP1222	-	ubiquinone/menaquinone biosynthesis methlytransferase UbiE
1122	 35.04	0	1296313..1298010	+	565	190571600	-	WP1223	-	ABC transporter, permease/ATP-binding protein
1123	 36.55	0	1298232..1298480	+	82	190571601	-	WP1224	-	hypothetical protein
1124	 35.51	0	1298520..1299392	-	290	190571602	-	WP1225	-	transposase
1125	 28.68	-1	1299579..1300115	+	178	190571603	-	WP1226	-	hypothetical protein
1126	 38.39	+1	1300250..1301950	+	566	190571604	argS	WP1227	-	arginyl-tRNA synthetase
1127	 36.06	0	1301966..1302589	-	207	190571605	-	WP1228	-	heme exporter protein CcmA
1128	 29.17	-1	1302593..1303024	-	143	190571606	-	WP1229	-	hypothetical protein
1129	 33.27	0	1303454..1304992	+	512	190571607	-	WP1230	-	hypothetical protein
1130	 35.15	0	1305182..1305346	-	54	190571608	-	WP1231	-	hypothetical protein
1131	 39.47	+1	1305514..1306752	+	412	190571609	-	WP1232	-	transposase
1132	 37.79	+1	1306819..1307244	-	141	190571610	-	WP1233	-	cytidine and deoxycytidylate deaminase family protein
1133	 29.25	-1	1307244..1307537	-	97	190571611	-	WP1234	-	hypothetical protein
1134	 35.26	0	1307576..1309183	-	535	190571612	pyrG	WP1235	-	CTP synthase
1135	 31.97	0	1309183..1309548	-	121	190571613	-	WP1236	-	preprotein translocase, SecG subunit
1136	 38.29	+1	1309620..1310144	+	174	190571614	-	WP1237	-	hexapeptide transferase family protein
1137	 31.40	-1	1310134..1311168	-	344	190571615	-	WP1238	-	hypothetical protein
1138	 32.00	0	1311396..1312145	-	249	190571616	-	WP1239	-	hypothetical protein
1139	 33.39	0	1312771..1314582	-	603	190571617	glmS	WP1241	-	glucosamine--fructose-6-phosphate aminotransferase (isomerizing)
1140	 29.71	-1	1314591..1315004	-	137	190571618	-	WP1242	-	preprotein translocase, YajC subunit
34.35	MEAN

2.87	STD DEV
