IslandPathversion 1.0

IslandPath Analysis: Wolbachia pipientis

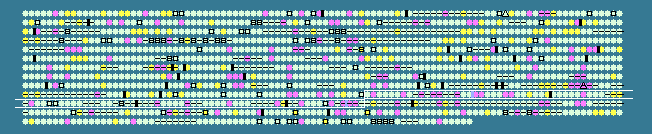

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.35 STD DEV: 2.87
Wolbachia pipientis, complete genome - 1..1482455
1275 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
958	 35.34	0	1115640..1116737	-	365	190571436	-	WP1049	-	ATPase, AAA family
959	 29.46	-1	1116872..1118188	-	438	190571437	-	WP1050	-	hypothetical protein
960	 37.10	0	1118193..1121669	-	1158	190571438	-	WP1051	-	collagen triple helix repeat protein
961	 33.20	0	1122041..1123504	-	487	190571439	htrA	WP1052	-	protease DO
962	 31.39	-1	1123508..1124380	-	290	190571440	hflC	WP1053	-	hflC protein
963	 34.21	0	1124383..1125408	-	341	190571441	hflK	WP1054	-	hflK protein
964	 28.12	-2	1125531..1125818	-	95	190571442	-	WP1055	-	hypothetical protein
965	 34.86	0	1125823..1127652	-	609	190571443	mutL	WP1056	-	DNA mismatch repair protein MutL
966	 36.93	0	1127652..1128152	-	166	190571444	purE	WP1057	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
967	 29.97	-1	1129005..1129301	+	98	190571445	-	WP1058	-	Putative transcriptional regulator
968	 35.37	0	1129362..1129754	+	130	190571446	rpoZ	WP1059	-	DNA-directed RNA polymerase, omega subunit
969	 27.24	-2	1129784..1130029	+	81	190571447	-	WP1060	-	multiple resistance and ph regulation protein f
970	 30.04	-1	1130036..1130308	+	90	190571448	-	WP1061	-	multisubunit na+/h+ antiporter, mnhg subunit
971	 33.52	0	1130320..1130844	+	174	190571449	-	WP1062	-	hypothetical protein
972	 31.43	-1	1130837..1131256	+	139	190571450	-	WP1063	-	multisubunit na+/h+ antiporter, mnhb subunit
973	 28.71	-1	1131253..1131555	+	100	190571451	-	WP1064	-	multisubunit na+/h+ antiporter, mnhc subunit
974	 33.18	0	1131692..1133593	+	633	190571452	rpoD	WP1065	-	RNA polymerase sigma factor RpoD
975	 31.88	0	1135223..1135840	-	205	190571453	-	WP1067	-	hypothetical protein
976	 27.96	-2	1137600..1137971	+	123	190571454	sdhC	WP1068	-	succinate dehydrogenase, cytochrome b556 subunit
977	 30.87	-1	1137968..1138333	+	121	190571455	sdhD	WP1069	-	succinate dehydrogenase, hydrophobic membrane anchor protein
978	 33.98	0	1138410..1139642	+	410	190571456	-	WP1070	-	hypothetical protein
979	 34.41	0	1139761..1141062	+	433	190571457	-	WP1071	-	mannose-1-phosphate guanylyltransferase
980	 33.98	0	1141179..1142408	+	409	190571458	lolC	WP1072	-	lipoprotein releasing system transmembrane protein lolc
981	 30.46	-1	1142401..1143132	+	243	190571459	-	WP1073	-	hypothetical protein
982	 30.36	-1	1144515..1145387	+	290	190571460	atpG	WP1075	-	ATP synthase F1, gamma subunit
983	 33.03	0	1145406..1146740	+	444	190571461	pmbA	WP1076	-	pmbA protein
984	 35.71	0	1146915..1147166	+	83	190571462	-	WP1077	-	cold-shock domain family protein
985	 38.55	+1	1147201..1148427	+	408	190571463	-	WP1078	-	ATP-dependent RNA helicase, DeaD/DeaH box family
986	 34.12	0	1148725..1151004	+	759	190571464	clpA	WP1079	-	ATP-dependent Clp protease, ATP-binding subunit ClpA
987	 33.63	0	1151061..1152059	+	332	190571465	-	WP1080	-	dnaj domain protein
988	 38.61	+1	1152118..1153008	+	296	190571466	fba	WP1081	-	fructose-bisphosphate aldolase
989	 34.21	0	1153193..1153990	+	265	190571467	-	WP1082	-	putative lipoprotein
990	 33.90	0	1154063..1155130	+	355	190571468	pyrD	WP1083	-	dihydroorotate dehydrogenase
991	 34.78	0	1155223..1155915	+	230	190571469	rnc	WP1084	-	ribonuclease III
992	 31.67	0	1155968..1156567	-	199	190571470	-	WP1085	-	SCO1/SenC family protein
993	 33.76	0	1156603..1157307	-	234	190571471	dnaQ	WP1086	-	DNA polymerase III, epsilon subunit
994	 28.33	-2	1157307..1157966	-	219	190571472	-	WP1087	-	Tim44-like domain protein
995	 32.54	0	1158131..1158634	+	167	190571473	secB	WP1088	-	protein-export protein SecB
996	 37.80	+1	1158641..1161262	+	873	190571474	acnA	WP1089	-	aconitate hydratase
997	 36.71	0	1161384..1164524	+	1046	190571475	putA	WP1090	-	proline dehydrogenase/delta-1-pyrroline-5-carboxylate dehydrogenase
998	 33.49	0	1164691..1165332	+	213	190571476	-	WP1091	-	dioxygenase
999	 38.34	+1	1165387..1166925	+	512	190571477	pepA	WP1092	-	cytosol aminopeptidase
1000	 40.38	+2	1167183..1167395	+	70	190571478	-	WP1093	-	hypothetical protein
1001	 37.63	+1	1167401..1169449	+	682	190571479	nuoG	WP1094	-	NADH dehydrogenase I, G subunit
1002	 28.44	-2	1169433..1169882	+	149	190571480	-	WP1095	-	hypothetical protein
1003	 36.35	0	1169866..1170891	+	341	190571481	nuoH	WP1096	-	NADH dehydrogenase I, H subunit
1004	 35.94	0	1170884..1171882	+	332	190571482	hemB	WP1097	-	delta-aminolevulinic acid dehydratase
1005	 35.51	0	1172261..1173133	+	290	190571483	-	WP1098	-	transposase
1006	 35.51	0	1173875..1174747	-	290	190571484	-	WP1100	-	transposase
1007	 33.73	0	1175516..1178044	-	842	190571485	polA	WP1101	-	DNA polymerase I
1008	 37.42	+1	1178156..1179622	-	488	190571486	gatA	WP1102	-	glutamyl-tRNA(Gln) amidotransferase, A subunit
1009	 35.78	0	1179809..1182181	-	790	190571487	gyrB	WP1103	-	DNA gyrase, B subunit
1010	 32.68	0	1182403..1183635	-	410	190571488	-	WP1104	-	hypothetical protein
1011	 35.07	0	1183706..1184569	-	287	190571489	-	WP1105	-	ankyrin repeat domain protein
1012	 33.77	0	1184804..1185487	+	227	190571490	psd	WP1106	-	phosphatidylserine decarboxylase proenzyme (ec 4.1.1.65) [contains: phosphatidylserine decarboxylase alpha chain; phosphatidylserine decarboxylase beta chain]
1013	 31.13	-1	1185484..1186254	+	256	190571491	-	WP1107	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
1014	 34.38	0	1186277..1187614	+	445	190571492	-	WP1108	-	sodium/alanine symporter family protein
1015	 37.15	0	1187617..1189083	+	488	190571493	-	WP1109	-	sodium/alanine symporter family protein
1016	 33.16	0	1189096..1189671	+	191	190571494	-	WP1110	-	UPF0078 membrane protein
1017	 35.51	0	1190221..1191093	-	290	190571495	-	WP1112	-	transposase
1018	 31.24	-1	1191159..1192970	-	603	190571496	-	WP1113	-	hypothetical protein
1019	 34.00	0	1193026..1193922	-	298	190571497	-	WP1114	-	cation efflux family protein
1020	 34.90	0	1198121..1198312	+	63	190571498	-	WP1116	-	hypothetical protein
1021	 36.31	0	1198314..1199624	+	436	190571499	-	WP1117	-	hypothetical protein
1022	 33.33	0	1199715..1200482	-	255	190571500	-	WP1118	-	RNA methyltransferase, TrmH family, group 3
1023	 28.86	-1	1200575..1201066	+	163	190571501	-	WP1119	-	Smr domain family protein
1024	 34.32	0	1201078..1202895	-	605	190571502	uvrC	WP1120	-	excinuclease ABC, C subunit
1025	 33.19	0	1202879..1204987	-	702	190571503	glyS	WP1121	-	glycyl-tRNA synthetase, beta subunit
1026	 37.50	+1	1204991..1205830	-	279	190571504	glyQ	WP1122	-	glycyl-tRNA synthetase, alpha subunit
1027	 31.23	-1	1205875..1206633	-	252	190571505	-	WP1123	-	hypothetical protein
1028	 29.72	-1	1208264..1208512	-	82	190571506	-	WP1125	-	hypothetical protein
1029	 34.70	0	1208638..1209588	+	316	190571507	-	WP1126	-	hypothetical protein
1030	 33.21	0	1209626..1210408	-	260	190571508	xth	WP1127	-	exodeoxyribonuclease III
1031	 32.06	0	1210408..1211115	-	235	190571509	-	WP1128	-	uroporphyrinogen-III synthase
1032	 36.47	0	1211351..1212880	-	509	190571510	-	WP1129	-	hypothetical protein
1033	 32.75	0	1213074..1215122	-	682	190571511	-	WP1130	-	hypothetical protein
1034	 34.88	0	1215219..1216577	+	452	190571512	-	WP1131	-	phosphoglucomutase/phosphomannomutase family protein
1035	 29.76	-1	1216708..1217295	-	195	190571513	-	WP1132	-	membrane protein CvpA
1036	 32.50	0	1217353..1217949	-	198	190571514	ribE	WP1133	-	riboflavin synthase, alpha subunit
1037	 33.56	0	1217990..1219723	-	577	190571515	-	WP1134	-	hypothetical protein
1038	 35.44	0	1220405..1221448	+	347	190571516	pheS	WP1135	-	phenylalanyl-tRNA synthetase, alpha subunit
1039	 36.51	0	1221449..1222675	+	408	190571517	glmU	WP1136	-	bifunctional protein glmu [udp-n-acetylglucosamine pyrophosphorylase/glucosamine-1-phosphate n-acetyltransferase]
1040	 33.33	0	1222736..1223296	+	186	190571518	-	WP1137	-	Putative outer membrane protein
1041	 34.51	0	1223493..1224002	+	169	190571519	-	WP1138	-	Putative outer membrane protein
1042	 35.04	0	1224231..1224698	+	155	190571520	-	WP1139	-	Putative outer membrane protein
1043	 30.69	-1	1224917..1225219	+	100	190571521	rplU	WP1140	-	ribosomal protein L21
1044	 38.89	+1	1225230..1225499	+	89	190571522	rpmA	WP1141	-	ribosomal protein L27
1045	 37.02	0	1225624..1226790	+	388	190571523	metK	WP1142	-	S-adenosylmethionine synthetase
1046	 31.53	0	1226900..1227565	+	221	190571524	-	WP1143	-	Putative transcriptional activator, tenA family
1047	 29.09	-1	1227605..1228264	+	219	190571525	-	WP1144	-	Putative transcriptional activator, tenA family
1048	 33.82	0	1228312..1229139	+	275	190571526	coxC	WP1145	-	cytochrome c oxidase, subunit III
1049	 32.13	0	1229140..1229637	+	165	190571527	ruvC	WP1146	-	crossover junction endodeoxyribonuclease RuvC
1050	 33.74	0	1229823..1230800	-	325	190571528	-	WP1147	-	ankyrin repeat domain protein
1051	 35.51	0	1230898..1231770	+	290	190571529	-	WP1148	-	transposase
1052	 30.56	-1	1232184..1232651	-	155	190571530	-	WP1150	-	putative holliday junction resolvase
1053	 35.01	0	1232709..1234493	-	594	190571531	nrdA	WP1151	-	ribonucleoside-diphosphate reductase, alpha subunit
1054	 30.35	-1	1234542..1235612	-	356	190571532	-	WP1152	-	TPR domain protein
1055	 30.18	-1	1239904..1240125	-	73	190571533	-	WP1153	-	hypothetical protein
1056	 26.28	-2	1240186..1240341	-	51	190571534	-	WP1154	-	hypothetical protein
1057	 31.11	-1	1240547..1240681	-	44	190571535	rpmH	WP1155	-	ribosomal protein L34
34.35	MEAN

2.87	STD DEV
