IslandPath Analysis: Vibrio vulnificus CMCP6

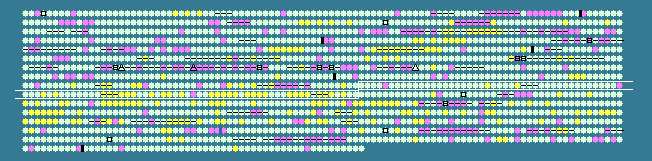

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 47.71   STD DEV: 3.40
Vibrio vulnificus CMCP6 chromosome II, complete sequence - 1..1844853
1557 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
857	 45.42	0	995719..996330	+	203	27367321	-	VV2_0921	-	small-conductance mechanosensitive channel
858	 49.77	0	996425..998644	-	739	27367322	-	VV2_0922	-	hypothetical protein
859	 49.33	0	998785..999303	-	172	27367323	-	VV2_0924	-	histone acetyltransferase HPA2
860	 48.82	0	999348..1000961	-	537	27367324	-	VV2_0925	-	small-conductance mechanosensitive channel
861	 40.74	-2	1001482..1001751	-	89	27367325	-	VV2_0926	-	methyl-accepting chemotaxis protein
862	 49.55	0	1002099..1005236	-	1045	27367326	-	VV2_0928	-	cation/multidrug efflux pump
863	 50.73	0	1005248..1006408	-	386	27367327	-	VV2_0929	-	membrane-fusion protein
864	 47.43	0	1006808..1007332	+	174	27367328	-	VV2_0930	-	hypothetical protein
865	 47.00	0	1007341..1009491	+	716	27367329	-	VV2_0931	-	Signal transduction histidine kinase
866	 49.75	0	1009590..1009991	+	133	27367330	-	VV2_0932	-	NTP pyrophosphohydrolase
867	 49.81	0	1010180..1010719	+	179	27367331	-	VV2_0933	-	phospholipid-binding protein
868	 49.68	0	1010749..1011531	+	260	27367332	-	VV2_0934	-	AraC-type DNA-binding domain-containing protein
869	 48.03	0	1011620..1013170	+	516	27367333	-	VV2_0935	-	hypothetical protein
870	 49.79	0	1013165..1013632	-	155	27367334	-	VV2_0936	-	transcriptional regulator
871	 50.75	0	1013761..1014966	+	401	27367335	-	VV2_0937	-	major facilitator superfamily permease
872	 49.14	0	1015505..1016668	+	387	27367336	-	VV2_0939	-	ABC-type branched-chain amino acid transport system, periplasmic component
873	 48.08	0	1016665..1018488	+	607	27367337	-	VV2_0940	-	GGDEF domain-containing protein
874	 49.12	0	1018472..1018927	+	151	27367338	-	VV2_0941	-	histone acetyltransferase HPA2
875	 49.03	0	1019237..1021255	+	672	27367339	-	VV2_0942	-	elongation factor G
876	 44.44	0	1021425..1021622	-	65	27367340	-	VV2_0944	-	hypothetical protein
877	 49.89	0	1021624..1022076	-	150	27367341	-	VV2_0945	-	hypothetical protein
878	 51.49	+1	1022073..1022375	-	100	27367342	-	VV2_0946	-	DNA-binding protein
879	 45.64	0	1022514..1022708	-	64	27367343	-	VV2_0947	-	hypothetical protein
880	 49.65	0	1022920..1023906	-	328	27367344	-	VV2_0949	-	cytochrome c peroxidase
881	 47.13	0	1024187..1024534	-	115	161501861	-	VV2_0950	-	hypothetical protein
882	 49.22	0	1024664..1024984	-	106	27367346	-	VV2_0951	-	translation initiation factor 1
883	 53.14	+1	1025250..1026890	+	546	27367347	-	VV2_0952	-	hypothetical protein
884	 46.08	0	1026946..1027902	-	318	27367348	-	VV2_0953	-	transcriptional regulator
885	 44.82	0	1028164..1028877	-	237	27367349	-	VV2_0954	-	hypothetical protein
886	 51.01	0	1029076..1029420	+	114	27367350	-	VV2_0955	-	hypothetical protein
887	 51.03	0	1029452..1030231	-	259	27367351	-	VV2_0956	-	AraC-type DNA-binding domain-containing protein
888	 50.95	0	1030327..1031484	+	385	27367352	-	VV2_0957	-	major facilitator superfamily permease
889	 50.54	0	1032965..1033795	+	276	27367353	-	VV2_0958	-	DMT family permease
890	 44.94	0	1033944..1034417	+	157	27367354	-	VV2_0959	-	ATPase involved in DNA repair
891	 48.15	0	1034575..1035222	+	215	27367355	-	VV2_0960	-	hypothetical protein
892	 49.54	0	1035476..1036339	+	287	27367356	-	VV2_0961	-	DMT family permease
893	 47.18	0	1036317..1037096	-	259	27367357	-	VV2_0962	-	flavodoxin reductase family 1 protein
894	 44.37	0	1037291..1037725	+	144	27367358	-	VV2_0963	-	thioesterase
895	 51.05	0	1037981..1038928	+	315	27367359	-	VV2_0964	-	transcriptional regulator
896	 46.94	0	1038911..1039204	-	97	27367360	-	VV2_0965	-	hypothetical protein
897	 49.39	0	1039218..1039871	-	217	27367361	-	VV2_0966	-	dihydropteridine reductase
898	 48.73	0	1040136..1041434	+	432	27367362	-	VV2_0967	-	hydrolase/acyltransferase
899	 47.70	0	1041516..1042712	+	398	27367363	-	VV2_0968	-	superfamily II DNA/RNA helicase
900	 32.86	-2	1042759..1042968	-	69	27367364	-	VV2_0969	-	TPR repeat-containing protein
901	 47.19	0	1043043..1043879	+	278	27367365	-	VV2_0970	-	hydrolase/acyltransferase
902	 46.33	0	1043979..1044863	-	294	27367366	-	VV2_0971	-	hypothetical protein
903	 50.17	0	1045416..1046318	-	300	27367367	-	VV2_0972	-	transglutaminase-like enzyme
904	 51.58	+1	1046457..1046993	+	178	27367368	-	VV2_0973	-	hypothetical protein
905	 49.73	0	1047076..1048905	-	609	27367369	-	VV2_0974	-	Zinc metalloprotease
906	 51.87	+1	1049254..1050240	+	328	27367370	-	VV2_0975	-	phosphoglycerate dehydrogenase
907	 44.98	0	1050344..1050592	+	82	27367371	-	VV2_0976	-	transcriptional antiterminator
908	 47.49	0	1050819..1051475	+	218	27367372	-	VV2_0977	-	hypothetical protein
909	 44.74	0	1051489..1051821	+	110	27367373	-	VV2_0978	-	hypothetical protein
910	 46.16	0	1051946..1053691	-	581	27367374	-	VV2_0979	-	methyl-accepting chemotaxis protein
911	 48.88	0	1053803..1057765	-	1320	27367375	-	VV2_0980	-	FOG: CheY-like receiver
912	 48.53	0	1057903..1058994	+	363	27367376	-	VV2_0981	-	response regulator
913	 46.31	0	1059193..1059531	+	112	27367377	-	VV2_0982	-	Acyl-CoA synthetase
914	 52.04	+1	1059856..1061058	-	400	27367378	-	VV2_0983	-	hypothetical protein
915	 52.62	+1	1061124..1063244	-	706	27367379	-	VV2_0984	-	TRAP-type uncharacterized transport system, fused permease component
916	 51.66	+1	1063318..1064310	-	330	27367380	-	VV2_0985	-	TRAP-type uncharacterized transport system, periplasmic component
917	 54.90	+2	1064764..1066140	-	458	27367381	-	VV2_0986	-	response regulator
918	 53.57	+1	1066279..1068339	+	686	27367382	-	VV2_0987	-	Signal transduction histidine kinase
919	 53.57	+1	1068393..1068812	-	139	27367383	-	VV2_0988	-	hypothetical protein
920	 50.61	0	1068871..1070832	-	653	27367384	-	VV2_0989	-	Alkyl sulfatase
921	 49.08	0	1071078..1071458	+	126	27367385	-	VV2_0990	-	hypothetical protein
922	 51.72	+1	1071545..1072240	+	231	27367386	-	VV2_0991	-	response regulator
923	 51.07	0	1072230..1073582	+	450	27367387	-	VV2_0992	-	Signal transduction histidine kinase
924	 52.15	+1	1073576..1074436	-	286	27367388	-	VV2_0993	-	transcriptional regulator
925	 52.39	+1	1074536..1075600	+	354	27367389	-	VV2_0994	-	multidrug resistance efflux pump
926	 50.99	0	1075610..1076617	+	335	27367390	-	VV2_0995	-	major facilitator superfamily permease
927	 53.33	+1	1076742..1077776	-	344	27367391	-	VV2_0996	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
928	 50.59	0	1077801..1078901	-	366	27367392	-	VV2_0997	-	hypothetical protein
929	 41.79	-1	1079695..1080309	+	204	27367393	-	VV2_0999	-	Outer membrane protein
930	 46.84	0	1080633..1081646	-	337	27367394	-	VV2_1000	-	GGDEF domain-containing protein
931	 49.27	0	1082890..1083504	+	204	27367395	-	VV2_1003	-	DNA polymerase III, alpha subunit
932	 53.39	+1	1083544..1084236	-	230	27367396	-	VV2_1004	-	peptide ABC transporter ATPase
933	 54.13	+1	1084259..1085542	-	427	27367397	-	VV2_1005	-	peptide ABC transporter permease
934	 52.18	+1	1085545..1086759	-	404	27367398	-	VV2_1006	-	peptide ABC transporter permease
935	 52.75	+1	1086756..1088027	-	423	27367399	-	VV2_1007	-	Outer membrane protein
936	 52.51	+1	1088020..1089156	-	378	27367400	-	VV2_1008	-	membrane-fusion protein
937	 45.50	0	1089468..1089845	+	125	27367401	-	VV2_1009	-	hypothetical protein
938	 51.70	+1	1090038..1090772	+	244	27367402	-	VV2_1010	-	hypothetical protein
939	 51.82	+1	1090913..1091680	+	255	27367403	-	VV2_1011	-	ABC-type cobalamin/Fe3+-siderophores transport system, ATPase component
940	 51.42	+1	1091716..1092594	+	292	27367404	-	VV2_1012	-	ABC-type Fe3+-hydroxamate transport system, periplasmic component
941	 54.55	+2	1092591..1094588	+	665	27367405	-	VV2_1013	-	iron-hydroxamate transporter permease subunit
942	 49.90	0	1094751..1095716	+	321	27367406	-	VV2_1014	-	transcriptional regulator
943	 49.51	0	1096054..1098210	+	718	27367407	-	VV2_1016	-	Outer membrane receptor protein
944	 50.76	0	1098473..1099327	-	284	27367408	gatY	VV2_1017	-	tagatose-bisphosphate aldolase
945	 54.61	+2	1099318..1100511	-	397	27367409	-	VV2_1018	-	N-acetylglucosamine-6-phosphate deacetylase
946	 54.17	+1	1100501..1100956	-	151	27367410	-	VV2_1019	-	phosphotransferase system, mannose/fructose-specific component IIA
947	 53.45	+1	1101037..1101921	-	294	27367411	-	VV2_1020	-	phosphotransferase system, mannose/fructose/N-acetylgalactosamine-specific component IID
948	 52.90	+1	1101911..1102687	-	258	27367412	-	VV2_1021	-	phosphotransferase system, mannose/fructose/N-acetylgalactosamine-specific component IIC
949	 50.00	0	1102704..1103177	-	157	27367413	-	VV2_1022	-	N-acetylgalactosamine-specific PTS system transporter subunit IIB
950	 53.83	+1	1103189..1104364	-	391	27367414	-	VV2_1023	-	phosphosugar isomerase
951	 52.52	+1	1104364..1105671	-	435	27367415	-	VV2_1024	-	tagatose 6-phosphate kinase
952	 52.22	+1	1105680..1106468	-	262	27367416	-	VV2_1025	-	sugar metabolism transcriptional regulator
953	 47.08	0	1106800..1107570	-	256	27367417	-	VV2_1026	-	sugar metabolism transcriptional regulator
954	 52.35	+1	1107659..1108573	-	304	27367418	-	VV2_1027	-	DMT family permease
955	 50.28	0	1108675..1109388	-	237	27367419	-	VV2_1028	-	AraC-type DNA-binding domain-containing protein
956	 47.88	0	1109589..1110344	+	251	27367420	-	VV2_1029	-	LPS biosynthesis choline kinase
47.71	MEAN

3.40	STD DEV
