IslandPath Analysis: Vibrio vulnificus CMCP6

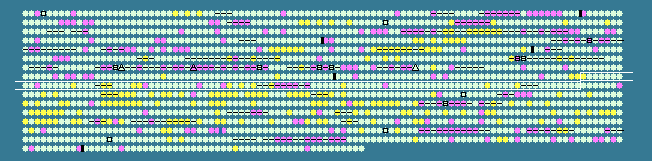

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 47.71   STD DEV: 3.40
Vibrio vulnificus CMCP6 chromosome II, complete sequence - 1..1844853
1557 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
794	 52.67	+1	921936..925064	+	1042	27367258	-	VV2_0852	-	putative silver efflux pump
795	 47.05	0	925153..925728	+	191	27367259	-	VV2_0853	-	hypothetical protein
796	 49.79	0	926270..927691	+	473	27367260	tnaA	VV2_0854	-	tryptophanase
797	 48.48	0	927789..929003	+	404	27367261	-	VV2_0855	-	amino acid permease
798	 48.95	0	929040..930608	-	522	27367262	-	VV2_0856	-	ABC transporter ATPase
799	 46.15	0	931111..931695	+	194	27367263	-	VV2_0857	-	hypothetical protein
800	 49.17	0	931878..933209	-	443	27367264	-	VV2_0858	-	ferric reductase
801	 50.19	0	933309..934340	-	343	27367265	-	VV2_0859	-	transcriptional regulator
802	 48.42	0	934586..935029	+	147	27367266	-	VV2_0860	-	phosphotransferase system mannitol
803	 42.96	-1	935079..935369	+	96	27367267	-	VV2_0861	-	phosphotransferase system, galactitol-specific IIB component
804	 49.56	0	935379..936635	+	418	161501862	ulaA	VV2_0862	-	ascorbate-specific PTS system enzyme IIC
805	 48.52	0	936715..937221	-	168	27367269	def	VV2_0863	-	peptide deformylase
806	 51.07	0	937430..940057	-	875	27367270	-	VV2_0864	-	hypothetical protein
807	 50.40	0	940162..941169	-	335	27367271	-	VV2_0865	-	hypothetical protein
808	 48.84	0	941731..942981	+	416	27367272	-	VV2_0867	-	hemolysin
809	 51.80	+1	943098..943514	+	138	27367273	-	VV2_0868	-	acetyltransferase
810	 51.08	0	943595..945115	-	506	27367274	-	VV2_0869	-	NAD-dependent aldehyde dehydrogenase
811	 49.77	0	945355..947124	+	589	27367275	-	VV2_0870	-	transcriptional activator of acetoin/glycerol metabolism
812	 46.92	0	947187..949181	-	664	27367276	-	VV2_0871	-	GGDEF domain-containing protein
813	 47.86	0	949241..950197	-	318	27367277	-	VV2_0872	-	ABC-type sugar transport system, periplasmic component
814	 52.96	+1	950574..951164	-	196	27367278	-	VV2_0873	-	glutathione S-transferase
815	 51.53	+1	951337..952188	+	283	27367279	-	VV2_0874	-	transcriptional regulator
816	 50.19	0	952364..953170	+	268	27367280	-	VV2_0875	-	epimerase
817	 49.82	0	953307..954131	+	274	27367281	-	VV2_0877	-	DNA-binding HTH domain-containing protein
818	 49.57	0	954234..955502	+	422	27367282	-	VV2_0878	-	tyrosyl-tRNA synthetase
819	 51.30	+1	955561..956601	-	346	27367283	-	VV2_0879	-	dehydrogenase
820	 51.55	+1	956721..957944	-	407	27367284	-	VV2_0881	-	long-chain fatty acid ABC transporter
821	 42.11	-1	958294..959079	+	261	27367285	-	VV2_0882	-	transcriptional regulator
822	 48.74	0	959258..960289	-	343	27367286	-	VV2_0883	-	multidrug resistance efflux pump
823	 47.62	0	960293..960733	-	146	27367287	-	VV2_0884	-	Mg2+ and Co2+ transporter
824	 49.23	0	960974..962998	-	674	27367288	-	VV2_0885	-	Alkyl sulfatase
825	 47.56	0	963150..963641	-	163	27367289	-	VV2_0887	-	TPR repeat-containing protein
826	 50.28	0	963815..964711	+	298	27367290	-	VV2_0888	-	transcriptional regulator
827	 49.31	0	964732..966321	-	529	27367291	-	VV2_0889	-	membrane-associated metal-dependent hydrolase
828	 51.10	0	966436..966936	-	166	27367292	-	VV2_0890	-	cytochrome b
829	 44.33	0	966929..967210	-	93	27367293	-	VV2_0891	-	hypothetical protein
830	 42.83	-1	967335..967808	+	157	27367294	-	VV2_0892	-	diadenosine tetraphosphate hydrolase
831	 49.11	0	967819..968883	-	354	27367295	-	VV2_0893	-	arsenite efflux pump ACR3
832	 46.55	0	968916..969263	-	115	27367296	-	VV2_0894	-	transcriptional regulator
833	 49.01	0	969601..970359	+	252	27367297	-	VV2_0896	-	ABC-type amino acid transport/signal transduction system
834	 42.86	-1	970426..970929	-	167	27367298	-	VV2_0897	-	hypothetical protein
835	 53.69	+1	970978..972102	-	374	27367299	-	VV2_0898	-	acetylornithine deacetylase
836	 50.64	0	972115..972582	-	155	27367300	-	VV2_0899	-	hypothetical protein
837	 52.40	+1	972579..973328	-	249	27367301	-	VV2_0900	-	hypothetical protein
838	 49.74	0	973738..974127	+	129	27367302	-	VV2_0902	-	hypothetical protein
839	 52.18	+1	974233..976296	-	687	27367303	malS	VV2_0903	-	periplasmic alpha-amylase precursor
840	 49.52	0	976616..977239	-	207	27367304	-	VV2_0904	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
841	 50.00	0	977252..978181	-	309	27367305	-	VV2_0905	-	ribokinase family sugar kinase
842	 51.37	+1	978362..979276	+	304	27367306	-	VV2_0906	-	DMT family permease
843	 35.68	-2	979574..982258	-	894	27367307	-	VV2_0907	-	ankyrin repeat-containing protein
844	 35.18	-2	982438..983304	+	288	27367308	-	VV2_0908	-	molybdenum cofactor biosynthesis protein
845	 34.81	-2	983669..984007	+	112	27367309	-	VV2_0909	-	thymidylate kinase
846	 38.10	-2	984409..984975	-	188	27367310	-	VV2_0910	-	hypothetical protein
847	 50.16	0	985323..985958	-	211	27367311	-	VV2_0911	-	hypothetical protein
848	 43.93	-1	985999..986319	-	106	27367312	-	VV2_0912	-	hypothetical protein
849	 46.20	0	986340..986852	-	170	27367313	-	VV2_0913	-	major facilitator superfamily permease
850	 49.81	0	986868..987638	-	256	27367314	-	VV2_0914	-	2-deoxy-D-gluconate 3-dehydrogenase
851	 45.34	0	987891..988673	+	260	27367315	-	VV2_0915	-	transcriptional regulator
852	 50.38	0	988754..990619	+	621	27367316	-	VV2_0916	-	signal transduction protein
853	 48.10	0	990620..991357	+	245	27367317	-	VV2_0917	-	DNA polymerase III, epsilon subunit
854	 51.96	+1	991996..993450	+	484	27367318	-	VV2_0918	-	hypothetical protein
855	 48.74	0	993618..994013	+	131	27367319	-	VV2_0919	-	hypothetical protein
856	 46.00	0	994169..995629	+	486	27367320	-	VV2_0920	-	amidohydrolase
857	 45.42	0	995719..996330	+	203	27367321	-	VV2_0921	-	small-conductance mechanosensitive channel
858	 49.77	0	996425..998644	-	739	27367322	-	VV2_0922	-	hypothetical protein
859	 49.33	0	998785..999303	-	172	27367323	-	VV2_0924	-	histone acetyltransferase HPA2
860	 48.82	0	999348..1000961	-	537	27367324	-	VV2_0925	-	small-conductance mechanosensitive channel
861	 40.74	-2	1001482..1001751	-	89	27367325	-	VV2_0926	-	methyl-accepting chemotaxis protein
862	 49.55	0	1002099..1005236	-	1045	27367326	-	VV2_0928	-	cation/multidrug efflux pump
863	 50.73	0	1005248..1006408	-	386	27367327	-	VV2_0929	-	membrane-fusion protein
864	 47.43	0	1006808..1007332	+	174	27367328	-	VV2_0930	-	hypothetical protein
865	 47.00	0	1007341..1009491	+	716	27367329	-	VV2_0931	-	Signal transduction histidine kinase
866	 49.75	0	1009590..1009991	+	133	27367330	-	VV2_0932	-	NTP pyrophosphohydrolase
867	 49.81	0	1010180..1010719	+	179	27367331	-	VV2_0933	-	phospholipid-binding protein
868	 49.68	0	1010749..1011531	+	260	27367332	-	VV2_0934	-	AraC-type DNA-binding domain-containing protein
869	 48.03	0	1011620..1013170	+	516	27367333	-	VV2_0935	-	hypothetical protein
870	 49.79	0	1013165..1013632	-	155	27367334	-	VV2_0936	-	transcriptional regulator
871	 50.75	0	1013761..1014966	+	401	27367335	-	VV2_0937	-	major facilitator superfamily permease
872	 49.14	0	1015505..1016668	+	387	27367336	-	VV2_0939	-	ABC-type branched-chain amino acid transport system, periplasmic component
873	 48.08	0	1016665..1018488	+	607	27367337	-	VV2_0940	-	GGDEF domain-containing protein
874	 49.12	0	1018472..1018927	+	151	27367338	-	VV2_0941	-	histone acetyltransferase HPA2
875	 49.03	0	1019237..1021255	+	672	27367339	-	VV2_0942	-	elongation factor G
876	 44.44	0	1021425..1021622	-	65	27367340	-	VV2_0944	-	hypothetical protein
877	 49.89	0	1021624..1022076	-	150	27367341	-	VV2_0945	-	hypothetical protein
878	 51.49	+1	1022073..1022375	-	100	27367342	-	VV2_0946	-	DNA-binding protein
879	 45.64	0	1022514..1022708	-	64	27367343	-	VV2_0947	-	hypothetical protein
880	 49.65	0	1022920..1023906	-	328	27367344	-	VV2_0949	-	cytochrome c peroxidase
881	 47.13	0	1024187..1024534	-	115	161501861	-	VV2_0950	-	hypothetical protein
882	 49.22	0	1024664..1024984	-	106	27367346	-	VV2_0951	-	translation initiation factor 1
883	 53.14	+1	1025250..1026890	+	546	27367347	-	VV2_0952	-	hypothetical protein
884	 46.08	0	1026946..1027902	-	318	27367348	-	VV2_0953	-	transcriptional regulator
885	 44.82	0	1028164..1028877	-	237	27367349	-	VV2_0954	-	hypothetical protein
886	 51.01	0	1029076..1029420	+	114	27367350	-	VV2_0955	-	hypothetical protein
887	 51.03	0	1029452..1030231	-	259	27367351	-	VV2_0956	-	AraC-type DNA-binding domain-containing protein
888	 50.95	0	1030327..1031484	+	385	27367352	-	VV2_0957	-	major facilitator superfamily permease
889	 50.54	0	1032965..1033795	+	276	27367353	-	VV2_0958	-	DMT family permease
890	 44.94	0	1033944..1034417	+	157	27367354	-	VV2_0959	-	ATPase involved in DNA repair
891	 48.15	0	1034575..1035222	+	215	27367355	-	VV2_0960	-	hypothetical protein
892	 49.54	0	1035476..1036339	+	287	27367356	-	VV2_0961	-	DMT family permease
893	 47.18	0	1036317..1037096	-	259	27367357	-	VV2_0962	-	flavodoxin reductase family 1 protein
47.71	MEAN

3.40	STD DEV
