IslandPath Analysis: Vibrio vulnificus CMCP6

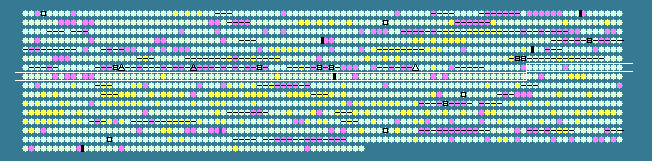

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.71 STD DEV: 3.40
Vibrio vulnificus CMCP6 chromosome II, complete sequence - 1..1844853
1557 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
685	 48.92	0	785506..786384	-	292	27367148	-	VV2_0733	-	TRAP-type C4-dicarboxylate transport system, periplasmic component
686	 50.15	0	786745..787422	+	225	27367149	-	VV2_0734	-	N-acetylmannosamine-6-phosphate 2-epimerase
687	 49.09	0	787403..788284	+	293	27367150	-	VV2_0735	-	N-acetylmannosamine kinase
688	 50.22	0	788281..789417	+	378	27367151	-	VV2_0736	-	N-acetylglucosamine-6-phosphate deacetylase
689	 46.03	0	789560..791095	-	511	27367152	-	VV2_0738	-	ABC-type uncharacterized transport system, periplasmic component
690	 45.80	0	791667..793439	-	590	27367153	-	VV2_0739	-	Poly(3-hydroxyalkanoate) synthetase
691	 40.23	-2	793501..793848	-	115	27367154	-	VV2_0740	-	hypothetical protein
692	 48.30	0	793889..795097	-	402	27367155	-	VV2_0741	-	acetyl-CoA acetyltransferase
693	 48.75	0	795110..795667	-	185	27367156	-	VV2_0742	-	acetoacetyl-CoA reductase
694	 46.74	0	796449..797306	-	285	27367157	-	VV2_0743	-	preprotein translocase subunit SecF
695	 49.15	0	797309..797776	-	155	27367158	-	VV2_0744	-	preprotein translocase subunit SecD
696	 47.33	0	797767..799152	-	461	27367159	-	VV2_0745	-	preprotein translocase subunit SecD
697	 46.96	0	799222..799698	-	158	27367160	-	VV2_0746	-	hypothetical protein
698	 44.55	0	799834..800493	-	219	27367161	-	VV2_0747	-	SH3 domain-containing protein
699	 45.39	0	800649..801212	+	187	27367162	-	VV2_0748	-	hypothetical protein
700	 44.59	0	801726..802187	-	153	27367163	-	VV2_0749	-	transcriptional regulator
701	 47.90	0	802335..803309	+	324	27367164	-	VV2_0750	-	DMT family permease
702	 46.06	0	803451..804110	+	219	27367165	-	VV2_0751	-	hypothetical protein
703	 44.37	0	804107..806680	-	857	27367166	-	VV2_0752	-	Signal transduction histidine kinase
704	 44.87	0	806677..807777	-	366	27367167	-	VV2_0753	-	ABC-type sugar transport system, periplasmic component
705	 46.38	0	807964..809067	-	367	27367168	-	VV2_0754	-	hypothetical protein
706	 43.23	-1	809217..809408	-	63	27367169	-	VV2_0755	-	endonuclease
707	 45.40	0	809513..810175	-	220	27367170	-	VV2_0756	-	hypothetical protein
708	 43.33	-1	810241..810450	-	69	27367171	-	VV2_0757	-	hypothetical protein
709	 42.54	-1	810720..811034	+	104	27367172	-	VV2_0759	-	hypothetical protein
710	 48.72	0	811248..812534	+	428	27367173	-	VV2_0760	-	Na+-driven multidrug efflux pump
711	 43.75	-1	812586..815033	-	815	27367174	-	VV2_0761	-	FOG: CheY-like receiver
712	 43.11	-1	815350..815799	+	149	27367175	-	VV2_0762	-	hypothetical protein
713	 45.96	0	815800..816852	+	350	27367176	-	VV2_0763	-	hypothetical protein
714	 48.02	0	817187..818623	+	478	27367177	-	VV2_0764	-	glyceraldehyde-3-phosphate dehydrogenase
715	 48.68	0	818958..819185	+	75	27367178	-	VV2_0766	-	hypothetical protein
716	 47.23	0	819182..820066	-	294	27367179	-	VV2_0767	-	transcriptional regulator
717	 50.99	0	820159..821415	+	418	27367180	-	VV2_0768	-	adenylosuccinate synthase
718	 49.16	0	821613..822086	+	157	27367181	-	VV2_0770	-	peroxiredoxin
719	 50.18	0	822172..822735	-	187	27367182	-	VV2_0771	-	putative threonine efflux protein
720	 49.58	0	822844..823785	-	313	27367183	-	VV2_0772	-	transcriptional regulator
721	 48.22	0	823788..824237	-	149	27367184	-	VV2_0773	-	transcriptional regulator
722	 50.24	0	824493..825746	+	417	27367185	-	VV2_0774	-	inner membrane protein YjeH
723	 50.00	0	825760..826521	-	253	27367186	-	VV2_0775	-	glutamine amidotransferase
724	 52.26	+1	826534..827991	-	485	27367187	-	VV2_0776	-	transcriptional regulator
725	 49.40	0	828108..828773	+	221	27367188	-	VV2_0777	-	flavin-nucleotide-binding protein
726	 48.11	0	828865..830265	-	466	27367189	-	VV2_0778	-	Signal transduction histidine kinase
727	 45.73	0	830265..830966	-	233	27367190	-	VV2_0779	-	response regulator
728	 46.45	0	831249..831431	-	60	27367191	-	VV2_0780	-	hypothetical protein
729	 48.10	0	831430..832059	+	209	27367192	-	VV2_0781	-	hypothetical protein
730	 47.76	0	832112..833137	-	341	27367193	-	VV2_0782	-	AraC-type DNA-binding domain-containing protein
731	 50.30	0	833233..833568	+	111	27367194	-	VV2_0783	-	major facilitator superfamily permease
732	 49.10	0	833565..834788	+	407	27367195	-	VV2_0784	-	multidrug resistance efflux pump
733	 48.33	0	834930..836276	+	448	27367196	-	VV2_0785	-	Mg/Co/Ni transporter MgtE
734	 48.50	0	836844..837746	+	300	27367197	-	VV2_0787	-	DNA gyrase inhibitor
735	 50.77	0	838035..839273	+	412	27367198	codB	VV2_0788	-	cytosine permease
736	 50.70	0	839283..840560	+	425	27367199	-	VV2_0789	-	cytosine deaminase
737	 46.40	0	840883..841104	-	73	27367200	-	VV2_0791	-	ATP-dependent protease
738	 47.46	0	841101..843245	-	714	27367201	-	VV2_0792	-	ATP-dependent protease
739	 47.50	0	843535..844014	+	159	27367202	-	VV2_0793	-	hypothetical protein
740	 47.76	0	844029..845657	+	542	27367203	-	VV2_0794	-	ABC-type uncharacterized transport system, duplicated ATPase component
741	 49.53	0	845840..847876	-	678	27367204	-	VV2_0795	-	S9A serine protease
742	 46.89	0	848111..849010	-	299	27367205	-	VV2_0796	-	transcriptional regulator
743	 51.45	+1	849223..850917	+	564	27367206	-	VV2_0797	-	L-lactate permease
744	 48.81	0	851065..851820	+	251	27367207	-	VV2_0798	-	Fe-S oxidoreductase
745	 49.69	0	851820..853250	+	476	27367208	-	VV2_0799	-	hypothetical protein
746	 48.64	0	853247..853906	+	219	27367209	-	VV2_0800	-	hypothetical protein
747	 49.98	0	854076..856916	+	946	27367210	-	VV2_0801	-	Fe-S oxidoreductase
748	 45.77	0	857042..857797	+	251	27367211	-	VV2_0802	-	transcriptional regulator
749	 47.46	0	857923..859989	+	688	27367212	-	VV2_0803	-	von Willebrand factor type A (vWA) domain-containing protein
750	 48.00	0	860215..862041	+	608	27367213	-	VV2_0804	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
751	 44.29	-1	862121..862768	+	215	27367214	-	VV2_0805	-	acetyltransferase/hydrolase
752	 46.70	0	863078..863653	+	191	27367215	-	VV2_0807	-	Outer membrane protein
753	 44.73	0	864213..864923	-	236	27367217	-	VV2_0809	-	Zn-dependent hydrolase
754	 48.42	0	865100..867982	-	960	27367218	-	VV2_0810	-	hypothetical protein
755	 45.63	0	868150..870117	-	655	27367219	-	VV2_0811	-	EAL domain-containing protein
756	 42.32	-1	870534..871379	-	281	27367220	-	VV2_0812	-	small-conductance mechanosensitive channel
757	 44.78	0	871591..872088	-	165	27367221	-	VV2_0813	-	phenylalanyl-tRNA synthetase beta subunit
758	 47.68	0	872343..872837	-	164	27367222	-	VV2_0814	-	hypothetical protein
759	 47.19	0	873132..873860	+	242	27367223	artP	VV2_0815	-	arginine transporter ATP-binding subunit
760	 45.63	0	873984..874715	+	243	27367224	-	VV2_0816	-	ABC-type amino acid transport/signal transduction system
761	 49.86	0	874717..875406	+	229	27367225	-	VV2_0817	-	arginine transporter permease subunit ArtQ
762	 50.82	0	875403..876071	+	222	27367226	artM	VV2_0818	-	arginine transporter permease subunit ArtM
763	 47.49	0	876279..876815	+	178	27367227	-	VV2_0819	-	hypothetical protein
764	 50.20	0	876874..880437	-	1187	27367228	-	VV2_0820	-	chitin-binding domain-containing protein
765	 45.96	0	881020..883197	-	725	27367229	-	VV2_0821	-	EAL domain-containing protein
766	 48.16	0	883545..884630	+	361	27367230	-	VV2_0822	-	hypothetical protein
767	 45.87	0	884720..885469	-	249	27367231	-	VV2_0823	-	ABC-type amino acid transport/signal transduction systems
768	 49.97	0	885925..887415	+	496	27367232	-	VV2_0825	-	methyl-accepting chemotaxis protein
769	 43.90	-1	887489..888217	+	242	27367233	-	VV2_0826	-	ABC-type amino acid transport/signal transduction system
770	 51.05	0	888306..890348	-	680	27367234	-	VV2_0827	-	phosphatase
771	 43.66	-1	890636..890974	+	112	27367235	-	VV2_0828	-	hypothetical protein
772	 51.01	0	891025..891720	-	231	27367236	-	VV2_0829	-	phosphopantetheinyl transferase component of siderophore synthetase
773	 50.70	0	891725..894793	-	1022	27367237	-	VV2_0830	-	non-ribosomal peptide synthetase modules
774	 50.45	0	894863..899425	-	1520	27367238	-	VV2_0831	-	non-ribosomal peptide synthetase modules
775	 50.14	0	899651..900721	+	356	27367239	-	VV2_0833	-	phospho-2-dehydro-3-deoxyheptonate aldolase
776	 49.05	0	900953..901741	-	262	27367240	-	VV2_0834	-	2,3-dihydroxybenzoate-2,3-dehydrogenase
777	 49.07	0	902113..903294	+	393	27367241	-	VV2_0835	-	isochorismate synthase
778	 50.18	0	903304..904941	+	545	27367242	-	VV2_0836	-	peptide arylation protein
779	 50.25	0	905060..905875	-	271	27367243	-	VV2_0837	-	siderophore-interacting protein
780	 49.66	0	905939..906826	-	295	27367244	-	VV2_0838	-	aryl carrier domain-containing protein
781	 48.18	0	906929..907258	-	109	27367245	-	VV2_0839	-	isochorismate-pyruvate lyase
782	 50.21	0	907487..909115	-	542	27367246	-	VV2_0840	-	peptide arylation protein
783	 48.56	0	909341..909583	+	80	27367247	-	VV2_0841	-	aryl carrier domain-containing protein
784	 45.38	0	909660..910547	+	295	27367248	-	VV2_0842	-	ABC-type enterochelin transport system, periplasmic component
47.71	MEAN

3.40	STD DEV
