IslandPath Analysis: Vibrio vulnificus CMCP6

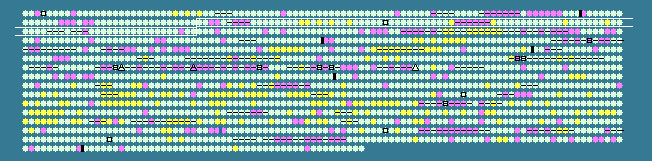

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 47.71   STD DEV: 3.40
Vibrio vulnificus CMCP6 chromosome II, complete sequence - 1..1844853
1557 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
130	 47.97	0	143341..146940	+	1199	27366593	-	VV2_0137	-	Signal transduction histidine kinase
131	 46.97	0	146944..148710	+	588	27366594	-	VV2_0138	-	EAL domain-containing protein
132	 43.23	-1	148712..150379	+	555	27366595	-	VV2_0139	-	response regulator
133	 43.16	-1	150536..150769	+	77	27366596	-	VV2_0140	-	hypothetical protein
134	 45.80	0	150876..152768	-	630	27366597	-	VV2_0141	-	signal transduction protein
135	 47.06	0	153606..157094	+	1162	27366598	-	VV2_0142	-	Ig-like domain-containing surface protein
136	 42.63	-1	157184..158011	-	275	27366599	-	VV2_0143	-	ABC-type phosphate transport system, periplasmic component
137	 44.13	-1	158151..158576	+	141	27366600	-	VV2_0144	-	hypothetical protein
138	 44.21	-1	158632..159357	-	241	27366601	-	VV2_0145	-	AraC-type DNA-binding domain-containing protein
139	 46.97	0	159574..161568	-	664	27366602	-	VV2_0146	-	exoribonuclease II
140	 48.75	0	161946..163871	+	641	27366603	-	VV2_0147	-	superfamily II DNA/RNA helicase
141	 47.99	0	164213..165406	+	397	27366604	-	VV2_0148	-	acetate kinase
142	 49.04	0	165538..167103	-	521	27366605	-	VV2_0149	-	arylsulfatase A
143	 47.32	0	167375..168232	-	285	27366606	-	VV2_0150	-	transcriptional regulator
144	 48.02	0	168367..169884	+	505	27366607	-	VV2_0151	-	arylsulfatase A
145	 47.28	0	169981..171285	+	434	27366608	-	VV2_0152	-	arylsulfatase regulator
146	 44.44	0	171391..171498	+	35	27366609	-	VV2_0153	-	hypothetical protein
147	 53.83	+1	171492..172379	+	295	27366610	-	VV2_0154	-	MoxR-like ATPase
148	 51.71	+1	172391..173353	+	320	27366611	-	VV2_0155	-	hypothetical protein
149	 48.55	0	173354..173905	+	183	27366612	-	VV2_0156	-	hypothetical protein
150	 52.06	+1	173919..174986	+	355	27366613	-	VV2_0157	-	von Willebrand factor type A (vWA) domain-containing protein
151	 48.62	0	174979..176718	+	579	27366614	-	VV2_0158	-	TPR repeat-containing protein
152	 51.53	+1	176715..178055	+	446	27366615	-	VV2_0159	-	hypothetical protein
153	 49.23	0	178290..179195	+	301	27366616	-	VV2_0160	-	transcriptional regulator
154	 49.91	0	179275..180975	-	566	27366617	-	VV2_0161	-	hypothetical protein
155	 51.40	+1	181000..181785	-	261	27366618	-	VV2_0162	-	hypothetical protein
156	 48.60	0	181952..183274	+	440	27366619	-	VV2_0163	-	arylsulfatase regulator
157	 50.89	0	183295..184365	+	356	27366620	-	VV2_0164	-	TPR repeat-containing protein
158	 48.43	0	184362..185990	-	542	27366621	-	VV2_0165	-	hypothetical protein
159	 48.82	0	186058..187290	-	410	27366622	-	VV2_0166	-	major facilitator superfamily permease
160	 47.06	0	187866..188222	+	118	27366623	-	VV2_0167	-	NADH:ubiquinone oxidoreductase subunit 2
161	 45.65	0	189158..190480	+	440	27366624	-	VV2_0168	-	transposase
162	 50.07	0	190531..192018	-	495	27366625	-	VV2_0169	-	major facilitator superfamily permease
163	 50.88	0	192029..193054	-	341	27366626	-	VV2_0170	-	multidrug resistance efflux pump
164	 47.37	0	193301..193642	-	113	27366627	-	VV2_0171	-	transcriptional regulator
165	 48.53	0	193698..194816	+	372	27366628	-	VV2_0172	-	hypothetical protein
166	 45.86	0	194863..195780	-	305	27366629	-	VV2_0173	-	transcriptional regulator
167	 46.12	0	195907..196344	+	145	27366630	-	VV2_0174	-	hypothetical protein
168	 50.19	0	196564..196824	+	86	27366631	-	VV2_0175	-	hypothetical protein
169	 47.49	0	196947..197405	+	152	27366632	-	VV2_0176	-	hypothetical protein
170	 49.13	0	197595..198341	+	248	27366633	-	VV2_0177	-	amidohydrolase
171	 47.58	0	198841..199605	+	254	27366634	-	VV2_0178	-	nucleotidyltransferase
172	 51.50	+1	199658..201418	-	586	27366635	-	VV2_0179	-	ABC-type multidrug transport system, ATPase and permease component
173	 43.49	-1	201703..202155	+	150	27366636	-	VV2_0180	-	S-adenosylhomocysteine hydrolase
174	 43.36	-1	202157..202555	+	132	27366637	-	VV2_0181	-	inorganic pyrophosphatase/exopolyphosphatase
175	 37.62	-2	202758..202967	-	69	27366638	-	VV2_0182	-	hypothetical protein
176	 37.93	-2	203025..204893	-	622	27366639	-	VV2_0183	-	deoxycytidylate deaminase
177	 36.56	-2	205022..205114	+	30	27366640	-	VV2_0184	-	hypothetical protein
178	 38.44	-2	205402..205734	+	110	27366641	-	VV2_0185	-	superfamily I DNA/RNA helicase
179	 51.55	+1	205841..208705	-	954	27366642	-	VV2_0186	-	glycine dehydrogenase
180	 46.46	0	208810..209190	-	126	27366643	-	VV2_0187	-	glycine cleavage system protein H
181	 49.69	0	209233..210528	-	431	27366644	-	VV2_0188	-	serine hydroxymethyltransferase
182	 48.08	0	210912..211535	+	207	27366645	-	VV2_0189	-	transcriptional regulator
183	 49.91	0	211813..212958	+	381	27366646	-	VV2_0190	-	glycine cleavage system T protein
184	 50.00	0	213108..214139	+	343	27366647	-	VV2_0191	-	secreted trypsin-like serine protease
185	 46.56	0	214129..214854	-	241	27366648	-	VV2_0192	-	transcriptional regulator
186	 50.05	0	215061..216089	+	342	27366649	-	VV2_0193	-	membrane-fusion protein
187	 49.49	0	216089..217159	+	356	27366650	-	VV2_0194	-	membrane-fusion protein
188	 49.41	0	217156..220215	+	1019	27366651	-	VV2_0195	-	cation/multidrug efflux pump
189	 46.18	0	220375..220950	-	191	27366652	-	VV2_0196	-	Outer membrane protein
190	 51.16	+1	221227..222954	-	575	27366653	-	VV2_0198	-	phosphotransferase system, fructose-specific IIC component
191	 52.56	+1	222974..223951	-	325	27366654	-	VV2_0199	-	fructose-1-phosphate kinase
192	 50.83	0	223961..225103	-	380	27366655	-	VV2_0200	-	bifunctional fructose-specific PTS IIA/HPr protein
193	 48.11	0	225561..226541	+	326	27366656	-	VV2_0201	-	DNA-binding transcriptional regulator FruR
194	 46.75	0	226567..227535	-	322	27366657	-	VV2_0202	-	hypothetical protein
195	 46.62	0	227548..228360	-	270	27366658	-	VV2_0203	-	amino acid ABC transporter periplasmic protein
196	 47.03	0	228506..229060	+	184	27366659	-	VV2_0204	-	hypothetical protein
197	 44.44	0	229132..229959	-	275	27366660	-	VV2_0205	-	EAL domain-containing protein
198	 51.22	+1	230282..231751	-	489	27366661	-	VV2_0206	-	pyruvate kinase
199	 48.41	0	231828..233207	-	459	27366662	-	VV2_0207	-	sugar phosphate permease
200	 48.54	0	233486..234787	+	433	27366663	-	VV2_0208	-	ABC-type Fe3+ transport system, periplasmic component
201	 47.84	0	234788..237151	+	787	27366664	-	VV2_0209	-	Signal transduction histidine kinase
202	 48.66	0	237141..238406	+	421	27366665	-	VV2_0210	-	response regulator
203	 49.70	0	238466..239614	-	382	27366666	-	VV2_0211	-	oxidoreductase
204	 46.42	0	239738..240616	+	292	27366667	-	VV2_0212	-	AraC-type DNA-binding domain-containing protein
205	 50.86	0	240955..244167	+	1070	27366668	-	VV2_0213	-	chitinase
206	 47.74	0	244242..245456	-	404	27366669	glgC	VV2_0214	-	glucose-1-phosphate adenylyltransferase
207	 48.28	0	245900..247063	-	387	27366670	-	VV2_0216	-	formyltetrahydrofolate synthetase
208	 50.32	0	247032..247649	-	205	27366671	-	VV2_0217	-	formyltetrahydrofolate synthetase
209	 48.12	0	247831..249135	-	434	27366672	-	VV2_0218	-	sugar kinase
210	 46.30	0	249260..249745	-	161	27366673	-	VV2_0219	-	hypothetical protein
211	 43.45	-1	250050..250553	+	167	27366674	-	VV2_0220	-	hypothetical protein
212	 44.90	0	250644..252389	+	581	27366675	-	VV2_0221	-	response regulator
213	 44.27	-1	252630..253214	+	194	27366676	-	VV2_0222	-	phosphatase/phosphohexomutase
214	 47.80	0	253690..255078	-	462	27366677	-	VV2_0224	-	methyl-accepting chemotaxis protein
215	 46.97	0	255477..256070	+	197	27366678	-	VV2_0226	-	hypothetical protein
216	 47.02	0	256126..257382	+	418	27366679	-	VV2_0227	-	superfamily II DNA/RNA helicase
217	 44.65	0	257483..258286	-	267	27366680	-	VV2_0228	-	EAL domain-containing protein
218	 46.18	0	258583..259119	-	178	27366681	-	VV2_0229	-	hypothetical protein
219	 44.44	0	259577..260116	+	179	27366682	-	VV2_0230	-	cytochrome B561
220	 44.56	0	260113..260682	+	189	27366683	-	VV2_0231	-	hypothetical protein
221	 46.76	0	260787..262238	-	483	27366684	-	VV2_0232	-	CBS domain-containing protein
222	 47.90	0	262490..263395	+	301	27366685	-	VV2_0234	-	transcriptional regulator
223	 47.89	0	263592..264065	+	157	27366686	-	VV2_0235	-	chloride channel protein EriC
224	 47.24	0	264272..265903	-	543	27366687	-	VV2_0236	-	ATP-dependent endonuclease
225	 46.62	0	266142..267887	+	581	27366688	-	VV2_0237	-	5'-nucleotidase/2',3'-cyclic phosphodiesterase
226	 46.46	0	268461..269435	+	324	27366689	-	VV2_0239	-	membrane protein TerC
227	 39.58	-2	269710..269901	+	63	27366690	-	VV2_0240	-	hypothetical protein
228	 47.07	0	270100..270951	+	283	27366691	-	VV2_0241	-	DMT family permease
229	 47.73	0	271139..272347	+	402	27366692	-	VV2_0243	-	arginase/agmatinase/formimionoglutamate hydrolase
47.71	MEAN

3.40	STD DEV
