IslandPathversion 1.0

IslandPath Analysis: Vibrio vulnificus CMCP6

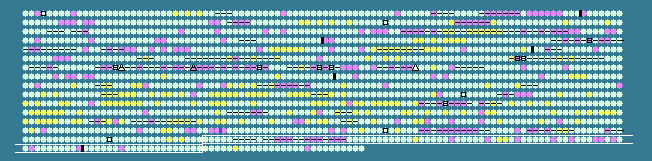

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.71 STD DEV: 3.40
Vibrio vulnificus CMCP6 chromosome II, complete sequence - 1..1844853
1557 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1431	 45.62	0	1708513..1709334	+	273	27367902	-	VV2_1556	-	ABC-type phosphate transport system, periplasmic component
1432	 48.55	0	1709423..1710355	+	310	27367903	-	VV2_1557	-	ABC-type phosphate transport system, permease component
1433	 47.57	0	1710377..1711240	+	287	27367904	-	VV2_1558	-	ABC-type phosphate transport system, permease component
1434	 48.00	0	1711299..1712048	+	249	27367905	-	VV2_1559	-	ABC-type phosphate transport system, ATPase component
1435	 48.03	0	1712315..1714417	+	700	27367906	-	VV2_1560	-	GGDEF family protein
1436	 48.18	0	1714501..1716123	-	540	27367907	-	VV2_1561	-	hypothetical protein
1437	 48.23	0	1716143..1718095	-	650	27367908	-	VV2_1562	-	TPR repeat-containing protein
1438	 48.77	0	1718088..1719059	-	323	27367909	-	VV2_1563	-	von Willebrand factor type A (vWA) domain-containing protein
1439	 48.41	0	1719052..1719522	-	156	27367910	-	VV2_1564	-	hypothetical protein
1440	 45.75	0	1719528..1720445	-	305	27367911	-	VV2_1565	-	hypothetical protein
1441	 48.07	0	1720449..1721405	-	318	27367912	-	VV2_1566	-	MoxR-like ATPase
1442	 46.60	0	1721704..1723617	+	637	27367913	-	VV2_1567	-	methyl-accepting chemotaxis protein
1443	 41.29	-1	1723665..1723865	+	66	27367914	-	VV2_1568	-	chromosome segregation ATPase
1444	 33.78	-2	1724041..1724706	+	221	27367915	-	VV2_1569	-	DNA-binding HTH domain-containing protein
1445	 38.39	-2	1724928..1725560	+	210	27367916	-	VV2_1570	-	DNA-binding HTH domain-containing protein
1446	 45.38	0	1725847..1726419	+	190	27367917	-	VV2_1571	-	calcium binding protein
1447	 46.24	0	1726914..1728176	+	420	27367918	-	VV2_1572	-	ABC-type protease/lipase transport system, ATPase and permease component
1448	 41.98	-1	1728169..1729509	+	446	27367919	-	VV2_1573	-	membrane-fusion protein
1449	 38.58	-2	1729690..1730013	-	107	27367920	-	VV2_1574	-	hypothetical protein
1450	 43.76	-1	1730087..1731400	-	437	27367921	-	VV2_1575	-	O-antigen and teichoic acid export protein
1451	 44.77	0	1731411..1732442	-	343	27367922	-	VV2_1576	-	glycosyltransferase
1452	 33.09	-2	1732439..1733272	-	277	27367923	-	VV2_1577	-	hypothetical protein
1453	 42.94	-1	1733425..1734465	-	346	27367924	-	VV2_1578	-	glycosyltransferase
1454	 43.70	-1	1734489..1736669	-	726	27367925	-	VV2_1579	-	ATPase involved in chromosome partitioning
1455	 44.31	-1	1736689..1737180	-	163	27367926	-	VV2_1580	-	polysaccharide export periplasmic protein
1456	 45.95	0	1737236..1738456	-	406	27367927	-	VV2_1581	-	hypothetical protein
1457	 45.68	0	1738485..1739885	-	466	27367928	-	VV2_1582	-	sugar transferase involved in lipopolysaccharide synthesis
1458	 48.21	0	1740300..1741415	-	371	27367929	-	VV2_1584	-	maltose/maltodextrin transporter ATP-binding protein
1459	 47.55	0	1742085..1743266	+	393	27367930	malE	VV2_1585	-	maltose ABC transporter periplasmic protein
1460	 46.95	0	1743341..1744912	+	523	27367931	malF	VV2_1586	-	maltose transporter membrane protein
1461	 45.68	0	1744931..1745821	+	296	27367932	malG	VV2_1587	-	maltose transporter permease
1462	 47.02	0	1746188..1746355	-	55	27367933	-	VV2_1588	-	hypothetical protein
1463	 48.77	0	1746574..1747059	-	161	27367934	-	VV2_1589	-	Acyl-CoA hydrolase
1464	 49.28	0	1747173..1748081	-	302	27367935	-	VV2_1590	-	DMT family permease
1465	 47.03	0	1748247..1748969	+	240	27367936	-	VV2_1592	-	AraC-type DNA-binding domain-containing protein
1466	 51.63	+1	1748964..1749881	-	305	27367937	-	VV2_1593	-	deacylase
1467	 48.20	0	1750054..1750968	+	304	27367938	-	VV2_1594	-	hypothetical protein
1468	 47.34	0	1750965..1752128	-	387	27367939	-	VV2_1595	-	sensor histidine kinase
1469	 49.71	0	1752259..1753302	-	347	27367940	-	VV2_1596	-	dihydroorotase
1470	 49.15	0	1753557..1755377	+	606	27367941	-	VV2_1598	-	flavodoxin reductase family 1 protein
1471	 47.77	0	1755490..1756320	-	276	27367942	nadE	VV2_1599	-	NAD synthetase
1472	 44.19	-1	1756469..1756993	+	174	27367943	-	VV2_1600	-	nicotinic acid mononucleotide adenylyltransferase
1473	 44.37	0	1757050..1757493	+	147	27367944	-	VV2_1601	-	hypothetical protein
1474	 45.54	0	1757612..1758217	-	201	27367945	-	VV2_1602	-	AraC-type DNA-binding domain-containing protein
1475	 44.66	0	1758422..1759525	+	367	27367946	-	VV2_1603	-	hypothetical protein
1476	 47.71	0	1759614..1760225	-	203	27367947	-	VV2_1604	-	leucine-rich repeat-containing protein
1477	 48.04	0	1760305..1760610	+	101	27367948	-	VV2_1605	-	hypothetical protein
1478	 42.33	-1	1760636..1760935	-	99	27367949	-	VV2_1606	-	hypothetical protein
1479	 44.37	0	1761465..1761926	+	153	27367950	-	VV2_1607	-	transcriptional regulator LuxT
1480	 51.65	+1	1762015..1762800	-	261	27367951	-	VV2_1609	-	hemin importer ATP-binding subunit
1481	 51.94	+1	1762797..1763828	-	343	27367952	-	VV2_1610	-	ABC-type Fe3+-siderophore transport system, permease component
1482	 48.83	0	1763838..1764689	-	283	27367953	-	VV2_1611	-	ABC-type hemin transport system, periplasmic component
1483	 43.00	-1	1764701..1765114	-	137	27367954	-	VV2_1612	-	biopolymer transport protein
1484	 50.51	0	1765107..1765799	-	230	27367955	-	VV2_1613	-	biopolymer transport protein
1485	 48.16	0	1765802..1766482	-	226	27367956	-	VV2_1614	-	periplasmic protein TonB
1486	 48.84	0	1766685..1768058	+	457	27367957	-	VV2_1615	-	coproporphyrinogen III oxidase
1487	 47.22	0	1768130..1768633	+	167	27367958	-	VV2_1616	-	putative heme iron utilization protein
1488	 46.14	0	1768672..1769202	+	176	27367959	-	VV2_1617	-	putative heme iron utilization protein
1489	 43.82	-1	1769308..1769841	+	177	27367960	-	VV2_1618	-	hypothetical protein
1490	 47.68	0	1769862..1770746	-	294	27367961	-	VV2_1619	-	chemotaxis protein CheV, putative
1491	 46.95	0	1770953..1771231	+	92	27367962	-	VV2_1620	-	parvulin-like peptidyl-prolyl isomerase
1492	 42.96	-1	1771464..1771889	+	141	27367963	-	VV2_1621	-	universal stress protein UspA
1493	 47.10	0	1772328..1773707	+	459	27367964	-	VV2_1622	-	glycosidase
1494	 49.06	0	1773802..1775670	-	622	27367965	-	VV2_1623	-	methyl-accepting chemotaxis protein
1495	 47.17	0	1775812..1777683	-	623	27367966	-	VV2_1624	-	methyl-accepting chemotaxis protein
1496	 41.69	-1	1778385..1779413	+	342	27367967	-	VV2_1626	-	hypothetical protein
1497	 42.48	-1	1779410..1780633	+	407	27367968	-	VV2_1627	-	Lipid A core - O-antigen ligase
1498	 47.01	0	1780747..1781667	-	306	27367969	-	VV2_1628	-	hypothetical protein
1499	 44.04	-1	1781630..1782124	-	164	27367970	-	VV2_1629	-	hypothetical protein
1500	 48.13	0	1782420..1783088	-	222	27367971	-	VV2_1630	-	hypothetical protein
1501	 51.03	0	1783246..1783488	-	80	27367972	-	VV2_1631	-	hypothetical protein
1502	 43.93	-1	1783707..1784348	+	213	27367973	-	VV2_1632	-	hypothetical protein
1503	 47.13	0	1784453..1785742	+	429	27367974	-	VV2_1633	-	hypothetical protein
1504	 48.92	0	1785844..1786491	-	215	27367975	-	VV2_1634	-	phosphatase/phosphohexomutase
1505	 45.89	0	1786602..1787501	-	299	27367976	-	VV2_1635	-	spermidine synthase
1506	 47.33	0	1787491..1788090	-	199	27367977	-	VV2_1636	-	cell wall biosynthesis glycosyltransferase
1507	 48.29	0	1788325..1789200	+	291	27367978	-	VV2_1637	-	3-hydroxyisobutyrate dehydrogenase
1508	 45.57	0	1789262..1789735	-	157	27367979	-	VV2_1638	-	Signal transduction histidine kinase
1509	 45.34	0	1789909..1790466	-	185	27367980	-	VV2_1639	-	acetyltransferase
1510	 43.51	-1	1790529..1791137	-	202	27367981	-	VV2_1640	-	hypothetical protein
1511	 47.64	0	1791806..1793014	+	402	27367982	-	VV2_1641	-	nucleoside permease
1512	 46.54	0	1793125..1794222	-	365	27367983	-	VV2_1642	-	hypothetical protein
1513	 49.67	0	1794293..1794904	-	203	27367984	-	VV2_1643	-	alkylated DNA repair protein
1514	 46.38	0	1795047..1796426	+	459	27367985	-	VV2_1644	-	GGDEF family protein
1515	 48.92	0	1796547..1798541	-	664	27367986	-	VV2_1645	-	methyl-accepting chemotaxis protein
1516	 48.82	0	1798982..1800421	-	479	27367987	-	VV2_1646	-	transcriptional regulator
1517	 43.92	-1	1800694..1801260	+	188	27367988	-	VV2_1647	-	malate synthase
1518	 47.49	0	1801420..1802436	-	338	27367989	-	VV2_1648	-	GGDEF family protein
1519	 45.41	0	1802846..1803988	-	380	27367990	-	VV2_1649	-	bifunctional methionine sulfoxide reductase A/B protein
1520	 48.62	0	1804136..1804534	+	132	27367991	-	VV2_1650	-	redox protein, regulator of disulfide bond formation
1521	 47.36	0	1804658..1805206	+	182	27367992	-	VV2_1651	-	acetyltransferase
1522	 49.05	0	1805264..1805950	-	228	27367993	-	VV2_1652	-	transcriptional regulator
1523	 46.35	0	1805995..1806309	-	104	27367994	-	VV2_1653	-	hypothetical protein
1524	 49.13	0	1806362..1807285	-	307	27367995	-	VV2_1654	-	transcriptional regulator
1525	 47.70	0	1807411..1808085	+	224	27367996	-	VV2_1655	-	nucleotidase
1526	 49.82	0	1808088..1808930	-	280	27367997	-	VV2_1656	-	AraC-type DNA-binding domain-containing protein
1527	 45.42	0	1809128..1809400	+	90	27367998	-	VV2_1657	-	phosphoenolpyruvate-protein kinase
1528	 45.07	0	1809405..1810307	+	300	27367999	-	VV2_1658	-	methyl-accepting chemotaxis protein
1529	 48.21	0	1810343..1811068	-	241	27368000	-	VV2_1659	-	lipoate-protein ligase A
1530	 50.65	0	1811124..1812278	-	384	27368001	-	VV2_1660	-	transcriptional regulator
47.71	MEAN

3.40	STD DEV
