IslandPath Analysis: Vibrio vulnificus CMCP6

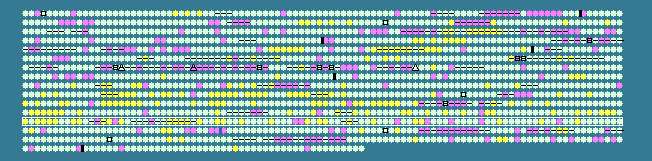

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.71 STD DEV: 3.40
Vibrio vulnificus CMCP6 chromosome II, complete sequence - 1..1844853
1557 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1201	 51.68	+1	1415416..1416249	-	277	27367665	-	VV2_1290	-	hypothetical protein
1202	 48.53	0	1416674..1418311	+	545	27367666	-	VV2_1291	-	ABC-type dipeptide transport system, periplasmic component
1203	 52.51	+1	1418379..1419353	+	324	27367667	-	VV2_1292	-	ABC-type dipeptide/oligopeptide/nickel transport system, permease component
1204	 53.07	+1	1419362..1420354	+	330	27367668	-	VV2_1293	-	ABC-type dipeptide/oligopeptide/nickel transport system, permease component
1205	 52.94	+1	1420351..1421304	+	317	27367669	-	VV2_1294	-	ABC-type dipeptide/oligopeptide/nickel transport system, ATPase component
1206	 53.90	+1	1421316..1422302	+	328	27367670	-	VV2_1295	-	ABC-type oligopeptide transport system, ATPase component
1207	 51.01	0	1422365..1425814	+	1149	27367671	-	VV2_1296	-	hypothetical protein
1208	 49.65	0	1426053..1427063	-	336	27367672	-	VV2_1297	-	transcriptional regulator
1209	 52.92	+1	1427476..1429323	+	615	27367673	-	VV2_1298	-	exo-beta-1,3-glucanase
1210	 52.25	+1	1429428..1431029	+	533	27367674	-	VV2_1300	-	Beta-glucanase/Beta-glucan synthetase
1211	 49.69	0	1431408..1432691	+	427	27367675	-	VV2_1301	-	maltoporin
1212	 48.97	0	1432859..1433728	-	289	27367676	-	VV2_1302	-	AraC-type DNA-binding domain-containing protein
1213	 42.86	-1	1433651..1433839	+	62	27367677	-	VV2_1303	-	hypothetical protein
1214	 55.10	+2	1433863..1436664	+	933	27367678	-	VV2_1304	-	Beta-glucosidase-related glycosidase
1215	 52.88	+1	1436926..1438158	+	410	27367679	-	VV2_1306	-	Na+-driven multidrug efflux pump
1216	 43.98	-1	1438319..1438816	+	165	27367680	-	VV2_1307	-	hypothetical protein
1217	 53.06	+1	1438827..1439936	+	369	27367681	-	VV2_1308	-	multidrug resistance efflux pump
1218	 50.95	0	1439926..1440924	+	332	27367682	-	VV2_1309	-	DMT family permease
1219	 46.39	0	1441191..1441481	+	96	27367683	-	VV2_1310	-	hypothetical protein
1220	 47.91	0	1441457..1442005	+	182	27367684	-	VV2_1311	-	histone acetyltransferase HPA2
1221	 48.85	0	1442099..1443097	-	332	27367685	-	VV2_1312	-	hypothetical protein
1222	 37.54	-2	1443651..1445051	+	466	27367686	-	VV2_1314	-	chromosome segregation ATPase
1223	 47.24	0	1445289..1445777	+	162	27367687	-	VV2_1315	-	hypothetical protein
1224	 46.76	0	1445774..1446205	+	143	27367688	-	VV2_1316	-	hypothetical protein
1225	 53.53	+1	1446375..1448072	-	565	27367689	-	VV2_1318	-	pseudouridylate synthase, 23S RNA-specific
1226	 52.73	+1	1448159..1449127	-	322	27367690	-	VV2_1319	-	GGDEF domain-containing protein
1227	 53.26	+1	1449259..1452360	-	1033	27367691	-	VV2_1320	-	cation/multidrug efflux pump
1228	 52.91	+1	1452357..1453679	-	440	27367692	-	VV2_1321	-	membrane-fusion protein
1229	 50.08	0	1453666..1454322	-	218	27367693	-	VV2_1322	-	transcriptional regulator
1230	 53.67	+1	1454446..1455453	-	335	27367694	-	VV2_1323	-	transcriptional regulator
1231	 50.79	0	1455635..1456642	-	335	27367695	mglC	VV2_1324	-	beta-methylgalactoside transporter inner membrane component
1232	 46.94	0	1456653..1458041	-	462	27367696	-	VV2_1325	-	galactose/methyl galaxtoside transporter ATP-binding protein
1233	 52.51	+1	1458267..1459241	-	324	27367697	-	VV2_1326	-	ABC-type sugar transport system, periplasmic component
1234	 53.47	+1	1459600..1462698	-	1032	161501857	lacZ	VV2_1327	-	beta-D-galactosidase
1235	 47.60	0	1462789..1463496	-	235	27367699	-	VV2_1328	-	hypothetical protein
1236	 50.08	0	1463734..1464975	-	413	27367700	-	VV2_1329	-	maltoporin
1237	 51.72	+1	1465809..1467929	+	706	27367701	-	VV2_1330	-	Alpha-galactosidase
1238	 49.05	0	1468293..1469666	+	457	27367702	-	VV2_1332	-	melibiose:sodium symporter
1239	 49.32	0	1469703..1469921	+	72	27367703	-	VV2_1333	-	hypothetical protein
1240	 50.48	0	1471043..1471777	+	244	27367704	-	VV2_1334	-	rRNA methylase
1241	 49.69	0	1471926..1472249	-	107	27367705	-	VV2_1335	-	ferredoxin
1242	 51.95	+1	1472538..1474154	+	538	27367706	-	VV2_1336	-	hypothetical protein
1243	 49.91	0	1474220..1476385	-	721	27367707	-	VV2_1337	-	Outer membrane receptor protein
1244	 47.65	0	1476529..1477401	-	290	27367708	-	VV2_1338	-	hypothetical protein
1245	 47.09	0	1477631..1478386	+	251	27367709	-	VV2_1339	-	hypothetical protein
1246	 38.37	-2	1478997..1479512	+	171	27367710	-	VV2_1340	-	hypothetical protein
1247	 34.99	-2	1479523..1480365	+	280	27367711	-	VV2_1341	-	Mg-dependent DNase
1248	 52.25	+1	1480410..1481942	-	510	27367712	-	VV2_1342	-	anaerobic nitric oxide reductase transcription regulator
1249	 47.54	0	1482146..1483630	+	494	27367713	-	VV2_1343	-	anaerobic nitric oxide reductase flavorubredoxin
1250	 54.22	+1	1483641..1484789	+	382	27367714	-	VV2_1344	-	nitric oxide reductase
1251	 52.85	+1	1484827..1485159	+	110	27367715	-	VV2_1345	-	hypothetical protein
1252	 48.21	0	1485236..1486405	-	389	27367716	-	VV2_1346	-	autotransporter adhesin
1253	 45.69	0	1486628..1487752	+	374	27367717	-	VV2_1347	-	DNA-binding HTH domain-containing protein
1254	 50.99	0	1487832..1489049	-	405	27367718	-	VV2_1348	-	phosphomannose isomerase
1255	 53.47	+1	1489158..1491059	-	633	27367719	-	VV2_1349	-	phosphotransferase system fructose-specific component IIB
1256	 47.14	0	1491476..1492315	+	279	27367720	-	VV2_1350	-	AraC-type DNA-binding domain-containing protein
1257	 50.64	0	1492307..1493086	-	259	27367721	-	VV2_1351	-	phosphotransferase system mannitol
1258	 49.67	0	1493095..1493394	-	99	27367722	-	VV2_1352	-	phosphotransferase system fructose-specific component IIB
1259	 52.20	+1	1493640..1495499	+	619	27367723	-	VV2_1353	-	phosphotransferase system, fructose-specific IIC component
1260	 49.83	0	1495527..1496975	-	482	27367724	-	VV2_1354	-	transcriptional regulator
1261	 50.66	0	1497069..1497905	+	278	27367725	-	VV2_1355	-	DMT family permease
1262	 49.59	0	1497963..1499303	-	446	27367726	-	VV2_1356	-	phosphotransferase system fructose-specific component IIB
1263	 40.36	-2	1499378..1499818	-	146	27367727	-	VV2_1357	-	phosphotransferase system mannitol
1264	 48.03	0	1500086..1500745	-	219	27367728	-	VV2_1358	-	phosphoserine phosphatase
1265	 49.16	0	1501008..1501304	+	98	27367729	-	VV2_1359	-	hypothetical protein
1266	 53.76	+1	1501598..1505797	+	1399	27367730	-	VV2_1360	-	NADPH-dependent glutamate synthase beta chain
1267	 51.35	+1	1505964..1508444	+	826	27367731	-	VV2_1361	-	Beta-galactosidase/beta-glucuronidase
1268	 38.02	-2	1508959..1509705	+	248	27367732	-	VV2_1363	-	transcriptional regulator
1269	 50.84	0	1509772..1510605	-	277	27367733	-	VV2_1364	-	purine nucleoside phosphorylase
1270	 49.94	0	1510743..1511615	+	290	27367734	-	VV2_1365	-	transcriptional regulator
1271	 47.94	0	1511685..1513820	-	711	27367735	-	VV2_1367	-	hypothetical protein
1272	 43.49	-1	1514230..1514613	+	127	27367736	-	VV2_1369	-	hypothetical protein
1273	 49.13	0	1514623..1516464	-	613	27367737	-	VV2_1370	-	cell division protein FtsI
1274	 49.94	0	1516980..1517822	+	280	27367738	-	VV2_1371	-	hypothetical protein
1275	 47.68	0	1517995..1518747	+	250	27367739	-	VV2_1372	-	nicotinamide mononucleotide transporter
1276	 50.75	0	1518744..1519472	+	242	27367740	-	VV2_1373	-	uridine phosphorylase
1277	 43.05	-1	1519660..1520256	-	198	27367741	-	VV2_1374	-	hypothetical protein
1278	 48.46	0	1520514..1521194	+	226	27367742	-	VV2_1376	-	cAMP-binding protein
1279	 46.87	0	1521566..1522459	+	297	27367743	-	VV2_1377	-	transcriptional regulator
1280	 54.55	+2	1522603..1522734	-	43	27367744	-	VV2_1378	-	DMT family permease
1281	 49.11	0	1522724..1523509	-	261	27367745	-	VV2_1379	-	DMT family permease
1282	 49.53	0	1523511..1524257	-	248	27367746	-	VV2_1380	-	hypothetical protein
1283	 48.40	0	1524275..1525489	-	404	27367747	-	VV2_1381	-	argininosuccinate synthase
1284	 50.16	0	1525594..1526508	+	304	27367748	-	VV2_1382	-	transcriptional regulator
1285	 50.11	0	1526622..1527926	-	434	27367749	-	VV2_1383	-	Na+/H+-dicarboxylate symporter
1286	 50.41	0	1528227..1529327	-	366	27367750	-	VV2_1385	-	hypothetical protein
1287	 52.33	+1	1529334..1530449	-	371	27367751	-	VV2_1386	-	Outer membrane protein/protective antigen OMA87
1288	 49.35	0	1530453..1531301	-	282	27367752	-	VV2_1387	-	hypothetical protein
1289	 45.87	0	1531503..1532108	+	201	27367753	-	VV2_1388	-	transcriptional regulator
1290	 42.54	-1	1532211..1532525	-	104	27367754	-	VV2_1389	-	hypothetical protein
1291	 49.83	0	1532945..1533817	+	290	27367755	-	VV2_1391	-	transcriptional regulator
1292	 48.58	0	1533950..1534795	+	281	27367756	-	VV2_1392	-	Zn-dependent hydrolase
1293	 51.87	+1	1534894..1535616	-	240	27367757	-	VV2_1393	-	nitroreductase A
1294	 51.11	0	1535779..1536909	+	376	161501856	rumB	VV2_1394	-	23S rRNA methyluridine methyltransferase
1295	 50.06	0	1536950..1537816	-	288	27367759	-	VV2_1395	-	taurine catabolism dioxygenase
1296	 44.44	0	1538031..1538786	+	251	27367760	-	VV2_1396	-	DNA-binding HTH domain-containing protein
1297	 49.88	0	1538964..1542632	+	1222	27367761	-	VV2_1397	-	hypothetical protein
1298	 48.57	0	1542837..1543046	+	69	27367762	-	VV2_1398	-	hypothetical protein
1299	 47.61	0	1543306..1545042	-	578	27367763	-	VV2_1399	-	hypothetical protein
1300	 49.68	0	1545347..1547194	-	615	27367764	-	VV2_1400	-	oligoendopeptidase F
47.71	MEAN

3.40	STD DEV
