IslandPath Analysis: Vibrio fischeri ES114

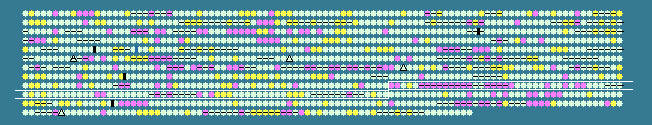

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.27 STD DEV: 3.84
Vibrio fischeri ES114 chromosome II, complete sequence - 1..1330333
1175 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
862	 29.19	-2	969354..969836	+	160	59714043	-	VF_A0860	-	hypothetical protein
863	 31.15	-1	969839..970297	+	152	59714044	-	VF_A0861	-	hypothetical protein
864	 38.41	0	970385..971920	+	511	59714045	norR2	VF_A0862	-	anaerobic nitric oxide reductase transcription regulator
865	 41.16	+1	972161..973822	+	553	59714046	hcp	VF_A0863	-	hydroxylamine reductase
866	 38.57	0	973917..974948	+	343	59714047	hcr	VF_A0864	-	HCP oxidoreductase, NADH-dependent
867	 32.28	-1	976378..978273	-	631	59714048	-	VF_A0865	-	methyl-accepting chemotaxis protein
868	 33.45	0	978674..979534	-	286	59714049	tcpF	VF_A0866	-	toxin coregulated pilus biosynthesis protein TcpF
869	 28.84	-2	979538..980584	-	348	59714050	tcpE	VF_A0867	-	toxin coregulated pilus biosynthesis protein TcpE
870	 31.46	-1	980538..982031	-	497	59714051	tcpT	VF_A0868	-	toxin coregulated pilus biosynthesis protein TcpT
871	 26.22	-2	982028..982477	-	149	59714052	tcpS	VF_A0869	-	toxin coregulated pilus biosynthesis protein TcpS
872	 24.87	-2	982491..983270	-	259	59714053	tcpD	VF_A0870	-	toxin coregulated pilus biosynthesis protein TcpD
873	 25.62	-2	983258..983737	-	159	59714054	-	VF_A0871	-	hypothetical protein
874	 32.99	-1	983724..985178	-	484	59714055	tcpC	VF_A0872	-	toxin coregulated pilus outer membrane protein TcpC
875	 29.24	-2	985183..985695	-	170	59714056	tcpQ	VF_A0873	-	toxin coregulated pilus biosynthesis protein TcpY/TcpQ
876	 34.75	0	985700..987037	-	445	59714057	tcpB	VF_A0874	-	toxin coregulated pilus biosynthesis protein TcpB
877	 37.32	0	987057..987683	-	208	59714058	tcpA	VF_A0875	-	toxin coregulated pilin subunit precursor TcpA
878	 29.07	-2	987944..988717	+	257	59714059	-	VF_A0876	-	hypothetical protein
879	 30.22	-1	988822..989463	-	213	59714060	-	VF_A0877	-	chromosome partitioning protein ParA
880	 28.21	-2	989657..990007	+	116	59714061	-	VF_A0878	-	hypothetical protein
881	 30.52	-1	990562..991449	-	295	59714062	-	VF_A0879	-	EAL domain-containing protein
882	 24.88	-2	991828..992679	+	283	59714063	-	VF_A0880	-	putative AraC-type HTH DNA-binding protein
883	 38.47	0	992699..996433	-	1244	59714064	-	VF_A0881	-	cellulose synthase operon C protein
884	 38.25	0	996424..997602	-	392	59714065	bcsZ	VF_A0882	-	endo-1,4-D-glucanase
885	 37.65	0	997602..999896	-	764	59714066	bcsB	VF_A0883	-	cellulose synthase regulator protein
886	 37.71	0	999910..1002513	-	867	59714067	bcsA	VF_A0884	-	cellulose synthase catalytic subunit
887	 35.67	0	1002517..1003287	-	256	59714068	-	VF_A0885	-	hypothetical protein
888	 32.36	-1	1003778..1005322	+	514	59714069	bcsE	VF_A0886	-	hypothetical protein
889	 33.82	0	1005327..1005530	+	67	172087819	-	VF_A1191	-	hypothetical protein
890	 37.57	0	1005530..1007158	+	542	59714070	bcsG	VF_A0887	-	inner membrane protein
891	 27.27	-2	1007406..1007702	-	98	59714071	-	VF_A0888	-	hypothetical protein
892	 34.71	0	1007930..1008436	+	168	59714072	tagD	VF_A0889	-	lipid hydroperoxide peroxidase
893	 32.52	-1	1008436..1009047	+	203	59714073	-	VF_A0890	-	thioredoxin peroxidase
894	 28.78	-2	1009204..1010412	-	402	59714074	-	VF_A0891	-	methyl-accepting chemotaxis protein
895	 36.31	0	1011436..1011906	-	156	59714075	yjgK	VF_A0892	-	hypothetical protein
896	 38.18	0	1012020..1013030	+	336	59714076	-	VF_A0893	-	AraC family transcriptional regulator
897	 39.07	0	1013132..1014928	+	598	59714077	-	VF_A0894	-	putative surface protein
898	 40.22	0	1015125..1015487	+	120	59714078	-	VF_A0895	-	hypothetical protein
899	 38.73	0	1015480..1016703	+	407	59714079	-	VF_A0896	-	multidrug resistance protein A
900	 34.49	0	1016754..1017617	-	287	59714080	-	VF_A0897	-	LysR family transcriptional regulator
901	 39.24	0	1017802..1018563	+	253	59714081	-	VF_A0898	-	putative lipoprotein
902	 41.16	+1	1018614..1020134	+	506	59714082	-	VF_A0899	-	arylsulfatase
903	 40.20	0	1020200..1021495	+	431	59714083	aslB	VF_A0900	-	regulator of arylsulfatase activity
904	 41.46	+1	1021525..1022508	+	327	59714084	-	VF_A0901	-	MoxR protein
905	 35.31	0	1022516..1023478	+	320	59714085	-	VF_A0902	-	MoxR protein
906	 36.72	0	1023481..1024011	+	176	59714086	-	VF_A0903	-	hypothetical protein
907	 39.22	0	1024004..1025056	+	350	172087820	-	VF_A1192	-	hypothetical protein
908	 37.78	0	1025049..1026824	+	591	59714087	-	VF_A0904	-	transporter
909	 34.70	0	1026824..1028065	+	413	59714088	-	VF_A0905	-	hypothetical protein
910	 37.58	0	1028288..1029442	+	384	59714089	-	VF_A0906	-	acriflavin resistance periplasmic protein
911	 39.76	0	1029464..1032577	+	1037	59714090	-	VF_A0907	-	acriflavin resistance plasma membrane protein
912	 37.43	0	1032676..1033431	+	251	59714091	-	VF_A0908	-	putative lipoprotein
913	 32.58	-1	1033488..1034285	-	265	59714092	-	VF_A0909	-	hypothetical protein
914	 33.15	-1	1034434..1034991	-	185	59714093	-	VF_A0910	-	hypothetical protein
915	 35.42	0	1035102..1036010	+	302	59714094	-	VF_A0911	-	LysR family transcriptional regulator
916	 34.48	0	1036014..1036274	-	86	172087821	-	VF_A1193	-	hypothetical protein
917	 35.77	0	1036450..1037229	+	259	59714095	-	VF_A0912	-	ABC transporter ATP-binding protein
918	 35.28	0	1037229..1038101	+	290	59714096	-	VF_A0913	-	hypothetical protein
919	 39.68	0	1038152..1039396	-	414	59714097	ytfL	VF_A0914	-	inner membrane protein
920	 35.87	0	1039639..1040190	-	183	59714098	-	VF_A0915	-	acetyltransferase
921	 38.37	0	1040298..1041668	-	456	59714099	-	VF_A0916	-	multidrug efflux pump VmrA
922	 38.51	0	1041873..1042316	+	147	59714100	-	VF_A0917	-	deoxycytidylate deaminase
923	 31.93	-1	1042357..1043067	-	236	59714101	luxG	VF_A0918	-	FMN reductase
924	 34.57	0	1043077..1044207	-	376	59714102	luxE	VF_A0919	-	long-chain-fatty-acid ligase LuxE
925	 33.13	-1	1044286..1045266	-	326	59714103	luxB	VF_A0920	-	luciferase beta chain LuxB
926	 38.58	0	1045277..1046344	-	355	59714104	luxA	VF_A0921	-	luciferase alpha chain LuxA
927	 36.90	0	1046367..1047290	-	307	59714105	luxD	VF_A0922	-	acyl transferase
928	 35.42	0	1047306..1048745	-	479	59714106	luxC	VF_A0923	-	acyl-CoA reductase LuxC
929	 34.38	0	1048783..1049355	-	190	59714107	luxI	VF_A0924	-	3-oxo-C6-HSL autoinducer synthesis protein LuxI
930	 30.41	-1	1049571..1050323	+	250	59714108	luxR	VF_A0925	-	autoinducer-binding transcriptional activator protein LuxR
931	 37.08	0	1050365..1051165	-	266	59714109	-	VF_A0926	-	hypothetical protein
932	 30.77	-1	1051347..1051541	-	64	59714110	-	VF_A0927	-	hypothetical protein
933	 42.01	+1	1051848..1052585	+	245	59714111	yjiH	VF_A0928	-	inner membrane protein
934	 41.24	+1	1052585..1053052	+	155	59714112	yjiG	VF_A0929	-	hypothetical protein
935	 44.27	+1	1053062..1054186	+	374	59714113	-	VF_A0930	-	carboxypeptidase G2 precursor
936	 35.75	0	1054291..1055076	-	261	59714114	-	VF_A0931	-	transcriptional regulatory protein, AraC-like protein
937	 40.27	0	1055100..1055618	-	172	59714115	ybhB	VF_A0932	-	kinase inhibitor
938	 34.65	0	1055758..1056213	-	151	59714116	-	VF_A0933	-	hypothetical protein
939	 39.23	0	1056449..1056838	+	129	59714117	ygbA	VF_A0934	-	hypothetical protein
940	 38.10	0	1056835..1057716	+	293	59714118	-	VF_A0935	-	LysR family transcriptional regulator
941	 33.94	0	1057732..1058562	+	276	59714119	-	VF_A0936	-	lipase/acylhydrolase family protein
942	 39.60	0	1058618..1059271	-	217	59714120	-	VF_A0937	-	phosphoglycolate phosphatase
943	 38.54	0	1059425..1060039	-	204	59714121	-	VF_A0938	-	threonine efflux protein
944	 38.48	0	1060117..1060641	+	174	59714122	-	VF_A0939	-	hypothetical protein
945	 43.48	+1	1060717..1062450	-	577	59714123	fruA	VF_A0940	-	fused fructose-specific PTS enzymes: iibcomponent/IIC components
946	 41.49	+1	1062481..1063461	-	326	59714124	fruK	VF_A0941	-	fructose-1-phosphate kinase
947	 41.78	+1	1063465..1064601	-	378	59714125	fruB	VF_A0942	-	bifunctional fructose-specific PTS IIA/HPr protein
948	 38.30	0	1064787..1064927	-	46	59714127	-	VF_A0944	-	hypothetical protein
949	 39.47	0	1064887..1065864	+	325	59714126	fruR	VF_A0943	-	DNA-binding transcriptional regulator FruR
950	 34.29	0	1065909..1066535	-	208	59714128	-	VF_A0945	-	putative lipoprotein
951	 35.36	0	1066541..1066984	-	147	59714129	-	VF_A0946	-	hypothetical protein
952	 37.35	0	1067221..1067469	-	82	59714130	-	VF_A0947	-	hypothetical protein
953	 36.23	0	1067512..1067856	-	114	59714131	-	VF_A0948	-	hypothetical protein
954	 34.79	0	1067862..1068479	-	205	59714132	-	VF_A0949	-	putative lipoprotein
955	 31.29	-1	1068476..1069750	-	424	59714133	-	VF_A0950	-	hypothetical protein
956	 35.63	0	1069931..1070278	-	115	59714134	-	VF_A0951	-	hypothetical protein
957	 35.08	0	1070275..1071075	-	266	59714135	-	VF_A0952	-	hypothetical protein
958	 39.52	0	1071080..1073116	-	678	59714136	-	VF_A0953	-	VgrG protein
959	 42.00	+1	1073259..1073777	-	172	59714137	-	VF_A0954	-	hemolysin co-regulated protein
960	 35.94	0	1074016..1074666	-	216	59714138	-	VF_A0955	-	SAM-dependent methyltransferase
961	 39.78	0	1074755..1075576	+	273	59714139	yidA	VF_A0956	-	hydrolase
37.27	MEAN

3.84	STD DEV
