IslandPath Analysis: Vibrio fischeri ES114

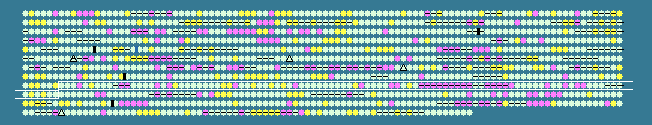

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.27 STD DEV: 3.84
Vibrio fischeri ES114 chromosome II, complete sequence - 1..1330333
1175 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
807	 36.80	0	903838..904500	-	220	59713987	-	VF_A0804	-	permease
808	 38.07	0	904628..906127	-	499	59713988	glgA	VF_A0805	-	glycogen synthase
809	 37.44	0	906081..907298	-	405	59713989	glgC	VF_A0806	-	glucose-1-phosphate adenylyltransferase
810	 33.64	0	907592..908245	+	217	59713990	-	VF_A0807	-	hypothetical protein
811	 40.13	0	908344..910491	-	715	59713991	glgB	VF_A0808	-	glycogen branching enzyme
812	 41.14	+1	910545..912761	-	738	172087815	malQ	VF_A0809	-	4-alpha-glucanotransferase
813	 39.85	0	912778..915231	-	817	59713993	malP	VF_A0810	-	maltodextrin phosphorylase
814	 38.40	0	915627..918332	+	901	59713994	malT	VF_A0811	-	transcriptional regulator MalT
815	 38.83	0	918423..919349	+	308	59713995	-	VF_A0812	-	integral membrane protein
816	 39.10	0	919440..920288	-	282	59713996	focA	VF_A0813	-	formate transporter
817	 33.33	-1	920457..920642	-	61	59713997	-	VF_A0814	-	hypothetical protein
818	 33.33	-1	920693..921262	-	189	59713998	tag	VF_A0815	-	3-methyl-adenine DNA glycosylase I, constitutive
819	 34.91	0	921314..921820	+	168	59713999	-	VF_A0816	-	hypothetical protein
820	 36.36	0	921817..922377	+	186	59714000	-	VF_A0817	-	Sco1-related protein
821	 36.99	0	922358..922849	+	163	59714001	-	VF_A0818	-	hypothetical protein
822	 40.53	0	923014..923847	+	277	59714002	-	VF_A0819	-	drug/metabolite exporter family protein
823	 32.23	-1	923921..924466	-	181	59714003	rpoE3	VF_A0820	-	RNA polymerase sigma factor SigZ
824	 38.40	0	924577..925287	-	236	59714004	-	VF_A0821	-	glutathione S-transferase
825	 33.33	-1	925424..925681	-	85	59714005	-	VF_A0822	-	hypothetical protein
826	 43.27	+1	925784..926578	-	264	59714006	-	VF_A0823	-	vulnibactin utilization protein ViuB
827	 37.53	0	926590..927351	-	253	59714007	vctC	VF_A0824	-	ferric anguibactin transport ATP-binding protein
828	 34.81	0	927360..928310	-	316	59714008	-	VF_A0825	-	ferric anguibactin transport system permease protein FatC
829	 36.33	0	928361..929194	-	277	59714009	vctD	VF_A0826	-	ferric anguibactin transport system permease protein FatD
830	 35.76	0	929268..930173	-	301	59714010	vctP	VF_A0827	-	ferric anguibactin-binding protein
831	 37.18	0	930385..930618	-	77	172087816	-	VF_A1190	-	hypothetical protein
832	 37.47	0	930886..931248	-	120	59714011	-	VF_A0828	-	glutaredoxin 2
833	 40.15	0	931434..932930	-	498	59714012	putP	VF_A0829	-	proline:sodium symporter
834	 40.82	0	933040..933747	-	235	59714013	-	VF_A0830	-	delta-1-pyrroline-5-carboxylate dehydrogenase
835	 41.11	+1	933762..936938	-	1058	172087817	putA	VF_A0832	-	proline dehydrogenase
836	 32.44	-1	937098..937880	-	260	59714016	-	VF_A0833	-	AraC family transcriptional regulator
837	 39.73	0	938314..940188	+	624	59714017	-	VF_A0834	-	NirV precursor
838	 37.90	0	940344..941132	+	262	59714018	ybbM	VF_A0835	-	inner membrane protein
839	 41.41	+1	941168..942220	+	350	59714019	tas	VF_A0836	-	oxidoreductase, NADP(H)-dependent aldo-keto reductase
840	 37.66	0	942485..945538	-	1017	59714020	-	VF_A0837	-	putative ATPase involved in pili biogenesis
841	 38.30	0	945861..946766	+	301	59714021	-	VF_A0838	-	hypothetical protein
842	 41.32	+1	946838..947764	-	308	59714022	speB	VF_A0839	-	agmatinase
843	 40.50	0	947764..949674	-	636	59714023	speA	VF_A0840	-	arginine decarboxylase
844	 45.16	+2	949957..951216	+	419	59714024	-	VF_A0841	-	3-hydroxy-3-methylglutaryl-coenzyme A reductase
845	 35.40	0	951297..951827	-	176	59714025	blc	VF_A0842	-	outer membrane lipoprotein (lipocalin)
846	 21.67	-2	951912..952031	-	39	59714026	-	VF_A0843	-	hypothetical protein
847	 40.71	0	952063..953214	+	383	59714027	-	VF_A0844	-	outer membrane protein P1 precursor
848	 38.54	0	953272..954078	-	268	59714028	-	VF_A0845	-	hypothetical protein
849	 36.27	0	954299..955489	+	396	59714029	-	VF_A0846	-	hypothetical protein
850	 39.63	0	955610..956944	-	444	59714030	astB	VF_A0847	-	succinylarginine dihydrolase
851	 38.72	0	957269..958456	+	395	59714031	-	VF_A0848	-	hypothetical protein
852	 40.42	0	958565..959425	-	286	59714032	yghU	VF_A0849	-	putative glutathione S-transferase YghU
853	 36.38	0	959580..960431	+	283	59714033	-	VF_A0850	-	chloramphenicol-sensitive protein RarD
854	 38.62	0	960418..961287	-	289	59714034	-	VF_A0851	-	transcriptional regulatory protein
855	 40.52	0	961400..962554	+	384	59714035	ydcR	VF_A0852	-	fused DNA-binding transcriptional regulator/ amino transferase
856	 41.87	+1	962591..963715	+	374	59714036	-	VF_A0853	-	zinc-carboxypeptidase precursor
857	 33.49	0	964137..964781	-	214	59714037	-	VF_A0854	-	hypothetical protein
858	 40.36	0	964868..965251	-	127	172087818	-	VF_A0856	-	hypothetical protein
859	 36.84	0	965433..965774	+	113	59714040	-	VF_A0857	-	transcriptional repressor SmtB
860	 36.09	0	965865..966917	+	350	59714041	-	VF_A0858	-	arsenical-resistance protein ACR3
861	 36.43	0	966976..968850	-	624	59714042	-	VF_A0859	-	methyl-accepting chemotaxis protein
862	 29.19	-2	969354..969836	+	160	59714043	-	VF_A0860	-	hypothetical protein
863	 31.15	-1	969839..970297	+	152	59714044	-	VF_A0861	-	hypothetical protein
864	 38.41	0	970385..971920	+	511	59714045	norR2	VF_A0862	-	anaerobic nitric oxide reductase transcription regulator
865	 41.16	+1	972161..973822	+	553	59714046	hcp	VF_A0863	-	hydroxylamine reductase
866	 38.57	0	973917..974948	+	343	59714047	hcr	VF_A0864	-	HCP oxidoreductase, NADH-dependent
867	 32.28	-1	976378..978273	-	631	59714048	-	VF_A0865	-	methyl-accepting chemotaxis protein
868	 33.45	0	978674..979534	-	286	59714049	tcpF	VF_A0866	-	toxin coregulated pilus biosynthesis protein TcpF
869	 28.84	-2	979538..980584	-	348	59714050	tcpE	VF_A0867	-	toxin coregulated pilus biosynthesis protein TcpE
870	 31.46	-1	980538..982031	-	497	59714051	tcpT	VF_A0868	-	toxin coregulated pilus biosynthesis protein TcpT
871	 26.22	-2	982028..982477	-	149	59714052	tcpS	VF_A0869	-	toxin coregulated pilus biosynthesis protein TcpS
872	 24.87	-2	982491..983270	-	259	59714053	tcpD	VF_A0870	-	toxin coregulated pilus biosynthesis protein TcpD
873	 25.62	-2	983258..983737	-	159	59714054	-	VF_A0871	-	hypothetical protein
874	 32.99	-1	983724..985178	-	484	59714055	tcpC	VF_A0872	-	toxin coregulated pilus outer membrane protein TcpC
875	 29.24	-2	985183..985695	-	170	59714056	tcpQ	VF_A0873	-	toxin coregulated pilus biosynthesis protein TcpY/TcpQ
876	 34.75	0	985700..987037	-	445	59714057	tcpB	VF_A0874	-	toxin coregulated pilus biosynthesis protein TcpB
877	 37.32	0	987057..987683	-	208	59714058	tcpA	VF_A0875	-	toxin coregulated pilin subunit precursor TcpA
878	 29.07	-2	987944..988717	+	257	59714059	-	VF_A0876	-	hypothetical protein
879	 30.22	-1	988822..989463	-	213	59714060	-	VF_A0877	-	chromosome partitioning protein ParA
880	 28.21	-2	989657..990007	+	116	59714061	-	VF_A0878	-	hypothetical protein
881	 30.52	-1	990562..991449	-	295	59714062	-	VF_A0879	-	EAL domain-containing protein
882	 24.88	-2	991828..992679	+	283	59714063	-	VF_A0880	-	putative AraC-type HTH DNA-binding protein
883	 38.47	0	992699..996433	-	1244	59714064	-	VF_A0881	-	cellulose synthase operon C protein
884	 38.25	0	996424..997602	-	392	59714065	bcsZ	VF_A0882	-	endo-1,4-D-glucanase
885	 37.65	0	997602..999896	-	764	59714066	bcsB	VF_A0883	-	cellulose synthase regulator protein
886	 37.71	0	999910..1002513	-	867	59714067	bcsA	VF_A0884	-	cellulose synthase catalytic subunit
887	 35.67	0	1002517..1003287	-	256	59714068	-	VF_A0885	-	hypothetical protein
888	 32.36	-1	1003778..1005322	+	514	59714069	bcsE	VF_A0886	-	hypothetical protein
889	 33.82	0	1005327..1005530	+	67	172087819	-	VF_A1191	-	hypothetical protein
890	 37.57	0	1005530..1007158	+	542	59714070	bcsG	VF_A0887	-	inner membrane protein
891	 27.27	-2	1007406..1007702	-	98	59714071	-	VF_A0888	-	hypothetical protein
892	 34.71	0	1007930..1008436	+	168	59714072	tagD	VF_A0889	-	lipid hydroperoxide peroxidase
893	 32.52	-1	1008436..1009047	+	203	59714073	-	VF_A0890	-	thioredoxin peroxidase
894	 28.78	-2	1009204..1010412	-	402	59714074	-	VF_A0891	-	methyl-accepting chemotaxis protein
895	 36.31	0	1011436..1011906	-	156	59714075	yjgK	VF_A0892	-	hypothetical protein
896	 38.18	0	1012020..1013030	+	336	59714076	-	VF_A0893	-	AraC family transcriptional regulator
897	 39.07	0	1013132..1014928	+	598	59714077	-	VF_A0894	-	putative surface protein
898	 40.22	0	1015125..1015487	+	120	59714078	-	VF_A0895	-	hypothetical protein
899	 38.73	0	1015480..1016703	+	407	59714079	-	VF_A0896	-	multidrug resistance protein A
900	 34.49	0	1016754..1017617	-	287	59714080	-	VF_A0897	-	LysR family transcriptional regulator
901	 39.24	0	1017802..1018563	+	253	59714081	-	VF_A0898	-	putative lipoprotein
902	 41.16	+1	1018614..1020134	+	506	59714082	-	VF_A0899	-	arylsulfatase
903	 40.20	0	1020200..1021495	+	431	59714083	aslB	VF_A0900	-	regulator of arylsulfatase activity
904	 41.46	+1	1021525..1022508	+	327	59714084	-	VF_A0901	-	MoxR protein
905	 35.31	0	1022516..1023478	+	320	59714085	-	VF_A0902	-	MoxR protein
906	 36.72	0	1023481..1024011	+	176	59714086	-	VF_A0903	-	hypothetical protein
37.27	MEAN

3.84	STD DEV
