IslandPath Analysis: Vibrio fischeri ES114

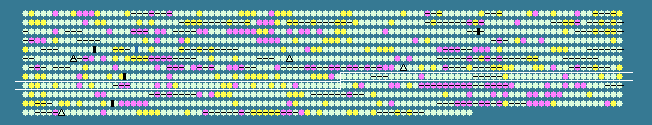

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.27 STD DEV: 3.84
Vibrio fischeri ES114 chromosome II, complete sequence - 1..1330333
1175 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
754	 37.86	0	847527..849074	-	515	59713934	tyrR	VF_A0751	-	DNA-binding transcriptional regulator, tyrosine-binding
755	 37.67	0	849209..850153	+	314	59713935	ybgA	VF_A0752	-	hypothetical protein
756	 37.64	0	850143..851582	+	479	59713936	phr	VF_A0753	-	deoxyribodipyrimidine photolyase Phr, FAD-binding
757	 37.65	0	851633..853486	+	617	59713937	-	VF_A0754	-	peptide-methionine (S)-S-oxide reductase
758	 34.78	0	853512..853649	-	45	59713938	-	VF_A0755	-	hypothetical protein
759	 38.71	0	853842..854789	+	315	59713939	-	VF_A0756	-	putative lipoprotein
760	 38.15	0	854860..855378	-	172	59713940	-	VF_A0757	-	hypothetical protein
761	 37.70	0	855378..855881	-	167	59713941	-	VF_A0758	-	hypothetical protein
762	 38.25	0	855829..856398	-	189	59713942	-	VF_A0759	-	hypothetical protein
763	 38.42	0	856484..857740	-	418	59713943	cfa	VF_A0760	-	cyclopropane fatty acyl phospholipid synthase (unsaturated-phospholipid methyltransferase)
764	 36.65	0	857749..858501	-	250	59713944	-	VF_A0761	-	plasmid partition ParA protein
765	 36.57	0	858498..859796	-	432	59713945	-	VF_A0762	-	putative dehydrogenase
766	 37.25	0	859754..860494	-	246	59713946	-	VF_A0763	-	short chain dehydrogenase
767	 33.55	0	860491..860958	-	155	59713947	-	VF_A0764	-	transcriptional regulator
768	 38.01	0	861034..861717	-	227	59713948	chrR	VF_A0765	-	zinc-binding anti-sigmaE4 factor ChrR
769	 37.42	0	861710..862321	-	203	59713949	rpoE4	VF_A0766	-	RNA polymerase sigma factor
770	 33.94	0	862543..862869	+	108	59713950	-	VF_A0767	-	cytochrome c-554(548)
771	 38.52	0	862836..864068	-	410	59713951	-	VF_A0768	-	cysteine desulfhydrase
772	 37.44	0	864052..864708	-	218	59713952	-	VF_A0769	-	agglutination protein
773	 38.24	0	864938..866140	-	400	59713953	-	VF_A0770	-	bicyclomycin resistance protein
774	 36.77	0	866219..867091	+	290	59713954	-	VF_A0771	-	LysR family transcriptional regulator
775	 39.94	0	867186..867806	+	206	59713955	-	VF_A0772	-	homogentisate export protein
776	 34.38	0	867839..868030	-	63	59713956	-	VF_A0773	-	hypothetical protein
777	 38.82	0	868162..868908	+	248	59713957	ycdX	VF_A0774	-	putative hydrolase
778	 36.40	0	868966..870138	-	390	59713958	-	VF_A0775	-	short chain dehydrogenase
779	 40.42	0	870135..870755	-	206	59713959	-	VF_A0776	-	TonB protein
780	 40.49	0	870755..871159	-	134	59713960	-	VF_A0777	-	TonB system transport protein ExbD2
781	 41.39	+1	871156..871689	-	177	59713961	-	VF_A0778	-	TolQ protein
782	 38.65	0	871689..873041	-	450	59713962	-	VF_A0779	-	TolQ protein
783	 35.96	0	873043..873804	-	253	59713963	-	VF_A0780	-	hypothetical protein
784	 39.53	0	873877..875892	-	671	59713964	-	VF_A0781	-	iron-hydroxamate transporter permease subunit
785	 36.83	0	875895..876839	-	314	59713965	-	VF_A0782	-	ferrichrome-binding protein
786	 37.50	0	876833..877600	-	255	59713966	-	VF_A0783	-	ferrichrome transport ATP-binding protein FhuC
787	 37.24	0	877714..879912	-	732	59713967	fhuA	VF_A0784	-	ferrichrome outer membrane transporter
788	 35.78	0	880057..880956	-	299	59713968	-	VF_A0785	-	AraC family transcriptional regulator
789	 38.86	0	881096..882706	-	536	59713969	-	VF_A0786	-	PTS system, glucose-specific II BC component
790	 40.27	0	883000..884571	-	523	59713970	ybiT	VF_A0787	-	ABC transporter ATP-binding protein
791	 33.33	-1	884720..885124	-	134	59713971	-	VF_A0788	-	hypothetical protein
792	 38.68	0	885354..885839	-	161	59713972	-	VF_A0789	-	lactoylglutathione lyase
793	 38.51	0	886006..886662	-	218	59713973	-	VF_A0790	-	chloramphenicol acetyltransferase
794	 35.86	0	886752..887660	+	302	59713974	-	VF_A0791	-	LysR family transcriptional regulator
795	 37.59	0	887939..888784	-	281	59713975	-	VF_A0792	-	proline iminopeptidase
796	 37.98	0	888886..889788	+	300	59713976	-	VF_A0793	-	LysR family transcriptional regulator
797	 41.52	+1	889937..891133	-	398	59713977	ackA2	VF_A0794	-	acetate kinase
798	 33.94	0	891440..892435	+	331	59713978	-	VF_A0795	-	two component response regulator
799	 36.45	0	892435..893397	+	320	59713979	adrA	VF_A0796	-	GGDEF domain-containing protein
800	 40.85	0	893612..894502	-	296	59713980	malG	VF_A0797	-	maltose transporter permease
801	 38.71	0	894571..896115	-	514	59713981	malF	VF_A0798	-	maltose transporter membrane protein
802	 40.84	0	896261..897445	-	394	59713982	malE	VF_A0799	-	maltose ABC transporter periplasmic protein
803	 41.26	+1	897854..898963	+	369	59713983	malK	VF_A0800	-	maltose/maltodextrin transporter ATP-binding protein
804	 38.34	0	899076..901031	+	651	59713984	glgX	VF_A0801	-	glycogen debranching enzyme
805	 37.69	0	901391..902332	-	313	59713985	cheV2	VF_A0802	-	CheW/CheY hybrid protein CheV2
806	 40.82	0	902525..903766	+	413	59713986	sstT	VF_A0803	-	serine/threonine transporter SstT
807	 36.80	0	903838..904500	-	220	59713987	-	VF_A0804	-	permease
808	 38.07	0	904628..906127	-	499	59713988	glgA	VF_A0805	-	glycogen synthase
809	 37.44	0	906081..907298	-	405	59713989	glgC	VF_A0806	-	glucose-1-phosphate adenylyltransferase
810	 33.64	0	907592..908245	+	217	59713990	-	VF_A0807	-	hypothetical protein
811	 40.13	0	908344..910491	-	715	59713991	glgB	VF_A0808	-	glycogen branching enzyme
812	 41.14	+1	910545..912761	-	738	172087815	malQ	VF_A0809	-	4-alpha-glucanotransferase
813	 39.85	0	912778..915231	-	817	59713993	malP	VF_A0810	-	maltodextrin phosphorylase
814	 38.40	0	915627..918332	+	901	59713994	malT	VF_A0811	-	transcriptional regulator MalT
815	 38.83	0	918423..919349	+	308	59713995	-	VF_A0812	-	integral membrane protein
816	 39.10	0	919440..920288	-	282	59713996	focA	VF_A0813	-	formate transporter
817	 33.33	-1	920457..920642	-	61	59713997	-	VF_A0814	-	hypothetical protein
818	 33.33	-1	920693..921262	-	189	59713998	tag	VF_A0815	-	3-methyl-adenine DNA glycosylase I, constitutive
819	 34.91	0	921314..921820	+	168	59713999	-	VF_A0816	-	hypothetical protein
820	 36.36	0	921817..922377	+	186	59714000	-	VF_A0817	-	Sco1-related protein
821	 36.99	0	922358..922849	+	163	59714001	-	VF_A0818	-	hypothetical protein
822	 40.53	0	923014..923847	+	277	59714002	-	VF_A0819	-	drug/metabolite exporter family protein
823	 32.23	-1	923921..924466	-	181	59714003	rpoE3	VF_A0820	-	RNA polymerase sigma factor SigZ
824	 38.40	0	924577..925287	-	236	59714004	-	VF_A0821	-	glutathione S-transferase
825	 33.33	-1	925424..925681	-	85	59714005	-	VF_A0822	-	hypothetical protein
826	 43.27	+1	925784..926578	-	264	59714006	-	VF_A0823	-	vulnibactin utilization protein ViuB
827	 37.53	0	926590..927351	-	253	59714007	vctC	VF_A0824	-	ferric anguibactin transport ATP-binding protein
828	 34.81	0	927360..928310	-	316	59714008	-	VF_A0825	-	ferric anguibactin transport system permease protein FatC
829	 36.33	0	928361..929194	-	277	59714009	vctD	VF_A0826	-	ferric anguibactin transport system permease protein FatD
830	 35.76	0	929268..930173	-	301	59714010	vctP	VF_A0827	-	ferric anguibactin-binding protein
831	 37.18	0	930385..930618	-	77	172087816	-	VF_A1190	-	hypothetical protein
832	 37.47	0	930886..931248	-	120	59714011	-	VF_A0828	-	glutaredoxin 2
833	 40.15	0	931434..932930	-	498	59714012	putP	VF_A0829	-	proline:sodium symporter
834	 40.82	0	933040..933747	-	235	59714013	-	VF_A0830	-	delta-1-pyrroline-5-carboxylate dehydrogenase
835	 41.11	+1	933762..936938	-	1058	172087817	putA	VF_A0832	-	proline dehydrogenase
836	 32.44	-1	937098..937880	-	260	59714016	-	VF_A0833	-	AraC family transcriptional regulator
837	 39.73	0	938314..940188	+	624	59714017	-	VF_A0834	-	NirV precursor
838	 37.90	0	940344..941132	+	262	59714018	ybbM	VF_A0835	-	inner membrane protein
839	 41.41	+1	941168..942220	+	350	59714019	tas	VF_A0836	-	oxidoreductase, NADP(H)-dependent aldo-keto reductase
840	 37.66	0	942485..945538	-	1017	59714020	-	VF_A0837	-	putative ATPase involved in pili biogenesis
841	 38.30	0	945861..946766	+	301	59714021	-	VF_A0838	-	hypothetical protein
842	 41.32	+1	946838..947764	-	308	59714022	speB	VF_A0839	-	agmatinase
843	 40.50	0	947764..949674	-	636	59714023	speA	VF_A0840	-	arginine decarboxylase
844	 45.16	+2	949957..951216	+	419	59714024	-	VF_A0841	-	3-hydroxy-3-methylglutaryl-coenzyme A reductase
845	 35.40	0	951297..951827	-	176	59714025	blc	VF_A0842	-	outer membrane lipoprotein (lipocalin)
846	 21.67	-2	951912..952031	-	39	59714026	-	VF_A0843	-	hypothetical protein
847	 40.71	0	952063..953214	+	383	59714027	-	VF_A0844	-	outer membrane protein P1 precursor
848	 38.54	0	953272..954078	-	268	59714028	-	VF_A0845	-	hypothetical protein
849	 36.27	0	954299..955489	+	396	59714029	-	VF_A0846	-	hypothetical protein
850	 39.63	0	955610..956944	-	444	59714030	astB	VF_A0847	-	succinylarginine dihydrolase
851	 38.72	0	957269..958456	+	395	59714031	-	VF_A0848	-	hypothetical protein
852	 40.42	0	958565..959425	-	286	59714032	yghU	VF_A0849	-	putative glutathione S-transferase YghU
853	 36.38	0	959580..960431	+	283	59714033	-	VF_A0850	-	chloramphenicol-sensitive protein RarD
37.27	MEAN

3.84	STD DEV
