IslandPathversion 1.0

IslandPath Analysis: Vibrio fischeri ES114

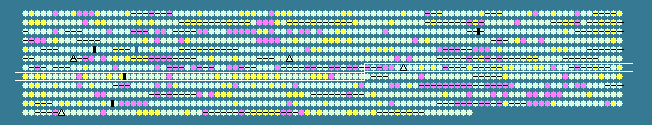

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.27 STD DEV: 3.84
Vibrio fischeri ES114 chromosome II, complete sequence - 1..1330333
1175 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
658	 29.70	-1	730330..730632	+	100	59713840	-	VF_A0657	-	hypothetical protein
659	 37.47	0	730824..731234	-	136	59713841	-	VF_A0658	-	hypothetical protein
660	 30.69	-1	732588..732890	+	100	59713842	-	VF_A0659	-	hypothetical protein
661	 32.08	-1	733032..733430	-	132	59713843	-	VF_A0660	-	prolyl endopeptidase
662	 33.06	-1	733701..734072	-	123	59713844	-	VF_A0661	-	hypothetical protein
663	 36.15	0	734270..734695	-	141	59713845	-	VF_A0662	-	acetyltransferase
664	 38.01	0	735018..736001	+	327	59713846	-	VF_A0663	-	XerC/CodV family integrase/recombinase
665	 34.48	0	736008..736181	-	57	59713847	-	VF_A0664	-	hypothetical protein
666	 38.67	0	736184..737008	-	274	59713848	-	VF_A0665	-	putative cytoplasmic protein
667	 42.25	+1	737031..737456	-	141	59713849	ydiI	VF_A0666	-	hypothetical protein
668	 38.30	0	737601..738305	+	234	59713850	-	VF_A0667	-	hypothetical protein
669	 40.80	0	738408..738608	-	66	59713851	-	VF_A0668	-	hypothetical protein
670	 38.01	0	739193..739534	-	113	59713852	-	VF_A0669	-	hypothetical protein
671	 33.33	-1	739908..740099	-	63	59713853	-	VF_A0670	-	hypothetical protein
672	 36.14	0	740479..740976	-	165	59713854	-	VF_A0671	-	hypothetical protein
673	 40.58	0	741538..743676	-	712	59713855	-	VF_A0672	-	outer membrane heme receptor
674	 39.22	0	743673..744692	-	339	59713856	sbmA	VF_A0673	-	putative transporter
675	 41.71	+1	744925..745473	-	182	59713857	-	VF_A0674	-	hypothetical protein
676	 36.27	0	746042..746143	-	33	59713858	-	VF_A0675	-	hypothetical protein
677	 38.86	0	746486..747136	+	216	59713859	-	VF_A0676	-	hypothetical protein
678	 40.28	0	747434..749347	-	637	59713860	-	VF_A0677	-	methyl-accepting chemotaxis protein
679	 44.10	+1	749540..750496	+	318	59713861	-	VF_A0678	-	MoxR protein
680	 41.98	+1	750545..751504	+	319	59713862	-	VF_A0679	-	putative cytoplasmic protein
681	 41.76	+1	751504..752037	+	177	59713863	-	VF_A0680	-	hypothetical protein
682	 43.27	+1	752030..752995	+	321	59713864	-	VF_A0681	-	hypothetical protein
683	 39.57	0	752988..754895	+	635	59713865	-	VF_A0682	-	transporter
684	 38.17	0	754889..756562	+	557	59713866	-	VF_A0683	-	hypothetical protein
685	 37.37	0	756610..756708	-	32	59713867	-	VF_A0684	-	hypothetical protein
686	 43.74	+1	756912..757862	+	316	59713868	talB	VF_A0685	-	transaldolase B
687	 45.33	+2	758176..760167	+	663	59713869	tktB	VF_A0686	-	transketolase
688	 38.25	0	760252..761187	-	311	59713870	htrB1	VF_A0687	-	lipid A biosynthesis lauroyl acyltransferase
689	 28.48	-2	761408..762190	-	260	59713871	-	VF_A0688	-	hypothetical protein
690	 39.82	0	762407..763300	+	297	59713872	-	VF_A0689	-	hypothetical protein
691	 39.49	0	763333..767424	+	1363	59713873	-	VF_A0690	-	hypothetical protein
692	 36.23	0	767485..768141	-	218	59713874	nfsB	VF_A0691	-	dihydropteridine reductase, NAD(P)H-dependent, oxygen-insensitive
693	 33.56	0	768231..769550	-	439	59713875	-	VF_A0692	-	GGDEF domain-containing protein
694	 38.38	0	769866..770063	+	65	59713876	-	VF_A0693	-	hypothetical protein
695	 35.30	0	770256..770966	+	236	59713877	-	VF_A0694	-	hexapeptide repeat-containing transferase
696	 43.01	+1	771042..772085	-	347	59713878	guaC	VF_A0695	-	guanosine 5'-monophosphate oxidoreductase
697	 38.93	0	772546..773850	+	434	59713879	-	VF_A0696	-	inosine-guanosine kinase
698	 38.35	0	773927..774205	-	92	59713880	ppiC	VF_A0697	-	peptidyl-prolyl cis-trans isomerase C (rotamase C)
699	 37.79	0	774346..775242	+	298	59713881	cheV3	VF_A0698	-	CheW/CheY hybrid protein CheV3
700	 40.79	0	775364..776047	-	227	59713882	-	VF_A0699	-	nodulation protein N
701	 41.29	+1	776488..777606	-	372	59713883	gcvT	VF_A0700	-	aminomethyltransferase, tetrahydrofolate-dependent, subunit (T protein) of glycine cleavage complex
702	 39.42	0	777672..778328	-	218	59713884	-	VF_A0701	-	transcriptional regulator
703	 41.73	+1	778596..778976	+	126	59713885	gcvH	VF_A0702	-	glycine cleavage system protein H
704	 42.71	+1	779000..781867	+	955	59713886	gcvP	VF_A0703	-	glycine dehydrogenase
705	 36.12	0	782181..782789	-	202	59713887	-	VF_A0704	-	hypothetical protein
706	 40.56	0	782758..789201	-	2147	59713888	-	VF_A0705	-	hypothetical protein
707	 36.87	0	790265..792298	+	677	59713889	-	VF_A0706	-	EAL domain-containing protein
708	 39.63	0	792386..793258	-	290	59713890	-	VF_A0707	-	drug/metabolite exporter family protein
709	 39.63	0	793340..794197	-	285	59713891	yijO	VF_A0708	-	DNA-binding transcriptional regulator
710	 26.14	-2	794188..794340	-	50	172087812	-	VF_A1188	-	hypothetical protein
711	 41.75	+1	794498..796399	+	633	59713892	-	VF_A0709	-	PTS system, mannose-specific IIAB component
712	 38.51	0	796471..797667	+	398	59713893	manA	VF_A0710	-	mannose-6-phosphate isomerase
713	 39.06	0	797847..798632	-	261	59713894	-	VF_A0711	-	PTS system, IIA component
714	 36.33	0	798632..798931	-	99	59713895	-	VF_A0712	-	hypothetical protein
715	 42.51	+1	799136..801031	+	631	59713896	frwC	VF_A0713	-	enzyme IIC component of PTS
716	 38.98	0	801099..803417	-	772	59713897	-	VF_A0714	-	serine protease
717	 41.98	+1	804162..807479	+	1105	59713898	-	VF_A0715	-	chitodextrinase precursor
718	 36.05	0	808046..808192	-	48	59713899	-	VF_A0716	-	hypothetical protein
719	 38.32	0	808534..809736	-	400	59713900	-	VF_A0717	-	putative lipoprotein
720	 38.88	0	809736..810962	-	408	59713901	-	VF_A0718	-	hypothetical protein
721	 37.11	0	811053..815894	-	1613	59713902	-	VF_A0719	-	hypothetical protein
722	 39.10	0	815894..816985	-	363	59713903	-	VF_A0720	-	putative lipoprotein
723	 36.17	0	816990..818684	-	564	59713904	-	VF_A0721	-	hypothetical protein
724	 40.21	0	818936..820477	-	513	59713905	-	VF_A0722	-	sodium/proton antiporter
725	 32.48	-1	820810..821280	+	156	59713906	-	VF_A0723	-	hypothetical protein
726	 37.66	0	821281..822204	-	307	59713907	-	VF_A0724	-	LysR family transcriptional regulator
727	 38.90	0	822303..823343	+	346	59713908	-	VF_A0725	-	choloylglycine hydrolase family protein
728	 38.75	0	823420..824397	-	325	59713909	-	VF_A0726	-	NAD-dependent oxidoreductase
729	 36.78	0	824428..824775	-	115	59713910	-	VF_A0727	-	putative cytoplasmic protein
730	 37.28	0	824852..825130	-	92	59713911	-	VF_A0728	-	acetyltransferase
731	 39.61	0	825171..826349	-	392	59713912	-	VF_A0729	-	major facilitator transporter
732	 36.26	0	826434..827321	-	295	59713913	abgR	VF_A0730	-	DNA-binding transcriptional regulator
733	 41.61	+1	827466..829097	+	543	59713914	treC	VF_A0731	-	trehalose-6-P hydrolase
734	 37.06	0	829167..829970	-	267	59713915	-	VF_A0732	-	transcriptional regulator
735	 38.18	0	829967..831019	-	350	59713916	-	VF_A0733	-	two component sensor histidine kinase
736	 42.24	+1	831096..832274	-	392	59713917	-	VF_A0734	-	hypothetical protein
737	 40.73	0	832277..833074	-	265	59713918	-	VF_A0735	-	hypothetical protein
738	 41.77	+1	833067..834335	-	422	59713919	-	VF_A0736	-	ABC transporter permease protein
739	 43.42	+1	834323..835006	-	227	59713920	-	VF_A0737	-	ABC transporter ATP-binding protein
740	 43.15	+1	835016..835657	-	213	59713921	-	VF_A0738	-	hypothetical protein
741	 41.62	+1	835843..836337	+	164	59713922	yhhY	VF_A0739	-	acetyltransferase
742	 40.74	0	836414..836683	-	89	59713923	ybiI	VF_A0740	-	hypothetical protein
743	 40.90	0	836867..837871	-	334	59713924	-	VF_A0741	-	hypothetical protein
744	 38.30	0	837994..839019	-	341	59713925	-	VF_A0742	-	hypothetical protein
745	 39.51	0	839032..840099	-	355	59713926	-	VF_A0743	-	multidrug resistance protein A
746	 34.46	0	840214..841101	+	295	59713927	-	VF_A0744	-	LysR family transcriptional regulator
747	 39.06	0	841432..842112	-	226	59713928	bioD	VF_A0745	-	dithiobiotin synthetase
748	 38.93	0	842105..842926	-	273	59713929	bioC	VF_A0746	-	biotin biosynthesis protein BioC
749	 42.19	+1	842933..844084	-	383	172087813	bioF	VF_A0747	-	8-amino-7-oxononanoate synthase
750	 41.79	+1	844068..845120	-	350	172087814	bioB	VF_A1189	-	biotin synthase
751	 43.48	+1	845249..846529	+	426	59713931	bioA	VF_A0748	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
752	 33.33	-1	846605..846814	-	69	59713932	-	VF_A0749	-	hypothetical protein
753	 38.53	0	846958..847515	-	185	59713933	rimJ	VF_A0750	-	ribosomal-protein-S5-alanine N-acetyltransferase
754	 37.86	0	847527..849074	-	515	59713934	tyrR	VF_A0751	-	DNA-binding transcriptional regulator, tyrosine-binding
755	 37.67	0	849209..850153	+	314	59713935	ybgA	VF_A0752	-	hypothetical protein
756	 37.64	0	850143..851582	+	479	59713936	phr	VF_A0753	-	deoxyribodipyrimidine photolyase Phr, FAD-binding
757	 37.65	0	851633..853486	+	617	59713937	-	VF_A0754	-	peptide-methionine (S)-S-oxide reductase
37.27	MEAN

3.84	STD DEV
