IslandPath Analysis: Vibrio fischeri ES114

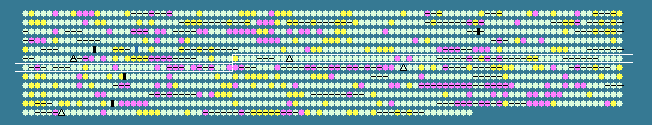

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.27 STD DEV: 3.84
Vibrio fischeri ES114 chromosome II, complete sequence - 1..1330333
1175 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
536	 41.18	+1	616265..619258	+	997	59713722	-	VF_A0539	-	type I restriction-modification system restriction subunit
537	 37.71	0	619283..620608	+	441	59713723	-	VF_A0540	-	hypothetical protein
538	 37.70	0	621001..622650	+	549	59713724	-	VF_A0541	-	hypothetical protein
539	 40.71	0	622655..626719	+	1354	59713725	-	VF_A0542	-	superfamily I DNA helicase
540	 37.30	0	626716..627219	+	167	59713726	-	VF_A0543	-	hypothetical protein
541	 38.58	0	627213..627479	+	88	59713727	-	VF_A0544	-	hypothetical protein
542	 39.89	0	627490..628893	+	467	59713728	-	VF_A0545	-	putative cytoplasmic protein
543	 39.26	0	628883..629860	+	325	59713729	-	VF_A0546	-	hypothetical protein
544	 36.55	0	629853..630443	+	196	59713730	-	VF_A0547	-	hypothetical protein
545	 38.50	0	630681..631880	-	399	59713731	intA	VF_A0548	-	phage family integrase
546	 39.78	0	632237..632686	-	149	59713732	-	VF_A0549	-	putative lipoprotein
547	 40.58	0	632699..634810	-	703	59713733	-	VF_A0550	-	putative cytoplasmic protein
548	 35.96	0	635125..635925	-	266	59713734	-	VF_A0551	-	EAL domain-containing protein
549	 39.61	0	636076..636903	-	275	59713735	-	VF_A0552	-	putative cytoplasmic protein
550	 38.83	0	637049..638431	+	460	59713736	-	VF_A0553	-	ATP-dependent RNA helicase
551	 35.46	0	638577..638858	-	93	59713737	-	VF_A0554	-	putative cytoplasmic protein
552	 36.90	0	638920..639732	-	270	59713738	-	VF_A0555	-	phosphate-binding protein
553	 36.45	0	639795..640595	-	266	59713739	-	VF_A0556	-	hypothetical protein
554	 36.08	0	640722..642434	+	570	59713740	sgrR	VF_A0557	-	DNA-binding transcriptional regulator
555	 36.85	0	642482..643447	-	321	59713741	-	VF_A0558	-	coproporphyrinogen III oxidase
556	 35.96	0	643535..643801	+	88	59713742	-	VF_A0559	-	hypothetical protein
557	 37.00	0	643933..645378	+	481	59713743	-	VF_A0560	-	two component sensor histidine kinase
558	 39.12	0	645353..646009	+	218	59713744	-	VF_A0561	-	two component response regulator
559	 34.76	0	646014..646922	+	302	59713745	-	VF_A0562	-	hypothetical protein
560	 37.04	0	646922..647083	+	53	59713746	-	VF_A0563	-	hypothetical protein
561	 39.75	0	647250..648449	+	399	59713747	-	VF_A0564	-	TraF protein
562	 37.99	0	648528..649064	+	178	59713748	mog	VF_A0565	-	molybdenum cofactor biosynthesis protein
563	 32.44	-1	649096..649320	-	74	59713749	-	VF_A0566	-	hypothetical protein
564	 34.50	0	649637..651601	+	654	59713750	ydaM	VF_A0567	-	GGDEF domain-containing protein
565	 30.86	-1	651702..651782	+	26	172087807	-	VF_A1183	-	hypothetical protein
566	 39.60	0	651891..654569	-	892	59713751	yfiQ	VF_A0568	-	fused acyl-CoA synthetase: NAD(P)-binding subunit/ATP-binding subunit
567	 39.04	0	654794..655354	+	186	59713752	-	VF_A0569	-	hypothetical protein
568	 37.66	0	655406..656398	+	330	59713753	ddlA	VF_A0570	-	D-alanyl-alanine synthetase A
569	 35.08	0	656429..657343	-	304	59713754	-	VF_A0571	-	DNA integration/recombination/invertion protein
570	 34.47	0	657487..657837	+	116	59713755	-	VF_A0572	-	minor tail protein
571	 40.38	0	657877..658188	+	103	59713756	yciH	VF_A0573	-	translation initiation factor Sui1
572	 40.74	0	658717..658824	-	35	59713757	-	VF_A0574	-	hypothetical protein
573	 40.74	0	659275..659382	-	35	59713758	-	VF_A0575	-	hypothetical protein
574	 39.66	0	659901..661085	-	394	59713759	zot	VF_A0576	-	zona occludens toxin
575	 29.12	-2	661082..661366	-	94	59713760	ace	VF_A0577	-	enterotoxin
576	 35.24	0	661373..662578	-	401	59713761	orfU	VF_A0578	-	OrfU
577	 41.46	+1	662694..662939	-	81	172087808	cep	VF_A1184	-	Cep
578	 31.50	-1	663082..663408	-	108	59713763	rstB	VF_A0580	-	RstB2 protein
579	 37.49	0	663411..664565	-	384	59713764	rstA	VF_A0581	-	RstA2 protein
580	 30.06	-1	664687..665022	+	111	59713765	rstR	VF_A0582	-	transcriptional repressor rstR
581	 36.20	0	666012..666290	+	92	172087809	-	VF_A1185	-	hypothetical protein
582	 35.33	0	666343..666492	-	49	172087810	-	VF_A1186	-	hypothetical protein
583	 39.68	0	666784..667350	+	188	59713766	-	VF_A0583	-	hypothetical protein
584	 36.79	0	667426..668004	-	192	59713767	-	VF_A0584	-	hypothetical protein
585	 43.36	+1	668217..669593	-	458	59713768	pntB	VF_A0585	-	pyridine nucleotide transhydrogenase
586	 43.10	+1	669605..671161	-	518	59713769	pntA	VF_A0586	-	NAD(P) transhydrogenase subunit alpha
587	 38.41	0	671420..671695	-	91	59713770	-	VF_A0587	-	transcriptional activator HlyU
588	 37.48	0	671775..672329	-	184	59713771	-	VF_A0588	-	OmpA family domain-containing protein
589	 37.24	0	672439..673563	-	374	59713772	-	VF_A0589	-	integral membrane protein
590	 36.71	0	673567..674691	-	374	59713773	-	VF_A0590	-	daunorubicin resistance transmembrane protein
591	 39.33	0	674711..675694	-	327	59713774	-	VF_A0591	-	multidrug resistance protein A
592	 38.26	0	675699..677057	-	452	59713775	-	VF_A0592	-	type I secretion outer membrane protein
593	 38.10	0	677153..677614	-	153	59713776	luxT	VF_A0593	-	LuxT transcriptional regulator
594	 35.02	0	678072..678368	+	98	59713777	-	VF_A0594	-	hypothetical protein
595	 40.10	0	678438..678644	-	68	59713778	-	VF_A0595	-	cold shock protein
596	 34.31	0	678842..679456	+	204	59713779	-	VF_A0596	-	hypothetical protein
597	 38.35	0	679484..680419	+	311	59713780	-	VF_A0597	-	LysR family transcriptional regulator
598	 36.59	0	680421..681650	-	409	59713781	-	VF_A0598	-	hypothetical protein
599	 39.52	0	681687..682349	+	220	59713782	-	VF_A0599	-	hypothetical protein
600	 37.84	0	682386..682895	-	169	59713783	-	VF_A0600	-	hypothetical protein
601	 37.04	0	682902..683414	-	170	59713784	-	VF_A0601	-	nicotinic acid mononucleotide adenylyltransferase
602	 37.91	0	683569..684399	+	276	59713785	nadE	VF_A0602	-	NAD synthetase
603	 32.98	-1	684396..684680	-	94	59713786	yhbQ	VF_A0603	-	endonuclease
604	 37.77	0	684680..685333	-	217	59713787	yceH	VF_A0604	-	hypothetical protein
605	 39.05	0	685485..685904	+	139	59713788	-	VF_A0605	-	hypothetical protein
606	 37.54	0	686004..686312	+	102	59713789	-	VF_A0606	-	hypothetical protein
607	 37.61	0	686377..686820	-	147	59713790	-	VF_A0607	-	hypothetical protein
608	 38.91	0	686820..687824	-	334	59713791	-	VF_A0608	-	two component response regulator
609	 35.52	0	687960..688325	-	121	59713792	-	VF_A0609	-	hypothetical protein
610	 39.31	0	688651..689202	-	183	59713793	-	VF_A0610	-	hypothetical protein
611	 42.13	+1	689520..690758	+	412	59713794	yhjX	VF_A0611	-	transporter
612	 36.86	0	690868..693222	+	784	59713795	-	VF_A0612	-	9-hexadecenoic acid cis-trans isomerase
613	 34.27	0	693386..693916	+	176	59713796	-	VF_A0613	-	hypothetical protein
614	 34.93	0	693922..694296	-	124	59713797	-	VF_A0614	-	hypothetical protein
615	 36.75	0	694489..695892	-	467	59713798	-	VF_A0615	-	hypothetical protein
616	 32.91	-1	696071..696304	-	77	59713799	-	VF_A0616	-	hypothetical protein
617	 40.62	0	696468..698114	+	548	59713800	-	VF_A0617	-	hypothetical protein
618	 38.03	0	698416..699756	+	446	59713801	-	VF_A0618	-	hypothetical protein
619	 39.76	0	700152..700400	-	82	59713802	-	VF_A0619	-	hypothetical protein
620	 35.96	0	700605..700832	+	75	59713803	-	VF_A0620	-	hypothetical protein
621	 35.03	0	700904..701434	-	176	59713804	-	VF_A0621	-	hypothetical protein
622	 34.03	0	701630..702205	-	191	59713805	-	VF_A0622	-	putative lipoprotein
623	 23.53	-2	702519..702620	-	33	59713806	-	VF_A0623	-	hypothetical protein
624	 36.31	0	703278..703982	-	234	59713807	ygeA	VF_A0624	-	racemase
625	 33.78	0	704117..704566	-	149	59713808	-	VF_A0625	-	hypothetical protein
626	 32.64	-1	704628..705062	-	144	59713809	-	VF_A0626	-	acetyltransferase
627	 31.69	-1	705313..705861	-	182	59713810	-	VF_A0627	-	hypothetical protein
628	 35.87	0	706054..706920	+	288	59713811	-	VF_A0628	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
629	 29.02	-2	707120..707374	-	84	172087811	-	VF_A1187	-	hypothetical protein
630	 33.06	-1	707406..707768	-	120	59713812	-	VF_A0629	-	hypothetical protein
631	 34.54	0	708464..708961	-	165	59713813	-	VF_A0630	-	hypothetical protein
632	 31.76	-1	709110..710063	-	317	59713814	-	VF_A0631	-	hypothetical protein
633	 36.96	0	710353..710931	-	192	59713815	-	VF_A0632	-	hypothetical protein
634	 39.90	0	711245..711625	-	126	59713816	-	VF_A0633	-	hypothetical protein
635	 30.22	-1	711895..712119	-	74	59713817	-	VF_A0634	-	hypothetical protein
37.27	MEAN

3.84	STD DEV
