IslandPath Analysis: Vibrio fischeri ES114

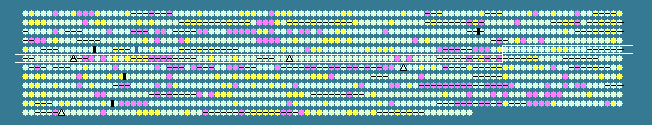

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 37.27   STD DEV: 3.84
Vibrio fischeri ES114 chromosome II, complete sequence - 1..1330333
1175 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
481	 38.76	0	556957..558687	-	576	59713667	-	VF_A0484	-	ribosomal large subunit pseudouridine synthase A
482	 39.21	0	558668..560368	-	566	59713668	-	VF_A0485	-	ribosomal large subunit pseudouridine synthase A
483	 34.60	0	560503..560739	-	78	59713669	-	VF_A0486	-	hypothetical protein
484	 38.64	0	560885..561808	-	307	59713670	ompU2	VF_A0487	-	outer membrane protein U paralog, OmpU2
485	 37.21	0	561982..562857	-	291	59713671	-	VF_A0488	-	hypothetical protein
486	 35.48	0	563023..563955	-	310	59713672	-	VF_A0489	-	LysR family transcriptional regulator
487	 35.54	0	564064..565059	+	331	59713673	-	VF_A0490	-	soluble lytic murein transglycosylase
488	 34.93	0	565069..566073	+	334	59713674	-	VF_A0491	-	soluble lytic murein transglycosylase
489	 40.94	0	566145..567248	-	367	59713675	anmK	VF_A0492	-	anhydro-N-acetylmuramic acid kinase
490	 41.47	+1	567421..568416	+	331	59713676	nagZ	VF_A0493	-	beta-hexosaminidase
491	 43.85	+1	568497..569942	-	481	59713677	pykA	VF_A0494	-	pyruvate kinase II
492	 39.79	0	570044..570724	-	226	59713678	ygcF	VF_A0495	-	hypothetical protein
493	 39.75	0	570908..572122	+	404	59713679	dgsA	VF_A0496	-	DNA-binding transcriptional repressor
494	 40.60	0	572200..573204	-	334	59713680	-	VF_A0497	-	L-allo-threonine aldolase
495	 38.00	0	573487..575136	+	549	59713681	ravA	VF_A0498	-	MoxR-like ATPase, regulatory ATPase variant A, RavA
496	 37.82	0	575155..576603	+	482	59713682	viaA	VF_A0499	-	hypothetical protein
497	 40.74	0	576604..576846	-	80	59713683	-	VF_A0500	-	hypothetical protein
498	 38.58	0	576890..577327	-	145	59713684	-	VF_A0501	-	hypothetical protein
499	 37.80	0	577536..578162	+	208	59713685	-	VF_A0502	-	outer membrane protein
500	 35.48	0	578216..578728	-	170	59713686	creA	VF_A0503	-	CreA family protein
501	 34.52	0	579102..579524	+	140	59713687	-	VF_A0504	-	hypothetical protein
502	 35.80	0	579566..580051	+	161	59713688	-	VF_A0505	-	hypothetical protein
503	 35.57	0	580074..581819	+	581	59713689	-	VF_A0506	-	two component response regulator
504	 37.09	0	581905..583128	-	407	59713690	gltS	VF_A0507	-	glutamate transporter
505	 37.75	0	583349..584344	-	331	59713691	-	VF_A0508	-	hypothetical protein
506	 38.70	0	584521..586347	-	608	59713692	-	VF_A0509	-	multidrug resistance ABC transporter ATP-binding and permease protein
507	 37.25	0	586538..587506	+	322	59713693	-	VF_A0510	-	low-affinity zinc transport protein
508	 40.32	0	587574..588518	-	314	59713694	-	VF_A0511	-	ribosomal biogenesis GTPase
509	 39.54	0	588898..589203	+	101	59713695	-	VF_A0512	-	Phage integrase family protein
510	 40.44	0	589236..589418	+	60	59713696	-	VF_A0513	-	DNA integration/recombination/invertion protein
511	 24.00	-2	589544..590497	-	317	59713697	-	VF_A0514	-	hypothetical protein
512	 30.28	-1	590932..591585	+	217	59713698	yagK	VF_A0515	-	prophage protein
513	 36.18	0	591629..593068	-	479	59713699	-	VF_A0516	-	putative lipoprotein
514	 32.94	-1	593087..593851	-	254	59713700	-	VF_A0517	-	hypothetical protein
515	 37.50	0	594094..594429	-	111	59713701	-	VF_A0518	-	hypothetical protein
516	 41.11	+1	594900..595799	-	299	59713702	-	VF_A0519	-	hypothetical protein
517	 39.74	0	595895..596362	-	155	59713703	-	VF_A0520	-	hypothetical protein
518	 41.44	+1	596427..596870	-	147	59713704	-	VF_A0521	-	hypothetical protein
519	 41.77	+1	596870..597343	-	157	59713705	-	VF_A0522	-	DNA repair protein RadC
520	 41.15	+1	597490..597681	+	63	59713706	-	VF_A0523	-	DNA-binding protein
521	 42.73	+1	597774..598220	+	148	59713707	-	VF_A0524	-	ribonuclease H
522	 26.95	-2	598645..599412	+	255	59713708	-	VF_A0525	-	AraC family transcriptional regulator
523	 24.14	-2	599443..600312	+	289	59713709	-	VF_A0526	-	GGDEF domain-containing protein
524	 26.38	-2	600595..602205	+	536	59713710	-	VF_A0527	-	methyl-accepting chemotaxis protein
525	 30.47	-1	602634..604277	+	547	59713711	-	VF_A0528	-	methyl-accepting chemotaxis protein
526	 36.60	0	604839..605573	+	244	59713712	pnuC	VF_A0529	-	nicotinamide mononucleotide transporter
527	 40.00	0	605570..606304	+	244	59713713	-	VF_A0530	-	uridine phosphorylase
528	 35.53	0	606435..607118	+	227	59713714	-	VF_A0531	-	hypothetical protein
529	 40.28	0	607308..607451	+	47	59713715	-	VF_A0532	-	hypothetical protein
530	 35.44	0	607543..609771	+	742	59713716	-	VF_A0533	-	hypothetical protein
531	 36.84	0	610063..610233	+	56	59713717	-	VF_A0534	-	hypothetical protein
532	 40.89	0	610230..611711	+	493	59713718	hsdM	VF_A0535	-	DNA methylase M
533	 40.44	0	611708..613579	+	623	59713719	-	VF_A0536	-	hypothetical protein
534	 40.49	0	613576..615042	+	488	59713720	-	VF_A0537	-	type I restriction-modification system methylation subunit
535	 34.56	0	615042..616262	+	406	59713721	-	VF_A0538	-	type I restriction-modification system specificity subunit
536	 41.18	+1	616265..619258	+	997	59713722	-	VF_A0539	-	type I restriction-modification system restriction subunit
537	 37.71	0	619283..620608	+	441	59713723	-	VF_A0540	-	hypothetical protein
538	 37.70	0	621001..622650	+	549	59713724	-	VF_A0541	-	hypothetical protein
539	 40.71	0	622655..626719	+	1354	59713725	-	VF_A0542	-	superfamily I DNA helicase
540	 37.30	0	626716..627219	+	167	59713726	-	VF_A0543	-	hypothetical protein
541	 38.58	0	627213..627479	+	88	59713727	-	VF_A0544	-	hypothetical protein
542	 39.89	0	627490..628893	+	467	59713728	-	VF_A0545	-	putative cytoplasmic protein
543	 39.26	0	628883..629860	+	325	59713729	-	VF_A0546	-	hypothetical protein
544	 36.55	0	629853..630443	+	196	59713730	-	VF_A0547	-	hypothetical protein
545	 38.50	0	630681..631880	-	399	59713731	intA	VF_A0548	-	phage family integrase
546	 39.78	0	632237..632686	-	149	59713732	-	VF_A0549	-	putative lipoprotein
547	 40.58	0	632699..634810	-	703	59713733	-	VF_A0550	-	putative cytoplasmic protein
548	 35.96	0	635125..635925	-	266	59713734	-	VF_A0551	-	EAL domain-containing protein
549	 39.61	0	636076..636903	-	275	59713735	-	VF_A0552	-	putative cytoplasmic protein
550	 38.83	0	637049..638431	+	460	59713736	-	VF_A0553	-	ATP-dependent RNA helicase
551	 35.46	0	638577..638858	-	93	59713737	-	VF_A0554	-	putative cytoplasmic protein
552	 36.90	0	638920..639732	-	270	59713738	-	VF_A0555	-	phosphate-binding protein
553	 36.45	0	639795..640595	-	266	59713739	-	VF_A0556	-	hypothetical protein
554	 36.08	0	640722..642434	+	570	59713740	sgrR	VF_A0557	-	DNA-binding transcriptional regulator
555	 36.85	0	642482..643447	-	321	59713741	-	VF_A0558	-	coproporphyrinogen III oxidase
556	 35.96	0	643535..643801	+	88	59713742	-	VF_A0559	-	hypothetical protein
557	 37.00	0	643933..645378	+	481	59713743	-	VF_A0560	-	two component sensor histidine kinase
558	 39.12	0	645353..646009	+	218	59713744	-	VF_A0561	-	two component response regulator
559	 34.76	0	646014..646922	+	302	59713745	-	VF_A0562	-	hypothetical protein
560	 37.04	0	646922..647083	+	53	59713746	-	VF_A0563	-	hypothetical protein
561	 39.75	0	647250..648449	+	399	59713747	-	VF_A0564	-	TraF protein
562	 37.99	0	648528..649064	+	178	59713748	mog	VF_A0565	-	molybdenum cofactor biosynthesis protein
563	 32.44	-1	649096..649320	-	74	59713749	-	VF_A0566	-	hypothetical protein
564	 34.50	0	649637..651601	+	654	59713750	ydaM	VF_A0567	-	GGDEF domain-containing protein
565	 30.86	-1	651702..651782	+	26	172087807	-	VF_A1183	-	hypothetical protein
566	 39.60	0	651891..654569	-	892	59713751	yfiQ	VF_A0568	-	fused acyl-CoA synthetase: NAD(P)-binding subunit/ATP-binding subunit
567	 39.04	0	654794..655354	+	186	59713752	-	VF_A0569	-	hypothetical protein
568	 37.66	0	655406..656398	+	330	59713753	ddlA	VF_A0570	-	D-alanyl-alanine synthetase A
569	 35.08	0	656429..657343	-	304	59713754	-	VF_A0571	-	DNA integration/recombination/invertion protein
570	 34.47	0	657487..657837	+	116	59713755	-	VF_A0572	-	minor tail protein
571	 40.38	0	657877..658188	+	103	59713756	yciH	VF_A0573	-	translation initiation factor Sui1
572	 40.74	0	658717..658824	-	35	59713757	-	VF_A0574	-	hypothetical protein
573	 40.74	0	659275..659382	-	35	59713758	-	VF_A0575	-	hypothetical protein
574	 39.66	0	659901..661085	-	394	59713759	zot	VF_A0576	-	zona occludens toxin
575	 29.12	-2	661082..661366	-	94	59713760	ace	VF_A0577	-	enterotoxin
576	 35.24	0	661373..662578	-	401	59713761	orfU	VF_A0578	-	OrfU
577	 41.46	+1	662694..662939	-	81	172087808	cep	VF_A1184	-	Cep
578	 31.50	-1	663082..663408	-	108	59713763	rstB	VF_A0580	-	RstB2 protein
579	 37.49	0	663411..664565	-	384	59713764	rstA	VF_A0581	-	RstA2 protein
580	 30.06	-1	664687..665022	+	111	59713765	rstR	VF_A0582	-	transcriptional repressor rstR
37.27	MEAN

3.84	STD DEV
