IslandPath Analysis: Vibrio fischeri ES114

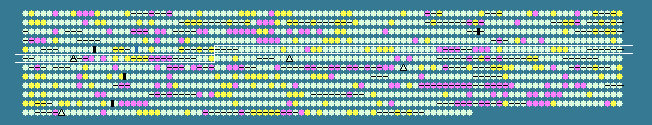

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 37.27   STD DEV: 3.84
Vibrio fischeri ES114 chromosome II, complete sequence - 1..1330333
1175 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
433	 35.92	0	497694..498311	+	205	59713617	-	VF_A0434	-	DnaJ-related protein
434	 37.93	0	498318..499667	-	449	59713618	-	VF_A0435	-	two component sensor histidine kinase
435	 36.14	0	499648..500325	-	225	59713619	-	VF_A0436	-	putative transcriptional regulatory protein
436	 36.07	0	500566..500967	+	133	59713620	-	VF_A0437	-	hypothetical protein
437	 40.67	0	501042..502499	-	485	59713621	nagE2	VF_A0438	-	fused N-acetyl glucosamine specific PTS enzyme: IIC and IIB components
438	 40.34	0	502654..503838	-	394	59713622	nnrS	VF_A0439	-	nitrite and/or nitric oxide reductase
439	 39.06	0	504037..504891	+	284	59713623	-	VF_A0440	-	esterase/lipase
440	 36.32	0	504985..506022	-	345	59713624	-	VF_A0441	-	hypothetical protein
441	 36.36	0	506224..506619	+	131	59713625	-	VF_A0442	-	hypothetical protein
442	 37.30	0	506795..508129	+	444	59713626	cusC	VF_A0443	-	copper/silver resistance outer membrane protein
443	 39.46	0	508140..509609	+	489	59713627	cusB	VF_A0444	-	copper/silver efflux system, membrane fusion protein
444	 41.12	+1	509606..512725	+	1039	59713628	cusA	VF_A0445	-	copper/silver efflux system, membrane component
445	 39.45	0	512823..513329	+	168	59713629	cusF	VF_A0446	-	copper-binding protein
446	 37.75	0	513408..515036	-	542	59713630	-	VF_A0447	-	methyl-accepting chemotaxis protein
447	 37.81	0	515255..516883	-	542	59713631	-	VF_A0448	-	methyl-accepting chemotaxis protein
448	 33.74	0	517067..517312	-	81	59713632	-	VF_A0449	-	hypothetical protein
449	 42.40	+1	517423..518955	-	510	59713633	hutH	VF_A0450	-	histidine ammonia-lyase
450	 43.89	+1	518997..520691	-	564	59713634	hutU	VF_A0451	-	urocanate hydratase
451	 39.79	0	520710..521762	-	350	59713635	hutG	VF_A0452	-	formimidoylglutamase
452	 40.51	0	521737..522963	-	408	59713636	hutI	VF_A0453	-	imidazolonepropionase
453	 34.90	0	523147..523848	-	233	59713637	hutC	VF_A0454	-	histidine utilization repressor
454	 35.05	0	523991..524629	+	212	59713638	-	VF_A0455	-	hypothetical protein
455	 39.45	0	524697..525170	-	157	59713639	-	VF_A0456	-	peptidyl-prolyl cis-trans isomerase
456	 38.21	0	525195..525830	-	211	59713640	-	VF_A0457	-	putative lipoprotein
457	 38.05	0	525937..526827	-	296	59713641	-	VF_A0458	-	hypothetical protein
458	 41.55	+1	526917..530372	-	1151	172087806	mfd	VF_A0460	-	transcription-repair coupling factor
459	 38.07	0	530388..530957	-	189	59713644	-	VF_A0461	-	hypothetical protein
460	 40.86	0	531125..532333	+	402	59713645	lolC	VF_A0462	-	outer membrane-specific lipoprotein transporter subunit
461	 41.98	+1	532326..533042	+	238	59713646	lolD	VF_A0463	-	outer membrane-specific lipoprotein transporter subunit
462	 41.12	+1	533042..534286	+	414	59713647	lolE	VF_A0464	-	outer membrane-specific lipoprotein transporter subunit LolE
463	 34.52	0	534451..535800	+	449	59713648	-	VF_A0465	-	hypothetical protein
464	 35.91	0	537118..538164	+	348	59713650	-	VF_A0467	-	permease
465	 38.19	0	538302..539804	+	500	59713651	zwf	VF_A0468	-	glucose-6-phosphate 1-dehydrogenase
466	 37.76	0	539801..540523	+	240	59713652	-	VF_A0469	-	6-phosphogluconolactonase
467	 38.99	0	540560..542008	+	482	59713653	gnd	VF_A0470	-	6-phosphogluconate dehydrogenase
468	 37.39	0	542082..542747	-	221	59713654	yqjA	VF_A0471	-	inner membrane protein
469	 34.13	0	543371..543994	+	207	59713655	-	VF_A0472	-	transporter
470	 27.45	-2	544305..544916	+	203	59713656	tcpP	VF_A0473	-	transcriptional regulatory protein TcpP
471	 25.64	-2	544913..545302	+	129	59713657	tcpH	VF_A0474	-	TcpH protein
472	 29.79	-1	545355..547046	+	563	59713658	-	VF_A0475	-	GGDEF domain-containing protein
473	 27.92	-2	547097..548389	+	430	59713659	-	VF_A0476	-	GGDEF domain-containing protein
474	 36.36	0	548510..549862	+	450	59713660	-	VF_A0477	-	hypothetical protein
475	 34.86	0	549862..551175	+	437	59713661	-	VF_A0478	-	N-acetylglucosaminyltransferase
476	 32.85	-1	551181..552224	+	347	59713662	-	VF_A0479	-	hypothetical protein
477	 23.29	-2	552293..552541	+	82	59713663	-	VF_A0480	-	hypothetical protein
478	 32.06	-1	552592..554235	+	547	59713664	-	VF_A0481	-	methyl-accepting chemotaxis protein
479	 36.93	0	554294..555517	-	407	59713665	-	VF_A0482	-	sodium/glutamate symporter
480	 41.89	+1	555673..556770	-	365	59713666	-	VF_A0483	-	rod shape-determining protein RodA
481	 38.76	0	556957..558687	-	576	59713667	-	VF_A0484	-	ribosomal large subunit pseudouridine synthase A
482	 39.21	0	558668..560368	-	566	59713668	-	VF_A0485	-	ribosomal large subunit pseudouridine synthase A
483	 34.60	0	560503..560739	-	78	59713669	-	VF_A0486	-	hypothetical protein
484	 38.64	0	560885..561808	-	307	59713670	ompU2	VF_A0487	-	outer membrane protein U paralog, OmpU2
485	 37.21	0	561982..562857	-	291	59713671	-	VF_A0488	-	hypothetical protein
486	 35.48	0	563023..563955	-	310	59713672	-	VF_A0489	-	LysR family transcriptional regulator
487	 35.54	0	564064..565059	+	331	59713673	-	VF_A0490	-	soluble lytic murein transglycosylase
488	 34.93	0	565069..566073	+	334	59713674	-	VF_A0491	-	soluble lytic murein transglycosylase
489	 40.94	0	566145..567248	-	367	59713675	anmK	VF_A0492	-	anhydro-N-acetylmuramic acid kinase
490	 41.47	+1	567421..568416	+	331	59713676	nagZ	VF_A0493	-	beta-hexosaminidase
491	 43.85	+1	568497..569942	-	481	59713677	pykA	VF_A0494	-	pyruvate kinase II
492	 39.79	0	570044..570724	-	226	59713678	ygcF	VF_A0495	-	hypothetical protein
493	 39.75	0	570908..572122	+	404	59713679	dgsA	VF_A0496	-	DNA-binding transcriptional repressor
494	 40.60	0	572200..573204	-	334	59713680	-	VF_A0497	-	L-allo-threonine aldolase
495	 38.00	0	573487..575136	+	549	59713681	ravA	VF_A0498	-	MoxR-like ATPase, regulatory ATPase variant A, RavA
496	 37.82	0	575155..576603	+	482	59713682	viaA	VF_A0499	-	hypothetical protein
497	 40.74	0	576604..576846	-	80	59713683	-	VF_A0500	-	hypothetical protein
498	 38.58	0	576890..577327	-	145	59713684	-	VF_A0501	-	hypothetical protein
499	 37.80	0	577536..578162	+	208	59713685	-	VF_A0502	-	outer membrane protein
500	 35.48	0	578216..578728	-	170	59713686	creA	VF_A0503	-	CreA family protein
501	 34.52	0	579102..579524	+	140	59713687	-	VF_A0504	-	hypothetical protein
502	 35.80	0	579566..580051	+	161	59713688	-	VF_A0505	-	hypothetical protein
503	 35.57	0	580074..581819	+	581	59713689	-	VF_A0506	-	two component response regulator
504	 37.09	0	581905..583128	-	407	59713690	gltS	VF_A0507	-	glutamate transporter
505	 37.75	0	583349..584344	-	331	59713691	-	VF_A0508	-	hypothetical protein
506	 38.70	0	584521..586347	-	608	59713692	-	VF_A0509	-	multidrug resistance ABC transporter ATP-binding and permease protein
507	 37.25	0	586538..587506	+	322	59713693	-	VF_A0510	-	low-affinity zinc transport protein
508	 40.32	0	587574..588518	-	314	59713694	-	VF_A0511	-	ribosomal biogenesis GTPase
509	 39.54	0	588898..589203	+	101	59713695	-	VF_A0512	-	Phage integrase family protein
510	 40.44	0	589236..589418	+	60	59713696	-	VF_A0513	-	DNA integration/recombination/invertion protein
511	 24.00	-2	589544..590497	-	317	59713697	-	VF_A0514	-	hypothetical protein
512	 30.28	-1	590932..591585	+	217	59713698	yagK	VF_A0515	-	prophage protein
513	 36.18	0	591629..593068	-	479	59713699	-	VF_A0516	-	putative lipoprotein
514	 32.94	-1	593087..593851	-	254	59713700	-	VF_A0517	-	hypothetical protein
515	 37.50	0	594094..594429	-	111	59713701	-	VF_A0518	-	hypothetical protein
516	 41.11	+1	594900..595799	-	299	59713702	-	VF_A0519	-	hypothetical protein
517	 39.74	0	595895..596362	-	155	59713703	-	VF_A0520	-	hypothetical protein
518	 41.44	+1	596427..596870	-	147	59713704	-	VF_A0521	-	hypothetical protein
519	 41.77	+1	596870..597343	-	157	59713705	-	VF_A0522	-	DNA repair protein RadC
520	 41.15	+1	597490..597681	+	63	59713706	-	VF_A0523	-	DNA-binding protein
521	 42.73	+1	597774..598220	+	148	59713707	-	VF_A0524	-	ribonuclease H
522	 26.95	-2	598645..599412	+	255	59713708	-	VF_A0525	-	AraC family transcriptional regulator
523	 24.14	-2	599443..600312	+	289	59713709	-	VF_A0526	-	GGDEF domain-containing protein
524	 26.38	-2	600595..602205	+	536	59713710	-	VF_A0527	-	methyl-accepting chemotaxis protein
525	 30.47	-1	602634..604277	+	547	59713711	-	VF_A0528	-	methyl-accepting chemotaxis protein
526	 36.60	0	604839..605573	+	244	59713712	pnuC	VF_A0529	-	nicotinamide mononucleotide transporter
527	 40.00	0	605570..606304	+	244	59713713	-	VF_A0530	-	uridine phosphorylase
528	 35.53	0	606435..607118	+	227	59713714	-	VF_A0531	-	hypothetical protein
529	 40.28	0	607308..607451	+	47	59713715	-	VF_A0532	-	hypothetical protein
530	 35.44	0	607543..609771	+	742	59713716	-	VF_A0533	-	hypothetical protein
531	 36.84	0	610063..610233	+	56	59713717	-	VF_A0534	-	hypothetical protein
532	 40.89	0	610230..611711	+	493	59713718	hsdM	VF_A0535	-	DNA methylase M
37.27	MEAN

3.84	STD DEV
