IslandPathversion 1.0

IslandPath Analysis: Vibrio fischeri ES114

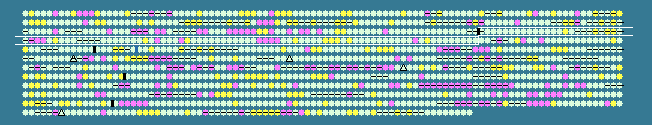

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.27 STD DEV: 3.84
Vibrio fischeri ES114 chromosome II, complete sequence - 1..1330333
1175 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
277	 35.54	0	307799..308296	-	165	59713460	-	VF_A0277	-	hypothetical protein
278	 35.95	0	308442..309398	-	318	59713461	alx	VF_A0278	-	putative membrane-bound redox modulator that IS induced by high pH
279	 39.32	0	309787..310956	+	389	59713462	-	VF_A0279	-	hypothetical protein
280	 34.36	0	311017..311988	-	323	59713463	-	VF_A0280	-	hypothetical protein
281	 38.85	0	312151..314271	+	706	59713464	nrdD	VF_A0281	-	anaerobic ribonucleoside triphosphate reductase
282	 37.15	0	314271..314741	+	156	59713465	nrdG	VF_A0282	-	anaerobic ribonucleotide reductase-activating protein
283	 40.66	0	314832..316019	+	395	59713466	-	VF_A0283	-	aromatic amino acid aminotransferase
284	 38.47	0	316084..316725	+	213	59713467	-	VF_A0284	-	ATP-dependent Zn protease
285	 36.50	0	316802..318220	-	472	59713468	-	VF_A0285	-	amino-acid ABC transporter binding protein
286	 33.89	0	318311..319744	-	477	59713469	-	VF_A0286	-	amino-acid ABC transporter binding protein
287	 37.96	0	320009..320548	-	179	59713470	-	VF_A0287	-	hypothetical protein
288	 37.01	0	320632..321012	-	126	59713471	-	VF_A0288	-	protein YgiW precursor
289	 39.44	0	321185..322690	+	501	59713472	cobQ	VF_A0289	-	cobyric acid synthase
290	 36.72	0	322702..323439	+	245	59713473	modA	VF_A0290	-	molybdate ABC transporter, periplasmic molybdate-binding protein
291	 40.87	0	323436..324125	+	229	59713474	modB	VF_A0291	-	molybdate ABC transporter permease protein
292	 38.63	0	324129..325223	+	364	59713475	modC	VF_A0292	-	molybdate transporter ATP-binding protein
293	 37.30	0	325234..325914	+	226	59713476	yjjG	VF_A0293	-	nucleotidase
294	 35.59	0	325995..326171	-	58	59713477	-	VF_A0294	-	hypothetical protein
295	 38.34	0	326176..326694	-	172	59713478	yaiL	VF_A0295	-	nucleoprotein/polynucleotide-associated enzyme
296	 41.38	+1	326739..327086	+	115	59713479	-	VF_A0296	-	hypothetical protein
297	 40.68	0	327418..327594	+	58	59713480	-	VF_A0297	-	TorE protein
298	 40.88	0	327652..328830	+	392	59713481	torC	VF_A0298	-	trimethylamine N-oxide reductase, cytochrome c-type subunit
299	 42.85	+1	328854..331712	+	952	59713482	torA	VF_A0299	-	trimethylamine N-oxide (TMAO) reductase I, catalytic subunit
300	 34.89	0	331950..333935	+	661	59713483	-	VF_A0300	-	methyl-accepting chemotaxis protein
301	 38.39	0	334332..336071	+	579	59713484	-	VF_A0301	-	alpha-galactosidase
302	 32.58	-1	336291..338270	+	659	59713485	-	VF_A0302	-	methyl-accepting chemotaxis protein
303	 30.61	-1	338260..338406	+	48	59713486	-	VF_A0303	-	hypothetical protein
304	 28.37	-2	338455..339582	-	375	172087799	-	VF_A0304	-	hypothetical protein
305	 38.91	0	339592..340416	-	274	59713488	sapF	VF_A0305	-	peptide transport system ATP-binding protein SapF
306	 42.01	+1	340400..341413	-	337	59713489	sapD	VF_A0306	-	peptide transport system ATP-binding protein SapD
307	 40.20	0	341413..342300	-	295	59713490	sapC	VF_A0307	-	peptide transport system permease protein SapC
308	 37.45	0	342287..343234	-	315	59713491	sapB	VF_A0308	-	peptide transport system permease protein SapB
309	 38.13	0	343234..344859	-	541	59713492	sapA	VF_A0309	-	peptide transport protein SapA
310	 37.84	0	344937..345956	-	339	59713493	pspF	VF_A0310	-	DNA-binding transcriptional activator
311	 35.89	0	346132..346797	+	221	59713494	pspA	VF_A0311	-	regulatory protein for phage-shock-protein operon
312	 38.67	0	346861..347085	+	74	59713495	pspB	VF_A0312	-	phage shock protein B
313	 40.57	0	347085..347471	+	128	59713496	pspC	VF_A0313	-	PspC transcriptional regulator, toxin of PspCB toxin-antitoxin pair
314	 38.98	0	347567..348964	+	465	59713497	ycjX	VF_A0314	-	hypothetical protein
315	 38.30	0	348961..349986	+	341	59713498	ycjF	VF_A0315	-	hypothetical protein
316	 38.68	0	350247..351125	+	292	59713499	thiD	VF_A0316	-	phosphomethylpyrimidine kinase
317	 40.56	0	351118..351864	+	248	59713500	-	VF_A0317	-	hydroxymethylpyrimidine transport ATP-binding protein
318	 40.42	0	351857..352675	+	272	59713501	tauC	VF_A0318	-	taurine transporter permease subunit
319	 39.14	0	352703..353650	+	315	59713502	-	VF_A0319	-	hydroxymethylpyrimidine-binding protein
320	 39.37	0	353669..354331	+	220	59713503	-	VF_A0320	-	transcriptional activator TenA
321	 41.67	+1	354364..355167	+	267	59713504	thiM	VF_A0321	-	hydroxyethylthiazole kinase
322	 39.75	0	355178..355816	+	212	59713505	-	VF_A0322	-	thiamine-phosphate pyrophosphorylase
323	 31.24	-1	355822..356634	-	270	59713506	-	VF_A0323	-	GGDEF domain-containing protein
324	 36.13	0	356822..358108	-	428	59713507	-	VF_A0324	-	thiol:disulfide interchange protein DsbD
325	 38.61	0	358786..360471	+	561	59713508	-	VF_A0325	-	methyl-accepting chemotaxis protein
326	 36.19	0	360529..361227	-	232	59713509	-	VF_A0326	-	hypothetical protein
327	 33.33	-1	361284..361454	+	56	59713510	-	VF_A0327	-	hypothetical protein
328	 43.05	+1	361620..362288	-	222	59713511	yiaD	VF_A0328	-	outer membrane lipoprotein
329	 38.68	0	362440..363000	-	186	59713512	-	VF_A0329	-	hypothetical protein
330	 36.99	0	363003..364505	-	500	59713513	-	VF_A0330	-	hypothetical protein
331	 37.94	0	364534..366813	-	759	59713514	-	VF_A0331	-	hypothetical protein
332	 37.92	0	366823..368958	-	711	59713515	-	VF_A0332	-	TonB system receptor, putative
333	 34.48	0	368975..370978	-	667	59713516	ptrB	VF_A0333	-	protease II
334	 34.30	0	371218..371736	-	172	59713517	-	VF_A0334	-	MarR family transcriptional regulator
335	 39.95	0	371836..372258	+	140	59713518	-	VF_A0335	-	osmotically inducible protein C
336	 40.66	0	372277..372672	+	131	59713519	-	VF_A0336	-	hypothetical protein
337	 40.48	0	372754..375132	-	792	172087800	-	VF_A0338	-	putative glucosyl hydrolase precursor
338	 40.66	0	375263..376258	-	331	59713522	ygjJ	VF_A0339	-	hypothetical protein
339	 40.42	0	376622..378046	-	474	59713523	-	VF_A0340	-	amino acid permease
340	 25.83	-2	378811..378930	-	39	59713524	-	VF_A0341	-	hypothetical protein
341	 30.56	-1	378969..380300	+	443	59713525	-	VF_A0342	-	GGDEF domain-containing protein
342	 29.04	-2	380290..381618	+	442	59713526	-	VF_A0343	-	GGDEF domain-containing protein
343	 29.98	-1	381624..383054	+	476	59713527	-	VF_A0344	-	EAL domain-containing protein
344	 39.06	0	383125..384555	-	476	59713528	ygjI	VF_A0345	-	transporter
345	 38.41	0	384729..385181	-	150	59713529	ebgC	VF_A0346	-	cryptic beta-D-galactosidase subunit beta
346	 40.84	0	385181..388282	-	1033	59713530	ebgA	VF_A0347	-	cryptic beta-D-galactosidase subunit alpha
347	 37.15	0	388632..389627	-	331	59713531	ebgR	VF_A0348	-	DNA-binding transcriptional repressor EbgR
348	 37.31	0	389729..390508	-	259	59713532	-	VF_A0349	-	DNA polymerase III, epsilon-subunit paralog (3' to 5' exonuclease)
349	 37.74	0	390512..392371	-	619	59713533	-	VF_A0350	-	cyclic nucleotide binding protein/CBS domain-containing proteins
350	 39.71	0	392512..394143	-	543	59713534	yidK	VF_A0351	-	transporter
351	 41.64	+1	394429..395439	+	336	59713535	galE	VF_A0352	-	UDP-galactose-4-epimerase
352	 41.98	+1	395577..396629	+	350	172087801	galT	VF_A0353	-	galactose-1-phosphate uridylyltransferase
353	 42.42	+1	396823..397977	+	384	59713538	galK	VF_A0355	-	galactokinase
354	 39.74	0	397987..399048	+	353	172087802	galM	VF_A0356	-	aldose 1-epimerase
355	 41.79	+1	399122..402172	-	1016	59713540	-	VF_A0357	-	acriflavin resistance plasma membrane protein
356	 40.43	0	402176..403288	-	370	59713541	-	VF_A0358	-	acriflavin resistance periplasmic protein
357	 36.60	0	403459..404070	+	203	59713542	-	VF_A0359	-	TetR family transcriptional regulator
358	 35.41	0	404218..406812	+	864	59713543	-	VF_A0360	-	sensor histidine kinase
359	 37.54	0	406842..407840	-	332	59713544	galR	VF_A0361	-	DNA-binding transcriptional repressor
360	 37.24	0	407971..408303	+	110	59713545	ygjH	VF_A0362	-	hypothetical protein
361	 39.30	0	408563..410071	+	502	59713546	-	VF_A0363	-	sodium/proton-dependent alanine carrier protein
362	 37.66	0	410151..410543	+	130	59713547	-	VF_A0364	-	transporter
363	 39.37	0	410624..410971	+	115	59713548	-	VF_A0365	-	translation initiation inhibitor
364	 37.81	0	411335..412651	+	438	59713549	-	VF_A0366	-	branched-chain amino acid transport system II carrier protein
365	 36.90	0	412725..413621	+	298	59713550	-	VF_A0367	-	deacetylase
366	 30.19	-1	413840..415525	+	561	59713551	-	VF_A0368	-	hypothetical protein
367	 35.88	0	415806..416237	+	143	59713552	-	VF_A0369	-	PTS system, fructose-like-1 IIA component
368	 41.74	+1	416255..417658	+	467	59713553	-	VF_A0370	-	PTS system, fructose-like enzyme IIC component
369	 36.72	0	417813..418373	-	186	59713554	-	VF_A0371	-	hypothetical protein
370	 36.43	0	418805..420064	+	419	59713555	ybdG	VF_A0372	-	mechanosensitive channel
371	 34.27	0	420219..421493	+	424	59713556	-	VF_A0373	-	mechanosensitive ion channel
372	 38.47	0	421737..423041	+	434	59713557	-	VF_A0374	-	ATP-dependent RNA helicase
373	 38.23	0	423316..424194	+	292	59713558	-	VF_A0375	-	hypothetical protein
374	 40.36	0	424198..425322	+	374	59713559	-	VF_A0376	-	hypothetical protein
375	 36.47	0	425333..426385	+	350	59713560	-	VF_A0377	-	hypothetical protein
376	 40.45	0	426464..428065	-	533	59713561	-	VF_A0378	-	glycine betaine transporter
37.27	MEAN

3.84	STD DEV
