IslandPath Analysis: Vibrio fischeri ES114

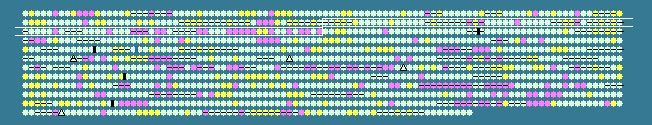

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.27 STD DEV: 3.84
Vibrio fischeri ES114 chromosome II, complete sequence - 1..1330333
1175 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
151	 36.69	0	164855..165241	-	128	59713331	pilA2	VF_A0148	-	PilA-like type-IV pilus protein
152	 35.82	0	165617..165817	+	66	59713332	-	VF_A0149	-	hypothetical protein
153	 42.05	+1	165913..166635	+	240	59713333	yeeN	VF_A0150	-	hypothetical protein
154	 40.79	0	166790..168292	+	500	59713334	rhlE	VF_A0151	-	RNA helicase
155	 34.37	0	168529..169980	+	483	59713335	-	VF_A0152	-	GGDEF domain-containing protein
156	 42.81	+1	170231..171433	+	400	59713336	emrD	VF_A0153	-	multidrug resistance protein D
157	 40.39	0	171540..172928	-	462	59713337	dbpA	VF_A0154	-	ATP-dependent RNA helicase DbpA
158	 33.82	0	173231..174679	+	482	59713338	-	VF_A0155	-	GGDEF domain-containing protein
159	 37.02	0	174758..175489	+	243	59713339	-	VF_A0156	-	hypothetical protein
160	 39.72	0	175505..176710	-	401	59713340	-	VF_A0157	-	permease
161	 39.09	0	176797..177612	+	271	59713341	fhuC	VF_A0158	-	iron-hydroxamate transporter subunit
162	 41.16	+1	177651..178544	+	297	59713342	fhuD	VF_A0159	-	iron-hydroxamate transporter subunit
163	 39.97	0	178557..180560	+	667	59713343	fhuB	VF_A0160	-	iron-hydroxamate transporter permease subunit
164	 37.73	0	180709..182484	+	591	59713344	iucA	VF_A0161	-	aerobactin siderophore biosynthesis protein IucA
165	 38.05	0	182477..183388	+	303	59713345	iucB	VF_A0162	-	aerobactin siderophore synthesis protein IucB
166	 38.33	0	183388..185148	+	586	59713346	iucC	VF_A0163	-	aerobactin siderophore biosynthesis protein IucC
167	 38.72	0	185177..186475	+	432	59713347	iucD	VF_A0164	-	aerobactin siderophore biosynthesis protein IucD
168	 37.93	0	186579..188753	+	724	59713348	iutA	VF_A0165	-	ferric aerobactin receptor precursor IutA
169	 40.80	0	188936..189859	+	307	59713349	qmcA	VF_A0166	-	protease, membrane anchored
170	 39.29	0	189869..190321	+	150	59713350	-	VF_A0167	-	hypothetical protein
171	 34.13	0	190558..191808	+	416	59713351	-	VF_A0168	-	methyl-accepting chemotaxis protein
172	 38.79	0	192233..193864	+	543	59713352	-	VF_A0169	-	methyl-accepting chemotaxis protein
173	 39.73	0	194325..195950	+	541	59713353	-	VF_A0170	-	methyl-accepting chemotaxis protein
174	 34.31	0	196139..196240	-	33	59713354	-	VF_A0171	-	hypothetical protein
175	 29.41	-2	196299..196553	+	84	59713355	-	VF_A0172	-	hypothetical protein
176	 42.06	+1	196618..197499	-	293	59713356	-	VF_A0173	-	3-hydroxyisobutyrate dehydrogenase
177	 31.43	-1	197650..198174	-	174	59713357	-	VF_A0174	-	hypothetical protein
178	 38.55	0	198391..199311	-	306	59713358	-	VF_A0175	-	hypothetical protein
179	 38.14	0	199419..199730	+	103	59713359	-	VF_A0176	-	ArsR family transcriptional regulator
180	 38.82	0	199754..200227	+	157	59713360	ogt	VF_A0177	-	O-6-alkylguanine-DNA:cysteine-protein methyltransferase
181	 34.97	0	200245..201585	-	446	59713361	cusS	VF_A0178	-	sensory histidine kinase in two-component regulatory system with CusR, senses copper ions
182	 36.71	0	201590..202270	-	226	59713362	cusR	VF_A0179	-	DNA-binding response regulator in two-component regulatory system with CusS
183	 33.57	0	202374..202799	-	141	59713363	-	VF_A0180	-	hypothetical protein
184	 39.34	0	202949..203614	+	221	59713364	-	VF_A0181	-	transcriptional regulator SyrB
185	 37.51	0	203620..205008	+	462	59713365	-	VF_A0182	-	two component sensor histidine kinase
186	 34.40	0	205244..206275	+	343	59713366	-	VF_A0183	-	hypothetical protein
187	 35.17	0	206285..206827	+	180	59713367	-	VF_A0184	-	hypothetical protein
188	 36.95	0	206812..208551	+	579	59713368	-	VF_A0185	-	hypothetical protein
189	 34.74	0	208548..209330	+	260	59713369	motA2	VF_A0186	-	flagellar motor protein MotA2
190	 38.94	0	209331..209972	+	213	59713370	motB2	VF_A0187	-	flagellar motor protein MotB2
191	 42.50	+1	210078..212531	-	817	59713371	torZ	VF_A0188	-	TMAO reductase III (TorYZ), TorZ subunit
192	 41.48	+1	212544..213635	-	363	59713372	torY	VF_A0189	-	TMAO reductase III (TorYZ), cytochrome c-type subunit
193	 23.96	-2	213769..213864	-	31	59713373	-	VF_A0190	-	hypothetical protein
194	 40.42	0	214002..216104	+	700	59713374	-	VF_A0191	-	FhuE receptor precursor
195	 38.54	0	216215..216982	+	255	59713375	-	VF_A0192	-	hypothetical protein
196	 40.12	0	216984..218339	+	451	59713376	-	VF_A0193	-	TolQ protein
197	 42.16	+1	218339..218848	+	169	59713377	-	VF_A0194	-	TolQ protein
198	 40.49	0	218845..219249	+	134	59713378	-	VF_A0195	-	TolR protein
199	 44.77	+1	219249..219869	+	206	59713379	-	VF_A0196	-	TonB protein
200	 38.16	0	219866..221047	+	393	59713380	-	VF_A0197	-	TPR domain-containing protein
201	 36.04	0	221111..221590	-	159	59713381	-	VF_A0198	-	transcriptional repressor
202	 37.41	0	221590..222522	-	310	59713382	-	VF_A0199	-	chitooligosaccharide transport ATP-binding protein oppD
203	 38.87	0	222519..223385	-	288	59713383	-	VF_A0200	-	chitooligosaccharide transport ATP-binding protein oppF
204	 39.67	0	223683..224819	+	378	59713384	-	VF_A0201	-	hypothetical protein
205	 37.09	0	224872..225270	-	132	59713385	-	VF_A0202	-	hypothetical protein
206	 30.72	-1	225569..225721	+	50	59713386	-	VF_A0203	-	hypothetical protein
207	 37.56	0	225772..226410	-	212	59713387	-	VF_A0204	-	hypothetical protein
208	 38.96	0	226529..227506	-	325	59713388	yeiH	VF_A0205	-	inner membrane protein
209	 38.29	0	227737..228987	+	416	59713389	ydeE	VF_A0206	-	transporter
210	 38.28	0	229014..229964	-	316	59713390	-	VF_A0207	-	hypothetical protein
211	 36.16	0	230046..231212	-	388	59713391	-	VF_A0208	-	arylsulfatase regulator (Fe-S oxidoreductase)
212	 38.33	0	231374..232774	+	466	59713392	-	VF_A0209	-	phosphatidylserine decarboxylase
213	 35.24	0	232903..234531	+	542	59713393	eptA	VF_A0210	-	metal dependent hydrolase
214	 35.23	0	234631..235317	+	228	59713394	-	VF_A0211	-	transcriptional regulator
215	 33.19	-1	235305..236729	+	474	59713395	-	VF_A0212	-	two component sensor histidine kinase
216	 40.48	0	236799..238337	-	512	59713396	-	VF_A0213	-	sulfatase family protein
217	 34.62	0	238234..238623	-	129	172087795	-	VF_A1178	-	hypothetical protein
218	 35.64	0	238736..239644	-	302	59713397	-	VF_A0214	-	transcriptional regulator SyrB
219	 25.25	-2	240121..241011	+	296	59713398	-	VF_A0215	-	hypothetical protein
220	 29.59	-2	241001..242149	+	382	59713399	-	VF_A0216	-	two component response regulator
221	 32.09	-1	242118..242438	+	106	59713400	-	VF_A0217	-	hypothetical protein
222	 35.16	0	242789..243007	+	72	59713401	flp2	VF_A0218	-	fimbrial protein precursor Flp1
223	 29.89	-1	243017..243451	+	144	172087796	-	VF_A1179	-	hypothetical protein
224	 33.72	0	243460..244245	+	261	59713402	-	VF_A0219	-	tungstate-binding protein precursor
225	 35.00	0	244256..245578	+	440	59713403	-	VF_A0220	-	general secretion pathway protein D
226	 35.01	0	245575..246111	+	178	59713404	-	VF_A0221	-	putative lipoprotein
227	 33.83	0	246113..247330	+	405	59713405	-	VF_A0222	-	ATPase involved in chromosome partitioning
228	 39.08	0	247333..248619	+	428	59713406	tadA2	VF_A0223	-	putative type IV secretion NTPase
229	 33.98	0	248616..249539	+	307	59713407	tadB2	VF_A0224	-	TadB-like protein involved in pilus formation and/or protein secretion
230	 33.00	-1	249509..250420	+	303	59713408	tadC2	VF_A0225	-	bipartite nuclear localization signal containing protein
231	 30.78	-1	250410..251153	+	247	59713409	tadD2	VF_A0226	-	TPR repeat-containing protein
232	 35.17	0	251158..251646	+	162	59713410	tadE2	VF_A0227	-	TadE-like protein
233	 35.93	0	251630..252169	+	179	59713411	tadF2	VF_A0228	-	ATP/GTP-binding motif-containing protein
234	 38.76	0	252171..253442	+	423	59713412	tadG2	VF_A0229	-	TadG-like protein
235	 32.94	-1	253482..254243	+	253	59713413	-	VF_A0230	-	outer membrane protein
236	 26.10	-2	254364..254999	+	211	59713414	-	VF_A0231	-	hypothetical protein
237	 24.24	-2	254953..255414	+	153	59713415	-	VF_A0232	-	hypothetical protein
238	 28.54	-2	255417..257627	-	736	59713416	-	VF_A0233	-	hypothetical protein
239	 28.28	-2	257646..258041	-	131	59713417	-	VF_A0234	-	hypothetical protein
240	 41.40	+1	258428..259282	+	284	59713418	glpF	VF_A0235	-	glycerol uptake facilitator protein GlpF
241	 41.98	+1	259348..260862	+	504	59713419	glpK	VF_A0236	-	glycerol kinase
242	 31.72	-1	260932..263715	-	927	59713420	rscS	VF_A0237	-	hybrid sensor kinase RscS
243	 35.42	0	264297..265064	+	255	59713421	glpR	VF_A0238	-	glycerol-3-phosphate regulon repressor protein GlpR
244	 37.66	0	265242..266789	+	515	59713422	glpD	VF_A0239	-	glycerol-3-phosphate dehydrogenase
245	 27.09	-2	266819..267940	-	373	59713423	-	VF_A0240	-	SUA5 protein
246	 37.37	0	268451..269539	+	362	59713424	-	VF_A0241	-	choloylglycine hydrolase
247	 31.40	-1	269561..271267	-	568	172087797	-	VF_A0244	-	GGDEF/EAL domain-containing protein
248	 29.24	-2	271588..271758	+	56	59713428	-	VF_A0245	-	hypothetical protein
249	 35.85	0	271886..273751	+	621	59713429	-	VF_A0246	-	methyl-accepting chemotaxis protein
250	 30.67	-1	273794..274957	-	387	59713430	-	VF_A0247	-	SUA5 protein
37.27	MEAN

3.84	STD DEV
