IslandPathversion 1.0

IslandPath Analysis: Vibrio fischeri ES114

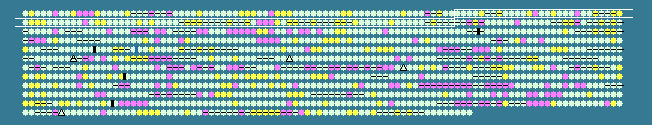

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.27 STD DEV: 3.84
Vibrio fischeri ES114 chromosome II, complete sequence - 1..1330333
1175 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
73	 34.20	0	73619..74080	-	153	59713253	-	VF_A0070	-	putative lipoprotein
74	 34.08	0	74370..74903	+	177	59713254	hnoX	VF_A0071	-	heme nitric oxide and/or oxygen binding protein HNOX
75	 35.71	0	74922..76649	+	575	59713255	-	VF_A0072	-	hybrid two component sensor histidine kinase
76	 39.43	0	76715..78190	-	491	59713256	-	VF_A0073	-	di-/tripeptide transporter
77	 42.24	+1	78455..79375	-	306	59713257	-	VF_A0074	-	hypothetical protein
78	 38.79	0	79398..83792	-	1464	59713258	mshQ2	VF_A0075	-	MshQ protein
79	 40.69	0	83785..84219	-	144	59713259	mshP2	VF_A0076	-	MshP protein
80	 42.64	+1	84191..84985	-	264	59713260	mshO2	VF_A0077	-	MshO protein
81	 38.74	0	84985..85539	-	184	59713261	mshD2	VF_A0078	-	MshD protein
82	 36.19	0	85529..86053	-	174	59713262	mshC2	VF_A0079	-	MSHA pilin protein MshC
83	 38.30	0	86425..87270	-	281	59713263	dmsC	VF_A0080	-	dimethyl sulfoxide reductase, anaerobic, subunit C
84	 39.35	0	87272..87886	-	204	59713264	ynfG	VF_A0081	-	oxidoreductase, Fe-S subunit
85	 41.86	+1	87897..90335	-	812	59713265	dmsA	VF_A0082	-	dimethyl sulfoxide reductase, anaerobic, subunit A
86	 32.48	-1	90671..91255	+	194	59713266	dmsD	VF_A0083	-	twin-argninine leader-binding protein for DmsA and TorA
87	 39.43	0	91255..91812	+	185	59713267	-	VF_A0084	-	ferredoxin-type protein NapF
88	 40.73	0	91891..92985	-	364	59713268	-	VF_A0085	-	transporter
89	 41.71	+1	93153..94907	-	584	59713269	ggt	VF_A0086	-	gamma-glutamyltranspeptidase
90	 38.76	0	95069..96136	-	355	59713270	-	VF_A0087	-	outer membrane protein RomA
91	 37.56	0	96371..96985	+	204	59713271	-	VF_A0088	-	transcriptional regulator
92	 37.86	0	97108..98079	+	323	59713272	-	VF_A0089	-	hydrolase/lipase
93	 29.89	-1	98085..99218	-	377	59713273	-	VF_A0090	-	astacin-like metalloendopeptidase
94	 40.15	0	100117..101964	-	615	59713274	-	VF_A0091	-	M3 family peptidase
95	 37.57	0	102112..103668	-	518	59713275	-	VF_A0092	-	methyl-accepting chemotaxis protein, putative aerotaxis receptor
96	 41.36	+1	104153..105523	+	456	59713276	ygfQ	VF_A0093	-	transporter
97	 39.90	0	105602..106210	-	202	59713277	ynjF	VF_A0094	-	phosphatidyl transferase, inner membrane protein
98	 40.59	0	106203..106850	-	215	59713278	ynjD	VF_A0095	-	ABC transporter ATP-binding protein
99	 42.18	+1	106864..108525	-	553	59713279	-	VF_A0096	-	ABC transporter permease protein
100	 41.19	+1	108543..109688	-	381	59713280	ynjB	VF_A0097	-	hypothetical protein
101	 39.09	0	109929..110606	-	225	59713281	ydjX	VF_A0098	-	inner membrane protein
102	 43.02	+1	110622..111395	-	257	59713282	-	VF_A0099	-	glutamate synthase
103	 43.46	+1	111392..113188	-	598	59713283	yeiT	VF_A0100	-	oxidoreductase
104	 42.99	+1	113218..114201	-	327	59713284	-	VF_A0101	-	thiosulfate sulfurtransferase
105	 38.34	0	114614..116311	+	565	59713285	-	VF_A0102	-	two component sensor histidine kinase
106	 40.13	0	116320..116937	+	205	59713286	-	VF_A0103	-	two component response regulator
107	 38.52	0	117031..117705	+	224	59713287	yraR	VF_A0104	-	nucleoside-diphosphate-sugar epimerase
108	 38.78	0	117784..118719	+	311	59713288	-	VF_A0105	-	transcriptional regulator
109	 39.48	0	118786..121194	-	802	59713289	-	VF_A0106	-	beta-mannosidase
110	 38.66	0	121704..123524	+	606	59713290	-	VF_A0107	-	methyl-accepting chemotaxis protein
111	 33.33	-1	123777..124061	+	94	59713291	-	VF_A0108	-	hypothetical protein
112	 36.21	0	124143..124628	-	161	59713292	-	VF_A0109	-	hypothetical protein
113	 42.06	+1	124820..125770	+	316	59713293	ybhG	VF_A0110	-	membrane fusion protein (MFP) component of efflux pump, membrane anchor
114	 40.78	0	125775..126701	+	308	59713294	ybhF	VF_A0111	-	ABC transporter ATP-binding protein
115	 38.87	0	126698..127798	+	366	59713295	ybhS	VF_A0112	-	ABC transporter membrane protein
116	 34.15	0	128249..128371	+	40	172087794	-	VF_A1177	-	hypothetical protein
117	 38.33	0	128447..129106	-	219	59713296	-	VF_A0113	-	NAD(P)H-dependent flavin reductase
118	 38.46	0	129325..130494	+	389	59713297	-	VF_A0114	-	methyltransferase
119	 34.64	0	130570..131106	+	178	59713298	-	VF_A0115	-	acetyltransferase
120	 41.40	+1	131303..132232	+	309	59713299	yceM	VF_A0116	-	oxidoreductase
121	 38.33	0	132236..133135	-	299	59713300	-	VF_A0117	-	drug/metabolite exporter family protein
122	 43.03	+1	133199..134302	-	367	59713301	-	VF_A0118	-	morphinone reductase
123	 40.32	0	134323..134694	-	123	59713302	-	VF_A0119	-	lactoylglutathione lyase
124	 39.81	0	135014..137158	+	714	59713303	-	VF_A0120	-	putative cytoplasmic protein
125	 37.34	0	137170..137643	+	157	59713304	-	VF_A0121	-	hypothetical protein
126	 39.65	0	137700..138776	-	358	59713305	-	VF_A0122	-	hypothetical protein
127	 39.74	0	139144..140610	+	488	59713306	ybgH	VF_A0123	-	transporter
128	 40.88	0	140955..142439	+	494	59713307	tppB	VF_A0124	-	putative tripeptide transporter permease
129	 43.02	+1	142625..142975	+	116	59713308	-	VF_A0125	-	rhodanese-related sulfurtransferase
130	 41.67	+1	142985..143692	-	235	59713309	-	VF_A0126	-	DNA-3-methyladenine glycosylase
131	 37.24	0	143883..144368	+	161	59713310	-	VF_A0127	-	hypothetical protein
132	 36.67	0	144659..144928	+	89	59713311	-	VF_A0128	-	PTS system, IIB component
133	 40.18	0	144944..146200	+	418	59713312	ulaA	VF_A0129	-	ascorbate-specific PTS system enzyme IIC
134	 35.93	0	146185..146646	+	153	59713313	-	VF_A0130	-	PTS system, 3-keto-L-gulonate specific IIA component
135	 41.18	+1	146805..147632	+	275	59713314	-	VF_A0131	-	CAAX amino protease
136	 37.55	0	147797..148033	+	78	59713315	-	VF_A0132	-	hypothetical protein
137	 38.57	0	148094..148513	-	139	59713316	-	VF_A0133	-	hypothetical protein
138	 43.14	+1	148617..148718	-	33	59713317	-	VF_A0134	-	hypothetical protein
139	 34.08	0	148687..150549	-	620	59713318	-	VF_A0135	-	DNA helicase II
140	 32.80	-1	150820..151947	+	375	59713319	-	VF_A0136	-	hypothetical protein
141	 32.66	-1	151930..152520	-	196	59713320	-	VF_A0137	-	Type II restriction-modification system methylation subunit
142	 32.41	-1	152687..153226	-	179	59713321	-	VF_A0138	-	hypothetical protein
143	 41.64	+1	153410..154444	-	344	59713322	-	VF_A0139	-	hypothetical protein
144	 39.45	0	155000..155947	+	315	59713323	-	VF_A0140	-	hypothetical protein
145	 41.51	+1	157776..160073	-	765	59713325	-	VF_A0142	-	formate acetyltransferase
146	 41.24	+1	160600..162078	+	492	59713326	gbpA	VF_A0143	-	N-acetylglucosamine-binding protein A
147	 39.62	0	162194..163132	-	312	59713327	hvnB	VF_A0144	-	halovibrin HvnB
148	 36.79	0	163454..163945	+	163	59713328	ygjP	VF_A0145	-	metal dependent hydrolase
149	 41.89	+1	163976..164197	-	73	59713329	-	VF_A0146	-	hypothetical protein
150	 40.00	0	164594..164788	+	64	59713330	-	VF_A0147	-	hypothetical protein
151	 36.69	0	164855..165241	-	128	59713331	pilA2	VF_A0148	-	PilA-like type-IV pilus protein
152	 35.82	0	165617..165817	+	66	59713332	-	VF_A0149	-	hypothetical protein
153	 42.05	+1	165913..166635	+	240	59713333	yeeN	VF_A0150	-	hypothetical protein
154	 40.79	0	166790..168292	+	500	59713334	rhlE	VF_A0151	-	RNA helicase
155	 34.37	0	168529..169980	+	483	59713335	-	VF_A0152	-	GGDEF domain-containing protein
156	 42.81	+1	170231..171433	+	400	59713336	emrD	VF_A0153	-	multidrug resistance protein D
157	 40.39	0	171540..172928	-	462	59713337	dbpA	VF_A0154	-	ATP-dependent RNA helicase DbpA
158	 33.82	0	173231..174679	+	482	59713338	-	VF_A0155	-	GGDEF domain-containing protein
159	 37.02	0	174758..175489	+	243	59713339	-	VF_A0156	-	hypothetical protein
160	 39.72	0	175505..176710	-	401	59713340	-	VF_A0157	-	permease
161	 39.09	0	176797..177612	+	271	59713341	fhuC	VF_A0158	-	iron-hydroxamate transporter subunit
162	 41.16	+1	177651..178544	+	297	59713342	fhuD	VF_A0159	-	iron-hydroxamate transporter subunit
163	 39.97	0	178557..180560	+	667	59713343	fhuB	VF_A0160	-	iron-hydroxamate transporter permease subunit
164	 37.73	0	180709..182484	+	591	59713344	iucA	VF_A0161	-	aerobactin siderophore biosynthesis protein IucA
165	 38.05	0	182477..183388	+	303	59713345	iucB	VF_A0162	-	aerobactin siderophore synthesis protein IucB
166	 38.33	0	183388..185148	+	586	59713346	iucC	VF_A0163	-	aerobactin siderophore biosynthesis protein IucC
167	 38.72	0	185177..186475	+	432	59713347	iucD	VF_A0164	-	aerobactin siderophore biosynthesis protein IucD
168	 37.93	0	186579..188753	+	724	59713348	iutA	VF_A0165	-	ferric aerobactin receptor precursor IutA
169	 40.80	0	188936..189859	+	307	59713349	qmcA	VF_A0166	-	protease, membrane anchored
170	 39.29	0	189869..190321	+	150	59713350	-	VF_A0167	-	hypothetical protein
171	 34.13	0	190558..191808	+	416	59713351	-	VF_A0168	-	methyl-accepting chemotaxis protein
172	 38.79	0	192233..193864	+	543	59713352	-	VF_A0169	-	methyl-accepting chemotaxis protein
37.27	MEAN

3.84	STD DEV
