IslandPath Analysis: Vibrio fischeri ES114

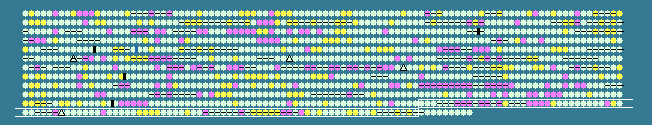

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 37.27   STD DEV: 3.84
Vibrio fischeri ES114 chromosome II, complete sequence - 1..1330333
1175 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1067	 39.24	0	1199301..1199774	+	157	59714246	-	VF_A1063	-	MarR family transcriptional regulator
1068	 36.50	0	1199875..1200885	+	336	59714247	-	VF_A1064	-	transporter
1069	 37.05	0	1201057..1202025	-	322	59714248	-	VF_A1065	-	hypothetical protein
1070	 37.44	0	1202264..1203163	-	299	59714249	-	VF_A1066	-	LysR family transcriptional regulator
1071	 39.41	0	1203292..1203966	+	224	59714250	-	VF_A1067	-	hypothetical protein
1072	 38.21	0	1204028..1204765	-	245	59714251	pepE	VF_A1068	-	peptidase E
1073	 29.26	-2	1205151..1206746	-	531	59714252	-	VF_A1069	-	methyl-accepting chemotaxis protein
1074	 27.98	-2	1206786..1207028	-	80	59714253	-	VF_A1070	-	hypothetical protein
1075	 29.41	-2	1207108..1208637	-	509	59714254	-	VF_A1071	-	methyl-accepting chemotaxis protein, putative aerotaxis receptor
1076	 36.00	0	1208933..1210507	+	524	59714255	-	VF_A1072	-	methyl-accepting chemotaxis protein
1077	 24.59	-2	1210837..1212438	+	533	59714256	-	VF_A1073	-	methyl-accepting chemotaxis protein
1078	 29.50	-2	1212467..1213222	+	251	59714257	acfC	VF_A1074	-	accessory colonization factor AcfC
1079	 33.98	0	1213688..1214767	-	359	59714258	-	VF_A1075	-	heptosyltransferase
1080	 26.19	-2	1214785..1215498	-	237	59714259	-	VF_A1076	-	EAL domain-containing protein
1081	 41.14	+1	1216449..1217306	+	285	59714260	-	VF_A1077	-	RIO1 protein
1082	 37.21	0	1217338..1217982	-	214	59714261	-	VF_A1078	-	acetyltransferase/hydrolase family protein
1083	 39.03	0	1218104..1219192	-	362	59714262	ydiK	VF_A1079	-	inner membrane protein
1084	 37.84	0	1219279..1220166	-	295	59714263	-	VF_A1080	-	hypothetical protein
1085	 19.05	-2	1220604..1221212	-	202	59714264	-	VF_A1081	-	hypothetical protein
1086	 21.48	-2	1221421..1222230	+	269	59714265	-	VF_A1082	-	AraC family transcriptional regulator
1087	 23.01	-2	1222827..1223417	+	196	59714266	-	VF_A1083	-	hypothetical protein
1088	 27.36	-2	1223893..1225767	+	624	59714267	-	VF_A1084	-	methyl-accepting chemotaxis protein
1089	 40.94	0	1225797..1225967	-	56	59714268	-	VF_A1085	-	hypothetical protein
1090	 36.81	0	1226101..1226991	+	296	59714269	-	VF_A1086	-	LysR family transcriptional regulator
1091	 39.08	0	1227036..1227122	-	28	172087823	-	VF_A1195	-	hypothetical protein
1092	 40.17	0	1227451..1228503	+	350	59714270	-	VF_A1087	-	ABC transporter substrate-binding protein
1093	 39.83	0	1228513..1229328	+	271	59714271	-	VF_A1088	-	hypothetical protein
1094	 38.63	0	1229325..1230212	+	295	59714272	-	VF_A1089	-	ABC transporter permease protein
1095	 37.79	0	1230199..1230984	+	261	59714273	-	VF_A1090	-	ABC transporter permease protein
1096	 37.65	0	1230984..1232003	+	339	59714274	afuC	VF_A1091	-	CP4-6 prophage; ferric transporter subunit
1097	 35.14	0	1232006..1232671	+	221	59714275	-	VF_A1092	-	hypothetical protein
1098	 28.24	-2	1232706..1232960	-	84	59714276	-	VF_A1093	-	hypothetical protein
1099	 41.43	+1	1233192..1233401	-	69	59714277	cspG	VF_A1094	-	DNA-binding transcriptional regulator
1100	 34.99	0	1233751..1234653	-	300	59714278	hvnA	VF_A1095	-	halovibrin HvnA
1101	 39.79	0	1234669..1236789	-	706	59714279	-	VF_A1096	-	hypothetical protein
1102	 37.84	0	1236884..1238701	-	605	59714280	-	VF_A1097	-	hypothetical protein
1103	 36.16	0	1238792..1239994	-	400	59714281	-	VF_A1098	-	hypothetical protein
1104	 39.03	0	1240134..1242011	-	625	59714282	-	VF_A1099	-	putative lipoprotein
1105	 40.51	0	1242013..1242987	-	324	59714283	ompA	VF_A1100	-	outer membrane protein A
1106	 28.37	-2	1243121..1243402	-	93	59714284	-	VF_A1101	-	hypothetical protein
1107	 35.20	0	1243849..1244652	-	267	59714285	-	VF_A1102	-	phage integrase family site specific recombinase
1108	 40.06	0	1244918..1245928	+	336	59714286	-	VF_A1103	-	multidrug resistance protein A
1109	 37.69	0	1245925..1247394	+	489	59714287	-	VF_A1104	-	multidrug resistance protein B
1110	 38.34	0	1247564..1248442	+	292	59714288	hvnC	VF_A1105	-	halovibrin HvnC
1111	 34.26	0	1248597..1248812	+	71	59714289	-	VF_A1106	-	hypothetical protein
1112	 36.70	0	1248864..1250468	-	534	59714290	-	VF_A1107	-	mechanosensitive ion channel
1113	 39.08	0	1250705..1251226	-	173	59714291	-	VF_A1108	-	hypothetical protein
1114	 29.41	-2	1251339..1251440	-	33	59714293	-	VF_A1110	-	hypothetical protein
1115	 39.31	0	1251403..1252305	+	300	59714292	-	VF_A1109	-	LysR family transcriptional regulator
1116	 38.69	0	1252312..1253151	-	279	59714294	-	VF_A1111	-	hypothetical protein
1117	 38.95	0	1253243..1253830	-	195	59714295	-	VF_A1112	-	amino acid transporter LysE
1118	 38.51	0	1253939..1254382	+	147	59714296	-	VF_A1113	-	AsnC family transcriptional regulator
1119	 36.70	0	1254379..1255062	-	227	59714297	-	VF_A1114	-	cobalt-zinc-cadmium resistance protein CzcD
1120	 40.79	0	1255201..1256085	+	294	59714298	-	VF_A1115	-	LysR family transcriptional regulator
1121	 41.28	+1	1256168..1256809	+	213	59714299	-	VF_A1116	-	homoserine/homoserine lactone efflux protein
1122	 41.03	0	1256903..1257877	-	324	59714300	-	VF_A1117	-	hypothetical protein
1123	 40.84	0	1257892..1258584	-	230	59714301	-	VF_A1118	-	hypothetical protein
1124	 37.27	0	1258955..1259386	-	143	59714302	-	VF_A1119	-	hypothetical protein
1125	 36.78	0	1259521..1260159	+	212	59714303	-	VF_A1120	-	hydrogenase cytochrome B-type subunit
1126	 38.03	0	1260165..1260590	+	141	59714304	-	VF_A1121	-	MarR family transcriptional regulator
1127	 40.50	0	1260854..1261411	+	185	59714305	ectA	VF_A1122	-	L-2,4-diaminobutyric acid acetyltransferase
1128	 41.47	+1	1261432..1262697	+	421	59714306	ectB	VF_A1123	-	diaminobutyrate--2-oxoglutarate aminotransferase
1129	 40.57	0	1262712..1263098	+	128	59714307	ectC	VF_A1124	-	L-ectoine synthase
1130	 39.71	0	1263187..1264614	+	475	59714308	-	VF_A1125	-	aspartate kinase
1131	 25.25	-2	1265068..1265958	+	296	59714309	-	VF_A1126	-	AraC family transcription regulator
1132	 34.09	0	1265997..1266260	+	87	59714310	-	VF_A1127	-	hypothetical protein
1133	 34.07	0	1266273..1266545	+	90	59714311	-	VF_A1128	-	hypothetical protein
1134	 35.86	0	1266631..1266828	+	65	172087824	-	VF_A1196	-	hypothetical protein
1135	 39.38	0	1267088..1278502	-	3804	59714312	-	VF_A1129	-	hypothetical protein
1136	 36.63	0	1278903..1279721	-	272	59714313	-	VF_A1130	-	hypothetical protein
1137	 25.51	-2	1279749..1280489	-	246	59714314	-	VF_A1131	-	hypothetical protein
1138	 40.50	0	1280721..1280999	-	92	59714315	-	VF_A1132	-	anaerobic glycerol-3-phosphate dehydrogenase subunit C
1139	 44.34	+1	1281031..1281339	-	102	59714316	-	VF_A1133	-	anaerobic glycerol-3-phosphate dehydrogenase subunit C
1140	 44.98	+2	1281379..1281687	-	102	59714317	-	VF_A1134	-	anaerobic glycerol-3-phosphate dehydrogenase subunit C
1141	 44.09	+1	1281726..1282004	-	92	59714318	-	VF_A1135	-	anaerobic glycerol-3-phosphate dehydrogenase subunit C
1142	 43.51	+1	1282037..1282321	-	94	59714319	-	VF_A1136	-	anaerobic glycerol-3-phosphate dehydrogenase subunit C
1143	 41.94	+1	1282357..1282635	-	92	59714320	-	VF_A1137	-	anaerobic glycerol-3-phosphate dehydrogenase subunit C
1144	 24.31	-2	1282721..1283296	-	191	59714321	-	VF_A1138	-	structural protein P5
1145	 31.17	-1	1283457..1284104	-	215	59714322	-	VF_A1139	-	hypothetical protein
1146	 37.99	0	1284336..1284614	+	92	59714323	-	VF_A1140	-	hypothetical protein
1147	 32.97	-1	1284646..1284921	+	91	59714324	-	VF_A1141	-	hypothetical protein
1148	 41.55	+1	1285199..1286086	-	295	59714325	-	VF_A1142	-	LysR family transcriptional regulator
1149	 37.37	0	1286223..1286693	+	156	59714326	-	VF_A1143	-	hypothetical protein
1150	 43.07	+1	1286763..1287101	-	112	59714327	-	VF_A1144	-	putative cytoplasmic protein
1151	 38.33	0	1287309..1287788	-	159	59714328	-	VF_A1145	-	hypothetical protein
1152	 39.63	0	1288237..1289220	+	327	59714329	ybcF	VF_A1146	-	carbamate kinase
1153	 37.84	0	1289296..1290093	-	265	59714330	ybiV	VF_A1147	-	hydrolase
1154	 40.39	0	1290190..1291152	-	320	59714331	ycjZ	VF_A1148	-	LysR family transcriptional regulator
1155	 43.61	+1	1291345..1294497	-	1050	59714332	acrF	VF_A1149	-	multidrug efflux system protein
1156	 42.63	+1	1294499..1295617	-	372	172087825	acrA	VF_A1152	-	multidrug efflux system
1157	 37.81	0	1295795..1296754	-	319	59714336	ybiN	VF_A1153	-	putative SAM-dependent methyltransferase
1158	 38.10	0	1296867..1297223	-	118	59714337	yibL	VF_A1154	-	hypothetical protein
1159	 41.55	+1	1297310..1297723	+	137	59714338	yaeJ	VF_A1155	-	hypothetical protein
1160	 37.56	0	1297723..1299639	+	638	172087826	-	VF_A1156	-	ATP-dependent DNA helicase RecQ
1161	 38.82	0	1299749..1301389	+	546	59714341	-	VF_A1158	-	putative cytoplasmic protein
1162	 38.27	0	1301467..1302660	-	397	59714342	ydhC	VF_A1159	-	inner membrane transport protein YdhC
1163	 40.92	0	1302791..1303699	+	302	59714343	ydhB	VF_A1160	-	putative DNA-binding transcriptional regulator
1164	 40.41	0	1303770..1304405	-	211	59714344	pdxH	VF_A1161	-	pyridoxamine 5'-phosphate oxidase
1165	 41.53	+1	1304524..1316325	-	3933	59714345	rtxA2	VF_A1162	-	RTX repeat-containing calcium-binding cytotoxin RtxA2
1166	 37.43	0	1316865..1318181	+	438	59714346	-	VF_A1163	-	outer membrane protein
37.27	MEAN

3.84	STD DEV
