IslandPath Analysis: Vibrio cholerae O395

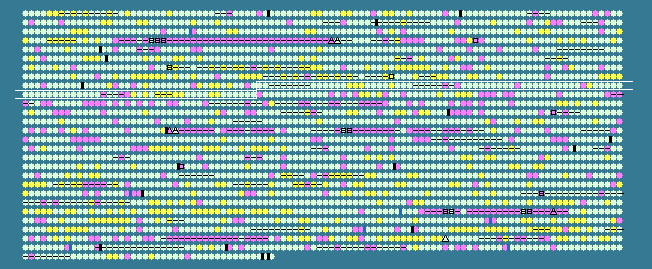

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 47.83   STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
840	 47.17	0	879557..880069	-	170	147674868	-	VC0395_A0869	-	hypothetical protein
841	 46.00	0	880335..881234	-	299	147674372	-	VC0395_A0870	-	putative lipoprotein
842	 48.96	0	881398..882645	+	415	147673608	-	VC0395_A0871	-	CinA family protein
843	 45.49	0	882895..883149	+	84	147675472	-	VC0395_A0872	-	hypothetical protein
844	 45.16	0	883347..883625	-	92	147675378	-	VC0395_A0873	-	putative iron-sulfur cluster-binding protein
845	 46.24	0	883625..884794	-	389	147674333	nrdB	VC0395_A0874	-	ribonucleotide-diphosphate reductase subunit beta
846	 48.82	0	884854..887139	-	761	147674951	nrdA	VC0395_A0875	-	ribonucleotide-diphosphate reductase subunit alpha
847	 48.78	0	887588..888325	-	245	147675156	ubiG	VC0395_A0876	-	3-demethylubiquinone-9 3-methyltransferase
848	 51.17	0	888677..891361	+	894	147673690	gyrA	VC0395_A0877	-	DNA gyrase, subunit A
849	 49.55	0	891574..892572	+	332	147673988	-	VC0395_A0878	-	hypothetical protein
850	 47.11	0	892599..893498	-	299	147674578	-	VC0395_A0879	-	AraC/XylS family transcriptional regulator
851	 48.64	0	893749..894963	+	404	147673481	-	VC0395_A0880	-	hypothetical protein
852	 46.89	0	895146..895322	+	58	147674094	-	VC0395_A0881	-	hypothetical protein
853	 45.47	0	895493..896143	+	216	147673139	ribA	VC0395_A0882	-	GTP cyclohydrolase II
854	 50.00	0	896278..897585	+	435	147673863	-	VC0395_A0883	-	putative iron-regulated protein A
855	 52.31	+1	897792..899177	+	461	147674942	-	VC0395_A0884	-	hypothetical protein
856	 52.58	+1	899187..900194	+	335	147675735	-	VC0395_A0885	-	putative lipoprotein
857	 53.00	+1	900175..901257	+	360	147675454	-	VC0395_A0886	-	hypothetical protein
858	 48.00	0	901504..903078	+	524	147674156	-	VC0395_A0887	-	hypothetical protein
859	 48.09	0	903224..903772	+	182	147673878	-	VC0395_A0888	-	putative lipoprotein
860	 51.29	0	903836..904492	+	218	147675111	-	VC0395_A0890	-	glyoxylase II family protein
861	 49.09	0	904486..905202	-	238	147674674	-	VC0395_A0889	-	hypothetical protein
862	 51.93	+1	905306..905719	+	137	147673685	-	VC0395_A0891	-	hypothetical protein
863	 48.67	0	905994..907199	+	401	147675043	-	VC0395_A0892	-	extracellular solute-binding protein
864	 46.25	0	907301..907834	+	177	147674036	-	VC0395_A0893	-	hypothetical protein
865	 49.84	0	907844..909127	+	427	147673498	-	VC0395_A0894	-	hypothetical protein
866	 46.90	0	909234..910589	+	451	147675218	-	VC0395_A0895	-	sensor histidine kinase
867	 47.47	0	910570..911220	+	216	147674446	-	VC0395_A0896	-	LuxR family transcriptional regulator
868	 49.79	0	911222..911701	-	159	147673978	-	VC0395_A0897	-	MarR family transcriptional regulator
869	 47.94	0	912058..913680	+	540	147673331	-	VC0395_A0898	-	BCCT family transporter
870	 44.75	0	913846..915141	-	431	147675102	-	VC0395_A0899	-	hypothetical protein
871	 41.18	-1	915384..915689	+	101	147674511	celA	VC0395_A0900	-	PTS system, cellobiose-specific IIB component
872	 45.79	0	915768..917108	+	446	147674956	celB	VC0395_A0901	-	PTS system, cellobiose-specific IIC component
873	 42.86	-1	917155..917490	+	111	147675200	celC	VC0395_A0902	-	PTS system, cellobiose-specific IIA component
874	 46.18	0	917472..918794	+	440	147674231	celF	VC0395_A0903	-	6-phospho-beta-glucosidase
875	 44.53	0	918817..919575	+	252	147673646	-	VC0395_A0904	-	hypothetical protein
876	 49.27	0	919676..920698	+	340	147674834	-	VC0395_A0905	-	LacI family transcription regulator
877	 51.06	0	920845..923010	-	721	147675546	mdoH	VC0395_A0906	-	glucosyltransferase MdoH
878	 48.41	0	923029..924666	-	545	147675383	mdoG	VC0395_A0907	-	glucan biosynthesis protein G
879	 48.84	0	925059..926960	+	633	147673234	-	VC0395_A0908	-	methyl-accepting chemotaxis protein
880	 50.35	0	927092..927802	-	236	147673833	-	VC0395_A0909	-	DNA polymerase III subunit epsilon
881	 47.65	0	927799..929712	-	637	147674424	-	VC0395_A0910	-	hypothetical protein
882	 48.22	0	929993..931228	-	411	147675573	aspC	VC0395_A0911	-	aromatic amino acid aminotransferase
883	 39.25	-2	931389..931574	-	61	147674157	-	VC0395_A0912	-	hypothetical protein
884	 48.41	0	931546..933024	-	492	147674798	-	VC0395_A0913	-	hypothetical protein
885	 49.00	0	933533..934381	+	282	147675443	thiD	VC0395_A0914	-	phosphomethylpyrimidine kinase
886	 48.69	0	934447..935892	-	481	147673141	asnC	VC0395_A0915	-	asparaginyl-tRNA synthetase
887	 46.14	0	935994..937625	-	543	147673794	-	VC0395_A0916	-	methyl-accepting chemotaxis protein
888	 44.44	0	938023..938391	+	122	147674632	-	VC0395_A0917	-	putative 6-pyruvoyl tetrahydrobiopterin synthase
889	 49.63	0	938480..939841	-	453	147675128	sdaA-1	VC0395_A0918	-	L-serine dehydratase 1
890	 47.05	0	939934..941187	-	417	147673147	sdaC-1	VC0395_A0919	-	serine transporter
891	 46.18	0	941486..942100	-	204	147673578	-	VC0395_A0920	-	MutT/nudix family protein
892	 48.87	0	942297..943673	-	458	147674330	pabB	VC0395_A0921	-	para-aminobenzoate synthase, component I
893	 51.12	0	943849..945366	+	505	147673955	-	VC0395_A0922	-	putative fumarate hydratase, class I
894	 39.25	-2	945515..945700	+	61	147674531	-	VC0395_A0923	-	hypothetical protein
895	 51.46	0	945925..947298	+	457	147675160	-	VC0395_A0924	-	hypothetical protein
896	 50.88	0	947295..948314	+	339	147673702	-	VC0395_A0925	-	hypothetical protein
897	 48.83	0	948428..949969	+	513	147674299	tyrR	VC0395_A0926	-	transcriptional regulator TyrR
898	 45.31	0	949969..950544	+	191	147674891	rimJ	VC0395_A0927	-	ribosomal-protein-alanine acetyltransferase
899	 50.84	0	950639..951112	+	157	147675547	-	VC0395_A0928	-	hypothetical protein
900	 50.97	0	951180..952058	-	292	147673345	-	VC0395_A0929	-	hypothetical protein
901	 49.49	0	952179..953465	-	428	147673980	-	VC0395_A0930	-	alanine racemase
902	 48.65	0	953514..955145	-	543	147674508	-	VC0395_A0931	-	methyl-accepting chemotaxis protein
903	 47.34	0	955479..956942	+	487	147674466	-	VC0395_A0932	-	putative transporter
904	 49.78	0	956952..958301	+	449	147675282	-	VC0395_A0933	-	sensor histidine kinase
905	 49.06	0	958270..958746	+	158	147673496	-	VC0395_A0934	-	putative chemotaxis protein CheY
906	 48.86	0	958774..959694	-	306	147674095	-	VC0395_A0935	-	hypothetical protein
907	 46.90	0	959792..960565	-	257	147673427	ompV	VC0395_A0936	-	outer membrane protein OmpV
908	 46.71	0	960778..962100	-	440	147674098	-	VC0395_A0937	-	sensor histidine kinase
909	 47.09	0	962126..962830	-	234	147673787	-	VC0395_A0938	-	DNA-binding response regulator
910	 48.54	0	963206..966277	+	1023	147675631	-	VC0395_A0939	-	hypothetical protein
911	 45.83	0	966358..966573	-	71	147675333	-	VC0395_A0940	-	hypothetical protein
912	 47.00	0	966552..967034	-	160	147673175	-	VC0395_A0941	-	hypothetical protein
913	 50.15	0	967533..968507	+	324	147673180	mglB	VC0395_A0942	-	D-galactose/D-glucose ABC transporter, periplasmic D-galactose/D-glucose-binding protein
914	 39.10	-2	968575..968730	-	51	147674284	-	VC0395_A0943	-	hypothetical protein
915	 46.59	0	968713..970221	+	502	147674566	mglA	VC0395_A0944	-	galactose/methyl galaxtoside transporter ATP-binding protein
916	 47.63	0	970226..971239	+	337	147675406	mglC	VC0395_A0945	-	beta-methylgalactoside transporter inner membrane component
917	 38.03	-2	971649..972287	+	212	147674716	-	VC0395_A0946	-	hypothetical protein
918	 37.56	-2	972608..973435	+	275	147675326	-	VC0395_A0947	-	putative lipoprotein
919	 51.63	0	973586..975115	-	509	147673243	-	VC0395_A0948	-	hypothetical protein
920	 48.19	0	975125..975622	-	165	147674013	-	VC0395_A0949	-	hypothetical protein
921	 52.26	+1	975873..976844	-	323	147673864	-	VC0395_A0950	-	hypothetical protein
922	 50.42	0	977474..978181	+	235	147674607	-	VC0395_A0951	-	GntR family transcriptional regulator
923	 52.51	+1	978192..979088	+	298	147673607	prpB	VC0395_A0952	-	2-methylisocitrate lyase
924	 52.73	+1	979265..980398	+	377	147673201	prpC	VC0395_A0953	-	methylcitrate synthase
925	 54.70	+1	980508..983114	+	868	147674815	acnA	VC0395_A0954	-	aconitate hydratase
926	 54.36	+1	983123..984325	+	400	147674246	-	VC0395_A0955	-	putative AcnD-accessory protein PrpF
927	 53.03	+1	984309..986207	+	632	147675302	prpE	VC0395_A0956	-	propionate--CoA ligase
928	 46.33	0	986381..986857	+	158	147674694	-	VC0395_A0957	-	putative acetyltransferase
929	 48.28	0	986938..988335	+	465	147673762	-	VC0395_A0958	-	MutT/nudix family protein
930	 48.96	0	988401..989507	-	368	147673074	-	VC0395_A0959	-	M20A family peptidase
931	 48.02	0	989932..991041	+	369	147673060	hppD	VC0395_A0960	-	4-hydroxyphenylpyruvate dioxygenase
932	 51.89	+1	991034..992170	+	378	147675063	-	VC0395_A0961	-	putative oxidoreductase
933	 51.96	+1	992177..993196	+	339	147674993	-	VC0395_A0962	-	hypothetical protein
934	 47.99	0	993193..993840	+	215	147675141	maiA	VC0395_A0964	-	maleylacetoacetate isomerase
935	 45.85	0	993822..995147	-	441	147674364	-	VC0395_A0963	-	response regulator
936	 46.55	0	995083..999078	+	1331	147674561	-	VC0395_A0965	-	sensory box sensor histidine kinase/response regulator
937	 46.62	0	999184..999657	-	157	147674520	-	VC0395_A0966	-	putative antioxidant
938	 47.94	0	1000308..1003238	+	976	147673928	-	VC0395_A0967	-	GGDEF family protein
939	 46.30	0	1003280..1004536	-	418	147673309	-	VC0395_A0968	-	hypothetical protein
47.83	MEAN

3.88	STD DEV
