IslandPath Analysis: Vibrio cholerae O395

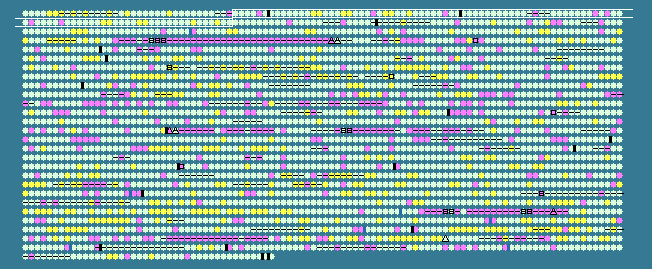

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 47.83   STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
36	 47.56	0	32851..34263	-	470	147674848	pykF	VC0395_A0037	-	pyruvate kinase
37	 45.21	0	34679..35461	+	260	147674087	-	VC0395_A0038	-	DeoR family transcriptional regulator
38	 49.43	0	35524..37356	+	610	147675377	glmS	VC0395_A0039	-	D-fructose-6-phosphate amidotransferase
39	 50.09	0	37417..38496	-	359	147675633	-	VC0395_A0040	-	putative extracellular solute-binding protein
40	 41.50	-1	38638..38784	-	48	147675186	-	VC0395_A0041	-	hypothetical protein
41	 48.32	0	38753..40513	-	586	147673361	-	VC0395_A0042	-	hypothetical protein
42	 47.37	0	41202..43067	-	621	147674012	rpoD	VC0395_A0044	-	RNA polymerase sigma factor RpoD
43	 46.28	0	43166..44995	-	609	147674914	dnaG	VC0395_A0045	-	DNA primase
44	 49.32	0	45019..45462	-	147	147675525	-	VC0395_A0046	-	hypothetical protein
45	 50.46	0	45492..45707	-	71	147674201	rpsU	VC0395_A0047	-	30S ribosomal protein S21
46	 45.03	0	45735..45905	-	56	147674821	-	VC0395_A0048	-	hypothetical protein
47	 50.10	0	45948..46967	+	339	147675246	gcp	VC0395_A0049	-	O-sialoglycoprotein endopeptidase
48	 49.94	0	47121..47933	+	270	147673630	-	VC0395_A0050	-	putative beta-ketoadipate enol-lactone hydrolase
49	 52.31	+1	47982..48608	-	208	147674048	-	VC0395_A0051	-	putative glycerol-3-phosphate acyltransferase PlsY
50	 53.33	+1	48761..49150	+	129	147674486	-	VC0395_A0052	-	putative dihydroneopterin aldolase FolB
51	 48.72	0	49147..49653	+	168	147673898	folK-1	VC0395_A0053	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
52	 45.77	0	49650..50453	+	267	147674526	-	VC0395_A0054	-	undecaprenyl pyrophosphate phosphatase
53	 49.14	0	50562..50852	+	96	147674770	ftsB	VC0395_A0055	-	cell division protein FtsB
54	 52.50	+1	50849..51547	+	232	147673316	ispD	VC0395_A0056	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
55	 51.78	+1	51544..52020	+	158	147673364	ispF	VC0395_A0057	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
56	 50.55	0	52050..53135	+	361	147673999	truD	VC0395_A0058	-	tRNA pseudouridine synthase D
57	 49.87	0	53098..53889	+	263	147674427	surE	VC0395_A0059	-	stationary phase survival protein SurE
58	 51.04	0	53882..54508	+	208	147675360	pcm	VC0395_A0060	-	protein-L-isoaspartate O-methyltransferase
59	 44.12	0	54508..55443	+	311	147673872	nlpD	VC0395_A0061	-	lipoprotein NlpD
60	 46.92	0	55517..56524	+	335	147674644	rpoS	VC0395_A0062	-	RNA polymerase sigma factor RpoS
61	 52.18	+1	56617..59205	-	862	147675773	mutS	VC0395_A0063	-	DNA mismatch repair protein
62	 52.14	+1	59473..60360	-	295	147673090	cysM	VC0395_A0064	-	cysteine synthase B
63	 48.90	0	60744..61745	+	333	147673555	cysP	VC0395_A0065	-	thiosulfate ABC transporter, periplasmic thiosulfate-binding protein
64	 51.29	0	61822..62673	+	283	147674327	cysT	VC0395_A0066	-	sulfate ABC transporter, permease protein
65	 51.50	0	62685..63548	+	287	147673965	cysW	VC0395_A0067	-	sulfate ABC transporter, permease protein
66	 50.84	0	63545..64675	+	376	147674663	cysA	VC0395_A0068	-	sulfate ABC transporter, ATP-binding protein
67	 51.28	0	64842..65348	+	168	147673308	-	VC0395_A0069	-	CinA family protein
68	 48.08	0	65482..66546	+	354	147673530	recA	VC0395_A0070	-	recombinase A
69	 47.93	0	66679..67137	+	152	147674135	recX	VC0395_A0071	-	recombination regulator RecX
70	 50.87	0	67310..69892	+	860	147675089	alaS	VC0395_A0072	-	alanyl-tRNA synthetase
71	 37.04	-2	69924..70058	+	44	147673460	-	VC0395_A0073	-	hypothetical protein
72	 47.64	0	70096..71283	+	395	147674175	-	VC0395_A0074	-	aspartate kinase
73	 46.97	0	71375..71572	+	65	147674619	csrA	VC0395_A0075	-	carbon storage regulator
74	 50.57	0	73142..73402	+	86	147675352	-	VC0395_A0084	-	oxaloacetate decarboxylase subunit gamma
75	 50.78	0	73431..75224	+	597	147673995	oadA-1	VC0395_A0085	-	pyruvate carboxylase subunit B
76	 51.11	0	75234..76364	+	376	147675475	oadB-1	VC0395_A0086	-	oxaloacetate decarboxylase, beta subunit
77	 51.18	0	76424..77437	+	337	147674535	-	VC0395_A0087	-	quinone oxidoreductase
78	 48.92	0	77431..77892	+	153	147673925	-	VC0395_A0088	-	hypothetical protein
79	 48.90	0	77899..80757	+	952	147673676	-	VC0395_A0089	-	insulinase family protease/insulinase family protease
80	 50.29	0	80869..82443	+	524	147675148	gshA	VC0395_A0090	-	glutamate--cysteine ligase
81	 48.55	0	82492..83010	+	172	147674316	luxS	VC0395_A0091	-	S-ribosylhomocysteinase
82	 46.53	0	83080..84360	-	426	147673693	-	VC0395_A0092	-	hypothetical protein
83	 45.90	0	84443..85246	-	267	147673303	-	VC0395_A0093	-	hypothetical protein
84	 49.93	0	85450..86835	+	461	147674906	ffh	VC0395_A0094	-	signal recognition particle protein
85	 49.40	0	87071..87319	+	82	147674693	rpsP	VC0395_A0095	-	30S ribosomal protein S16
86	 44.32	0	87347..87901	+	184	147674058	rimM	VC0395_A0096	-	16S rRNA-processing protein
87	 49.60	0	87929..88672	+	247	147675311	trmD	VC0395_A0097	-	tRNA (guanine-N(1)-)-methyltransferase
88	 46.61	0	88714..89067	+	117	147674723	rplS	VC0395_A0098	-	50S ribosomal protein L19
89	 49.10	0	89188..90246	-	352	147675045	degS	VC0395_A0099	-	protease DegS
90	 47.92	0	90423..91793	-	456	147673156	htrA	VC0395_A0100	-	protease DO
91	 46.80	0	91922..92359	-	145	147675673	-	VC0395_A0101	-	cytochrome d ubiquinol oxidase subunit III
92	 44.84	0	92513..93616	+	367	147674809	-	VC0395_A0102	-	hypothetical protein
93	 45.69	0	93840..94268	+	142	147674448	rplM	VC0395_A0103	-	50S ribosomal protein L13
94	 48.60	0	94284..94676	+	130	147673670	rpsI	VC0395_A0104	-	30S ribosomal protein S9
95	 47.81	0	95004..95597	+	197	147673531	petA	VC0395_A0105	-	ubiquinol--cytochrome c reductase, iron-sulfur subunit
96	 44.23	0	95597..96862	+	421	147674128	petB	VC0395_A0106	-	ubiquinol--cytochrome c reductase, cytochrome B
97	 44.44	0	96859..97596	+	245	147673543	petC	VC0395_A0107	-	ubiquinol--cytochrome c reductase, cytochrome c1
98	 43.55	-1	97696..98331	+	211	147675668	sspA	VC0395_A0108	-	stringent starvation protein A
99	 46.96	0	98331..98807	+	158	147675024	sspB	VC0395_A0109	-	ClpXP protease specificity-enhancing factor
100	 46.49	0	98875..99444	-	189	147673892	-	VC0395_A0110	-	putative lipoprotein
101	 47.55	0	99447..100037	-	196	147673137	-	VC0395_A0111	-	phosphoheptose isomerase
102	 43.36	-1	100041..100409	-	122	147675260	-	VC0395_A0112	-	hypothetical protein
103	 47.15	0	100396..102357	-	653	147674614	-	VC0395_A0113	-	putative lipoprotein
104	 45.56	0	102271..103137	+	288	147673119	-	VC0395_A0114	-	hypothetical protein
105	 45.11	0	103351..103749	-	132	147673716	-	VC0395_A0115	-	hemagglutinin/protease regulatory protein
106	 49.76	0	103755..103961	-	68	147675695	-	VC0395_A0116	-	hemagglutinin/protease regulatory protein
107	 44.01	0	104257..104790	+	177	147674548	hpt	VC0395_A0117	-	hypoxanthine phosphoribosyltransferase
108	 46.79	0	104865..105533	-	222	147673800	-	VC0395_A0118	-	putative carbonic anhydrase
109	 50.15	0	105681..107327	+	548	147673337	-	VC0395_A0119	-	sulfate permease family protein
110	 48.26	0	107711..108628	+	305	147675033	-	VC0395_A0120	-	ABC transporter, ATP-binding protein
111	 46.69	0	108634..109404	+	256	147674111	-	VC0395_A0121	-	putative permease
112	 49.89	0	109468..110349	-	293	147674534	panC	VC0395_A0122	-	pantoate--beta-alanine ligase
113	 48.93	0	110360..111154	-	264	147673962	panB	VC0395_A0123	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
114	 51.98	+1	111157..111660	-	167	147673389	folK-2	VC0395_A0124	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
115	 51.75	+1	111657..113030	-	457	147673822	pcnB	VC0395_A0125	-	polyA polymerase
116	 50.84	0	113121..114011	-	296	147673547	-	VC0395_A0126	-	glutamyl-Q tRNA(Asp) synthetase
117	 47.65	0	114085..114531	-	148	147674105	dksA	VC0395_A0127	-	dnaK suppressor protein
118	 48.12	0	114656..115426	-	256	147675081	sfsA	VC0395_A0128	-	sugar fermentation stimulation protein A
119	 51.00	0	115637..116989	+	450	147675683	-	VC0395_A0129	-	hypothetical protein
120	 55.18	+1	117088..119550	+	820	147673788	hrpB	VC0395_A0130	-	ATP-dependent RNA helicase HrpB
121	 51.54	0	119547..121880	+	777	147674464	mrcB	VC0395_A0131	-	penicillin-binding protein 1B
122	 49.80	0	122117..124411	+	764	147675227	-	VC0395_A0132	-	hypothetical protein
123	 51.27	0	124676..127273	+	865	147673282	acnB	VC0395_A0133	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
124	 44.88	0	127428..127808	+	126	147673206	-	VC0395_A0134	-	hypothetical protein
125	 45.90	0	127959..128324	+	121	147675413	glnB-1	VC0395_A0135	-	nitrogen regulatory protein P-II
126	 50.97	0	128340..129575	+	411	147673697	-	VC0395_A0136	-	putative ammonium transporter
127	 45.70	0	129671..130729	+	352	147674279	-	VC0395_A0137	-	iron(III) ABC transporter, periplasmic iron-compound-binding protein
128	 49.14	0	130813..132438	+	541	147674017	-	VC0395_A0138	-	iron(III) ABC transporter, permease protein
129	 51.45	0	132438..133469	+	343	147674471	-	VC0395_A0139	-	iron(III) ABC transporter, ATP-binding protein
130	 49.47	0	133600..135012	-	470	147673470	-	VC0395_A0140	-	putative phosphoglucomutase/phosphomannomutase
131	 50.42	0	135135..137540	-	801	147673254	-	VC0395_A0141	-	cellulose degradation product phosphorylase
132	 49.79	0	137659..139572	-	637	147674312	chb-1	VC0395_A0142	-	beta-N-acetylhexosaminidase
133	 52.66	+1	139569..140453	-	294	147673675	-	VC0395_A0143	-	hypothetical protein
134	 50.09	0	140450..142174	-	574	147673295	-	VC0395_A0144	-	endoglucanase-related protein
135	 49.30	0	142231..143226	-	331	147674358	-	VC0395_A0145	-	peptide ABC transporter, ATP-binding protein
47.83	MEAN

3.88	STD DEV
