IslandPath Analysis: Vibrio cholerae O395

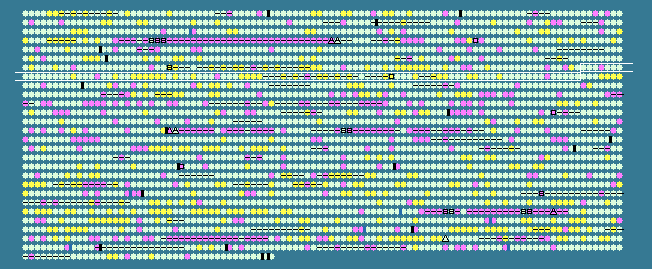

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 47.83   STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
694	 48.27	0	744921..746567	-	548	147674182	-	VC0395_A0719	-	putative glutamate decarboxylase
695	 46.04	0	746677..747282	-	201	147673442	-	VC0395_A0720	-	hypothetical protein
696	 48.12	0	747375..748280	-	301	147675758	-	VC0395_A0721	-	hypothetical protein
697	 44.12	0	748301..749236	-	311	147675342	-	VC0395_A0722	-	hypothetical protein
698	 45.81	0	749578..750186	+	202	147674335	-	VC0395_A0723	-	hypothetical protein
699	 50.64	0	750282..750830	-	182	147673750	-	VC0395_A0724	-	hypothetical protein
700	 46.39	0	751021..751518	-	165	147673334	-	VC0395_A0725	-	response regulator
701	 46.57	0	751515..753470	-	651	147674922	-	VC0395_A0726	-	response regulator
702	 47.24	0	753693..754958	+	421	147674618	-	VC0395_A0727	-	hypothetical protein
703	 48.77	0	755035..756174	+	379	147674623	serC	VC0395_A0728	-	phosphoserine aminotransferase
704	 51.11	0	756255..757244	-	329	147674522	-	VC0395_A0729	-	hypothetical protein
705	 49.11	0	757244..758752	-	502	147675098	-	VC0395_A0730	-	hypothetical protein
706	 49.05	0	758761..759498	-	245	147673374	-	VC0395_A0731	-	putative lipoprotein
707	 50.62	0	759618..760589	-	323	147673964	-	VC0395_A0732	-	hypothetical protein
708	 49.80	0	760701..761441	-	246	147675409	-	VC0395_A0733	-	hypothetical protein
709	 51.95	+1	761567..762436	-	289	147673414	-	VC0395_A0734	-	hypothetical protein
710	 50.17	0	762728..764503	+	591	147674215	aspS	VC0395_A0735	-	aspartyl-tRNA synthetase
711	 48.88	0	764600..765178	+	192	147674995	tdk	VC0395_A0736	-	thymidine kinase
712	 49.67	0	765280..766038	-	252	147674816	-	VC0395_A0737	-	proton/glutamate symporter
713	 43.15	-1	766076..766615	-	179	147675613	-	VC0395_A0738	-	hypothetical protein
714	 47.30	0	766615..767853	-	412	147673426	-	VC0395_A0739	-	hypothetical protein
715	 49.15	0	767853..768440	-	195	147674029	-	VC0395_A0740	-	hypothetical protein
716	 53.56	+1	768425..769492	-	355	147674642	-	VC0395_A0741	-	hypothetical protein
717	 50.67	0	769482..769931	-	149	147675244	-	VC0395_A0742	-	phage protein GP46
718	 47.64	0	769934..770548	-	204	147673123	-	VC0395_A0743	-	bacteriophage Mu Gp45 protein
719	 52.00	+1	770545..771621	-	358	147675009	-	VC0395_A0744	-	bacteriophage Mu P protein
720	 52.95	+1	771614..772933	-	439	147673639	-	VC0395_A0745	-	DNA circulation protein
721	 51.77	+1	772945..774696	-	583	147675502	-	VC0395_A0746	-	phage tail tape measure family protein
722	 53.33	+1	774822..775166	-	114	147674829	-	VC0395_A0747	-	hypothetical protein
723	 51.41	0	775166..775519	-	117	147673515	-	VC0395_A0748	-	tail tube protein
724	 53.00	+1	775534..777018	-	494	147674078	-	VC0395_A0749	-	bacteriophage Mu tail sheath protein (GpL)
725	 51.24	0	777021..777221	-	66	147673463	-	VC0395_A0750	-	hypothetical protein
726	 52.50	+1	777235..777834	-	199	147675697	-	VC0395_A0751	-	hypothetical protein
727	 50.64	0	777831..778373	-	180	147675053	-	VC0395_A0752	-	phage virion morphogenesis protein
728	 50.80	0	778373..778807	-	144	147673774	-	VC0395_A0753	-	hypothetical protein
729	 51.56	0	778813..779388	-	191	147673185	-	VC0395_A0754	-	hypothetical protein
730	 50.33	0	779455..780354	-	299	147673447	-	VC0395_A0755	-	major head subunit
731	 49.15	0	780357..780824	-	155	147674740	-	VC0395_A0756	-	I protein
732	 49.48	0	780896..781279	-	127	147673649	-	VC0395_A0757	-	I protein
733	 41.05	-1	781645..781929	-	94	147674234	-	VC0395_A0758	-	hypothetical protein
734	 44.50	0	781929..782564	-	211	147675209	-	VC0395_A0759	-	hypothetical protein
735	 49.71	0	782561..783073	-	170	147673069	-	VC0395_A0760	-	hypothetical protein
736	 49.80	0	783070..783318	-	82	147673363	-	VC0395_A0761	-	hypothetical protein
737	 51.68	0	783330..784103	-	257	147673987	-	VC0395_A0762	-	F protein
738	 54.62	+1	784096..785655	-	519	147674836	-	VC0395_A0763	-	hypothetical protein
739	 53.26	+1	785652..787217	-	521	147675466	-	VC0395_A0764	-	portal protein
740	 52.58	+1	787218..787799	-	193	147674512	-	VC0395_A0765	-	protein gp27
741	 51.20	0	787811..788101	-	96	147675434	-	VC0395_A0766	-	hypothetical protein
742	 45.33	0	788110..788409	-	99	147673065	-	VC0395_A0767	-	hypothetical protein
743	 48.92	0	788409..788639	-	76	147674186	-	VC0395_A0768	-	hypothetical protein
744	 54.94	+1	788636..789232	-	198	147673971	-	VC0395_A0769	-	hypothetical protein
745	 50.86	0	789208..789498	-	96	147675474	-	VC0395_A0770	-	hypothetical protein
746	 53.01	+1	789498..790046	-	182	147675152	-	VC0395_A0771	-	hypothetical protein
747	 45.80	0	790131..790547	-	138	147673198	-	VC0395_A0772	-	positive regulator of late transcription
748	 40.96	-1	790626..790874	-	82	147674987	-	VC0395_A0773	-	hypothetical protein
749	 48.19	0	790861..791439	-	192	147675749	-	VC0395_A0774	-	protein gp16
750	 52.99	+1	791653..791886	-	77	147673400	-	VC0395_A0775	-	hypothetical protein
751	 55.74	+2	791966..792496	-	176	147674194	-	VC0395_A0776	-	hypothetical protein
752	 44.80	0	792493..792963	-	156	147673916	-	VC0395_A0777	-	hypothetical protein
753	 53.03	+1	792960..793157	-	65	147673871	-	VC0395_A0778	-	hypothetical protein
754	 47.33	0	793141..793383	-	80	147673101	-	VC0395_A0779	-	hypothetical protein
755	 52.38	+1	793376..793648	-	90	147673598	-	VC0395_A0780	-	hypothetical protein
756	 51.22	0	793658..794272	-	204	147674863	-	VC0395_A0781	-	hypothetical protein
757	 45.13	0	794259..794453	-	64	147674083	-	VC0395_A0782	-	hypothetical protein
758	 49.18	0	794428..794793	-	121	147673326	-	VC0395_A0783	-	hypothetical protein
759	 47.17	0	794803..795243	-	146	147675301	-	VC0395_A0784	-	hypothetical protein
760	 49.78	0	795253..795477	-	74	147673940	-	VC0395_A0785	-	hypothetical protein
761	 54.60	+1	795485..796429	-	314	147673212	-	VC0395_A0786	-	DNA transposition protein
762	 52.74	+1	796456..798459	-	667	147675169	-	VC0395_A0787	-	transposase
763	 46.22	0	798471..798695	-	74	147674276	-	VC0395_A0788	-	hypothetical protein
764	 45.66	0	798848..799585	+	245	147673724	-	VC0395_A0789	-	prophage MuSo2, Cro/CI family transcriptional regulator
765	 48.34	0	799830..800402	-	190	147674225	-	VC0395_A0790	-	proton/glutamate symporter
766	 51.55	0	800718..801524	-	268	147673648	trpA	VC0395_A0791	-	tryptophan synthase subunit alpha
767	 50.46	0	801524..802714	-	396	147675541	trpB	VC0395_A0792	-	tryptophan synthase subunit beta
768	 49.86	0	802755..804164	-	469	147674842	trpC/F	VC0395_A0793	-	bifunctional indole-3-glycerol phosphate synthase/phosphoribosylanthranilate isomerase
769	 52.15	+1	804170..805168	-	332	147674592	trpD	VC0395_A0794	-	anthranilate phosphoribosyltransferase
770	 52.78	+1	805189..805800	-	203	147673994	trpG	VC0395_A0795	-	anthranilate synthase component II
771	 51.34	0	805797..807368	-	523	147673289	trpE	VC0395_A0796	-	anthranilate synthase component I
772	 45.05	0	807502..807612	-	36	147675241	-	VC0395_A0797	-	putative trp operon leader peptide
773	 49.60	0	807704..808576	+	290	147674944	-	VC0395_A0798	-	hypothetical protein
774	 50.24	0	808579..809199	+	206	147674311	-	VC0395_A0799	-	hypothetical protein
775	 51.76	+1	809332..810297	+	321	147673214	-	VC0395_A0800	-	pseudouridine synthase family 1 protein
776	 51.86	+1	810465..812186	-	573	147675396	cydC	VC0395_A0801	-	cysteine/glutathione ABC transporter membrane/ATP-binding component
777	 50.62	0	812179..813966	-	595	147675398	cydD	VC0395_A0802	-	cysteine/glutathione ABC transporter membrane/ATP-binding component
778	 50.26	0	814086..815042	-	318	147674572	trxB	VC0395_A0803	-	thioredoxin reductase
779	 48.33	0	815517..816176	+	219	147673493	-	VC0395_A0804	-	hypothetical protein
780	 51.40	0	816151..817401	+	416	147675526	-	VC0395_A0805	-	aminotransferase, class V
781	 48.72	0	817659..818990	+	443	147674355	-	VC0395_A0806	-	GGDEF family protein
782	 48.35	0	819091..819756	-	221	147673100	sanA	VC0395_A0807	-	sanA protein
783	 47.97	0	819828..820196	-	122	147675734	-	VC0395_A0808	-	hypothetical protein
784	 50.37	0	820200..821966	-	588	147674901	sfcA	VC0395_A0809	-	malate dehydrogenase
785	 44.68	0	822282..822704	+	140	147674138	-	VC0395_A0810	-	hypothetical protein
786	 46.88	0	822906..824123	-	405	147673379	-	VC0395_A0811	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
787	 47.37	0	824178..824576	-	132	147675725	-	VC0395_A0812	-	hypothetical protein
788	 40.91	-1	824868..825065	-	65	147675000	-	VC0395_A0813	-	hypothetical protein
789	 46.82	0	825201..826253	-	350	147673824	-	VC0395_A0814	-	hypothetical protein
790	 50.74	0	826318..826989	-	223	147673077	-	VC0395_A0815	-	putative lipoprotein
791	 44.78	0	827089..827778	-	229	147675375	-	VC0395_A0816	-	hypothetical protein
792	 44.40	0	827903..828598	-	231	147674612	-	VC0395_A0817	-	hypothetical protein
793	 48.92	0	828769..831834	+	1021	147675638	-	VC0395_A0818	-	hypothetical protein
47.83	MEAN

3.88	STD DEV




Last Updated: Dec 04, 2008
