IslandPath Analysis: Vibrio cholerae O395

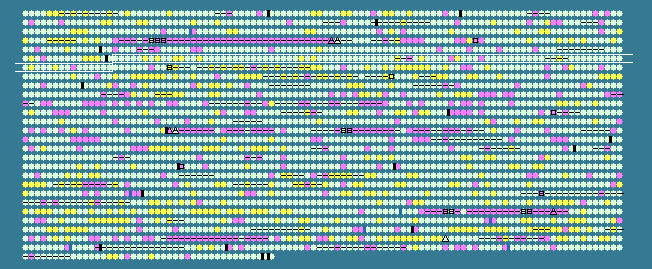

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.83 STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
516	 49.78	0	580984..582351	+	455	147673171	luxO	VC0395_A0541	-	LuxO repressor protein
517	 46.49	0	582355..582696	+	113	147674934	luxU	VC0395_A0543	-	phosphorelay protein
518	 51.18	0	582685..583575	-	296	147675316	-	VC0395_A0542	-	hypothetical protein
519	 47.76	0	583866..584870	+	334	147674357	moaA	VC0395_A0544	-	molybdenum cofactor biosynthesis protein A
520	 49.71	0	584930..585442	+	170	147673390	moaB	VC0395_A0545	-	molybdenum cofactor biosynthesis protein B
521	 51.55	0	585450..585932	+	160	147675618	moaC	VC0395_A0546	-	molybdenum cofactor biosynthesis protein C
522	 50.41	0	585929..586174	+	81	147674797	moaD	VC0395_A0547	-	molybdopterin synthase small subunit
523	 52.10	+1	586176..586628	+	150	147675319	moaE	VC0395_A0548	-	molybdenum cofactor biosynthesis protein E
524	 47.69	0	586643..587617	-	324	147673523	-	VC0395_A0549	-	GGDEF family protein
525	 48.30	0	587822..588262	+	146	147674350	-	VC0395_A0550	-	CBS domain-containing protein
526	 53.62	+1	588375..590681	+	768	147675004	zntA	VC0395_A0551	-	zinc/cadmium/mercury/lead-transporting ATPase
527	 52.51	+1	591127..591903	+	258	147674560	udp-1	VC0395_A0552	-	uridine phosphorylase
528	 46.42	0	591976..592869	-	297	147675163	-	VC0395_A0553	-	hypothetical protein
529	 48.68	0	593095..595290	-	731	147673338	metG	VC0395_A0554	-	methionyl-tRNA synthetase
530	 51.44	0	595232..596380	+	382	147674192	mrp	VC0395_A0555	-	mrp protein
531	 48.18	0	596530..597189	+	219	147674003	udk	VC0395_A0556	-	uridine kinase
532	 48.20	0	597287..599398	+	703	147674400	asmA	VC0395_A0557	-	asmA protein
533	 49.34	0	599470..600075	-	201	147673401	cobA	VC0395_A0558	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
534	 49.15	0	600161..600628	+	155	147674630	-	VC0395_A0559	-	phosphotyrosine protein phosphatase
535	 48.27	0	600655..601953	-	432	147675389	fadL-1	VC0395_A0560	-	long-chain fatty acid transport protein
536	 45.84	0	602256..603542	-	428	147673128	fadL-2	VC0395_A0561	-	long-chain fatty acid transport protein
537	 47.13	0	603802..604533	-	243	147673825	-	VC0395_A0562	-	hypothetical protein
538	 45.68	0	604526..605092	-	188	147674954	-	VC0395_A0563	-	RNA polymerase sigma factor
539	 48.87	0	605473..606927	+	484	147675487	fadI	VC0395_A0564	-	3-ketoacyl-CoA thiolase
540	 49.65	0	606927..609053	+	708	147673662	fadJ	VC0395_A0565	-	multifunctional fatty acid oxidation complex subunit alpha
541	 50.46	0	609180..609728	+	182	147674582	-	VC0395_A0566	-	hypothetical protein
542	 46.67	0	609805..610704	-	299	147674833	-	VC0395_A0567	-	LysR family transcriptional regulator
543	 45.62	0	610913..612019	+	368	147674250	-	VC0395_A0568	-	response regulator
544	 45.45	0	612189..612320	+	43	147674867	-	VC0395_A0569	-	hypothetical protein
545	 45.36	0	612320..612718	+	132	147673072	-	VC0395_A0570	-	hypothetical protein
546	 48.53	0	612850..613395	+	181	147673655	apt	VC0395_A0571	-	adenine phosphoribosyltransferase
547	 51.71	+1	613414..615492	+	692	147674747	dnaZX	VC0395_A0572	-	DNA polymerase III subunits gamma and tau
548	 47.93	0	615530..615892	+	120	147675358	-	VC0395_A0573	-	hypothetical protein
549	 52.24	+1	615907..616509	+	200	147673522	recR	VC0395_A0574	-	recombination protein RecR
550	 50.79	0	616619..616870	-	83	147674270	-	VC0395_A0575	-	hypothetical protein
551	 47.03	0	617005..617442	+	145	147674670	-	VC0395_A0576	-	hypothetical protein
552	 48.39	0	617536..618279	-	247	147675485	-	VC0395_A0577	-	short chain dehydrogenase
553	 49.02	0	618429..619499	+	356	147674533	-	VC0395_A0578	-	putative periplasmic protease
554	 50.00	0	619624..620691	-	355	147675334	-	VC0395_A0579	-	cysteine synthase/cystathionine beta-synthase family protein
555	 44.51	0	620735..621271	+	178	147675157	-	VC0395_A0580	-	AsnC family transcriptional regulator
556	 48.66	0	621280..622140	-	286	147673197	tesB	VC0395_A0581	-	acyl-CoA thioesterase II
557	 45.83	0	622291..622722	+	143	147674297	-	VC0395_A0582	-	putative lipoprotein
558	 48.84	0	622776..623078	-	100	147674894	-	VC0395_A0583	-	MGMT family protein
559	 48.92	0	623129..623872	+	247	147674789	-	VC0395_A0584	-	hypothetical protein
560	 45.20	0	623959..626040	+	693	147673342	-	VC0395_A0585	-	hypothetical protein
561	 50.58	0	626582..626923	+	113	147673929	-	VC0395_A0586	-	ArsR family transcriptional regulator
562	 48.40	0	627020..628021	+	333	147674514	gap	VC0395_A0587	-	glyceraldehyde-3-phosphate dehydrogenase
563	 54.02	+1	628035..628532	+	165	147675100	-	VC0395_A0588	-	putative phosphatase
564	 50.65	0	628571..629806	+	411	147675684	-	VC0395_A0589	-	putative transporter
565	 31.94	-2	629925..630068	+	47	147673080	-	VC0395_A0590	-	hypothetical protein
566	 50.49	0	630421..631341	+	306	147675425	-	VC0395_A0591	-	putative chitinase
567	 51.47	0	631354..633636	+	760	147674641	-	VC0395_A0592	-	putative chitinase
568	 50.18	0	633726..634556	-	276	147674172	-	VC0395_A0593	-	hypothetical protein
569	 50.64	0	634840..635382	+	180	147673672	-	VC0395_A0594	-	hypothetical protein
570	 47.66	0	635395..636183	+	262	147675685	-	VC0395_A0595	-	AraC/XylS family transcriptional regulator
571	 45.40	0	636232..636720	-	162	147673819	-	VC0395_A0596	-	hypothetical protein
572	 41.84	-1	636799..636939	-	46	147673107	-	VC0395_A0597	-	hypothetical protein
573	 54.14	+1	636984..637973	-	329	147673908	-	VC0395_A0598	-	hypothetical protein
574	 47.54	0	638219..638584	+	121	147673325	-	VC0395_A0599	-	hypothetical protein
575	 46.37	0	638581..639723	+	380	147675285	-	VC0395_A0600	-	response regulator
576	 47.54	0	639758..640123	+	121	147674579	-	VC0395_A0601	-	response regulator
577	 44.27	0	640120..640704	+	194	147673821	-	VC0395_A0602	-	hypothetical protein
578	 45.00	0	640715..642034	+	439	147673721	-	VC0395_A0603	-	sensory box sensor histidine kinase
579	 46.59	0	642046..643350	+	434	147675202	-	VC0395_A0604	-	sensor histidine kinase
580	 44.69	0	643350..644960	+	536	147674873	-	VC0395_A0605	-	response regulator
581	 45.91	0	644977..646320	+	447	147674084	-	VC0395_A0606	-	response regulator
582	 45.68	0	646357..647976	-	539	147673989	-	VC0395_A0607	-	sensor histidine kinase
583	 46.86	0	647980..648792	-	270	147674170	-	VC0395_A0608	-	hypothetical protein
584	 46.20	0	649416..651047	+	543	147673391	oppA	VC0395_A0609	-	oligopeptide ABC transporter, periplasmic oligopeptide-binding protein
585	 46.47	0	651196..652116	+	306	147675147	oppB	VC0395_A0610	-	oligopeptide transporter permease
586	 49.72	0	652130..653032	+	300	147674611	oppC	VC0395_A0611	-	oligopeptide ABC transporter, permease protein
587	 50.15	0	653057..654031	+	324	147674302	oppD	VC0395_A0612	-	oligopeptide transporter ATP-binding component
588	 48.27	0	654010..655020	+	336	147673695	oppF	VC0395_A0613	-	oligopeptide ABC transporter, ATP-binding protein
589	 47.15	0	655170..656117	+	315	147673283	-	VC0395_A0614	-	hypothetical protein
590	 51.79	+1	656215..658359	-	714	147675254	pta	VC0395_A0615	-	phosphate acetyltransferase
591	 50.54	0	658495..659691	-	398	147674893	ackA-1	VC0395_A0616	-	acetate kinase
592	 49.89	0	660038..660496	+	152	147673932	-	VC0395_A0617	-	hypothetical protein
593	 44.53	0	660619..661029	-	136	147674652	-	VC0395_A0618	-	hypothetical protein
594	 48.55	0	661467..662432	+	321	147674912	-	VC0395_A0619	-	hypothetical protein
595	 50.41	0	662508..663491	+	327	147674765	-	VC0395_A0620	-	putative ABC transporter, permease protein
596	 50.95	0	663488..664225	+	245	147675581	-	VC0395_A0621	-	ABC transporter, ATP-binding protein
597	 44.76	0	664438..665907	+	489	147673586	-	VC0395_A0622	-	GGDEF family protein
598	 51.27	0	665940..666413	-	157	147674229	-	VC0395_A0623	-	hypothetical protein
599	 50.94	0	666435..666911	-	158	147674360	-	VC0395_A0624	-	tRNA-dihydrouridine synthase C
600	 50.16	0	667068..667697	+	209	147674463	-	VC0395_A0625	-	SecA, C-motif-containing protein
601	 47.74	0	667793..668389	+	198	147675332	lolA	VC0395_A0626	-	outer-membrane lipoprotein carrier protein
602	 52.15	+1	668414..669763	+	449	147673167	-	VC0395_A0627	-	recombination factor protein RarA
603	 49.85	0	669867..671174	+	435	147674801	serS	VC0395_A0628	-	seryl-tRNA synthetase
604	 50.58	0	671282..672568	-	428	147674377	bioA	VC0395_A0629	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
605	 51.09	0	672695..673747	+	350	147673516	bioB	VC0395_A0630	-	biotin synthase
606	 52.55	+1	673731..674885	+	384	147675336	bioF	VC0395_A0631	-	8-amino-7-oxononanoate synthase
607	 50.59	0	674747..675685	+	312	147673959	bioC	VC0395_A0632	-	biotin synthesis protein BioC
608	 47.98	0	675661..676377	+	238	147675610	bioD	VC0395_A0633	-	dithiobiotin synthetase
609	 43.33	-1	676459..676668	-	69	147675640	-	VC0395_A0634	-	hypothetical protein
610	 49.42	0	676895..677758	+	287	147675037	htpX	VC0395_A0635	-	heat shock protein HtpX
611	 45.45	0	677968..678396	+	142	147673637	-	VC0395_A0636	-	putative transcriptional regulator
612	 51.10	0	678393..679118	+	241	147675476	-	VC0395_A0637	-	short chain dehydrogenase
613	 48.71	0	679129..680409	+	426	147674241	-	VC0395_A0638	-	hypothetical protein
614	 48.27	0	680409..681218	+	269	147673715	-	VC0395_A0639	-	hypothetical protein
615	 47.27	0	681151..682449	+	432	147674745	cfa	VC0395_A0640	-	cyclopropane-fatty-acyl-phospholipid synthase
47.83	MEAN

3.88	STD DEV
