IslandPath Analysis: Vibrio cholerae O395

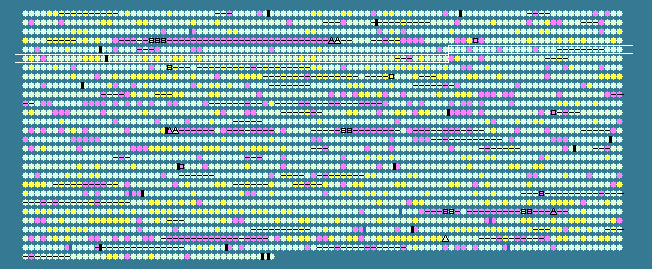

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.83 STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
472	 48.89	0	531081..531530	-	149	147674677	-	VC0395_A0496	-	hypothetical protein
473	 45.49	0	531538..532458	-	306	147675435	-	VC0395_A0497	-	hypothetical protein
474	 45.60	0	532889..533809	-	306	147675769	-	VC0395_A0498	-	hypothetical protein
475	 36.75	-2	533981..534097	-	38	147673595	-	VC0395_A0499	-	hypothetical protein
476	 48.07	0	534172..534999	-	275	147673313	-	VC0395_A0500	-	short chain dehydrogenase
477	 48.63	0	535042..535956	-	304	147674184	rcp	VC0395_A0501	-	rcp protein
478	 48.25	0	536350..536919	+	189	147674558	-	VC0395_A0502	-	phosphodiesterase
479	 49.66	0	537000..537293	-	97	147675101	-	VC0395_A0503	-	hypothetical protein
480	 42.72	-1	537334..537855	-	173	147673605	toxS	VC0395_A0504	-	regulatory protein ToxS
481	 45.08	0	537865..538749	-	294	147674563	toxR	VC0395_A0505	-	cholera toxin transcriptional activator
482	 45.75	0	538977..540884	+	635	147674825	htpG	VC0395_A0506	-	heat shock protein 90
483	 46.98	0	541219..541863	+	214	147673458	adk	VC0395_A0507	-	adenylate kinase
484	 47.59	0	541978..542952	+	324	147674210	hemH	VC0395_A0508	-	ferrochelatase
485	 46.21	0	543050..544594	-	514	147675039	tppB	VC0395_A0509	-	putative tripeptide transporter permease
486	 33.33	-2	544755..544877	+	40	147674992	-	VC0395_A0510	-	hypothetical protein
487	 45.38	0	545039..545536	+	165	147675715	rfaH	VC0395_A0511	-	transcriptional activator RfaH
488	 46.43	0	545697..547361	-	554	147673054	asnB	VC0395_A0512	-	asparagine synthetase B
489	 47.51	0	547557..549143	-	528	147673979	-	VC0395_A0513	-	putative glutathione-regulated potassium-efflux system protein KefB
490	 46.91	0	549238..550452	-	404	147673497	nagC	VC0395_A0514	-	N-acetylglucosamine repressor
491	 45.82	0	550455..551591	-	378	147674117	nagA	VC0395_A0515	-	N-acetylglucosamine-6-phosphate deacetylase
492	 49.05	0	552060..553631	+	523	147675085	nagE	VC0395_A0516	-	PTS system, N-acetylglucosamine-specific IIABC component
493	 46.50	0	553879..555549	+	556	147674963	glnS	VC0395_A0517	-	glutaminyl-tRNA synthetase
494	 49.51	0	555714..560579	+	1621	147673505	-	VC0395_A0519	-	hypothetical protein
495	 44.79	0	555830..555925	-	31	147674165	-	VC0395_A0518	-	hypothetical protein
496	 50.82	0	560701..561495	+	264	147674772	truA	VC0395_A0520	-	tRNA pseudouridine synthase A
497	 50.27	0	561669..562595	+	308	147674043	accD	VC0395_A0521	-	acetyl-CoA carboxylase subunit beta
498	 50.95	0	562640..563905	+	421	147673270	folC	VC0395_A0522	-	folylpolyglutamate synthase/dihydrofolate synthase
499	 47.24	0	563906..564502	+	198	147675233	dedD	VC0395_A0523	-	dedD protein
500	 46.75	0	564565..565056	+	163	147673757	-	VC0395_A0524	-	bacteriocin production protein
501	 48.51	0	565089..566603	+	504	147673131	purF	VC0395_A0525	-	amidophosphoribosyltransferase
502	 51.36	0	566730..568055	-	441	147673585	-	VC0395_A0526	-	hypothetical protein
503	 46.99	0	568156..568887	-	243	147675730	rnt	VC0395_A0527	-	ribonuclease T
504	 43.06	-1	568900..569043	-	47	147674575	-	VC0395_A0528	-	hypothetical protein
505	 47.91	0	569104..569988	+	294	147674163	motY	VC0395_A0529	-	sodium-type flagellar protein MotY
506	 48.30	0	570037..570477	-	146	147675139	-	VC0395_A0530	-	hypothetical protein
507	 48.20	0	570637..571053	-	138	147674604	gloA	VC0395_A0531	-	lactoylglutathione lyase
508	 47.04	0	571094..571735	-	213	147674958	nth	VC0395_A0532	-	endonuclease III
509	 51.23	0	571762..572454	-	230	147673085	-	VC0395_A0533	-	SoxR-reducing system protein RsxE
510	 49.37	0	572456..573085	-	209	147675771	-	VC0395_A0534	-	electron transport complex protein RnfG
511	 53.49	+1	573097..574143	-	348	147674988	rnfD	VC0395_A0535	-	electron transport complex protein RnfD
512	 52.93	+1	574143..576464	-	773	147674223	-	VC0395_A0536	-	electron transport complex protein RnfC
513	 52.21	+1	576473..577060	-	195	147674952	-	VC0395_A0537	-	electron transport complex protein RnfB
514	 47.35	0	577060..577701	-	213	147674720	-	VC0395_A0538	-	Na(+)-translocating NADH-quinone reductase subunit E
515	 48.10	0	578523..580553	+	676	147673403	uvrB	VC0395_A0540	-	excinuclease ABC subunit B
516	 49.78	0	580984..582351	+	455	147673171	luxO	VC0395_A0541	-	LuxO repressor protein
517	 46.49	0	582355..582696	+	113	147674934	luxU	VC0395_A0543	-	phosphorelay protein
518	 51.18	0	582685..583575	-	296	147675316	-	VC0395_A0542	-	hypothetical protein
519	 47.76	0	583866..584870	+	334	147674357	moaA	VC0395_A0544	-	molybdenum cofactor biosynthesis protein A
520	 49.71	0	584930..585442	+	170	147673390	moaB	VC0395_A0545	-	molybdenum cofactor biosynthesis protein B
521	 51.55	0	585450..585932	+	160	147675618	moaC	VC0395_A0546	-	molybdenum cofactor biosynthesis protein C
522	 50.41	0	585929..586174	+	81	147674797	moaD	VC0395_A0547	-	molybdopterin synthase small subunit
523	 52.10	+1	586176..586628	+	150	147675319	moaE	VC0395_A0548	-	molybdenum cofactor biosynthesis protein E
524	 47.69	0	586643..587617	-	324	147673523	-	VC0395_A0549	-	GGDEF family protein
525	 48.30	0	587822..588262	+	146	147674350	-	VC0395_A0550	-	CBS domain-containing protein
526	 53.62	+1	588375..590681	+	768	147675004	zntA	VC0395_A0551	-	zinc/cadmium/mercury/lead-transporting ATPase
527	 52.51	+1	591127..591903	+	258	147674560	udp-1	VC0395_A0552	-	uridine phosphorylase
528	 46.42	0	591976..592869	-	297	147675163	-	VC0395_A0553	-	hypothetical protein
529	 48.68	0	593095..595290	-	731	147673338	metG	VC0395_A0554	-	methionyl-tRNA synthetase
530	 51.44	0	595232..596380	+	382	147674192	mrp	VC0395_A0555	-	mrp protein
531	 48.18	0	596530..597189	+	219	147674003	udk	VC0395_A0556	-	uridine kinase
532	 48.20	0	597287..599398	+	703	147674400	asmA	VC0395_A0557	-	asmA protein
533	 49.34	0	599470..600075	-	201	147673401	cobA	VC0395_A0558	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
534	 49.15	0	600161..600628	+	155	147674630	-	VC0395_A0559	-	phosphotyrosine protein phosphatase
535	 48.27	0	600655..601953	-	432	147675389	fadL-1	VC0395_A0560	-	long-chain fatty acid transport protein
536	 45.84	0	602256..603542	-	428	147673128	fadL-2	VC0395_A0561	-	long-chain fatty acid transport protein
537	 47.13	0	603802..604533	-	243	147673825	-	VC0395_A0562	-	hypothetical protein
538	 45.68	0	604526..605092	-	188	147674954	-	VC0395_A0563	-	RNA polymerase sigma factor
539	 48.87	0	605473..606927	+	484	147675487	fadI	VC0395_A0564	-	3-ketoacyl-CoA thiolase
540	 49.65	0	606927..609053	+	708	147673662	fadJ	VC0395_A0565	-	multifunctional fatty acid oxidation complex subunit alpha
541	 50.46	0	609180..609728	+	182	147674582	-	VC0395_A0566	-	hypothetical protein
542	 46.67	0	609805..610704	-	299	147674833	-	VC0395_A0567	-	LysR family transcriptional regulator
543	 45.62	0	610913..612019	+	368	147674250	-	VC0395_A0568	-	response regulator
544	 45.45	0	612189..612320	+	43	147674867	-	VC0395_A0569	-	hypothetical protein
545	 45.36	0	612320..612718	+	132	147673072	-	VC0395_A0570	-	hypothetical protein
546	 48.53	0	612850..613395	+	181	147673655	apt	VC0395_A0571	-	adenine phosphoribosyltransferase
547	 51.71	+1	613414..615492	+	692	147674747	dnaZX	VC0395_A0572	-	DNA polymerase III subunits gamma and tau
548	 47.93	0	615530..615892	+	120	147675358	-	VC0395_A0573	-	hypothetical protein
549	 52.24	+1	615907..616509	+	200	147673522	recR	VC0395_A0574	-	recombination protein RecR
550	 50.79	0	616619..616870	-	83	147674270	-	VC0395_A0575	-	hypothetical protein
551	 47.03	0	617005..617442	+	145	147674670	-	VC0395_A0576	-	hypothetical protein
552	 48.39	0	617536..618279	-	247	147675485	-	VC0395_A0577	-	short chain dehydrogenase
553	 49.02	0	618429..619499	+	356	147674533	-	VC0395_A0578	-	putative periplasmic protease
554	 50.00	0	619624..620691	-	355	147675334	-	VC0395_A0579	-	cysteine synthase/cystathionine beta-synthase family protein
555	 44.51	0	620735..621271	+	178	147675157	-	VC0395_A0580	-	AsnC family transcriptional regulator
556	 48.66	0	621280..622140	-	286	147673197	tesB	VC0395_A0581	-	acyl-CoA thioesterase II
557	 45.83	0	622291..622722	+	143	147674297	-	VC0395_A0582	-	putative lipoprotein
558	 48.84	0	622776..623078	-	100	147674894	-	VC0395_A0583	-	MGMT family protein
559	 48.92	0	623129..623872	+	247	147674789	-	VC0395_A0584	-	hypothetical protein
560	 45.20	0	623959..626040	+	693	147673342	-	VC0395_A0585	-	hypothetical protein
561	 50.58	0	626582..626923	+	113	147673929	-	VC0395_A0586	-	ArsR family transcriptional regulator
562	 48.40	0	627020..628021	+	333	147674514	gap	VC0395_A0587	-	glyceraldehyde-3-phosphate dehydrogenase
563	 54.02	+1	628035..628532	+	165	147675100	-	VC0395_A0588	-	putative phosphatase
564	 50.65	0	628571..629806	+	411	147675684	-	VC0395_A0589	-	putative transporter
565	 31.94	-2	629925..630068	+	47	147673080	-	VC0395_A0590	-	hypothetical protein
566	 50.49	0	630421..631341	+	306	147675425	-	VC0395_A0591	-	putative chitinase
567	 51.47	0	631354..633636	+	760	147674641	-	VC0395_A0592	-	putative chitinase
568	 50.18	0	633726..634556	-	276	147674172	-	VC0395_A0593	-	hypothetical protein
569	 50.64	0	634840..635382	+	180	147673672	-	VC0395_A0594	-	hypothetical protein
570	 47.66	0	635395..636183	+	262	147675685	-	VC0395_A0595	-	AraC/XylS family transcriptional regulator
571	 45.40	0	636232..636720	-	162	147673819	-	VC0395_A0596	-	hypothetical protein
47.83	MEAN

3.88	STD DEV
