IslandPath Analysis: Vibrio cholerae O395

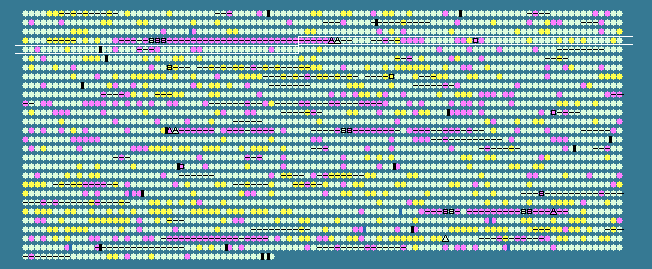

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.83 STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
347	 36.32	-2	394120..394890	+	256	147673127	acfC	VC0395_A0366	-	accessory colonization factor AcfC
348	 34.76	-2	395388..396296	+	302	147673859	tagE-1	VC0395_A0367	-	tagE protein
349	 31.33	-2	396299..396946	-	215	147674631	acfA	VC0395_A0368	-	accessory colonization factor AcfA
350	 39.15	-2	397197..397385	+	62	147675418	-	VC0395_A0369	-	accessory colonization factor AcfD
351	 38.50	-2	397351..401682	+	1443	147673383	-	VC0395_A0370	-	putative lipoprotein
352	 37.11	-2	402719..402877	-	52	147674317	-	VC0395_A0371	-	phage family integrase
353	 46.34	0	403597..404865	-	422	147674820	-	VC0395_A0372	-	phage family integrase
354	 48.35	0	405467..405952	-	161	147675473	smpB	VC0395_A0374	-	SsrA-binding protein
355	 47.62	0	406130..406570	+	146	147674875	-	VC0395_A0375	-	hypothetical protein
356	 48.08	0	406567..406878	+	103	147675728	-	VC0395_A0376	-	hypothetical protein
357	 45.01	0	406956..407366	-	136	147673557	smpA	VC0395_A0377	-	small protein A
358	 48.17	0	407474..409138	-	554	147673817	recN	VC0395_A0378	-	recombination and repair protein
359	 46.89	0	409268..410152	-	294	147674418	ppnK	VC0395_A0379	-	inorganic polyphosphate/ATP-NAD kinase
360	 49.42	0	410298..410900	+	200	147673276	grpE	VC0395_A0381	-	heat shock protein GrpE
361	 37.72	-2	410893..411006	-	37	147675381	-	VC0395_A0380	-	hypothetical protein
362	 48.43	0	411164..413071	+	635	147674898	dnaK	VC0395_A0382	-	molecular chaperone DnaK
363	 51.66	0	413272..414417	+	381	147674389	dnaJ	VC0395_A0383	-	dnaJ protein
364	 43.92	-1	414467..414910	-	147	147674856	-	VC0395_A0384	-	putative pilin
365	 42.70	-1	414965..415519	+	184	147675478	-	VC0395_A0385	-	putative type IV pilin
366	 40.63	-1	415488..416090	+	200	147674851	-	VC0395_A0386	-	hypothetical protein
367	 38.73	-2	416081..417322	+	413	147675549	-	VC0395_A0387	-	hypothetical protein
368	 46.03	0	417312..417689	+	125	147674019	-	VC0395_A0388	-	putative type IV pilin
369	 48.46	0	418122..419681	+	519	147674543	-	VC0395_A0389	-	hypothetical protein
370	 48.80	0	419750..420331	+	193	147675155	yfhC	VC0395_A0390	-	zinc-binding domain-containing protein
371	 44.70	0	420377..420508	-	43	147673722	-	VC0395_A0391	-	hypothetical protein
372	 48.40	0	420687..422279	-	530	147674227	-	VC0395_A0392	-	Slt family transglycosylase
373	 41.46	-1	422279..422401	-	40	147673305	-	VC0395_A0393	-	hypothetical protein
374	 38.03	-2	422380..422592	+	70	147673927	-	VC0395_A0394	-	hypothetical protein
375	 52.57	+1	422589..426482	+	1297	147673351	purL	VC0395_A0395	-	phosphoribosylformylglycinamidine synthase
376	 38.81	-2	426657..427094	+	145	147675515	tnpA	VC0395_A0396	-	IS1004 transposase
377	 43.23	-1	427205..427396	-	63	147674900	-	VC0395_A0397	-	hypothetical protein
378	 48.04	0	427402..427605	-	67	147674347	-	VC0395_A0398	-	hypothetical protein
379	 47.29	0	427708..428352	-	214	147673689	-	VC0395_A0399	-	hypothetical protein
380	 50.99	0	428594..430309	-	571	147673158	proS	VC0395_A0400	-	prolyl-tRNA synthetase
381	 48.71	0	430535..431230	-	231	147675289	-	VC0395_A0401	-	hypothetical protein
382	 44.96	0	431365..431622	+	85	147673049	rpmE2	VC0395_A0402	-	50S ribosomal protein L31 type B
383	 46.03	0	431619..431744	+	41	147674880	rpmJ	VC0395_A0403	-	50S ribosomal protein L36
384	 49.72	0	431927..433531	+	534	147673146	-	VC0395_A0404	-	hypothetical protein
385	 54.22	+1	433597..434046	-	149	147673556	-	VC0395_A0405	-	hypothetical protein
386	 49.67	0	434043..434342	-	99	147674055	-	VC0395_A0406	-	hypothetical protein
387	 48.08	0	435107..435730	+	207	147675591	-	VC0395_A0408	-	acetyltransferase-related protein
388	 48.84	0	435687..435989	-	100	147673114	-	VC0395_A0407	-	hypothetical protein
389	 50.96	0	435993..437030	-	345	147674808	-	VC0395_A0409	-	hypothetical protein
390	 52.88	+1	437119..437430	+	103	147674977	-	VC0395_A0410	-	hypothetical protein
391	 50.48	0	437431..438165	+	244	147674217	-	VC0395_A0411	-	tRNA pseudouridine synthase C
392	 51.83	+1	438263..440143	-	626	147675127	dxs	VC0395_A0412	-	1-deoxy-D-xylulose-5-phosphate synthase
393	 51.30	0	440163..441047	-	294	147674651	ispA	VC0395_A0413	-	geranyltranstransferase
394	 51.85	+1	441089..441331	-	80	147675304	xseB	VC0395_A0414	-	exodeoxyribonuclease VII small subunit
395	 49.54	0	441646..442410	+	254	147674601	pomA	VC0395_A0415	-	flagellar motor protein PomA
396	 50.26	0	442422..443378	+	318	147674334	motB	VC0395_A0416	-	flagellar motor protein MotB
397	 48.00	0	443586..445133	+	515	147673207	thiI	VC0395_A0417	-	thiamine biosynthesis protein ThiI
398	 46.47	0	445755..446675	+	306	147675583	-	VC0395_A0418	-	DNA-binding transcriptional activator GcvA
399	 51.94	+1	446697..447083	+	128	147674965	-	VC0395_A0419	-	hypothetical protein
400	 47.77	0	447114..447965	-	283	147674734	xni	VC0395_A0420	-	exonuclease IX
401	 49.56	0	448004..449377	-	457	147673433	-	VC0395_A0421	-	hypothetical protein
402	 47.49	0	449582..451156	-	524	147675023	-	VC0395_A0422	-	GGDEF family protein
403	 42.75	-1	451258..453519	-	753	147675739	-	VC0395_A0423	-	hypothetical protein
404	 48.96	0	453534..454397	-	287	147674480	queF	VC0395_A0424	-	7-cyano-7-deazaguanine reductase
405	 49.92	0	454428..455024	+	198	147673893	syd	VC0395_A0425	-	SecY interacting protein Syd
406	 50.58	0	455026..455802	+	258	147673743	-	VC0395_A0426	-	hypothetical protein
407	 46.86	0	455935..456762	-	275	147673293	metQ	VC0395_A0427	-	DL-methionine transporter substrate-binding subunit
408	 52.95	+1	456781..457458	-	225	147675345	-	VC0395_A0428	-	ABC transporter, permease protein
409	 48.41	0	457448..458482	-	344	147674203	metN	VC0395_A0429	-	DL-methionine transporter ATP-binding subunit
410	 49.02	0	458718..459278	+	186	147674205	-	VC0395_A0430	-	D,D-heptose 1,7-bisphosphate phosphatase
411	 49.21	0	459343..460293	+	316	147673437	treR	VC0395_A0431	-	trehalose repressor
412	 49.97	0	460530..461966	+	478	147675677	treB	VC0395_A0432	-	trehalose(maltose)-specific PTS system components IIBC
413	 47.07	0	462046..463734	+	562	147673664	treC	VC0395_A0433	-	trehalose-6-phosphate hydrolase
414	 49.29	0	464791..465849	+	352	147674519	-	VC0395_A0438	-	hypothetical protein
415	 49.66	0	465849..468959	+	1036	147674044	-	VC0395_A0439	-	putative multidrug resistance protein
416	 41.32	-1	469386..469886	+	166	147675486	-	VC0395_A0440	-	phosphotyrosine protein phosphatase
417	 48.44	0	470199..471317	+	372	147674876	wecB	VC0395_A0441	-	UDP-N-acetylglucosamine 2-epimerase
418	 47.83	0	471337..472578	+	413	147674871	wecC	VC0395_A0442	-	UDP-N-acetyl-D-mannosamine dehydrogenase
419	 48.29	0	472575..473129	+	184	147674228	-	VC0395_A0443	-	transferase hexapeptide domain-containing protein
420	 42.91	-1	473126..474274	+	382	147673642	-	VC0395_A0444	-	putative exopolysaccharide biosynthesis protein EpsF
421	 46.28	0	474271..474579	+	102	147675277	-	VC0395_A0445	-	putative polysaccharide export protein
422	 43.12	-1	474594..475676	+	360	147673440	-	VC0395_A0446	-	putative polysaccharide export protein
423	 42.42	-1	475673..476893	+	406	147675442	-	VC0395_A0447	-	hypothetical protein
424	 44.91	0	476904..477335	+	143	147675712	-	VC0395_A0448	-	transferase hexapeptide domain-containing protein
425	 45.94	0	477335..478675	+	446	147673380	-	VC0395_A0449	-	putative capK protein
426	 46.81	0	478651..479748	+	365	147673812	-	VC0395_A0450	-	putative polysaccharide biosynthesis protein
427	 47.88	0	479784..480917	+	377	147674949	-	VC0395_A0451	-	hypothetical protein
428	 46.61	0	480907..481659	+	250	147675424	cpsF	VC0395_A0452	-	UDP-N-acetyl-D-mannosamine transferase
429	 40.20	-1	481855..482670	+	271	147673097	-	VC0395_A0453	-	hypothetical protein
430	 35.04	-2	482876..484102	-	408	147673425	-	VC0395_A0454	-	hypothetical protein
431	 47.15	0	484366..487239	+	957	147674173	-	VC0395_A0455	-	hypothetical protein
432	 45.03	0	487394..488710	-	438	147675069	-	VC0395_A0456	-	hypothetical protein
433	 49.01	0	488886..489491	-	201	147673912	-	VC0395_A0457	-	hypothetical protein
434	 45.06	0	489981..491378	+	465	147673705	-	VC0395_A0458	-	putative capsular polysaccharide biosynthesis glycosyltransferase
435	 47.54	0	491449..492645	+	398	147675750	-	VC0395_A0459	-	hypothetical protein
436	 46.02	0	492649..493176	+	175	147674852	-	VC0395_A0460	-	hypothetical protein
437	 47.43	0	493201..495414	+	737	147674262	-	VC0395_A0461	-	putative exopolysaccharide biosynthesis protein
438	 50.79	0	495447..496139	+	230	147674735	-	VC0395_A0462	-	hypothetical protein
439	 46.72	0	496133..496498	+	121	147675605	-	VC0395_A0463	-	VanZ like family protein
440	 45.56	0	496654..497250	-	198	147673231	-	VC0395_A0464	-	hypothetical protein
441	 49.01	0	497534..498841	+	435	147674000	glyA	VC0395_A0465	-	serine hydroxymethyltransferase
442	 44.35	0	499006..499359	-	117	147674133	-	VC0395_A0466	-	putative lipoprotein
443	 48.14	0	499528..500493	-	321	147673404	lipA	VC0395_A0467	-	lipoyl synthase
444	 46.06	0	500486..501145	-	219	147674188	lipB	VC0395_A0468	-	lipoyltransferase
445	 46.95	0	501324..501602	-	92	147674966	-	VC0395_A0469	-	hypothetical protein
446	 47.11	0	501750..502925	-	391	147675663	dacA-1	VC0395_A0470	-	D-alanyl-D-alanine carboxypeptidase
47.83	MEAN

3.88	STD DEV
