IslandPath Analysis: Vibrio cholerae O395

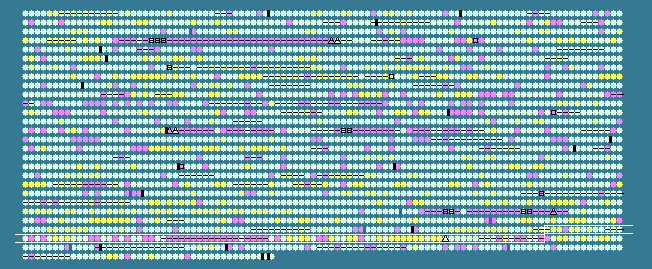

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.83 STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2488	 52.77	+1	2738842..2739690	-	282	147674553	-	VC0395_A2584	-	hypothetical protein
2489	 53.49	+1	2739921..2740823	+	300	147675168	murQ	VC0395_A2585	-	N-acetylmuramic acid-6-phosphate etherase
2490	 52.45	+1	2740844..2742292	+	482	147673783	murP	VC0395_A2586	-	N-acetylmuramic acid phosphotransfer permease
2491	 42.33	-1	2742398..2742886	-	162	147675088	-	VC0395_A2587	-	hypothetical protein
2492	 52.13	+1	2742959..2743825	-	288	147675681	-	VC0395_A2588	-	hypothetical protein
2493	 52.44	+1	2743989..2744705	+	238	162329623	rph	VC0395_A2589	-	ribonuclease PH
2494	 48.68	0	2745070..2745714	+	214	147675512	pyrE	VC0395_A2590	-	orotate phosphoribosyltransferase
2495	 53.07	+1	2745800..2746777	-	325	147673251	msbB	VC0395_A2591	-	lipid A biosynthesis (KDO)2-(lauroyl)-lipid IVA acyltransferase
2496	 49.63	0	2746788..2747744	-	318	147673430	htrB	VC0395_A2592	-	lipid A biosynthesis lauroyl acyltransferase
2497	 48.03	0	2747741..2748373	-	210	147674218	slmA	VC0395_A2593	-	nucleoid occlusion protein
2498	 44.93	0	2748287..2748424	+	45	147675011	-	VC0395_A2594	-	hypothetical protein
2499	 55.17	+1	2748490..2749689	-	399	147675719	coaBC	VC0395_A2595	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
2500	 50.44	0	2749857..2751551	+	564	147674999	-	VC0395_A2596	-	methyl-accepting chemotaxis protein
2501	 51.26	0	2751663..2752337	+	224	147674401	radC	VC0395_A2597	-	DNA repair protein RadC
2502	 41.48	-1	2752495..2752629	-	44	147675205	-	VC0395_A2598	-	hypothetical protein
2503	 44.73	0	2752632..2752868	+	78	147673253	rpmB	VC0395_A2599	-	ribosomal protein L28
2504	 42.86	-1	2752882..2753049	+	55	147674398	rpmG	VC0395_A2600	-	50S ribosomal protein L33
2505	 49.28	0	2753270..2753758	+	162	147673591	-	VC0395_A2601	-	hypothetical protein
2506	 52.22	+1	2753768..2754577	+	269	147674090	mutM	VC0395_A2602	-	formamidopyrimidine-DNA glycosylase
2507	 49.09	0	2754674..2755168	-	164	147673495	coaD	VC0395_A2603	-	phosphopantetheine adenylyltransferase
2508	 51.45	0	2755279..2756316	+	345	147675321	-	VC0395_A2604	-	putative ADP-heptose--LPS heptosyltransferase II
2509	 49.23	0	2756378..2757157	-	259	147674685	-	VC0395_A2605	-	glycosyl transferase, group 2
2510	 51.12	0	2757200..2758273	-	357	147673782	-	VC0395_A2606	-	lipopolysaccharide biosynthesis protein
2511	 46.16	0	2758353..2759108	+	251	147675676	-	VC0395_A2607	-	3-deoxy-D-manno-octulosonic-acid kinase
2512	 32.60	-2	2759112..2760071	+	319	147674761	-	VC0395_A2608	-	hypothetical protein
2513	 43.98	0	2760075..2761004	-	309	147674123	-	VC0395_A2609	-	hypothetical protein
2514	 46.37	0	2761001..2761744	-	247	147673511	-	VC0395_A2610	-	hypothetical protein
2515	 45.58	0	2761741..2763324	-	527	147674658	-	VC0395_A2611	-	hypothetical protein
2516	 44.09	0	2763315..2763695	-	126	147675074	-	VC0395_A2612	-	hypothetical protein
2517	 47.42	0	2763692..2765011	-	439	147675530	kdtA	VC0395_A2613	-	3-deoxy-D-manno-octulosonic-acid transferase
2518	 44.23	0	2764972..2765760	-	262	147673039	-	VC0395_A2614	-	hypothetical protein
2519	 44.48	0	2765757..2766806	-	349	147673811	-	VC0395_A2615	-	putative lipopolysaccharide biosynthesis protein
2520	 46.30	0	2766803..2767843	-	346	147673095	rfaF	VC0395_A2616	-	ADP-heptose--LPS heptosyltransferase II
2521	 35.25	-2	2767840..2769039	-	399	147673869	-	VC0395_A2617	-	hypothetical protein
2522	 37.04	-2	2769041..2769607	-	188	147674213	-	VC0395_A2618	-	hexapaptide repeat-containing transferase
2523	 45.23	0	2769615..2771387	-	590	147675347	-	VC0395_A2619	-	hypothetical protein
2524	 46.14	0	2771546..2772490	-	314	147674538	rfaD	VC0395_A2620	-	ADP-L-glycero-D-mannoheptose-6-epimerase
2525	 42.13	-1	2772932..2774329	+	465	147675701	rfbA	VC0395_A2621	-	mannose-1-phosphate guanylyltransferase
2526	 38.65	-2	2774332..2775723	+	463	147673913	rfbB	VC0395_A2622	-	phosphomannomutase
2527	 39.57	-2	2775726..2776847	+	373	147674729	gmd	VC0395_A2623	-	GDP-mannose 4,6-dehydratase
2528	 40.04	-2	2776858..2777961	+	367	147673420	rfbE	VC0395_A2624	-	perosamine synthase
2529	 35.06	-2	2777958..2779349	+	463	147673261	rfbG	VC0395_A2625	-	rfbG protein
2530	 34.84	-2	2779321..2780115	+	264	147674342	rfbH	VC0395_A2626	-	lipopolysaccharide/O-antigen transport protein
2531	 36.40	-2	2780054..2780869	+	271	147674780	rfbI	VC0395_A2627	-	lipopolysaccharide/O-antigen transport protein
2532	 33.33	-2	2780908..2781150	+	80	147675250	-	VC0395_A2628	-	putative acyl carrier protein
2533	 37.71	-2	2781156..2782571	+	471	147673559	rfbL	VC0395_A2629	-	rfbL protein
2534	 42.49	-1	2782580..2783704	+	374	147674827	-	VC0395_A2630	-	iron-containing alcohol dehydrogenase family protein RfbM
2535	 42.37	-1	2783695..2786172	+	825	147674238	-	VC0395_A2631	-	acyl protein synthase/acyl-CoA reductase RfbN
2536	 38.98	-2	2786242..2786808	+	188	147674271	-	VC0395_A2632	-	acetyltransferase
2537	 44.44	0	2787580..2787705	+	41	147674557	-	VC0395_A2634	-	rfbqrso22-2
2538	 41.34	-1	2787710..2788096	+	128	147673984	-	VC0395_A2635	-	rfbqrso22-4
2539	 31.59	-2	2788493..2789353	+	286	147675431	-	VC0395_A2636	-	RfbT protein
2540	 35.13	-2	2789388..2790500	-	370	147674792	rfbV	VC0395_A2637	-	lipopolysaccharide biosynthesis protein RfbV
2541	 43.57	-1	2790508..2792373	-	621	147674200	rfbU	VC0395_A2638	-	mannosyl-transferase
2542	 44.86	0	2792526..2793497	+	323	147673651	galE-1	VC0395_A2639	-	UDP-glucose 4-epimerase
2543	 43.78	-1	2793505..2794059	+	184	147673652	-	VC0395_A2640	-	putative capsule biosynthesis protein
2544	 44.44	0	2794046..2794162	+	38	147675523	-	VC0395_A2641	-	hypothetical protein
2545	 55.26	+1	2794202..2795569	+	455	147674075	-	VC0395_A2642	-	hypothetical protein
2546	 49.48	0	2795831..2797069	-	412	147673896	-	VC0395_A2643	-	hypothetical protein
2547	 54.28	+1	2797124..2797696	-	190	147673328	-	VC0395_A2644	-	hypothetical protein
2548	 53.25	+1	2797696..2798619	-	307	147675119	-	VC0395_A2645	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
2549	 47.98	0	2798612..2799280	+	222	147673759	-	VC0395_A2646	-	hypothetical protein
2550	 41.25	-1	2799643..2800842	+	399	147673168	manA-1	VC0395_A2647	-	mannose-6-phosphate isomerase
2551	 44.24	0	2800808..2801788	+	326	147675748	-	VC0395_A2648	-	ROK family protein
2552	 53.16	+1	2802136..2803194	-	352	147674782	-	VC0395_A2649	-	hypothetical protein
2553	 47.25	0	2803566..2803838	+	90	147674530	hupA	VC0395_A2650	-	DNA-binding protein HU
2554	 48.56	0	2803884..2804579	+	231	147673918	-	VC0395_A2651	-	putative lipoprotein
2555	 54.65	+1	2804679..2805968	-	429	147673352	purD	VC0395_A2652	-	phosphoribosylamine--glycine ligase
2556	 53.23	+1	2806027..2807619	-	530	147673909	purH	VC0395_A2653	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
2557	 38.89	-2	2807695..2807874	-	59	147673311	-	VC0395_A2654	-	hypothetical protein
2558	 49.75	0	2807905..2808306	+	133	147674759	zntR	VC0395_A2655	-	zinc-responsive transcriptional regulator
2559	 50.25	0	2808467..2810092	+	541	147674140	-	VC0395_A2656	-	DNA-binding transcriptional activator CadC
2560	 51.35	0	2810790..2812127	+	445	147673579	-	VC0395_A2657	-	lysine/cadaverine antiporter
2561	 50.05	0	2812171..2814372	+	733	147675733	cadA	VC0395_A2658	-	lysine decarboxylase, inducible
2562	 51.41	0	2814490..2816160	-	556	147674450	-	VC0395_A2659	-	methyl-accepting chemotaxis protein
2563	 53.17	+1	2816220..2816345	-	41	147673699	-	VC0395_A2660	-	hypothetical protein
2564	 55.46	+1	2816397..2817074	-	225	147674414	-	VC0395_A2661	-	hypothetical protein
2565	 52.62	+1	2817095..2819137	-	680	147673813	-	VC0395_A2662	-	TonB system receptor
2566	 54.95	+1	2819358..2819963	-	201	147675527	eda	VC0395_A2663	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
2567	 54.97	+1	2819976..2821352	-	458	147674889	-	VC0395_A2664	-	putative gluconate permease
2568	 50.97	0	2821506..2822021	+	171	147674289	gntV	VC0395_A2665	-	thermoresistant gluconokinase
2569	 54.48	+1	2822018..2823814	+	598	147673653	edd	VC0395_A2666	-	phosphogluconate dehydratase
2570	 51.55	0	2823890..2824888	-	332	147675184	gntR	VC0395_A2667	-	gluconate utilization system gnt-I transcriptional repressor
2571	 46.20	0	2825227..2826462	+	411	147675645	-	VC0395_A2668	-	phage integrase family site specific recombinase
2572	 46.73	0	2826459..2827451	+	330	147673973	-	VC0395_A2669	-	Fic family protein
2573	 46.86	0	2827873..2830386	+	837	147673323	cas	VC0395_A2670	-	CRISPR-associated helicase Cas3 domain-containing protein
2574	 47.31	0	2830389..2831912	+	507	147673815	cse	VC0395_A2671	-	CRISPR-associated protein, Cse1 family
2575	 50.09	0	2831926..2832486	+	186	147674986	cse	VC0395_A2672	-	CRISPR-associated protein, Cse2 family
2576	 47.38	0	2832479..2833126	+	215	147675727	cse	VC0395_A2673	-	CRISPR-associated protein, Cse3 family
2577	 45.98	0	2833148..2834191	+	347	147673502	cse	VC0395_A2674	-	CRISPR-associated protein, Cse4 family
2578	 48.12	0	2834195..2834911	+	238	147674174	cas5e	VC0395_A2675	-	CRISPR-associated protein Cas5, ecoli subtype
2579	 45.21	0	2834914..2835789	+	291	147674033	cas	VC0395_A2676	-	CRISPR-associated protein Cas1
2580	 44.03	0	2835815..2836057	+	80	147674483	cas	VC0395_A2677	-	CRISPR-associated protein Cas2
2581	 54.45	+1	2837535..2838287	+	250	147675230	-	VC0395_A2678	-	hypothetical protein
2582	 47.70	0	2838621..2839316	+	231	147673714	-	VC0395_A2679	-	hypothetical protein
2583	 34.96	-2	2839318..2839440	+	40	147673135	-	VC0395_A2680	-	hypothetical protein
2584	 44.10	0	2839501..2840085	-	194	147673799	-	VC0395_A2681	-	hypothetical protein
2585	 46.40	0	2840304..2840525	-	73	147674728	-	VC0395_A2682	-	putative transcriptional regulator
2586	 48.72	0	2840525..2840758	-	77	147675272	-	VC0395_A2683	-	phage transcriptional regulator, AlpA
2587	 43.87	-1	2840825..2841232	-	135	147673529	-	VC0395_A2684	-	hypothetical protein
47.83	MEAN

3.88	STD DEV
