IslandPath Analysis: Vibrio cholerae O395

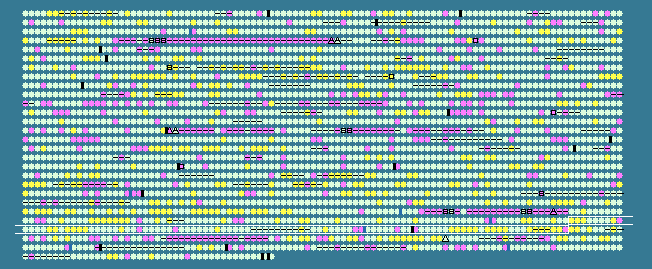

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.83 STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2392	 51.48	0	2625047..2625994	+	315	147673280	fmt	VC0395_A2474	-	methionyl-tRNA formyltransferase
2393	 54.41	+1	2626026..2627330	+	434	147675284	sun	VC0395_A2475	-	sun protein
2394	 52.14	+1	2627392..2628768	+	458	147674709	trkA	VC0395_A2476	-	potassium transporter peripheral membrane component
2395	 51.31	0	2628780..2630225	+	481	147673732	trkH-1	VC0395_A2477	-	potassium uptake protein TrkH
2396	 49.92	0	2630138..2630794	+	218	147673517	-	VC0395_A2478	-	hypothetical protein
2397	 47.22	0	2630833..2631480	-	215	147674108	-	VC0395_A2479	-	putative hemolysin
2398	 51.25	0	2631558..2632400	-	280	147674742	-	VC0395_A2480	-	SpoOM-related protein
2399	 52.38	+1	2632634..2632801	+	55	147675047	-	VC0395_A2481	-	hypothetical protein
2400	 42.29	-1	2632898..2633176	+	92	147674269	-	VC0395_A2482	-	hypothetical protein
2401	 49.06	0	2633530..2635017	+	495	147675252	-	VC0395_A2483	-	FixG-related protein
2402	 49.27	0	2635029..2636051	+	340	147674440	-	VC0395_A2484	-	serine/threonine protein kinase
2403	 46.43	0	2636082..2636684	+	200	147673950	tpcG	VC0395_A2485	-	thiol:disulfide interchange protein
2404	 50.06	0	2636761..2637645	-	294	147673368	-	VC0395_A2486	-	hypothetical protein
2405	 53.54	+1	2637735..2639258	-	507	147673660	-	VC0395_A2487	-	ComM-related protein
2406	 55.25	+1	2639792..2641438	+	548	147674818	ilvG	VC0395_A2488	-	acetolactate synthase 2 catalytic subunit
2407	 45.61	0	2641450..2641734	+	94	147674918	ilvM	VC0395_A2489	-	acetolactate synthase 2 regulatory subunit
2408	 53.65	+1	2641725..2642684	+	319	147674119	ilvE	VC0395_A2490	-	branched-chain amino acid aminotransferase
2409	 54.72	+1	2642694..2644535	+	613	147675499	ilvD	VC0395_A2491	-	dihydroxy-acid dehydratase
2410	 52.32	+1	2644539..2646071	+	510	147674902	ilvA	VC0395_A2492	-	threonine dehydratase
2411	 52.09	+1	2646319..2647299	+	326	147674251	-	VC0395_A2493	-	zinc-binding alcohol dehydrogenase
2412	 46.27	0	2647471..2647671	-	66	147673683	-	VC0395_A2494	-	hypothetical protein
2413	 49.00	0	2647792..2648040	+	82	147675469	-	VC0395_A2495	-	cell developmental protein SirA
2414	 47.67	0	2648127..2648384	-	85	147674844	-	VC0395_A2496	-	hypothetical protein
2415	 46.77	0	2648490..2649092	-	200	147674249	-	VC0395_A2497	-	hypothetical protein
2416	 49.95	0	2649385..2650377	+	330	147675392	glyQ	VC0395_A2498	-	glycyl-tRNA synthetase subunit alpha
2417	 52.06	+1	2650392..2652458	+	688	147674732	glyS	VC0395_A2499	-	glycyl-tRNA synthetase subunit beta
2418	 49.88	0	2652777..2654033	+	418	147675432	avtA	VC0395_A2500	-	valine--pyruvate transaminase
2419	 45.66	0	2654121..2654558	-	145	147674571	ibpA	VC0395_A2501	-	16 kDa heat shock protein A
2420	 43.59	-1	2654834..2654950	-	38	147673844	-	VC0395_A2502	-	hypothetical protein
2421	 49.80	0	2654960..2655451	-	163	147673047	-	VC0395_A2503	-	hypothetical protein
2422	 50.50	0	2655807..2658224	-	805	147673680	gyrB	VC0395_A2504	-	DNA gyrase subunit B
2423	 47.53	0	2658245..2659336	-	363	147675554	recF	VC0395_A2505	-	recombination protein F
2424	 49.77	0	2659354..2660454	-	366	147674757	dnaN	VC0395_A2506	-	DNA polymerase III subunit beta
2425	 50.67	0	2660512..2661930	-	472	147674057	dnaA	VC0395_A2507	-	chromosomal replication initiation protein
2426	 41.86	-1	2661975..2662103	-	42	147674633	-	VC0395_A2508	-	hypothetical protein
2427	 47.52	0	2662227..2662973	+	248	147674023	-	VC0395_A2509	-	amino acid ABC transporter, periplasmic amino acid-binding protein
2428	 50.30	0	2663051..2663722	+	223	147675477	-	VC0395_A2510	-	amino acid ABC transporter, permease protein
2429	 49.32	0	2663719..2664456	+	245	147674831	-	VC0395_A2511	-	amino acid ABC transporter, ATP-binding protein
2430	 50.00	0	2664698..2664835	+	45	147675538	rpmH	VC0395_A2512	-	50S ribosomal protein L34
2431	 44.82	0	2664848..2665204	+	118	147674882	rnpA	VC0395_A2513	-	ribonuclease P
2432	 49.20	0	2665431..2667056	+	541	147674272	yidC	VC0395_A2514	-	putative inner membrane protein translocase component YidC
2433	 52.90	+1	2667117..2668511	+	464	147673066	trmE	VC0395_A2515	-	tRNA modification GTPase TrmE
2434	 49.66	0	2668521..2668955	+	144	147675132	mioC	VC0395_A2516	-	flavodoxin
2435	 49.79	0	2669430..2671325	+	631	147674621	gidA	VC0395_A2517	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
2436	 48.03	0	2671325..2671957	+	210	147673868	gidB	VC0395_A2518	-	glucose-inhibited division protein B
2437	 47.55	0	2671972..2672745	+	257	147674665	-	VC0395_A2519	-	ParA family protein
2438	 47.28	0	2672772..2673653	+	293	147675136	-	VC0395_A2520	-	ParB family protein
2439	 46.92	0	2673843..2674232	+	129	147673641	atpI	VC0395_A2521	-	F0F1 ATP synthase subunit I
2440	 44.90	0	2674241..2675053	+	270	147673941	atpB	VC0395_A2522	-	F0F1 ATP synthase subunit A
2441	 47.29	0	2675097..2675354	+	85	147675002	atpE	VC0395_A2523	-	F0F1 ATP synthase subunit C
2442	 44.59	0	2675428..2675898	+	156	147674150	atpF	VC0395_A2524	-	F0F1 ATP synthase subunit B
2443	 46.82	0	2675913..2676446	+	177	147675001	atpH	VC0395_A2525	-	F0F1 ATP synthase subunit delta
2444	 49.42	0	2676460..2678001	+	513	147674668	atpA	VC0395_A2526	-	F0F1 ATP synthase subunit alpha
2445	 47.40	0	2678046..2678912	+	288	147673449	atpG	VC0395_A2527	-	F0F1 ATP synthase subunit gamma
2446	 50.14	0	2678947..2680350	+	467	147674488	atpD	VC0395_A2528	-	F0F1 ATP synthase subunit beta
2447	 51.77	+1	2680369..2680791	+	140	147675059	atpC	VC0395_A2529	-	F0F1 ATP synthase subunit epsilon
2448	 51.25	0	2681038..2682399	+	453	147673330	glmU	VC0395_A2530	-	bifunctional N-acetylglucosamine-1-phosphate uridyltransferase/glucosamine-1-phosphate acetyltransferase
2449	 50.46	0	2682459..2683661	-	400	162329622	-	VC0395_A2531	-	inner membrane transport protein YdhC
2450	 50.50	0	2683817..2684725	+	302	147674679	-	VC0395_A2532	-	putative DNA-binding transcriptional regulator
2451	 53.35	+1	2684792..2685955	-	387	147674109	fadA	VC0395_A2533	-	3-ketoacyl-CoA thiolase
2452	 51.20	0	2685981..2688152	-	723	147673120	fadB	VC0395_A2534	-	multifunctional fatty acid oxidation complex subunit alpha
2453	 47.55	0	2688363..2688995	+	210	147673536	-	VC0395_A2535	-	hypothetical protein
2454	 48.90	0	2689015..2690472	+	485	147673487	trkH-2	VC0395_A2536	-	potassium uptake protein TrkH
2455	 45.90	0	2690495..2691019	+	174	147675629	hemG	VC0395_A2537	-	protoporphyrinogen oxidase
2456	 41.13	-1	2691167..2691307	+	46	147675031	-	VC0395_A2538	-	hypothetical protein
2457	 35.00	-2	2691320..2691439	+	39	147674413	-	VC0395_A2539	-	hypothetical protein
2458	 48.16	0	2697077..2697973	-	298	147674629	ilvY	VC0395_A2549	-	DNA-binding transcriptional regulator IlvY
2459	 47.95	0	2698111..2699595	+	494	147675410	ilvC	VC0395_A2550	-	ketol-acid reductoisomerase
2460	 46.43	0	2699722..2699973	-	83	147674656	-	VC0395_A2551	-	hypothetical protein
2461	 50.14	0	2700090..2703200	-	1036	147674069	-	VC0395_A2552	-	putative multidrug resistance protein
2462	 47.24	0	2703212..2704318	-	368	147673467	-	VC0395_A2553	-	hypothetical protein
2463	 42.38	-1	2704337..2704933	-	198	147675641	-	VC0395_A2554	-	TetR family transcriptional regulator
2464	 48.76	0	2705079..2707094	+	671	147674491	rep	VC0395_A2555	-	ATP-dependent DNA helicase Rep
2465	 50.25	0	2707161..2707568	-	135	147673723	cycB	VC0395_A2556	-	cytochrome c5
2466	 33.33	-2	2708652..2708843	-	63	147673581	-	VC0395_A2562	-	hypothetical protein
2467	 49.88	0	2709203..2710918	+	571	147675747	-	VC0395_A2563	-	peptide ABC transporter, ATP-binding protein
2468	 48.07	0	2710938..2712566	+	542	147674667	-	VC0395_A2564	-	peptide ABC transporter, periplasmic peptide-binding protein
2469	 50.53	0	2712670..2713698	+	342	147674097	-	VC0395_A2565	-	peptide ABC transporter, permease protein
2470	 50.37	0	2713701..2714639	+	312	147673904	-	VC0395_A2566	-	peptide ABC transporter, permease protein
2471	 50.95	0	2714814..2715761	+	315	147673324	-	VC0395_A2567	-	hypothetical protein
2472	 52.65	+1	2715856..2717211	-	451	147675159	gor	VC0395_A2568	-	glutathione reductase
2473	 51.55	0	2717317..2718156	-	279	147674499	-	VC0395_A2569	-	hypothetical protein
2474	 52.23	+1	2718436..2720478	+	680	147673174	prlC	VC0395_A2570	-	oligopeptidase A
2475	 52.99	+1	2720616..2722787	+	723	147675309	uvrD	VC0395_A2571	-	DNA-dependent helicase II
2476	 51.42	0	2723532..2724200	-	222	147675763	-	VC0395_A2572	-	hypothetical protein
2477	 50.06	0	2724275..2725087	-	270	147673771	-	VC0395_A2573	-	AraC/XylS family transcriptional regulator
2478	 55.29	+1	2725235..2727001	-	588	147674349	ggt	VC0395_A2574	-	gamma-glutamyltranspeptidase
2479	 52.15	+1	2727163..2728071	-	302	147673550	rarD	VC0395_A2575	-	rarD protein
2480	 53.35	+1	2728205..2730067	+	620	147673915	recQ	VC0395_A2576	-	ATP-dependent DNA helicase RecQ
2481	 52.67	+1	2730060..2730359	+	99	147673116	-	VC0395_A2577	-	hypothetical protein
2482	 49.74	0	2730515..2730892	+	125	147675460	-	VC0395_A2578	-	hypothetical protein
2483	 50.38	0	2730928..2732763	-	611	147674646	-	VC0395_A2579	-	putative hemolysin secretion ATP-binding protein
2484	 49.51	0	2732835..2734991	+	718	147673484	-	VC0395_A2580	-	iron(III) compound receptor
2485	 52.33	+1	2735050..2735907	+	285	147674286	-	VC0395_A2581	-	iron(III) ABC transporter, ATP-binding protein
2486	 53.54	+1	2735898..2736857	+	319	147674066	-	VC0395_A2582	-	iron(III) ABC transporter, periplasmic iron-compound-binding protein
2487	 56.07	+2	2736854..2738815	+	653	147673981	-	VC0395_A2583	-	iron-hydroxamate transporter permease subunit
2488	 52.77	+1	2738842..2739690	-	282	147674553	-	VC0395_A2584	-	hypothetical protein
2489	 53.49	+1	2739921..2740823	+	300	147675168	murQ	VC0395_A2585	-	N-acetylmuramic acid-6-phosphate etherase
2490	 52.45	+1	2740844..2742292	+	482	147673783	murP	VC0395_A2586	-	N-acetylmuramic acid phosphotransfer permease
2491	 42.33	-1	2742398..2742886	-	162	147675088	-	VC0395_A2587	-	hypothetical protein
47.83	MEAN

3.88	STD DEV
