IslandPath Analysis: Vibrio cholerae O395

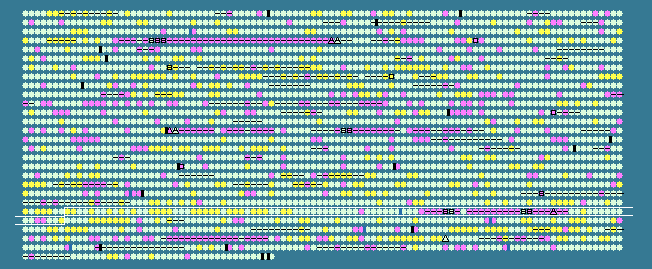

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.83 STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2208	 51.78	+1	2416561..2417037	+	158	147674422	-	VC0395_A2267	-	rRNA methylase
2209	 52.26	+1	2417071..2417556	-	161	147675670	fxsA	VC0395_A2268	-	FxsA
2210	 49.20	0	2417648..2418586	-	312	147673258	-	VC0395_A2269	-	GGDEF family protein
2211	 48.21	0	2418831..2420282	+	483	147675095	aspA	VC0395_A2270	-	aspartate ammonia-lyase
2212	 52.45	+1	2420410..2421717	+	435	162329619	dcuA	VC0395_A2271	-	anaerobic C4-dicarboxylate transporter
2213	 51.24	0	2422111..2423601	+	496	147674664	-	VC0395_A2272	-	type II secretory pathway protein
2214	 49.95	0	2423598..2425751	+	717	147674082	-	VC0395_A2273	-	pullulanase
2215	 52.02	+1	2425869..2427671	+	600	147673525	dipZ	VC0395_A2274	-	thiol:disulfide interchange protein precursor
2216	 50.00	0	2427844..2428473	+	209	147675562	-	VC0395_A2275	-	LuxR family transcriptional regulator
2217	 52.00	+1	2428572..2430317	-	581	147674945	-	VC0395_A2276	-	potassium/proton antiporter
2218	 45.69	0	2430696..2430962	+	88	147673948	-	VC0395_A2277	-	hypothetical protein
2219	 51.94	+1	2430973..2432676	+	567	147673339	-	VC0395_A2278	-	putative sodium/solute symporter
2220	 47.92	0	2432774..2433445	-	223	147674537	-	VC0395_A2279	-	hypothetical protein
2221	 46.23	0	2433747..2434436	+	229	147674080	gmk	VC0395_A2280	-	guanylate kinase
2222	 52.01	+1	2434544..2434816	+	90	147673462	rpoZ	VC0395_A2281	-	DNA-directed RNA polymerase subunit omega
2223	 52.36	+1	2434848..2436965	+	705	147675346	spoT	VC0395_A2282	-	bifunctional (p)ppGpp synthetase II/ guanosine-3',5'-bis pyrophosphate 3'-pyrophosphohydrolase
2224	 53.29	+1	2437084..2439162	+	692	147674684	recG	VC0395_A2283	-	ATP-dependent DNA helicase RecG
2225	 51.32	0	2439507..2440907	+	466	147673726	-	VC0395_A2284	-	xanthine/uracil permease family protein
2226	 50.57	0	2440932..2442248	-	438	147673138	envZ	VC0395_A2285	-	osmolarity sensor protein
2227	 51.18	0	2442317..2443039	-	240	147673571	ompR	VC0395_A2286	-	osmolarity response regulator
2228	 48.77	0	2443177..2443662	-	161	147675721	greB	VC0395_A2287	-	transcription elongation factor GreB
2229	 53.92	+1	2443907..2446228	+	773	147674924	-	VC0395_A2288	-	hypothetical protein
2230	 54.22	+1	2446320..2446817	-	165	147674208	-	VC0395_A2289	-	hypothetical protein
2231	 54.28	+1	2446952..2447758	-	268	147674258	bioH	VC0395_A2290	-	bioH protein
2232	 53.77	+1	2447649..2448509	+	286	147675590	-	VC0395_A2292	-	ComF family protein
2233	 51.36	0	2448597..2449184	+	195	147674569	-	VC0395_A2293	-	putative DNA uptake protein
2234	 47.80	0	2449257..2449871	+	204	147674005	nudE	VC0395_A2294	-	ADP-ribose diphosphatase NudE
2235	 52.66	+1	2449894..2450721	+	275	147673042	cysQ	VC0395_A2295	-	cysQ protein
2236	 54.15	+1	2450773..2451531	-	252	147675210	epsN	VC0395_A2296	-	general secretion pathway protein N
2237	 52.89	+1	2451533..2452033	-	166	147674283	epsM	VC0395_A2297	-	cholera toxin secretion protein EpsM
2238	 51.16	0	2452040..2453251	-	403	147673681	epsL	VC0395_A2298	-	general secretion pathway protein L
2239	 52.32	+1	2453220..2454230	-	336	147675385	epsK	VC0395_A2299	-	general secretion pathway protein K
2240	 52.25	+1	2454220..2454885	-	221	147674823	epsJ	VC0395_A2300	-	general secretion pathway protein J
2241	 52.26	+1	2454872..2455225	-	117	147675768	epsI	VC0395_A2301	-	general secretion pathway protein I
2242	 51.11	0	2455215..2455799	-	194	147673549	epsH	VC0395_A2302	-	general secretion pathway protein H
2243	 47.85	0	2455833..2456273	-	146	147674515	epsG	VC0395_A2303	-	general secretion pathway protein G
2244	 53.24	+1	2456314..2457534	-	406	147675103	epsF	VC0395_A2304	-	general secretion pathway protein F
2245	 52.58	+1	2457534..2459045	-	503	147673384	epsE	VC0395_A2305	-	general secretion pathway protein E
2246	 49.73	0	2459042..2461066	-	674	147674158	gspD	VC0395_A2306	-	general secretion pathway protein D
2247	 49.78	0	2461112..2462029	-	305	147675412	epsC	VC0395_A2307	-	general secretion pathway protein C
2248	 50.26	0	2462253..2462636	+	127	147675399	-	VC0395_A2308	-	hypothetical protein
2249	 49.61	0	2462655..2463545	+	296	147673226	hslO	VC0395_A2309	-	Hsp33-like chaperonin
2250	 49.17	0	2463882..2465510	+	542	147675058	pckA	VC0395_A2310	-	phosphoenolpyruvate carboxykinase
2251	 50.93	0	2465697..2467583	+	628	147675689	-	VC0395_A2311	-	hypothetical protein
2252	 50.91	0	2467625..2468557	-	310	147675114	-	VC0395_A2312	-	hypothetical protein
2253	 51.03	0	2468624..2469058	-	144	147673087	-	VC0395_A2313	-	D-tyrosyl-tRNA deacylase
2254	 46.20	0	2469076..2469969	-	297	147674039	rbn	VC0395_A2314	-	ribonuclease BN
2255	 49.01	0	2469996..2470550	-	184	147674525	-	VC0395_A2315	-	hypothetical protein
2256	 49.84	0	2470633..2472462	-	609	147675093	typA	VC0395_A2316	-	GTP-binding protein TypA
2257	 43.48	-1	2472670..2472807	+	45	147673488	-	VC0395_A2317	-	hypothetical protein
2258	 48.58	0	2472950..2474359	+	469	147673922	glnA	VC0395_A2318	-	glutamine synthetase
2259	 48.05	0	2474537..2475127	+	196	147675080	-	VC0395_A2319	-	hypothetical protein
2260	 48.83	0	2475260..2476324	+	354	147674817	glnL	VC0395_A2320	-	nitrogen regulation protein NR(II)
2261	 48.61	0	2476328..2477734	+	468	147674381	ntrC	VC0395_A2321	-	nitrogen regulation protein NR(I)
2262	 45.92	0	2477775..2480324	+	849	147673341	-	VC0395_A2322	-	GGDEF family protein
2263	 49.15	0	2480416..2481420	+	334	147675298	add	VC0395_A2323	-	adenosine deaminase
2264	 44.44	0	2493187..2493645	+	152	147675367	-	VC0395_A2340	-	RNA-binding protein
2265	 47.62	0	2493611..2494408	-	265	147673599	murI	VC0395_A2339	-	glutamate racemase
2266	 46.64	0	2494801..2496408	+	535	147674600	-	VC0395_A2341	-	alkaline serine protease
2267	 43.25	-1	2496481..2498316	-	611	147674843	-	VC0395_A2342	-	TonB-dependent receptor
2268	 37.82	-2	2499213..2499368	+	51	147673903	-	VC0395_A2343	-	hypothetical protein
2269	 33.33	-2	2499840..2499977	+	45	147674060	-	VC0395_A2344	-	hypothetical protein
2270	 36.32	-2	2500208..2500675	+	155	147675643	-	VC0395_A2346	-	hypothetical protein
2271	 43.30	-1	2500632..2501474	-	280	147673499	-	VC0395_A2345	-	transposase
2272	 46.38	0	2501523..2501660	-	45	147673830	-	VC0395_A2347	-	transposase
2273	 40.08	-1	2501733..2502221	+	162	147673891	-	VC0395_A2348	-	hypothetical protein
2274	 45.24	0	2502438..2502647	-	69	147673117	-	VC0395_A2349	-	hypothetical protein
2275	 39.81	-2	2502754..2503293	+	179	147675439	-	VC0395_A2350	-	hypothetical protein
2276	 41.82	-1	2503295..2504602	+	435	147674647	-	VC0395_A2351	-	protein HipA
2277	 39.71	-2	2504664..2504867	+	67	147674905	-	VC0395_A2352	-	hypothetical protein
2278	 42.42	-1	2505023..2505385	+	120	147674920	-	VC0395_A2353	-	hypothetical protein
2279	 40.58	-1	2505523..2507220	+	565	147675720	-	VC0395_A2354	-	hypothetical protein
2280	 40.67	-1	2507217..2508593	+	458	147673584	-	VC0395_A2355	-	hypothetical protein
2281	 40.78	-1	2508852..2510663	-	603	147674505	-	VC0395_A2356	-	hypothetical protein
2282	 38.97	-2	2510667..2511908	-	413	147673307	-	VC0395_A2357	-	hypothetical protein
2283	 38.82	-2	2512289..2514112	-	607	147673629	-	VC0395_A2358	-	hypothetical protein
2284	 44.44	0	2514109..2514981	-	290	147674397	orfB	VC0395_A2359	-	transposase OrfAB, subunit B
2285	 43.19	-1	2514978..2515322	-	114	147674790	orfA	VC0395_A2360	-	transposase OrfAB, subunit A
2286	 38.76	-2	2515329..2516267	-	312	147673405	-	VC0395_A2361	-	hypothetical protein
2287	 43.92	-1	2516604..2517170	-	188	147675219	-	VC0395_A2362	-	DNA-invertase
2288	 39.85	-2	2517353..2517889	-	178	147674449	-	VC0395_A2363	-	hypothetical protein
2289	 39.27	-2	2517893..2520082	-	729	147674376	-	VC0395_A2364	-	site-specific recombinase, phage integrase family protein
2290	 40.57	-1	2520094..2522553	-	819	147675616	-	VC0395_A2365	-	hypothetical protein
2291	 40.71	-1	2522558..2523967	-	469	147674930	-	VC0395_A2366	-	MutL protein
2292	 47.84	0	2524317..2525426	+	369	147674711	trmA	VC0395_A2367	-	tRNA (uracil-5-)-methyltransferase
2293	 48.12	0	2525463..2525834	-	123	147673456	-	VC0395_A2368	-	hypothetical protein
2294	 51.87	+1	2525874..2526515	-	213	147675303	-	VC0395_A2369	-	DNA-binding transcriptional repressor FabR
2295	 49.39	0	2526823..2528223	+	466	147674666	-	VC0395_A2370	-	soluble pyridine nucleotide transhydrogenase
2296	 49.94	0	2528425..2529285	-	286	147674371	rpoH	VC0395_A2371	-	RNA polymerase factor sigma-32
2297	 48.74	0	2529455..2530447	-	330	147675580	ftsX	VC0395_A2372	-	cell division protein FtsX
2298	 50.85	0	2530437..2531138	-	233	147675112	ftsE	VC0395_A2373	-	cell division ATP-binding protein FtsE
2299	 49.83	0	2531160..2532323	-	387	147673157	ftsY	VC0395_A2374	-	signal recognition particle-docking protein FtsY
2300	 49.83	0	2532527..2533126	+	199	147674236	-	VC0395_A2375	-	hypothetical protein
2301	 44.57	0	2533123..2533389	+	88	147674467	-	VC0395_A2376	-	hypothetical protein
2302	 48.41	0	2533438..2534067	-	209	147675359	-	VC0395_A2377	-	hypothetical protein
2303	 27.01	-2	2534184..2534357	-	57	147673177	-	VC0395_A2378	-	hypothetical protein
2304	 43.09	-1	2534945..2535313	-	122	147673461	-	VC0395_A2379	-	hypothetical protein
2305	 45.45	0	2535518..2535847	+	109	147674059	-	VC0395_A2380	-	hypothetical protein
2306	 46.28	0	2536017..2536487	+	156	147674470	-	VC0395_A2381	-	DPS family protein
2307	 54.17	+1	2536540..2536659	+	39	147673473	-	VC0395_A2382	-	hypothetical protein
47.83	MEAN

3.88	STD DEV
