IslandPath Analysis: Vibrio cholerae O395

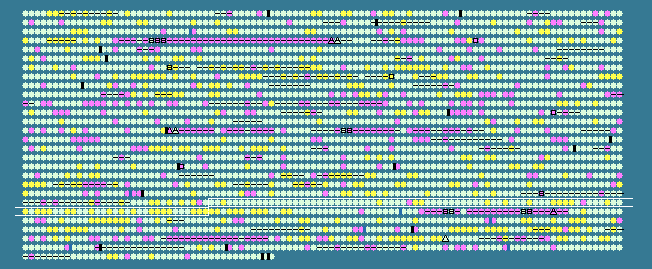

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.83 STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2132	 48.03	0	2336131..2336763	+	210	147674948	-	VC0395_A2191	-	cAMP-regulatory protein
2133	 47.98	0	2336842..2337633	-	263	147673169	-	VC0395_A2192	-	hypothetical protein
2134	 54.46	+1	2337776..2339233	-	485	147675138	aruD	VC0395_A2193	-	succinylglutamic semialdehyde dehydrogenase
2135	 48.73	0	2339243..2340301	-	352	147674325	-	VC0395_A2194	-	putative arginine/ornithine succinyltransferase
2136	 51.16	0	2340402..2341613	-	403	147673566	argD	VC0395_A2195	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
2137	 49.31	0	2342011..2342592	-	193	147673532	pabA	VC0395_A2196	-	para-aminobenzoate synthase component II
2138	 50.46	0	2342846..2344258	+	470	147675671	-	VC0395_A2197	-	hypothetical protein
2139	 50.23	0	2344335..2346944	-	869	147674583	-	VC0395_A2198	-	hypothetical protein
2140	 48.19	0	2347214..2347987	-	257	147673998	-	VC0395_A2199	-	hypothetical protein
2141	 48.82	0	2348144..2349241	-	365	147673103	trpS	VC0395_A2200	-	tryptophanyl-tRNA synthetase
2142	 50.22	0	2349288..2349968	-	226	147673858	gph	VC0395_A2201	-	phosphoglycolate phosphatase
2143	 51.05	0	2349988..2350698	-	236	147674230	rpe	VC0395_A2202	-	ribulose-phosphate 3-epimerase
2144	 48.32	0	2350789..2351622	-	277	147675035	dam	VC0395_A2203	-	DNA adenine methylase
2145	 48.44	0	2351692..2353167	-	491	147675481	-	VC0395_A2204	-	hypothetical protein
2146	 50.77	0	2353222..2354322	-	366	147673423	aroB	VC0395_A2205	-	3-dehydroquinate synthase
2147	 47.24	0	2354335..2354859	-	174	147675064	aroK	VC0395_A2206	-	shikimate kinase I
2148	 46.86	0	2355046..2356782	-	578	147673064	pilQ	VC0395_A2207	-	fimbrial assembly protein
2149	 49.13	0	2356787..2357305	-	172	147673518	-	VC0395_A2208	-	putative fimbrial assembly protein PilP
2150	 49.50	0	2357295..2357894	-	199	147674321	-	VC0395_A2209	-	putative fimbrial assembly protein PilO
2151	 47.21	0	2357878..2358468	-	196	147675508	-	VC0395_A2210	-	putative fimbrial assembly protein PilN
2152	 47.20	0	2358452..2359468	-	338	147673687	-	VC0395_A2211	-	putative fimbrial assembly protein PilM
2153	 49.56	0	2359581..2362088	+	835	147674290	mrcA	VC0395_A2212	-	penicillin-binding protein 1A
2154	 49.66	0	2362162..2363055	-	297	147674528	-	VC0395_A2213	-	DNA-binding transcriptional regulator OxyR
2155	 46.91	0	2363183..2363926	+	247	147675129	-	VC0395_A2214	-	peroxiredoxin family protein/glutaredoxin
2156	 51.20	0	2363998..2365452	+	484	147673312	-	VC0395_A2215	-	dihydrolipoamide dehydrogenase
2157	 46.21	0	2365678..2365941	+	87	147675165	-	VC0395_A2216	-	hypothetical protein
2158	 50.18	0	2366192..2367568	-	458	147673344	argH	VC0395_A2217	-	argininosuccinate lyase
2159	 50.95	0	2367801..2369015	-	404	147673961	argG	VC0395_A2218	-	argininosuccinate synthase
2160	 53.61	+1	2369091..2369879	-	262	147675582	argB	VC0395_A2219	-	acetylglutamate kinase
2161	 50.14	0	2369889..2370929	-	346	147675531	argC	VC0395_A2220	-	N-acetyl-gamma-glutamyl-phosphate reductase
2162	 50.31	0	2371046..2372182	+	378	147673951	argE	VC0395_A2221	-	acetylornithine deacetylase
2163	 50.49	0	2372356..2375019	+	887	147674866	ppc	VC0395_A2222	-	phosphoenolpyruvate carboxylase
2164	 47.41	0	2375378..2375917	+	179	147675097	-	VC0395_A2223	-	hypothetical protein
2165	 44.19	0	2375866..2375994	+	42	147673343	-	VC0395_A2224	-	hypothetical protein
2166	 52.92	+1	2376033..2376854	-	273	147673248	cysE	VC0395_A2225	-	serine acetyltransferase
2167	 51.79	+1	2376927..2377961	-	344	147673990	gpsA	VC0395_A2226	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
2168	 49.68	0	2378151..2378615	-	154	147674386	secB	VC0395_A2227	-	preprotein translocase subunit SecB
2169	 45.29	0	2378782..2379216	-	144	147675092	-	VC0395_A2228	-	hypothetical protein
2170	 48.67	0	2379346..2380395	-	349	147673524	yjeA	VC0395_A2229	-	lysyl-tRNA synthetase
2171	 49.97	0	2380624..2382432	+	602	147673130	frdA	VC0395_A2230	-	fumarate reductase flavoprotein subunit
2172	 49.67	0	2382432..2383190	+	252	147673358	frdB	VC0395_A2231	-	fumarate reductase iron-sulfur subunit
2173	 48.18	0	2383193..2383576	+	127	147674812	frdC	VC0395_A2232	-	fumarate reductase subunit C
2174	 50.41	0	2383587..2383949	+	120	147674506	frdD	VC0395_A2233	-	fumarate reductase subunit D
2175	 47.44	0	2384063..2384629	-	188	147673907	efp	VC0395_A2234	-	elongation factor P
2176	 48.88	0	2384662..2385684	+	340	147674649	-	VC0395_A2235	-	hypothetical protein
2177	 45.66	0	2385721..2386296	-	191	147673873	-	VC0395_A2236	-	hypothetical protein
2178	 52.11	+1	2386492..2388126	-	544	147675528	groEL	VC0395_A2237	-	chaperonin GroEL
2179	 44.67	0	2388180..2388470	-	96	147675387	groES	VC0395_A2238	-	co-chaperonin GroES
2180	 50.97	0	2388830..2389447	+	205	147674315	-	VC0395_A2239	-	hypothetical protein
2181	 52.22	+1	2389586..2389945	+	119	147674722	-	VC0395_A2240	-	hypothetical protein
2182	 49.66	0	2390072..2390512	-	146	147674718	-	VC0395_A2241	-	hypothetical protein
2183	 46.44	0	2390532..2390882	-	116	147675135	-	VC0395_A2242	-	putative 5-carboxymethyl-2-hydroxymuconate delta isomerase
2184	 50.75	0	2391102..2391899	+	265	147673165	tpiA	VC0395_A2243	-	triosephosphate isomerase
2185	 52.21	+1	2392017..2393399	+	460	147674936	-	VC0395_A2244	-	hypothetical protein
2186	 50.00	0	2393486..2394001	-	171	147674928	-	VC0395_A2245	-	ribonuclease activity regulator protein RraA
2187	 49.67	0	2394076..2394993	-	305	147675764	menA	VC0395_A2246	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
2188	 50.38	0	2395097..2396428	-	443	147673421	hslU	VC0395_A2247	-	ATP-dependent protease ATP-binding subunit
2189	 51.43	0	2396494..2397051	-	185	147674179	hslV	VC0395_A2248	-	ATP-dependent protease peptidase subunit
2190	 51.99	+1	2397188..2397739	-	183	147673934	-	VC0395_A2249	-	putative cell division protein FtsN
2191	 52.48	+1	2397911..2398918	-	335	147674191	-	VC0395_A2250	-	DNA-binding transcriptional regulator CytR
2192	 52.65	+1	2399224..2401428	-	734	147674045	priA	VC0395_A2251	-	primosome assembly protein PriA
2193	 47.03	0	2401683..2401901	+	72	147674481	rpmE	VC0395_A2252	-	50S ribosomal protein L31
2194	 38.89	-2	2401999..2402142	+	47	147674955	-	VC0395_A2253	-	hypothetical protein
2195	 51.25	0	2402209..2403486	+	425	147675732	-	VC0395_A2254	-	putative malate dehydrogenase
2196	 47.80	0	2403597..2403914	-	105	147674382	metJ	VC0395_A2255	-	transcriptional repressor protein MetJ
2197	 50.39	0	2404182..2405348	+	388	147674853	metB	VC0395_A2256	-	cystathionine gamma-synthase
2198	 52.16	+1	2405361..2407772	+	803	147675299	metL	VC0395_A2257	-	bifunctional aspartate kinase II/homoserine dehydrogenase II
2199	 50.38	0	2408032..2408946	+	304	147673318	metF	VC0395_A2258	-	5,10-methylenetetrahydrofolate reductase
2200	 46.91	0	2409009..2409251	-	80	147675567	-	VC0395_A2259	-	hypothetical protein
2201	 52.88	+1	2409572..2410579	+	335	147674937	glpX	VC0395_A2260	-	fructose 1,6-bisphosphatase II
2202	 49.30	0	2410656..2411651	-	331	147673340	pfkA	VC0395_A2261	-	6-phosphofructokinase
2203	 51.49	0	2411881..2412789	-	302	147673451	fieF	VC0395_A2262	-	ferrous iron efflux protein F
2204	 51.39	0	2412987..2413490	-	167	147674434	cpxP	VC0395_A2263	-	periplasmic repressor CpxP
2205	 51.53	0	2413678..2414364	+	228	147675245	cpxR	VC0395_A2264	-	transcriptional regulator CpxR
2206	 51.11	0	2414364..2415758	+	464	147673577	cpxA	VC0395_A2265	-	two-component sensor protein
2207	 51.27	0	2415840..2416508	+	222	147674162	sodA	VC0395_A2266	-	superoxide dismutase, Mn
2208	 51.78	+1	2416561..2417037	+	158	147674422	-	VC0395_A2267	-	rRNA methylase
2209	 52.26	+1	2417071..2417556	-	161	147675670	fxsA	VC0395_A2268	-	FxsA
2210	 49.20	0	2417648..2418586	-	312	147673258	-	VC0395_A2269	-	GGDEF family protein
2211	 48.21	0	2418831..2420282	+	483	147675095	aspA	VC0395_A2270	-	aspartate ammonia-lyase
2212	 52.45	+1	2420410..2421717	+	435	162329619	dcuA	VC0395_A2271	-	anaerobic C4-dicarboxylate transporter
2213	 51.24	0	2422111..2423601	+	496	147674664	-	VC0395_A2272	-	type II secretory pathway protein
2214	 49.95	0	2423598..2425751	+	717	147674082	-	VC0395_A2273	-	pullulanase
2215	 52.02	+1	2425869..2427671	+	600	147673525	dipZ	VC0395_A2274	-	thiol:disulfide interchange protein precursor
2216	 50.00	0	2427844..2428473	+	209	147675562	-	VC0395_A2275	-	LuxR family transcriptional regulator
2217	 52.00	+1	2428572..2430317	-	581	147674945	-	VC0395_A2276	-	potassium/proton antiporter
2218	 45.69	0	2430696..2430962	+	88	147673948	-	VC0395_A2277	-	hypothetical protein
2219	 51.94	+1	2430973..2432676	+	567	147673339	-	VC0395_A2278	-	putative sodium/solute symporter
2220	 47.92	0	2432774..2433445	-	223	147674537	-	VC0395_A2279	-	hypothetical protein
2221	 46.23	0	2433747..2434436	+	229	147674080	gmk	VC0395_A2280	-	guanylate kinase
2222	 52.01	+1	2434544..2434816	+	90	147673462	rpoZ	VC0395_A2281	-	DNA-directed RNA polymerase subunit omega
2223	 52.36	+1	2434848..2436965	+	705	147675346	spoT	VC0395_A2282	-	bifunctional (p)ppGpp synthetase II/ guanosine-3',5'-bis pyrophosphate 3'-pyrophosphohydrolase
2224	 53.29	+1	2437084..2439162	+	692	147674684	recG	VC0395_A2283	-	ATP-dependent DNA helicase RecG
2225	 51.32	0	2439507..2440907	+	466	147673726	-	VC0395_A2284	-	xanthine/uracil permease family protein
2226	 50.57	0	2440932..2442248	-	438	147673138	envZ	VC0395_A2285	-	osmolarity sensor protein
2227	 51.18	0	2442317..2443039	-	240	147673571	ompR	VC0395_A2286	-	osmolarity response regulator
2228	 48.77	0	2443177..2443662	-	161	147675721	greB	VC0395_A2287	-	transcription elongation factor GreB
2229	 53.92	+1	2443907..2446228	+	773	147674924	-	VC0395_A2288	-	hypothetical protein
2230	 54.22	+1	2446320..2446817	-	165	147674208	-	VC0395_A2289	-	hypothetical protein
2231	 54.28	+1	2446952..2447758	-	268	147674258	bioH	VC0395_A2290	-	bioH protein
47.83	MEAN

3.88	STD DEV
